Hoop Pile Guide (Poly Roller)

PH-H10RP — PH-H18RP

PLEASE SELECT ITEM BELOW

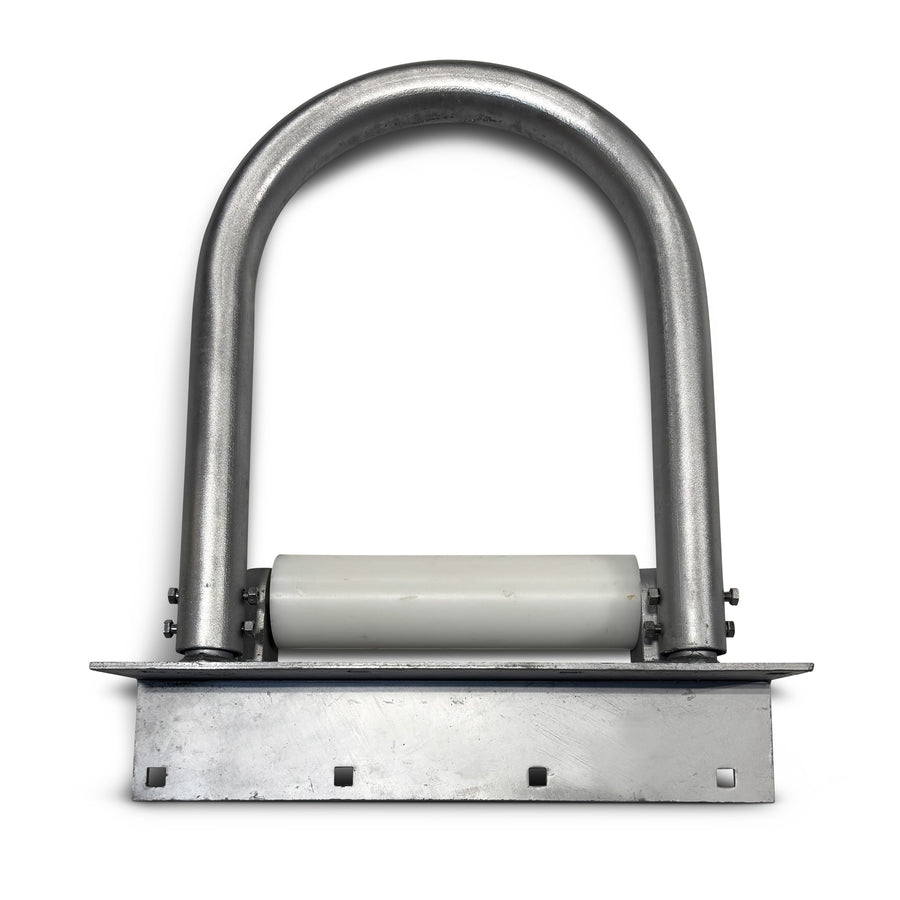

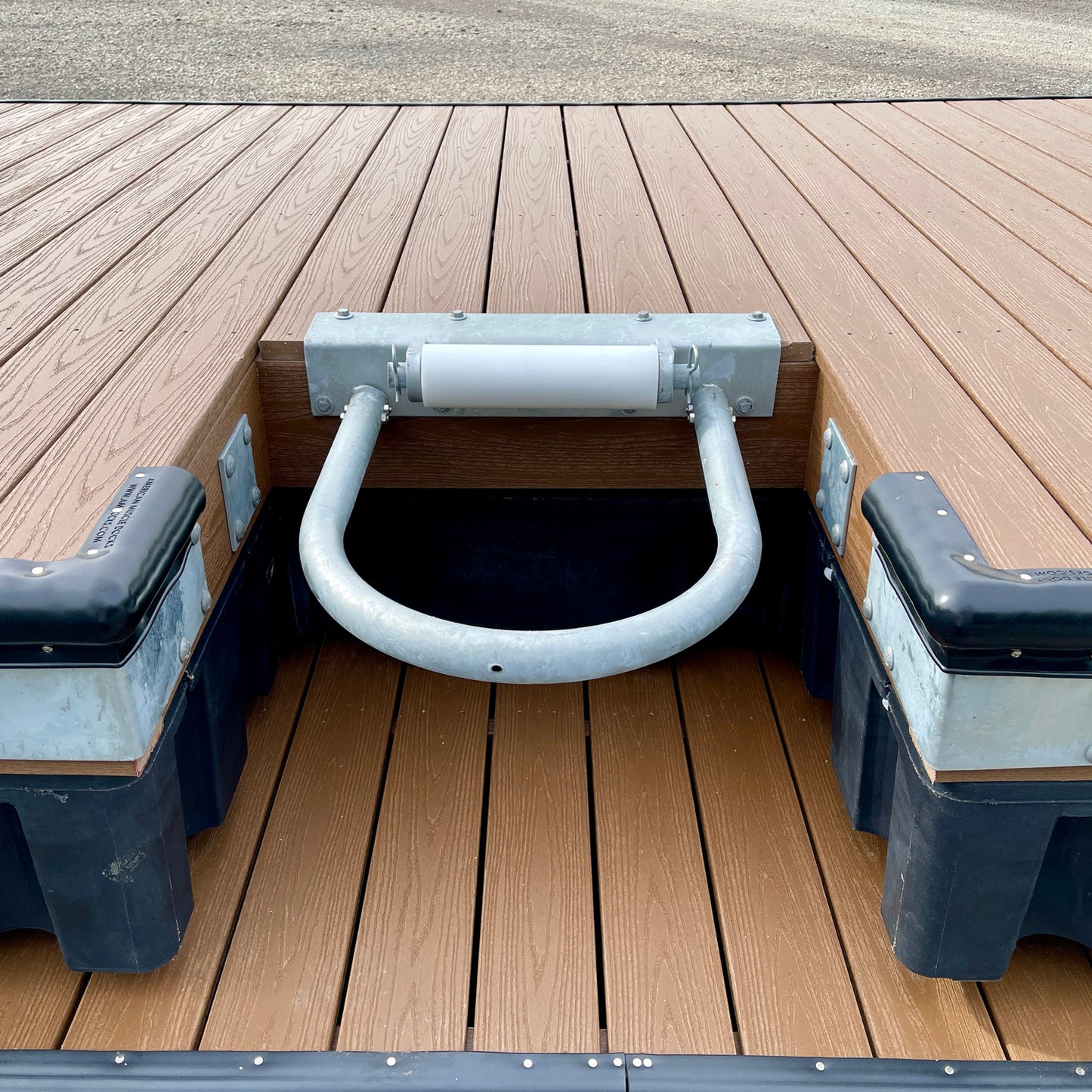

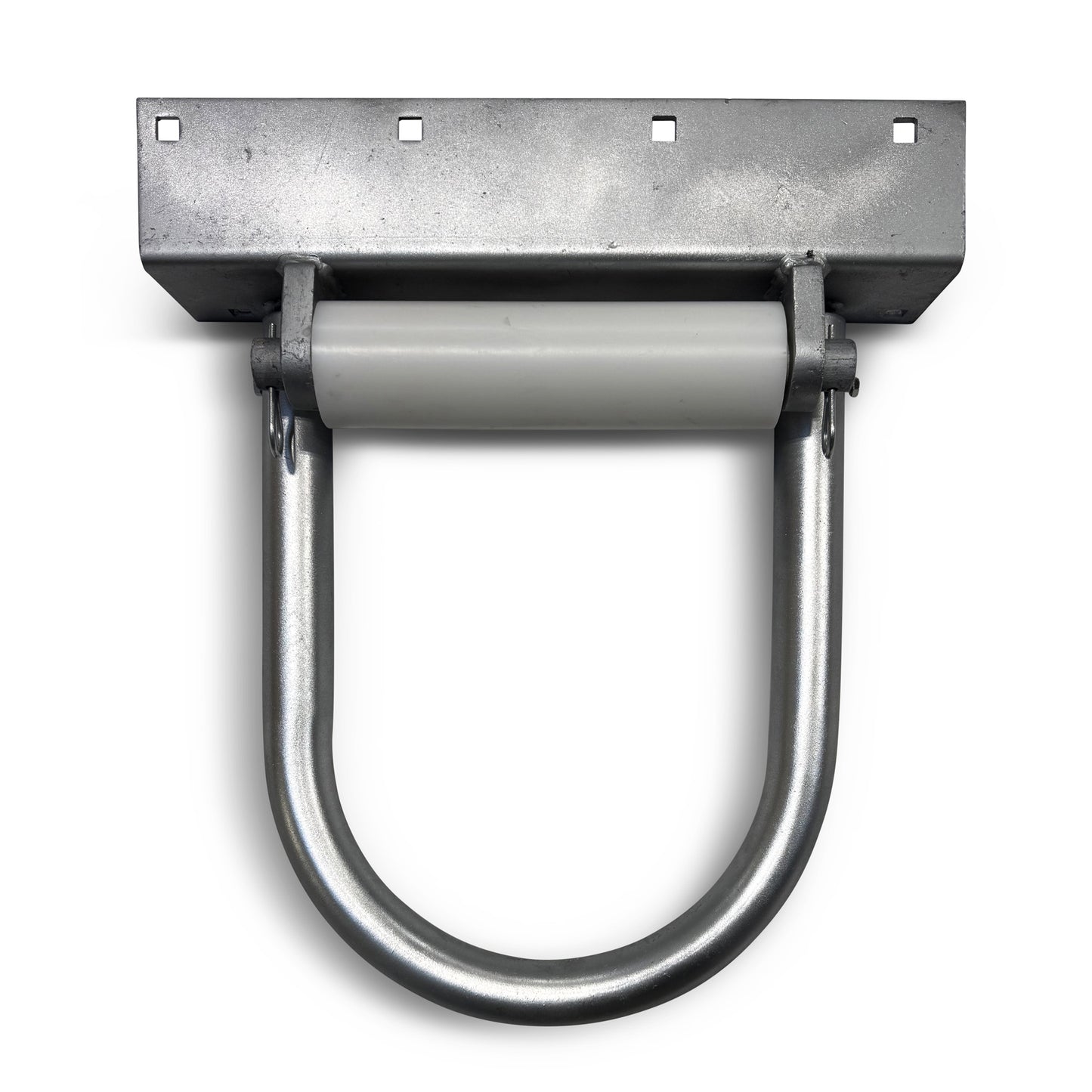

External hoop pile guide with a poly roller. Available size options range from 10" to 18" sizes. Price changes depending on the size selected.

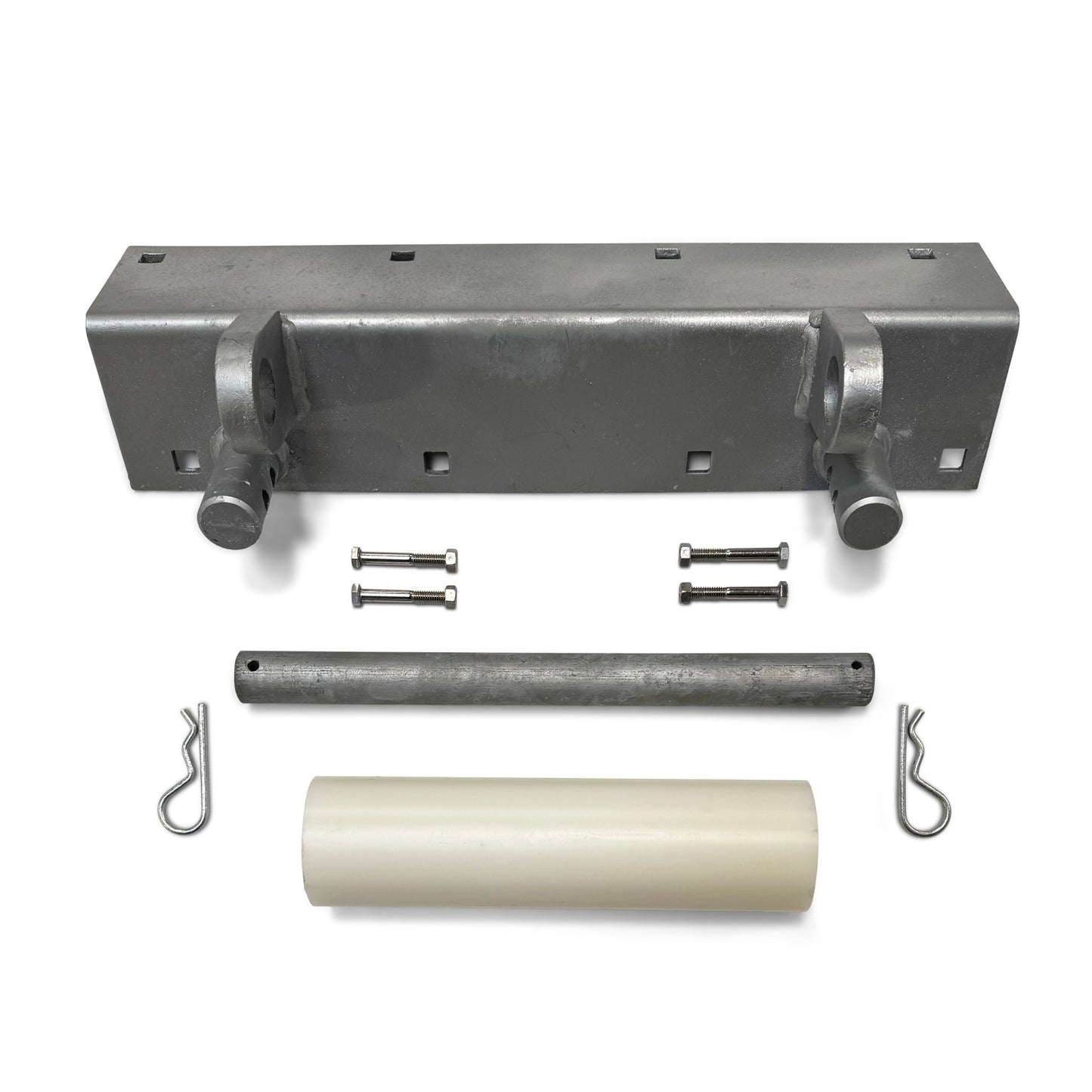

1/4” galvanized steel bracket 4”x4” inside bend
Schedule 40 pipe 1 1/2” diameter
Stub shafts welded to bracket are 1 3/8” thick by 3” long ( the hoops attached to these shafts with (4) 5/16” stainless bolts with locking nuts
1 1/4” solid steel shaft is used inside the poly roller (this shaft goes through 3/4” openings in tabs welded to the bracket)
Bracket mounts to dock with 1/2” fasteners

PH-H10RP - 10 inch - 36 LBS
PH-H12RP - 12 inch - 39 LBS
PH-H14RP - 14 inch - 42 LBS
PH-H16RP - 16 inch - 43 LBS
PH-H18RP - 18 inch - 46 LBS

$176.50

PH-H10RP
