Hoop Pile Guide (Rubber Roller)

PH-H10R — PH-H18R

PLEASE SELECT ITEM BELOW

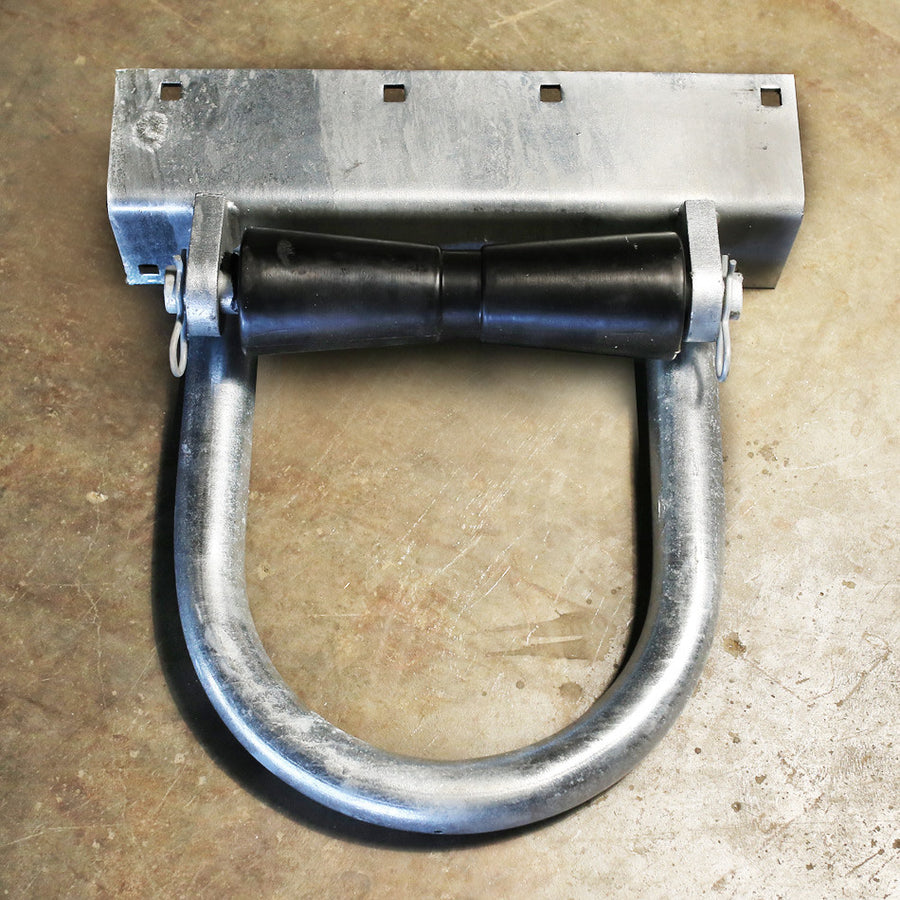

External hoop pile guide with a rubber roller. Available size options range from 10" to 18" sizes. Price changes depending on the size selected.

1/4” galvanized steel bracket 4”x4” inside bend
Schedule 40 pipe 1 1/2” diameter
Stub shafts welded to bracket are 1 3/8” thick by 3” long ( the hoops attached to these shafts with (4) 5/16” stainless bolts with locking nuts
1 1/4” solid steel shaft is used inside the poly roller (this shaft goes through openings in the 3/4” tabs welded to the bracket)
Bracket mounts to dock with 1/2” fasteners
Roller shaft measures 15” x 1.25” Solid

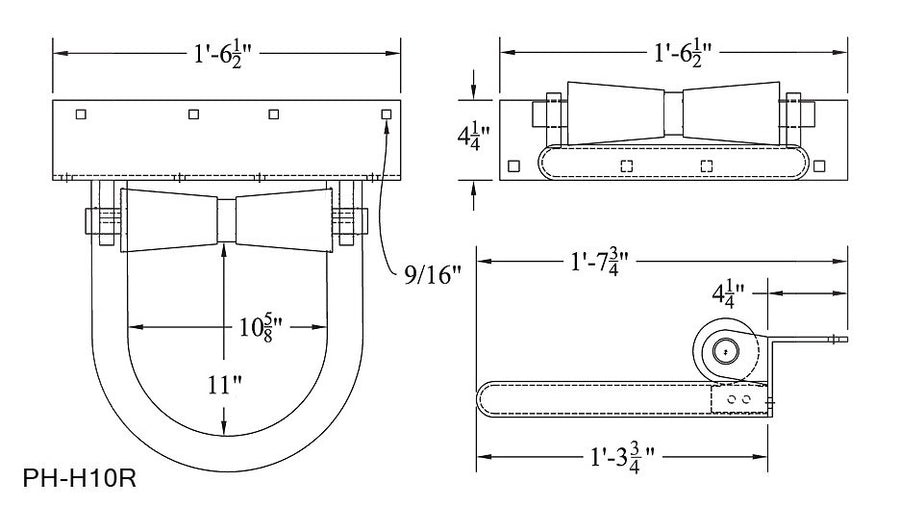

PH-H10R - 10 inch - 32 LBS

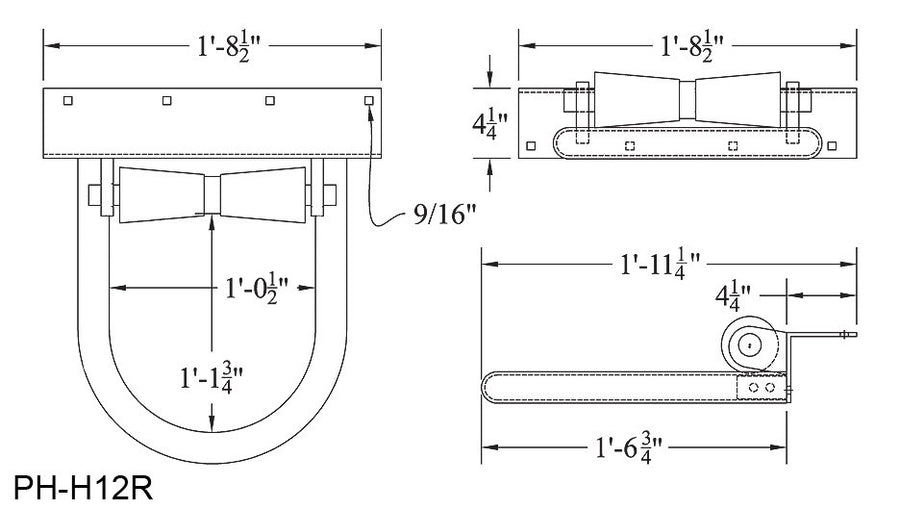

PH-H12R - 12 inch - 35 LBS

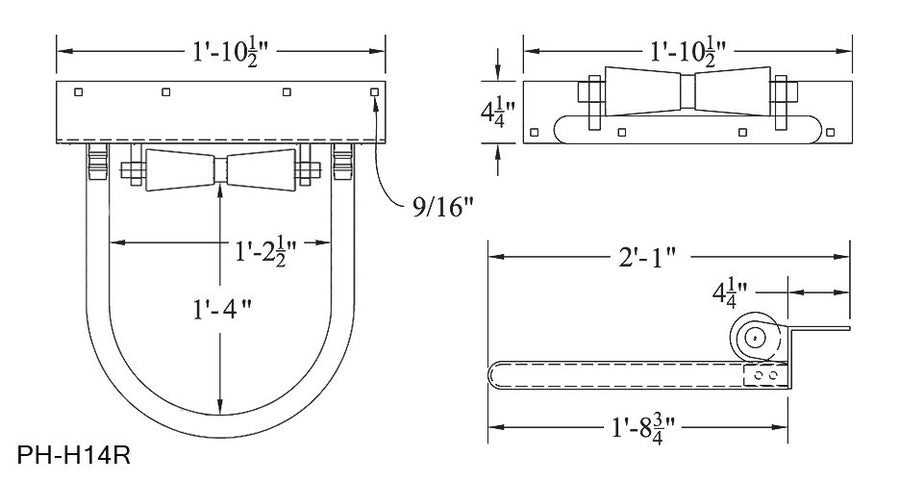

PH-H14R - 14 inch - 36 LBS

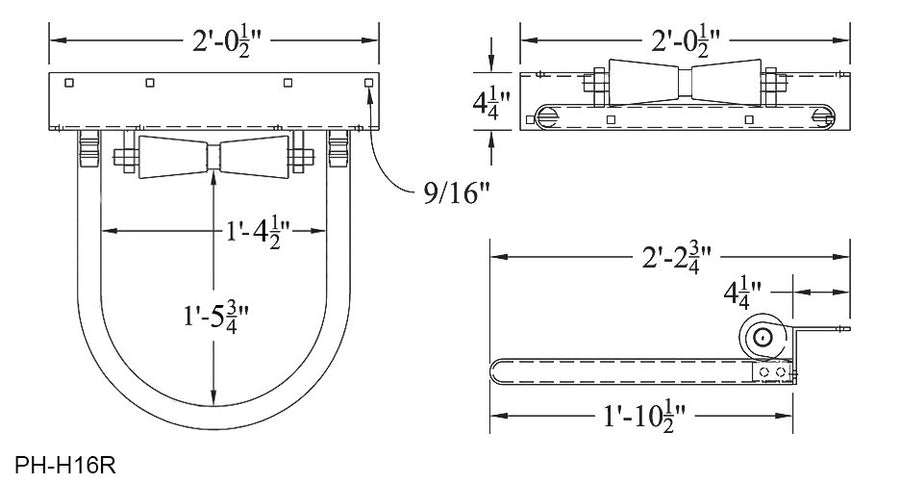

PH-H16R - 16 inch - 39 LBS

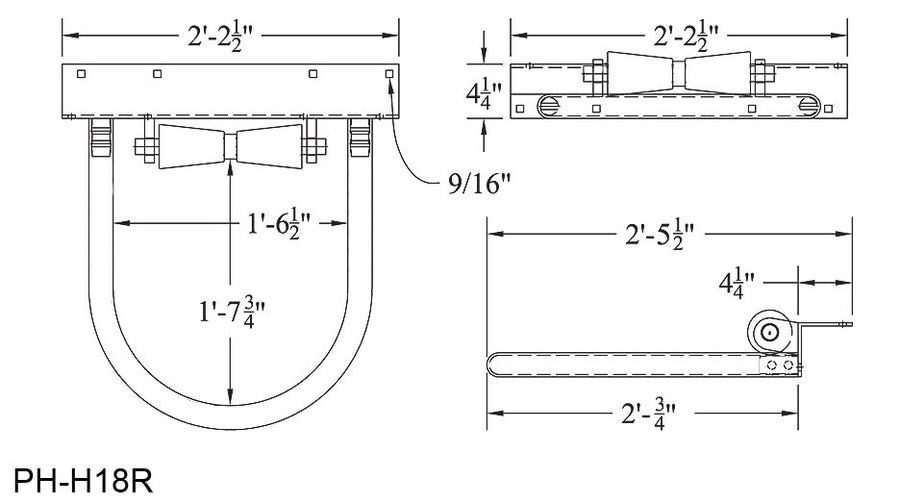

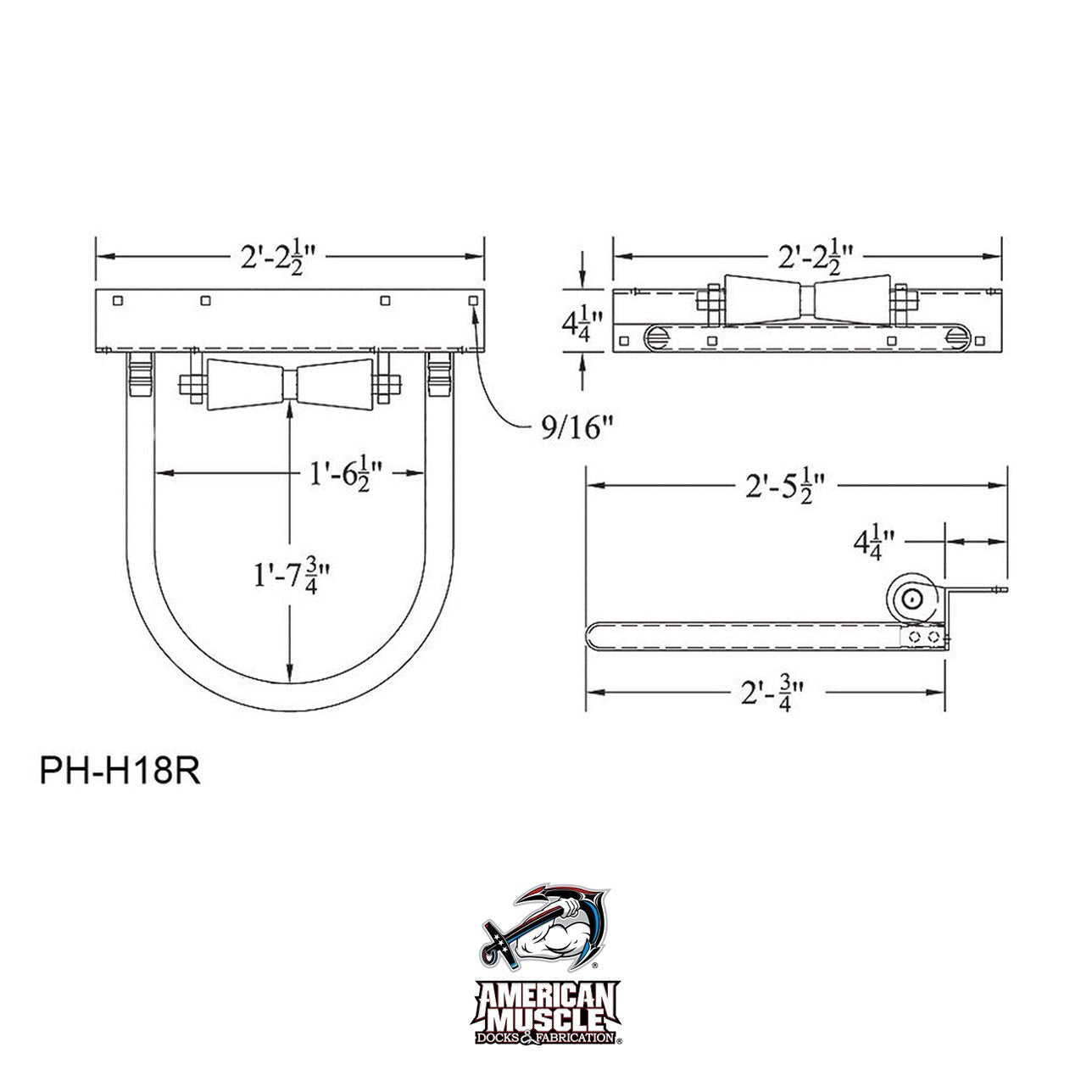

PH-H18R - 18 inch - 41 LBS

$171.50

PH-H10R

NOTE: Price changes with options selected above.

» Important Shipping Information

Dimensions and drawings are for illustration purposes only. Some actual dimensions may vary slightly from what is shown.
