Standard Wood Dock Hardware

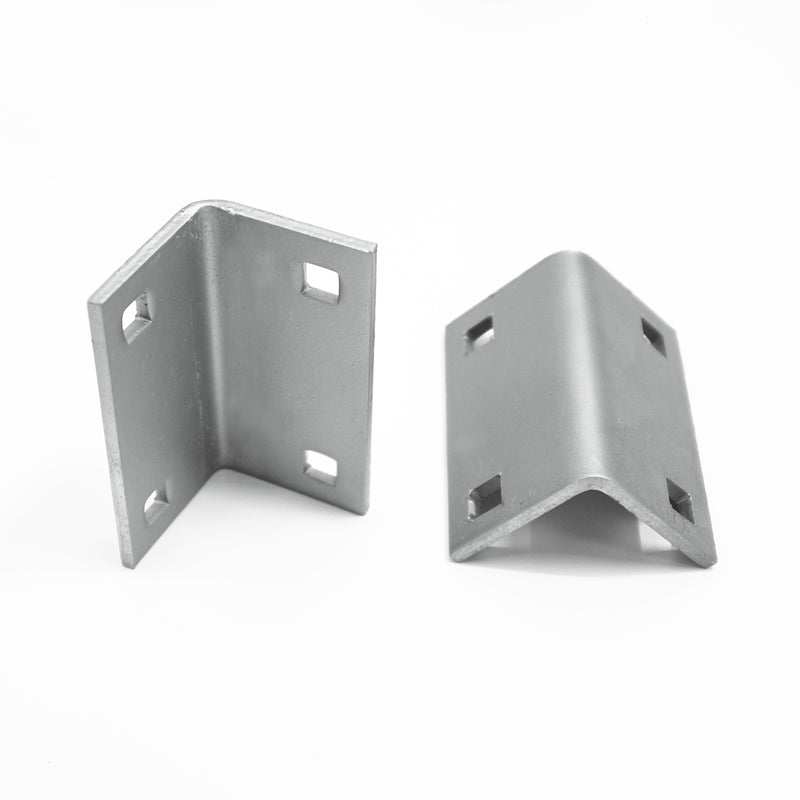

Angle

$4.50

WD-A

Used for attaching cross stringers to side stringers. Two Washer Plates (WD-W) are used with each Angle to sandwich lumber and provide a solid connection. Weight: 1.75 LBS Sold individually.

Angle - 8 inch

$9.50

WD-A8

This 8" tall Angle is perfect to use with larger framing. Each 8" Angle is backed by two 8" high Washer Plates (WD-W8). Weight: 3.50 LBS Sold individually.

Angle - 6" x 6"

$13.00

WD-A66

These longer Angles use two Backup Plates (WD-B) with each Angle to sandwich lumber and provide a solid connection. Weight: 1.75 LBS Sold individually.

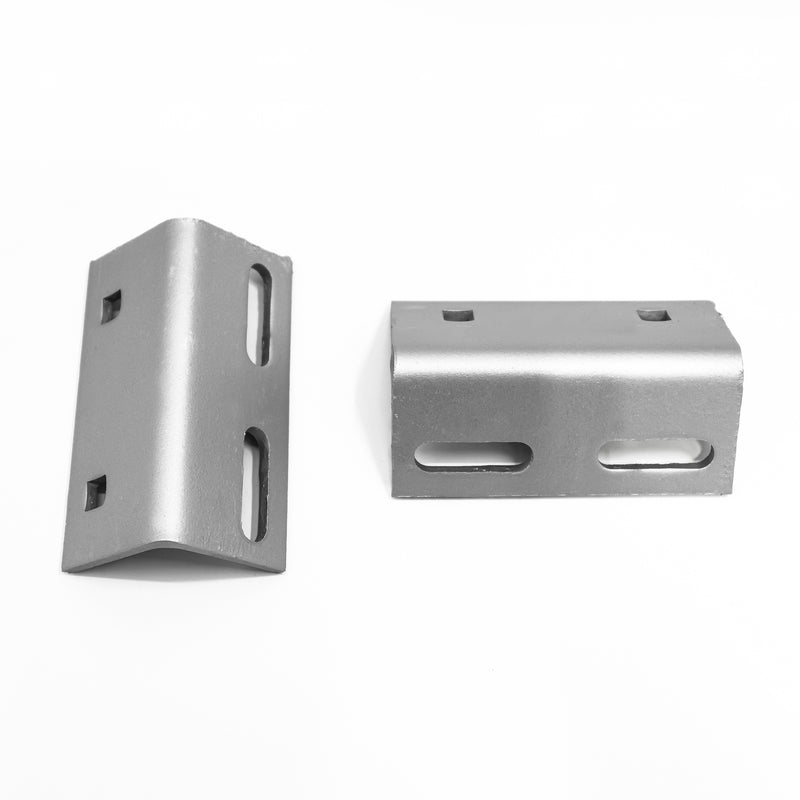

The Cleat Angle is bolted to the inside of the side stringer and uses a WD-W washer plate as a back up. The cleat is bolted through the deck and through the cleat angle. The slotted holes allow for various size cleats to be used. This cleat assembly ties your...

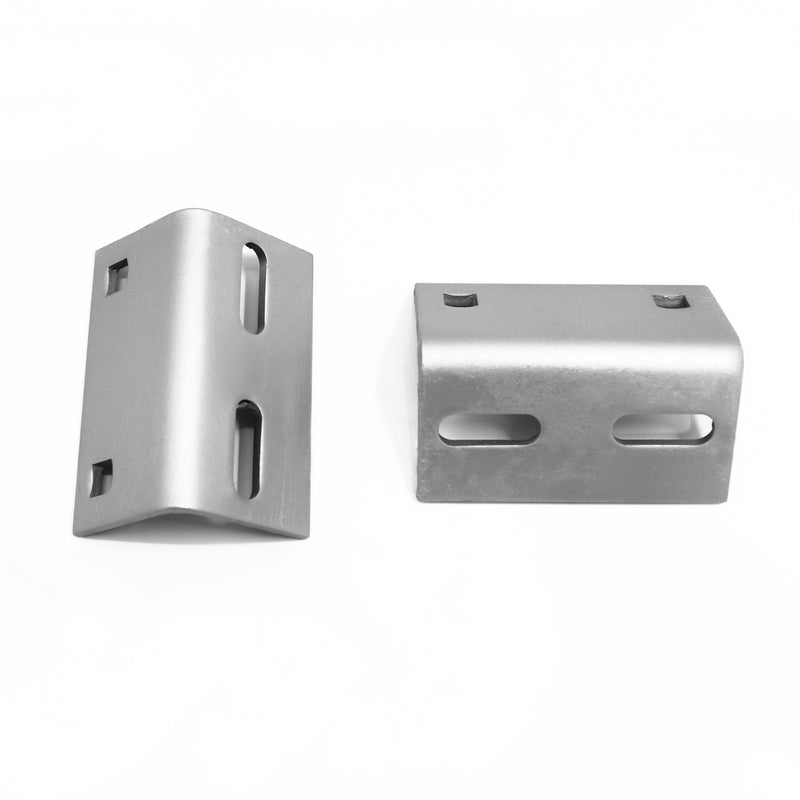

Cleat Angle XL

$7.50

WD-CAXL

The XL Cleat Angle is for cleats larger than 12". The Cleat Angle is bolted to the inside of the side stringer and uses a WD-W washer plate as a back up. The cleat is bolted through the deck and through the cleat angle. The slotted holes allow for various...

Cleat Flat Washer

$4.50

WD-CAFW

The Cleat Flat Washer provides additional holding strength in areas a cleat angle cannot be used. Weight: 1.5 LBS Sold individually.

Chain Retainer

$12.50

WD-CR

These are typically bolted to the side of the dock or to a cross stringer and can accommodate up to 1/2" chain to hold the dock in place. Use a WD-B as a backup plate. There is also an XL Chain Retainer available. Weight: 3.75 LBS Sold individually.

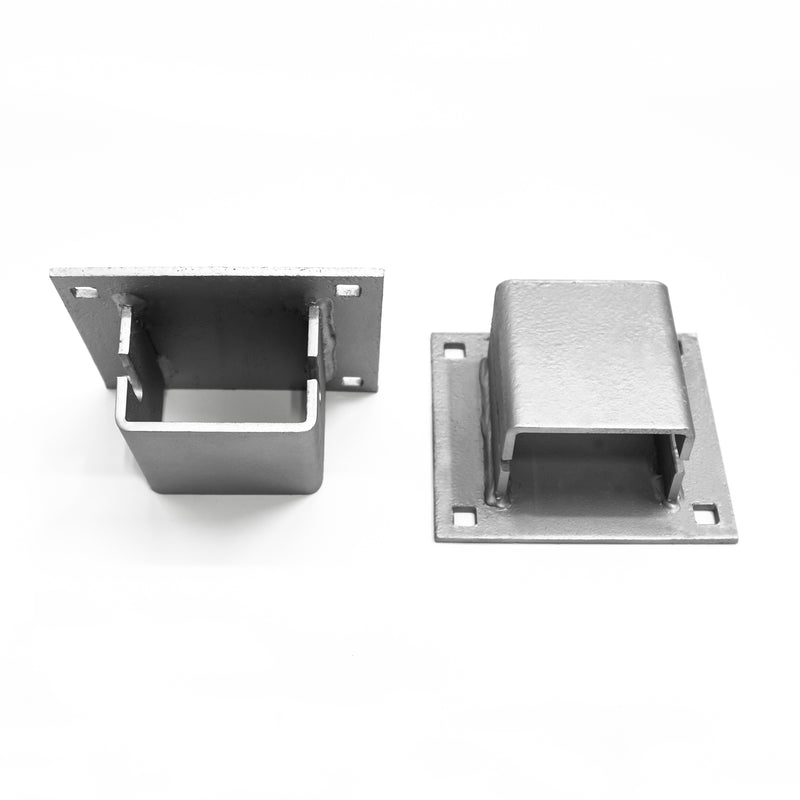

Chain Retainer XL

$23.50

WD-PHCR

A larger version of the Chain Retainer (WD-CR) that can accommodate up to 1/2" chain. Measures 5" tall with 9/16" slots. Inside dimensions are 4.25" x 3". These are typically bolted to the side of the dock and uses chain to hold the dock in place. Uses a WD-PHCRB as...

Chain Retainer XL Backup Plate

$11.00

WD-PHCRB

Backup Plate for Chain Retainer XL, measuring 7.75" x 7.25". Weight: 4.10 LBS Sold individually.

Backup Plate

$4.50

WD-B

5" x 5" x 1/4" Backup Plates are used to backup Single T Female (WD-TF) and Single T Male (WD-TM) connectors. The backup is also used for backing Chain Retainers (WD-CR). Weight: 1.75 LBS Sold individually.

Outside Corner End

$17.00

WD-E

Outside Corner Ends are used at the end of docks, ends of finger docks, swim floats corners, or when plain ends are needed. Weight: 7 LBS Sold individually.

Outside Corner Female

$28.50

WD-F

Has two 2.5" tabs and is used with Outside Corner Male (WD-M) or Single T Male (WD-TM) connectors. The tabs are pre-drilled to accomodate a 3/4" pin or bolt. Weight: 8.5 LBS Sold individually.

Outside Corner Male

$25.00

WD-M

Has one 1.75" tab and is used with Outside Corner Female (WD-F) or Single T Female (WD-TF) connectors. The tabs are pre-drilled to accommodate a 3/4" pin or bolt. Weight: 8 LBS Sold individually.

Outside Corner Female - Special

$49.00

WD-SF

The Special Outside Corner Female allows a finger dock to be added at a corner of a main dock. Use with standard (WD-M) Outside Corner Males. Weight: 11.75 LBS Sold individually.

Outside Corner Male - Special

$42.00

WD-SM

The Special Outside Corner Male allows a finger dock to be added at a corner of a main dock. Use with standard (WD-F) Outside Corner Females. Weight: 11.75 LBS Sold individually.

Outside Corner Male/Female - Special

$42.00

WD-SMF

The Special Outside Corner Male/Female allows a finger dock to be added at a corner of a main dock. Use with standard (WD-F) Outside Corner Females and (WD-M) Outside Corner Males. Weight: 11.75 LBS Sold individually.

Inside Corner

$18.50

WD-IN

Inside Corners with corner gussets are used as an inside backup for the Outside Corner hardware. The corner gusset provides strength and helps reduce racking. Weight: 6 LBS Sold individually.

Elongated Pipe Holder End - 3 inch

from $9.00

WD-PHE3E — WD-PHE3EB

Pipe Holder End is designed to allow more fluctuation in water level. Weight: 10.00 LBS - Elongated 3" Pipe Holder End Weight: 4.00 LBS - Backup Plate Use with 1-1/2" or 2" Pipe Sold individually.

Elongated Pipe Holder Side - 3 inch

from $11.00

WD-PHE3S — WD-PHE3SB

Pipe Holder End is designed to allow more fluctuation in water level. Weight: 10.00 LBS - Elongated 3" Pipe Holder Side Weight: 4.00 LBS - Backup Plate Use with 1-1/2" or 2" Pipe Sold individually.

Finger Deck Stabilizer 135

$14.50

WD-FDS135

Using our WD-FDS45 and WD-FDS135, you can construct a finger deck stabilizer. This assembly helps stabilize narrow fingers by spreading the load onto the main dock. The WD-B Backup Plates are used as backups to the T (not included). Weight: 4.5 LBS Sold individually.

Finger Deck Stabilizer 45

$25.50

WD-FDS45

Using our WD-FDS45 and WD-FDS135, you can construct a finger deck stabilizer. This assembly helps stabilize narrow fingers by spreading the load onto the main dock. The WD-B Backup Plates are used as backups to the T (not included). Weight: 8.52 LBS Sold individually.

Finger Pipe Stabilizer

$124.50

WD-FPS

Our pipe type finger dock stabilizer is an easy way to stabilize your finger dock. We use two WD-TF Single T Females, two WD-B Backup Plates, and 2" galvanized pipe. An F-PIN34 and Clip connect each end (included). Weight: 24 LBS

Inside Corner Pipe Holder

$36.50

WD-INPH3

Can be used to replace a standard inside corner. Has a 3" I.D. pipe welded into the corner providing internal anchoring. Accommodates 2" pipe. Weight: 17 LBS Sold individually.

Pipe Holder 2 inch - Set Screws (Short)

from $4.50

WD-PH27 — WD-B

Securely attaches your 1.5" pipe upright to the dock framing. Use these and our handrail fittings and 1.5" pipe to make handrail. Pipe sold separately. Weight: 3.00 LBS - Pipe Holder with Set Screws Weight: 1.00 LBS - Backup Plate WD-B Use with 1-1/2" Pipe Sold individually.

Standard Wood Dock Hardware

View the Hardware Guide
