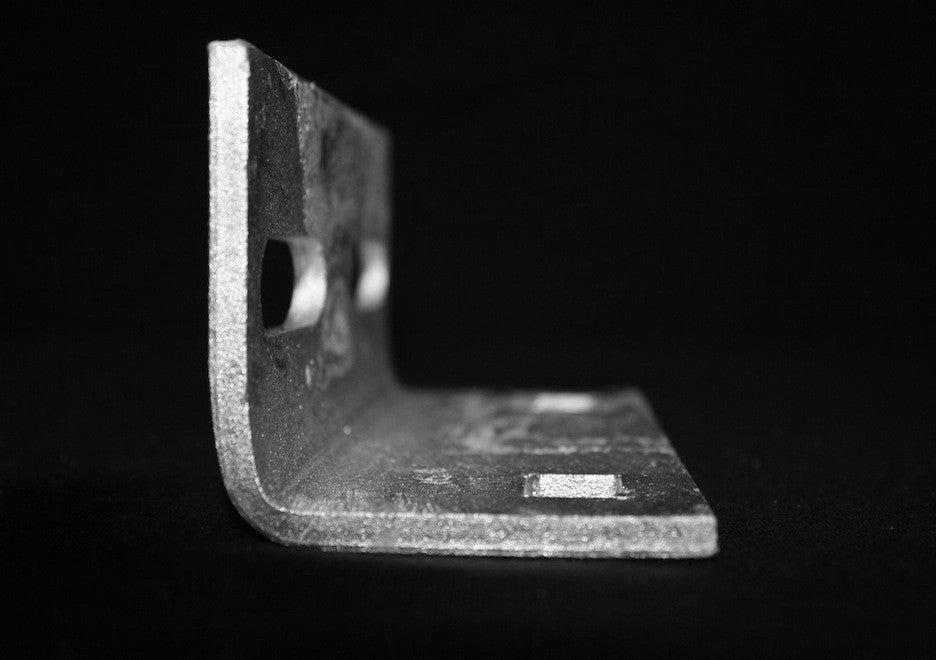

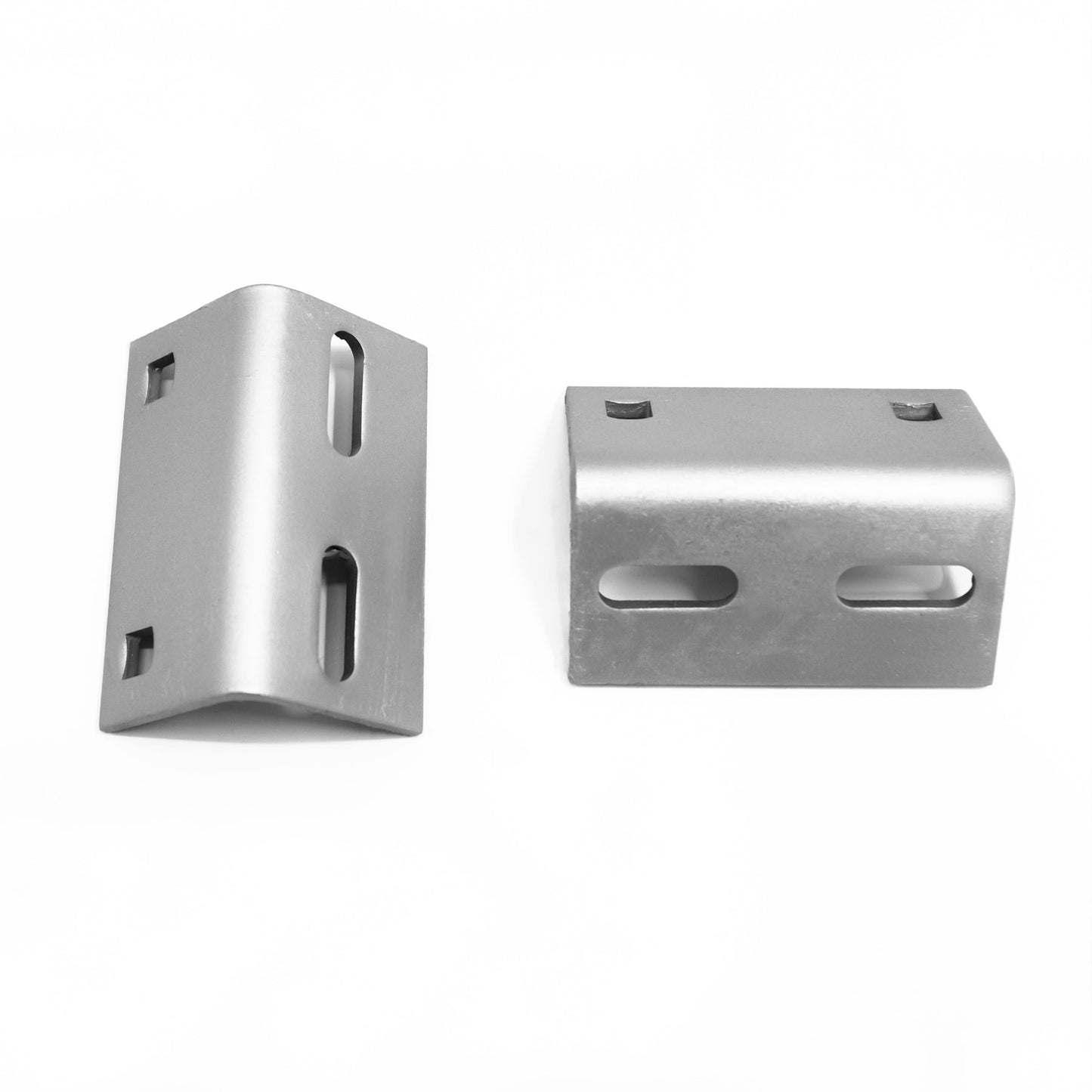

This heavy-duty XL Cleat Angle bracket is specifically designed for securely mounting dock cleats larger than 12 inches. Bolted to the inside of the side stringer and reinforced with a WD-W Washer Plate (used as a backup), this assembly ensures your large cleat is firmly attached to the dock's framing, not just the deck board. The slotted holes accommodate a range of cleat sizes. We also offer a standard Cleat Angle for smaller cleats.

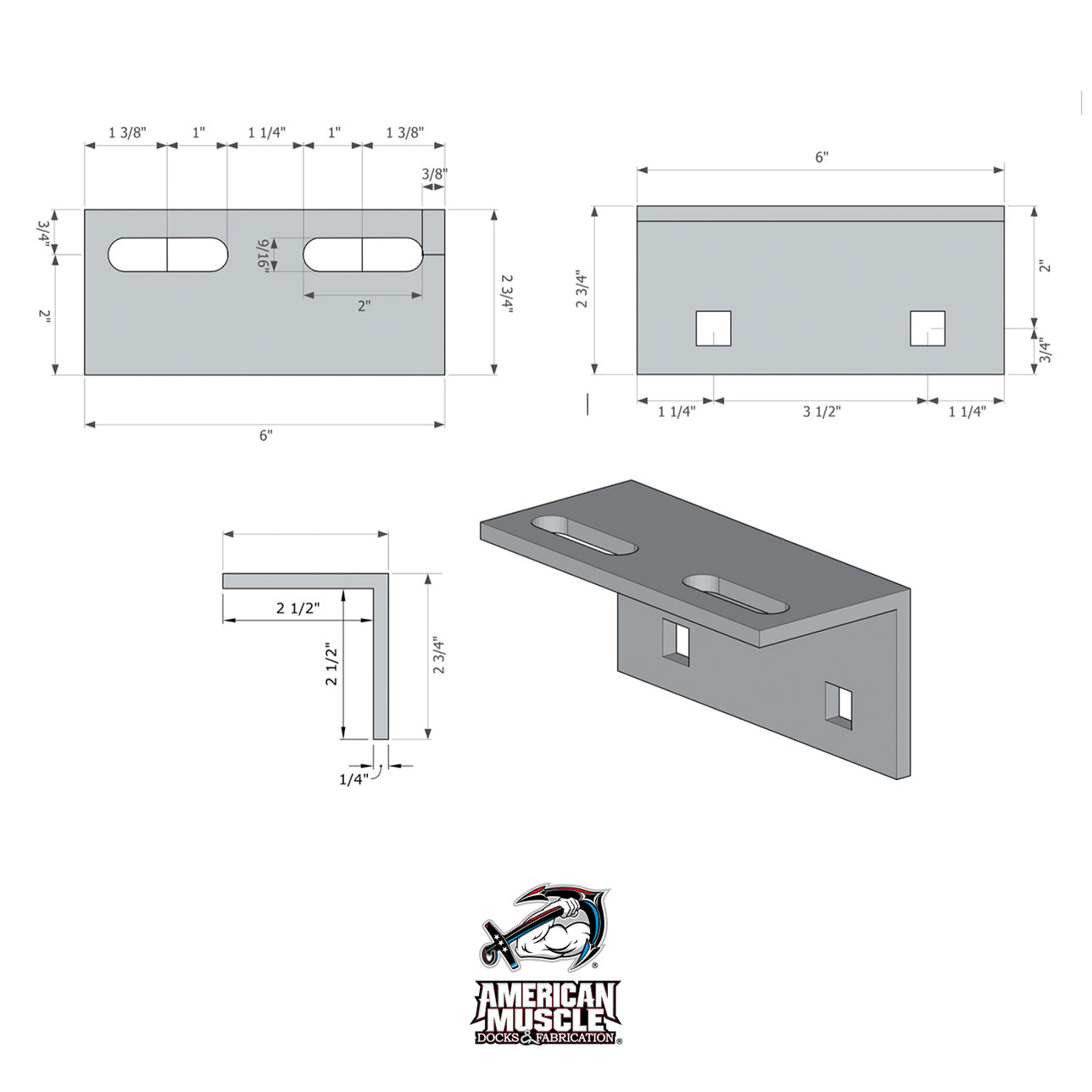

• ¼” Thick Plate
• 2(x) 9/16” Square Mounting Bolt Holes
• 2(x) 9/16”x 2” Slotted Holes
• 2.75”x 2.75” Legs
• 6” Wide
• Galvanized Coated

Weighs 2 lbs

Sold Individually
