Pile Guides 12 Products
Keep your dock securely anchored with our expertly crafted hoop and square Pile Guides collection. Engineered for stability and adaptability, these guides ensure smooth transitions with the changing tides. You can count on American Muscle Docks for innovative solutions that safeguard your dock against the elements. Explore our collection and anchor your waterfront with confidence!
from
$29.50
PH-STF6 — PH-LPR
These hoops are specially made to easily attach to our steel truss frames. Includes two brackets and one hoop. Available size options range from 6" to 18" sizes. Price changes depending on the size selected. Optional Roller Assembly or Rub Plate available. PH-STF6 - 6 inch - 11 LBSPH-STF8 - 8 inch - 13 LBSPH-STF10 -...
from
$29.50
PH-L6 — PH-LPR
Light Duty Hoops are an alternate option when our Heavy Duty Hoops are not needed. Hoops are made from 1-1/2" schedule 40 galvanized pipe connected to a "T" bracket with stainless steel fasteners (both included). Hoop is very durable and is designed to be easily removed while bracket stays on...
from
$107.50
PH-H10 — PH-H18
External hoop pile guide with NO rollers. Available size options range from 10" to 18" sizes. Price changes depending on the size selected. PH-H10 - 10 inch - 20 LBS PH-H12 - 12 inch - 23 LBS PH-H14 - 14 inch - 25 LBS PH-H16 - 16 inch - 26 LBS...
from
$171.50
PH-H10R — PH-H18R
External hoop pile guide with a rubber roller. Available size options range from 10" to 18" sizes. Price changes depending on the size selected. 1/4” galvanized steel bracket 4”x4” inside bend Schedule 40 pipe 1 1/2” diameter Stub shafts welded to bracket are 1 3/8” thick by 3” long (...
from
$176.50

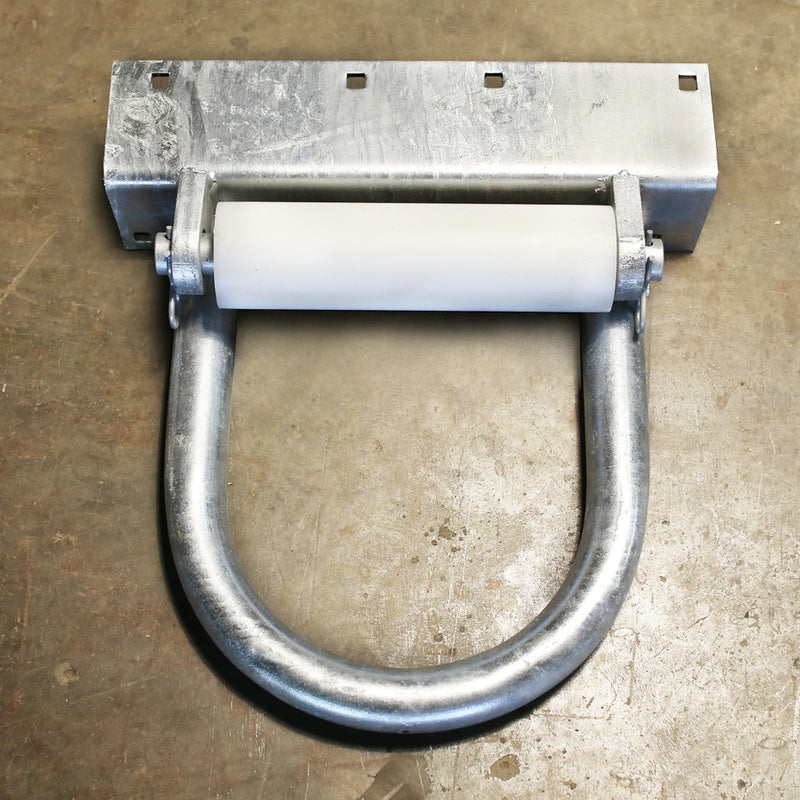

PH-H10RP — PH-H18RP
External hoop pile guide with a poly roller. Available size options range from 10" to 18" sizes. Price changes depending on the size selected. 1/4” galvanized steel bracket 4”x4” inside bend Schedule 40 pipe 1 1/2” diameter Stub shafts welded to bracket are 1 3/8” thick by 3” long (...
from
$352.00

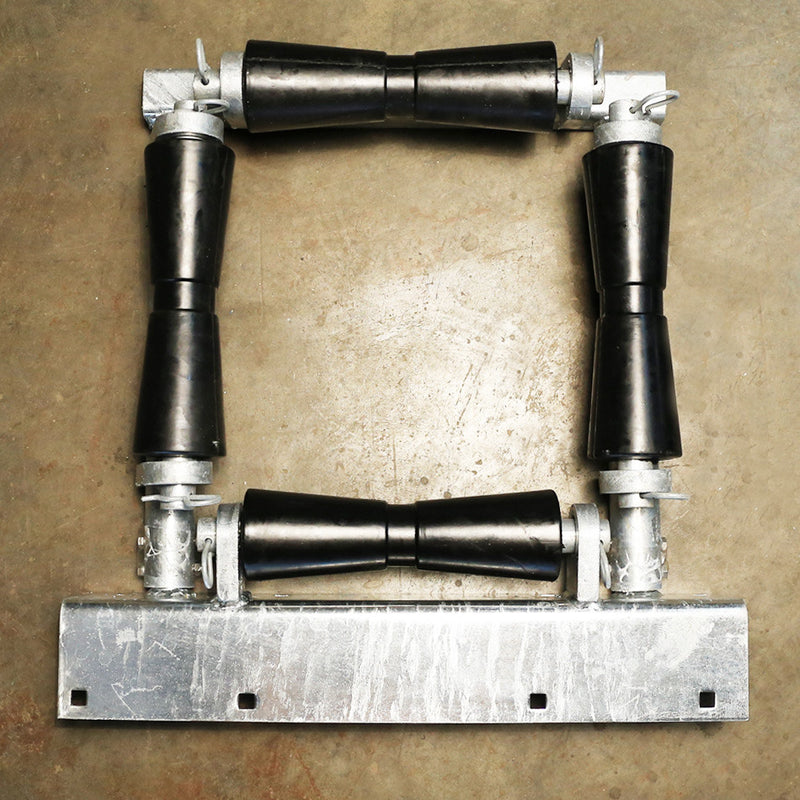

PH-HSR14 — PH-HSR16
External square hoop pile guide that includes FOUR rubber rollers. Available in sizes 14" and 16". Price changes depending on size selected. PH-HSR14 - 14 inch - 81 LBS - Use with 12" Piling PH-HSR16 - 16 inch - 84 LBS - Use with 14" Piling
from
$394.00

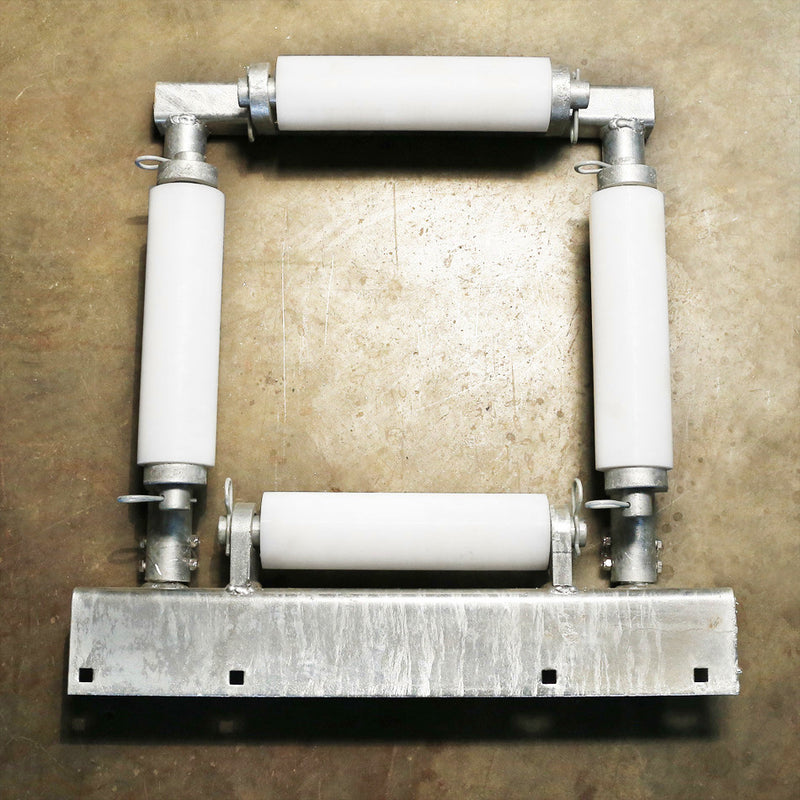

PH-HSRP14 — PH-HSRP16
External square hoop pile guide that includes FOUR poly rollers. Available in sizes 14" and 16". Price changes depending on size selected. PH-HSRP14 - 14 inch - 78 LBS - Use with 12" Piling PH-HSRP16 - 16 inch - 81 LBS - Use with 14" Piling
from
$131.50

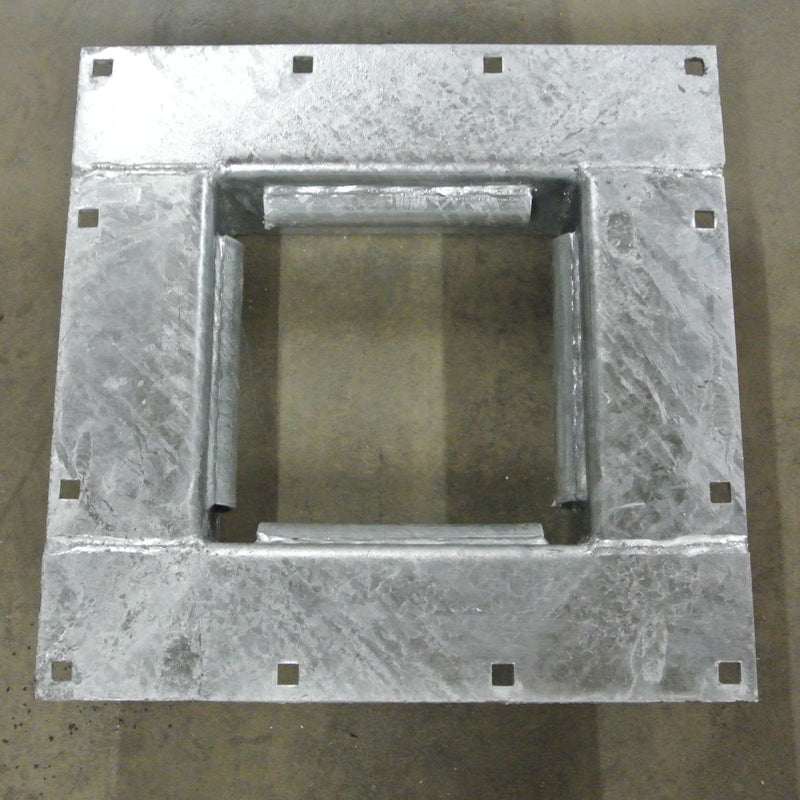

PH-S10 — PH-S18
Internal square pile guide with NO rollers. Available size options range from 10" and 18" heights. Price changes depending on the size selected. PH-S10 - 10 inch - 30 LBS PH-S12 - 12 inch - 33 LBS PH-S14 - 14 inch - 43 LBS PH-S16 - 16 inch - 50...
from
$372.00

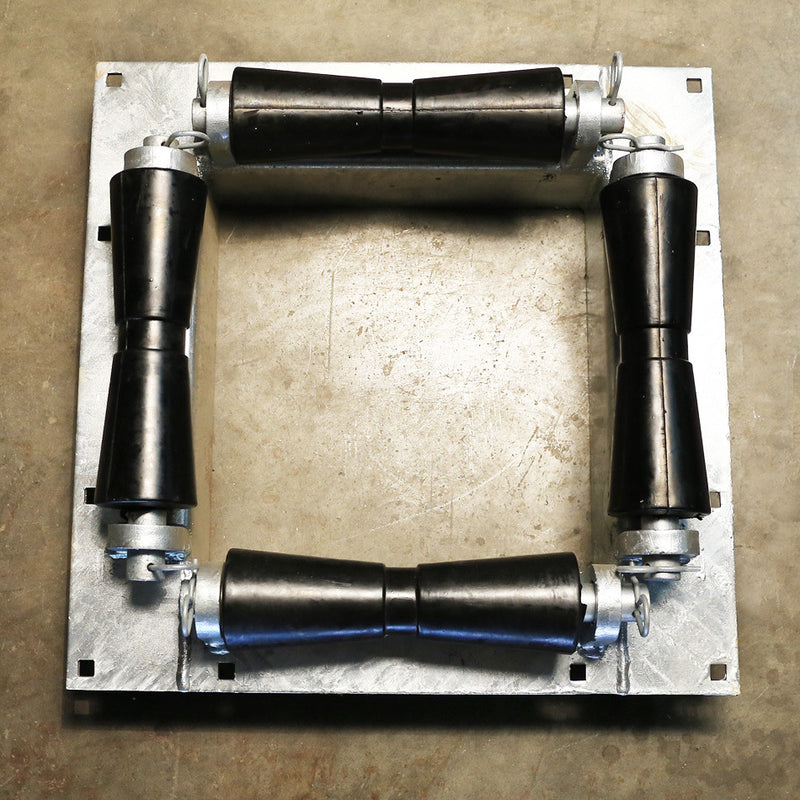

PH-SR14 — PH-SR18
Internal square pile guide that includes FOUR rubber rollers. Available size options range from 14" and 18" heights. Price changes depending on the size selected. PH-SR14 - 14 inch - 90 LBS PH-SR18 - 18 inch - 95 LBS
from
$397.00

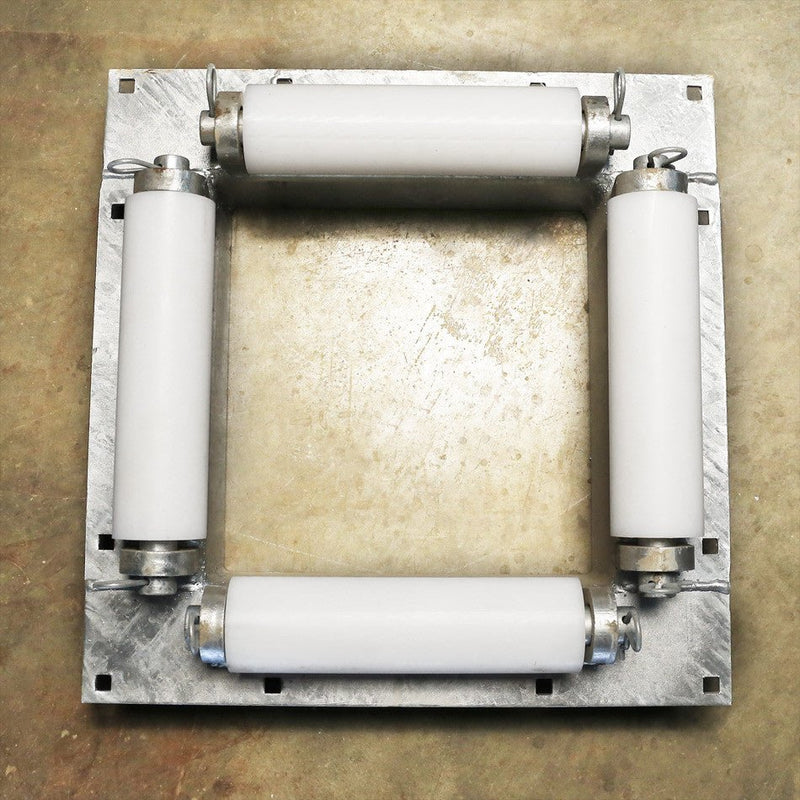

PH-SRP12 — PH-SRP16
Internal square pile guide that includes FOUR poly rollers. Available size options range from 14" and 18" heights. Price changes depending on the size selected. PH-SRP12 - 12 inch - 87 LBS PH-SRP16 - 16 inch - 95 LBS
from
$1.50

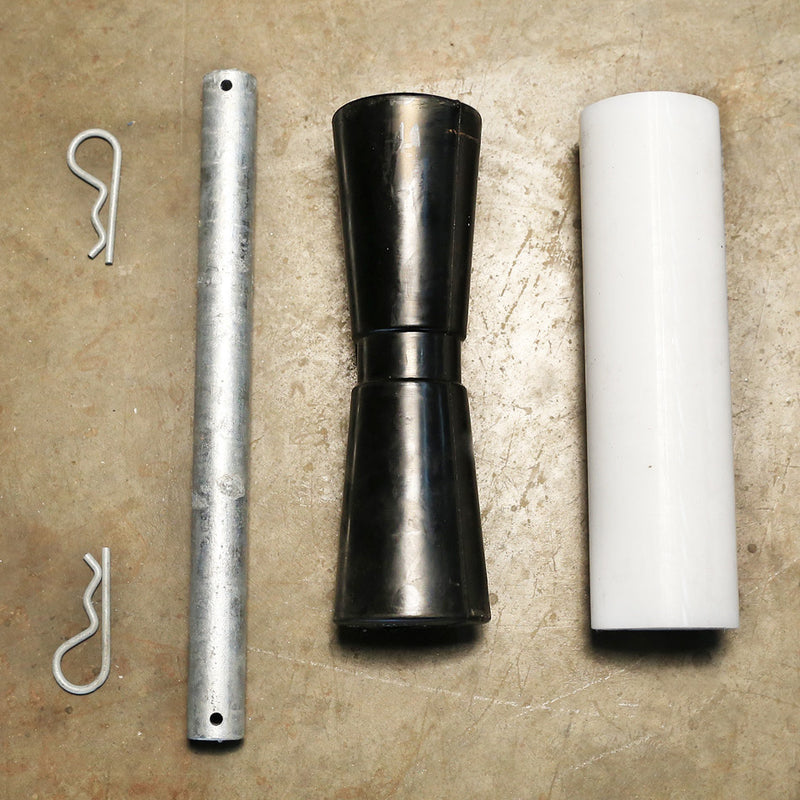

PH-BRR — F-HC16
Replacement parts for Pile Guides PH-BRR - 11 1/2" x 3 1/2" Rubber Roller - 3.5 LBS PH-WRP - 11 5/8" x 3 1/8" UHMW Roller - 2.5 LBS PH-RS - HDG Roller Shaft - 5.5 LBS F-HC16 - Galvanized Hitch Clip - 0.75 LBSPH-RS HDG Roller Shaft measures 15”...
