Light Duty Hoops
Light Duty Hoops

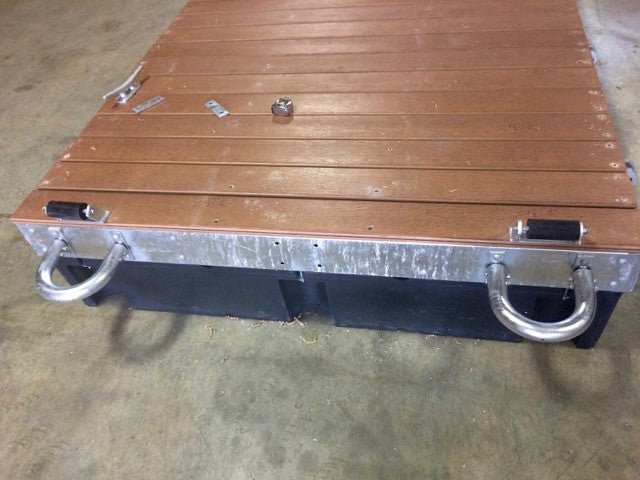

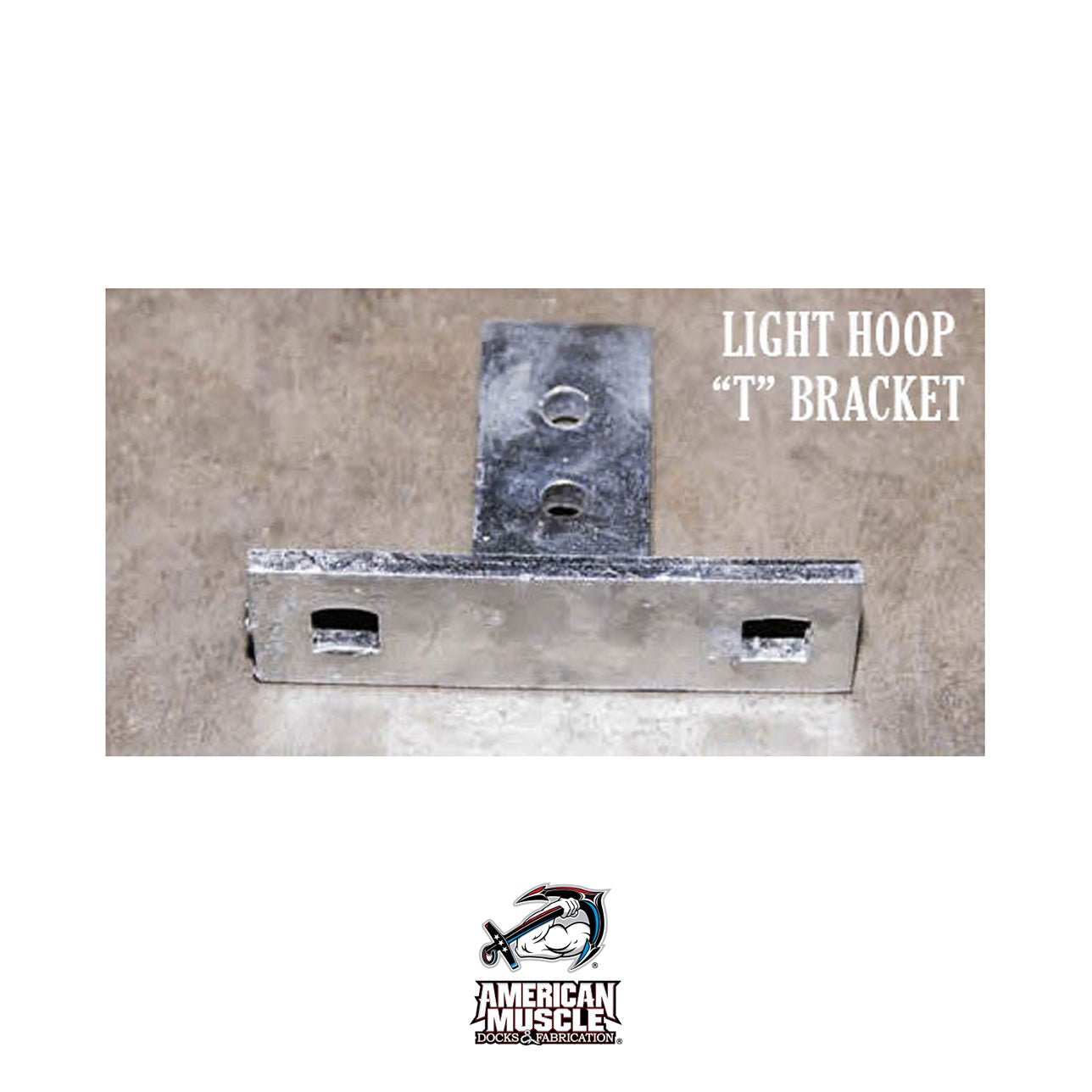

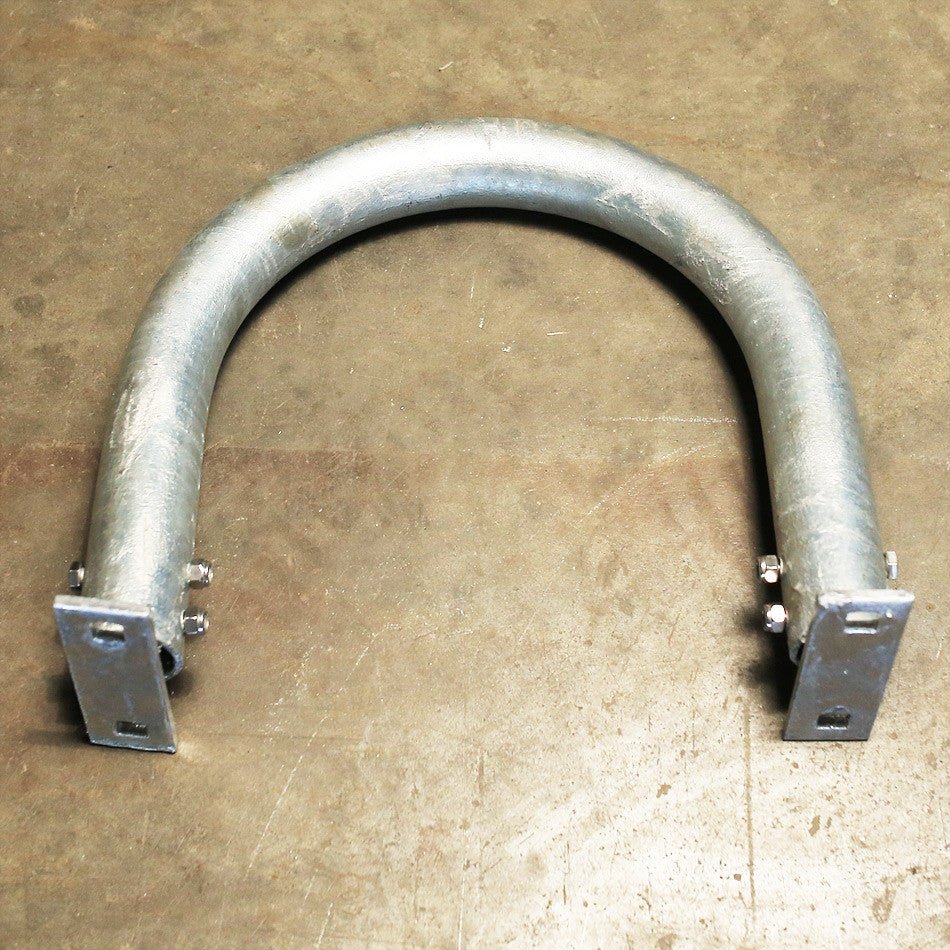

Our light-duty hoops offer a robust yet easily manageable solution for dock configurations where heavy-duty options aren't necessary. Each hoop is constructed from 1-1/2" Schedule 40 galvanized steel pipe and securely attaches to a "T" bracket using included stainless steel fasteners. The innovative design allows for quick hoop removal while the bracket stays in place, streamlining dock installation and seasonal adjustments.
- ¼”x 1.5” x 5” Mounting Plates
- 9/16” Square Mounting Bolt Holes, 3.5” Centers
- 1.5” Sch40 Pipe Hoop Material
- Galvanized Coated
Intended for use on ponds or lakes with calmer waters.

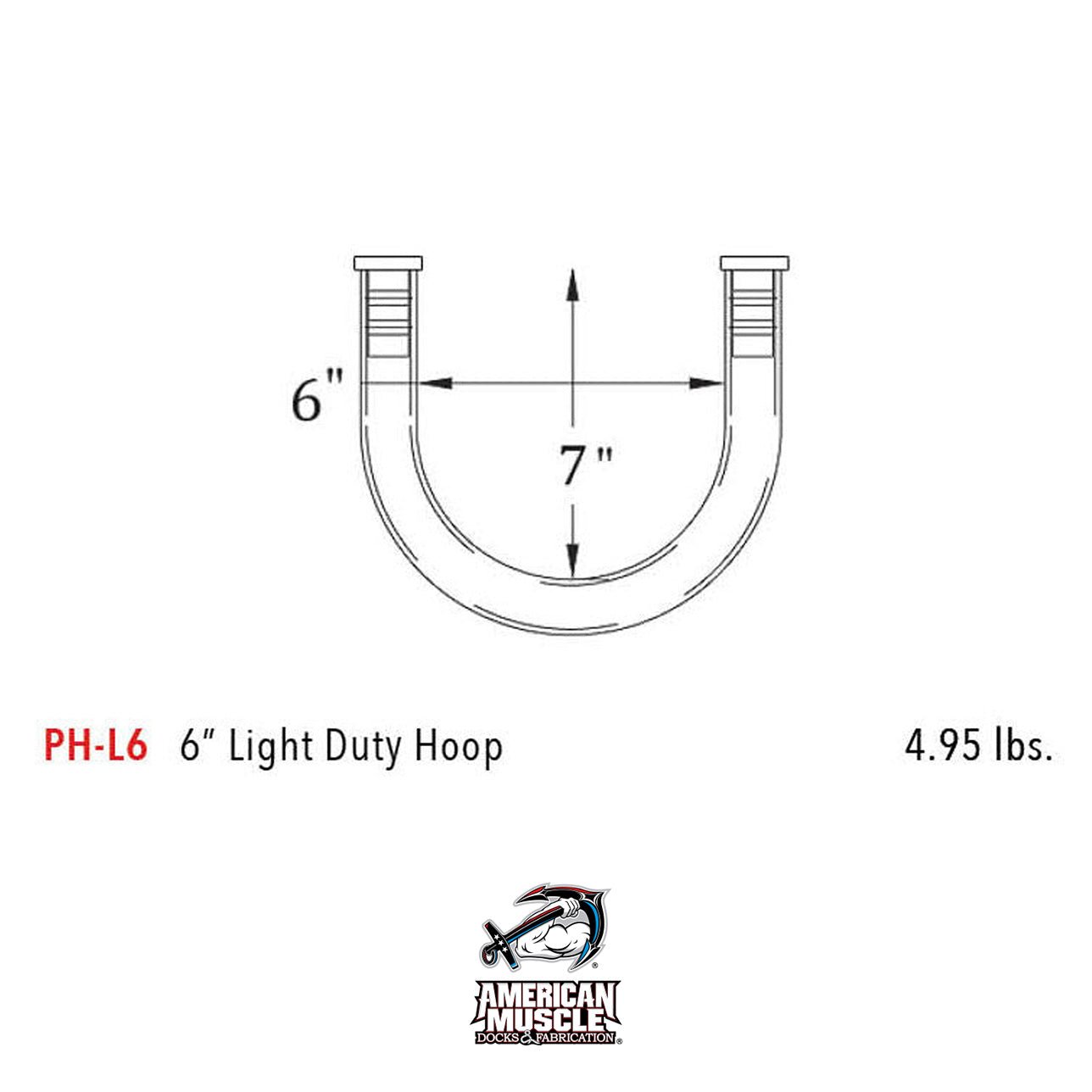

PH-L6 - Recommended for 4” Pile - 4.95 LBS

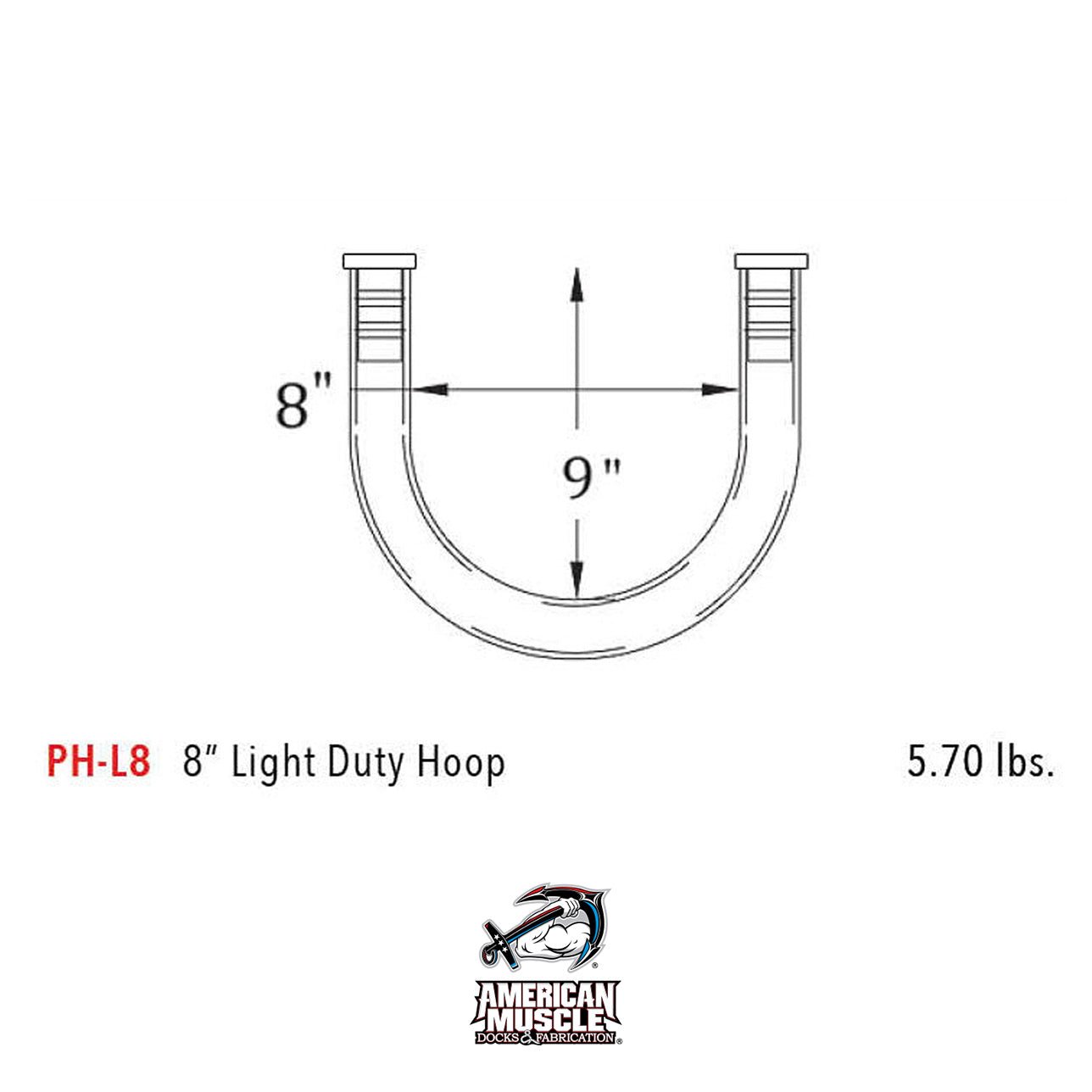

PH-L8 - Recommended for 6” Pile - 5.70 LBS

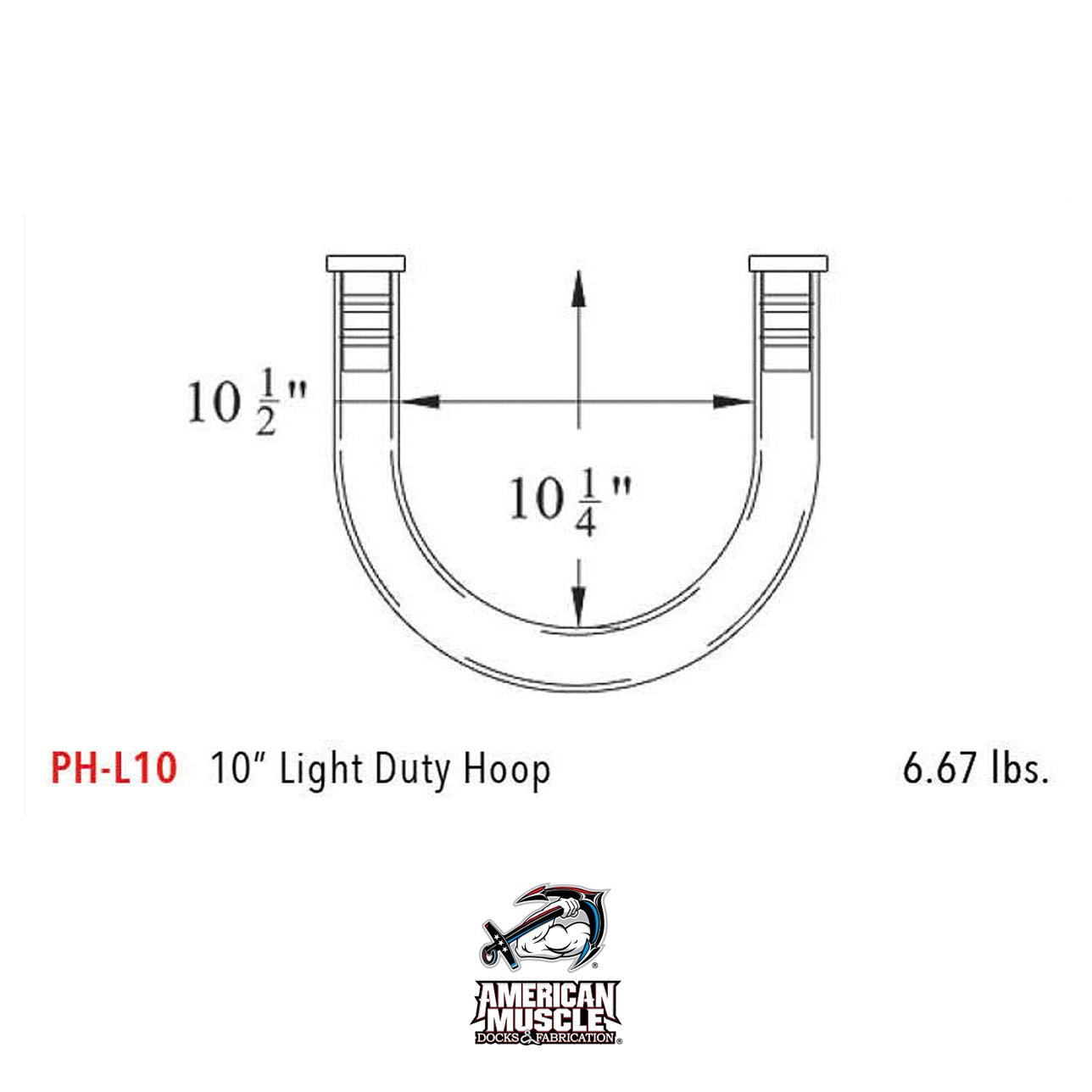

PH-L10 - Recommended for 8” Pile - 6.67 LBS

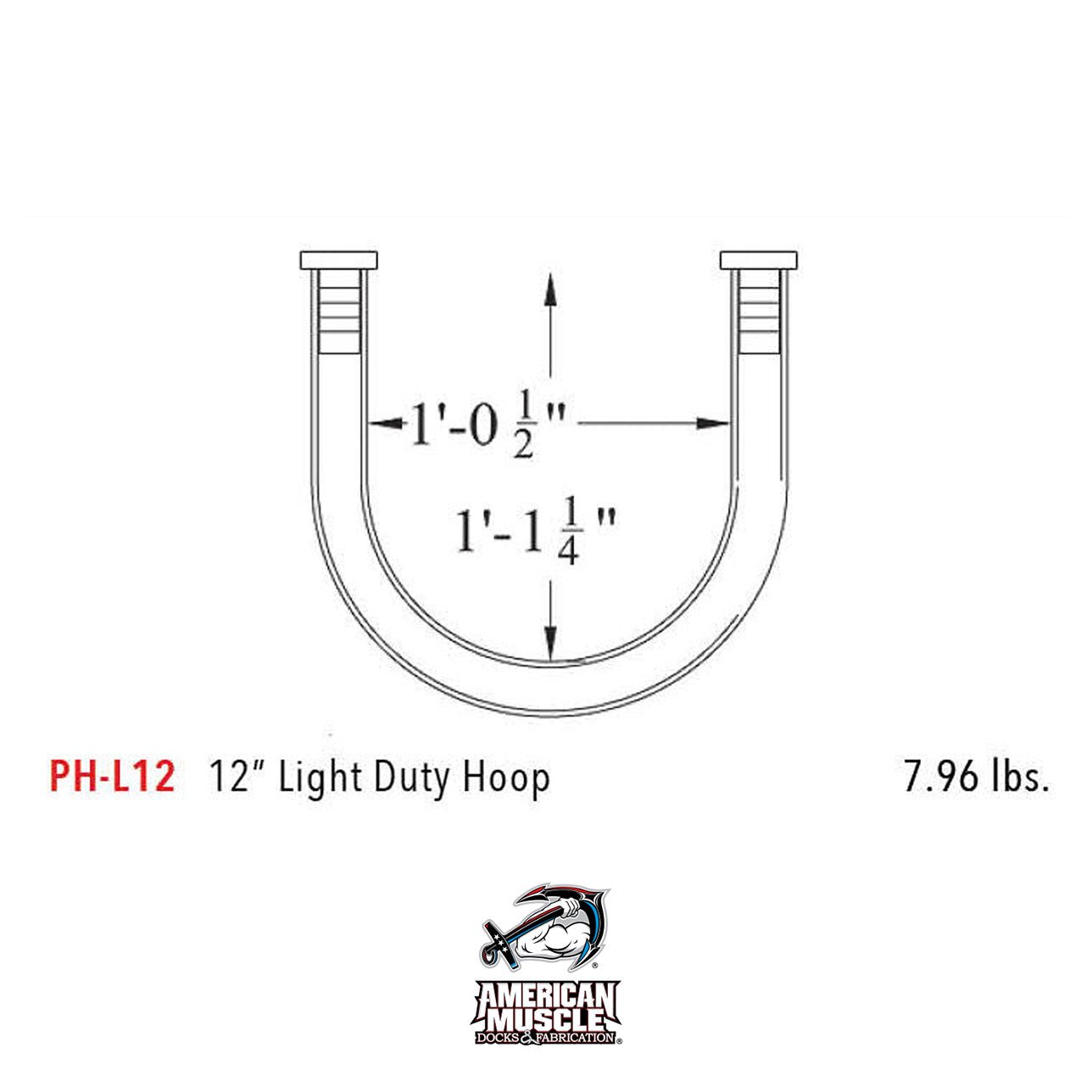

PH-L12 - Recommended for 10” Pile - 7.96 LBS

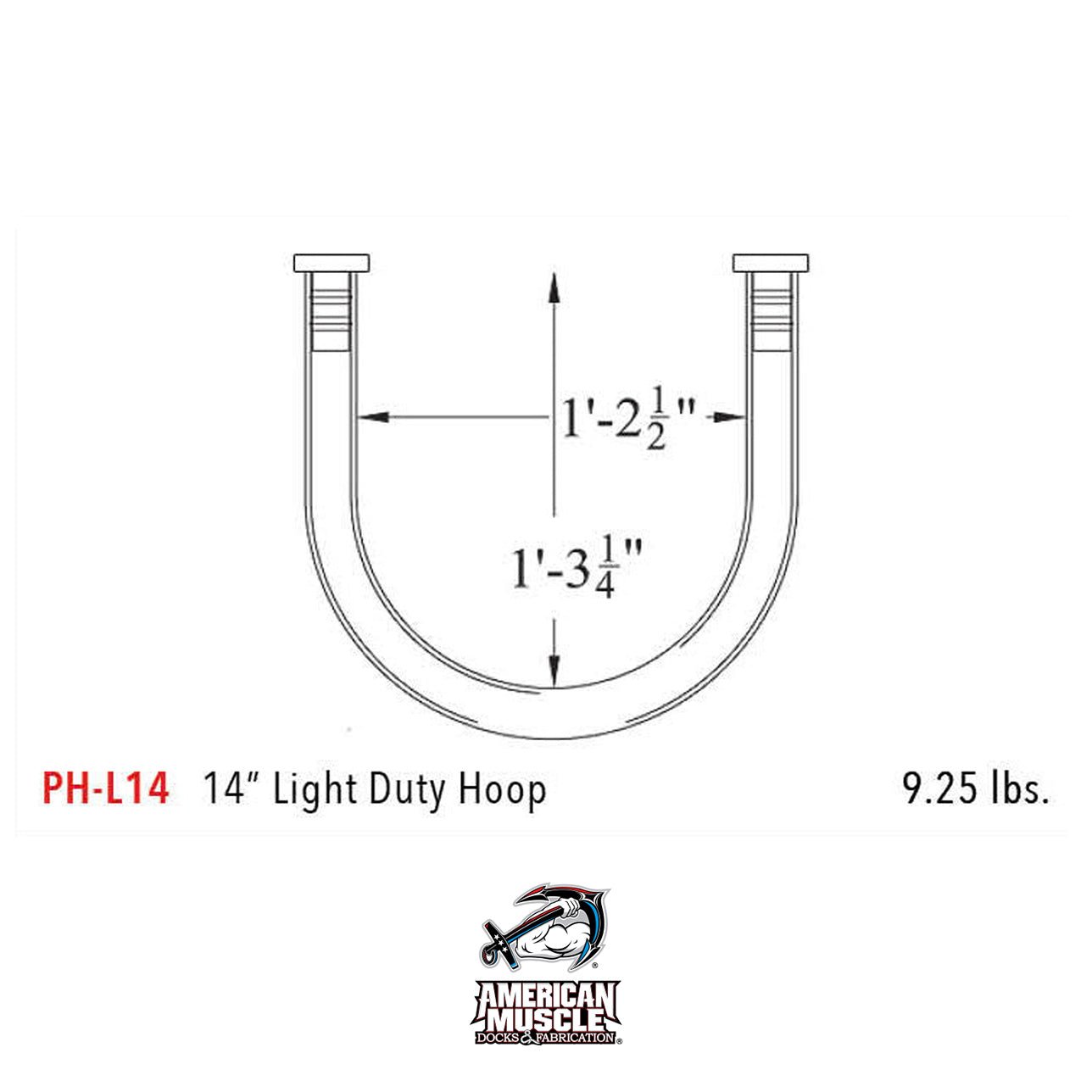

PH-L14 - Recommended for 12” Pile - 9.25 LBS
Use with the following accessories:

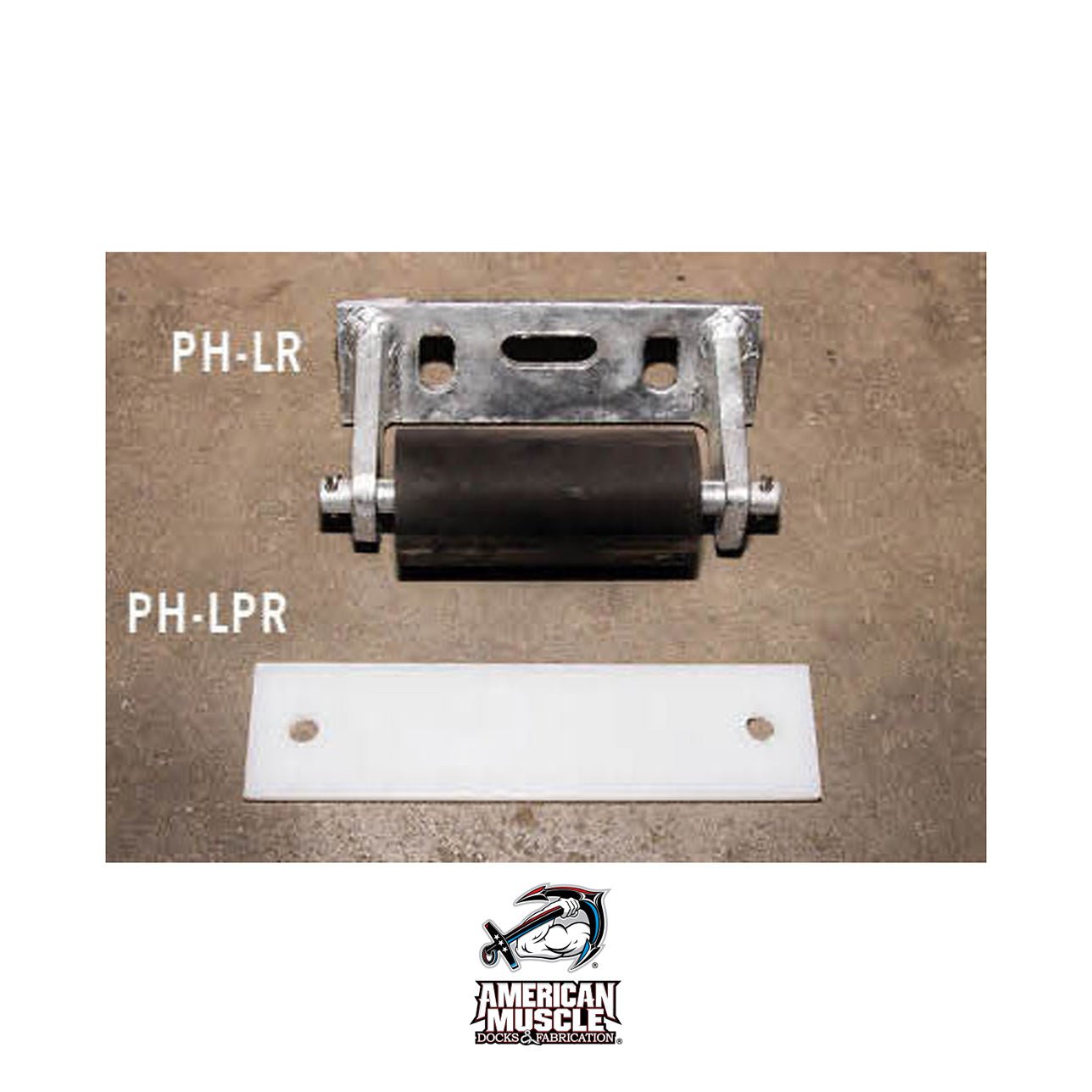

LIGHT PIPE HOOP ROLLER
Light Roller is meant to attach on top of the dock while taking minimum space.
LIGHT PILE PLASTIC RUB PLATE
Plastic Rub Plate reduces friction and can easily attach to the face of the dock.
