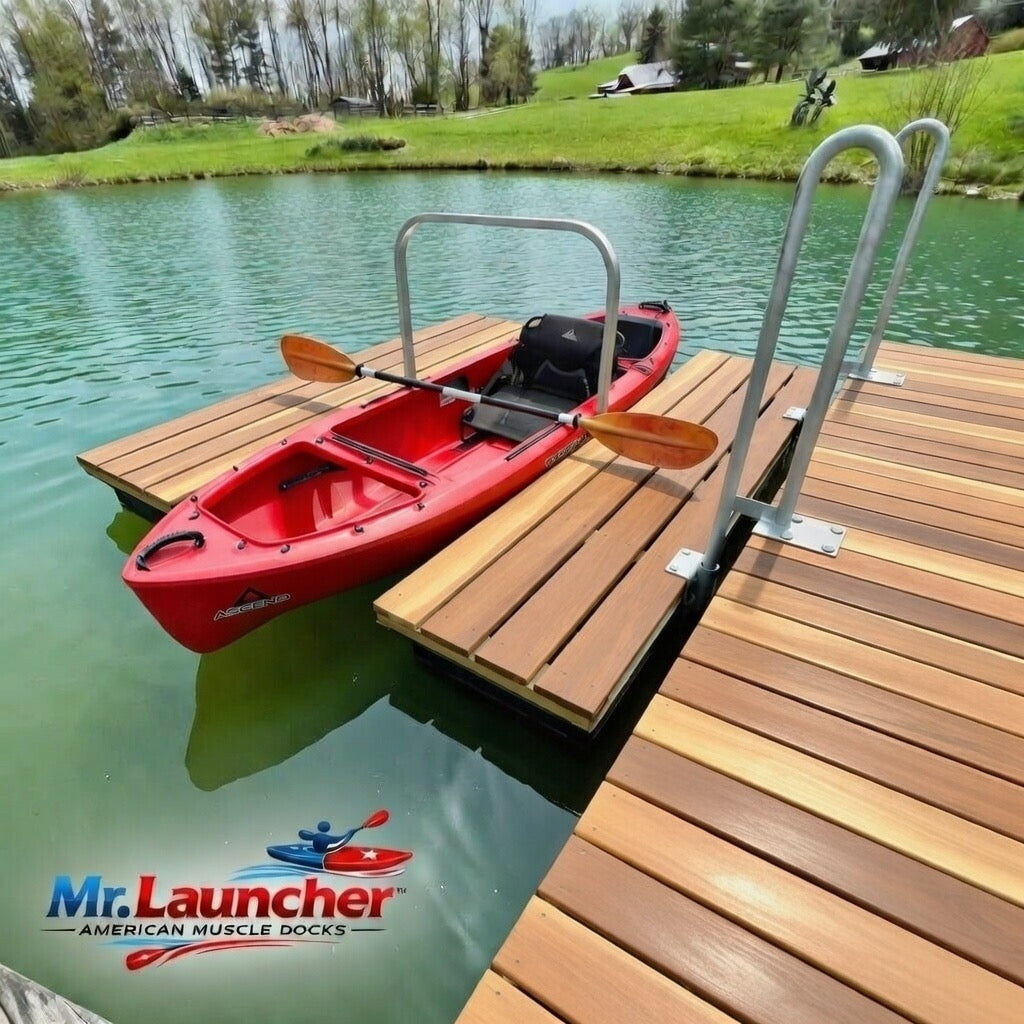

Red kayak on a wooden dock with 'Mr. Launcher' branding. A kayak sits on a wooden dock with a metal launch device, paddle inside, and turquoise water behind. Stable dock entry is ensured by the Mr. Launcher Kayak Launch Dock from American Muscle Docks & Fabrication, logo at top right. The Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication features metal railings and extends over a clear lake with pine trees and mountains; text reads Safe and Quick Launching. The Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication features two floating sections with metal frames, handrails, and composite grey and brown decking—other decking options available; ideal for stable dock entry or kayak launching. The Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication features two wooden planks on black floats, a metal handle, and adjustable V-roller brackets for stable docking and support of many hull shapes—ideal for launching kayaks. Two metal connecting arms for the Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication are shown: one gusset model with an angled support plate, and one non-gusset model, both with mounting plates at the base. Technical drawing of the Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication, with dimensions, top/side/isometric views, lumber decking, labeled parts for stable kayak entry, and a visible brand logo in the background. Truck loading Mr Launcher floating dock launcher in a warehouse setting

Mr. Launcher Kayak Launch Dock

KY-LND
$2,186.00
$2,186.00

Safer Access. Lessen the Struggle. Launch Faster.

The residential Mr. Launcher kayak launch dock mounts directly beside your floating or stationary dock, creating a more stable, controlled entry point for kayaks, canoes, paddle boards, and other small non-powered watercraft.

No awkward shuffle. No wobbly step. Just solid footing, smooth alignment, safer access to the water and a convenient place to permanently moor your kayak.

This simple upgrade delivers a big difference. The Mr. Launcher reduces strain, improves stability, and helps you spend more time on the water.

Complete Kit Details

  • Four stable, low-profile 8-inch foam-filled float drums
  • Durable aluminum subframe providing reliable structural support
  • Ergonomic aluminum grab rail for secure assistance
  • Adjustable underwater V-roller assembly for added stability and smooth kayak launching and retrieval
  • Kandy Kane connecting arms for a stable attachment to your dock
  • Available with or without decking to meet your aesthetic and budget needs
  • Ships via large LTL freight truck — please ensure adequate access and offload capability for delivery
  • (8) 3/8-inch fasteners for connecting arms to your existing deck (sold separately)

Note - Connecting Arms: For fixed docks or seawalls where water levels rise to or above deck height, the NO-Gusset Kandy Kane connecting arm option is recommended. Custom length arms available.

* For details on our larger Commercial Kayak Launch Dock option please call 800-223-3444.

Add a Helping Hand stability post for even more stability entering and exiting your kayak here

Built Around You

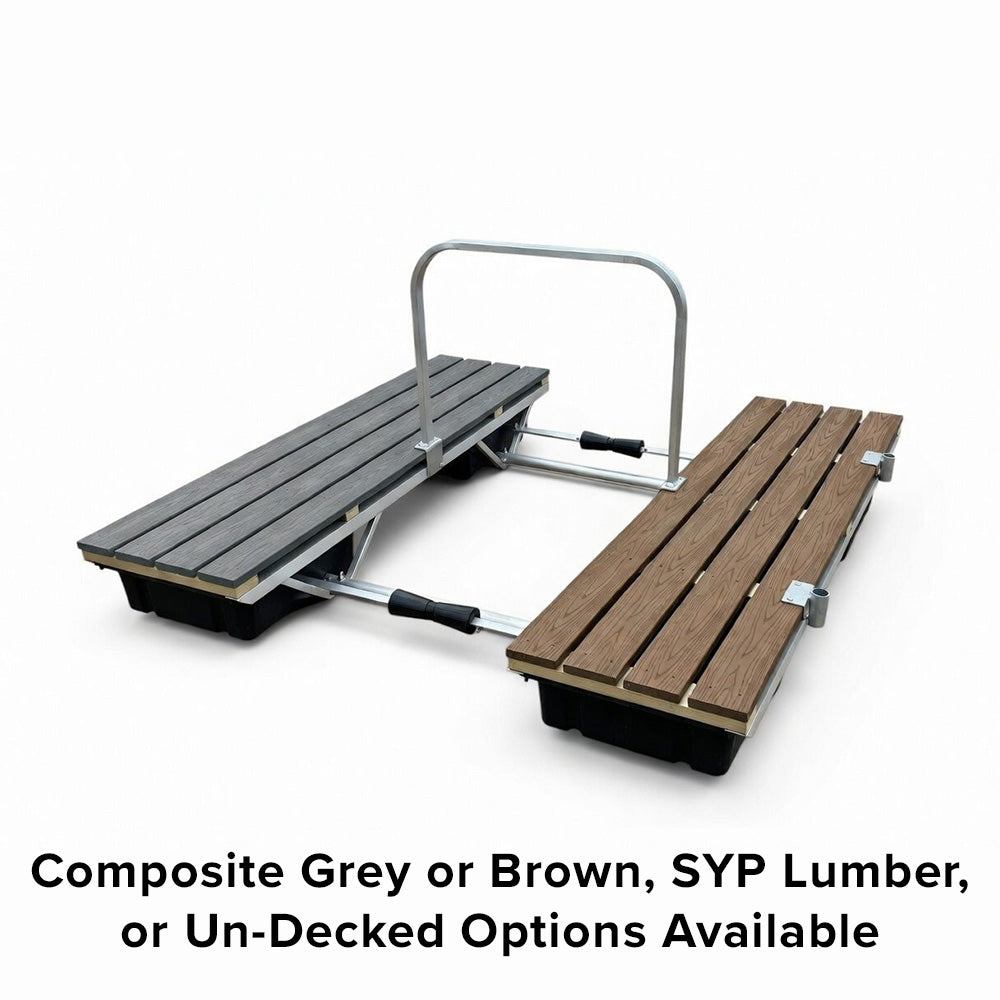

The Mr. Launcher kayak launch dock is available with or without decking to match your budget and style. Choose from our decking options, mounting hardware, and accessories to create a launch setup tailored to your dock and waterfront. Whether you prefer a clean, streamlined look or a fully outfitted launch station, the Mr. Launcher adapts to your needs.



Designed to be lightweight, portable, and easy to assemble on site.  Step-by-step instructions and detailed installation videos are available to guide you through the process.



American Muscle Docks builds solutions that make getting on and off the water safer, faster, and more enjoyable.

*For details on our larger Commercial Kayak Launch Dock option please call 800-223-3444

Details

Specifications

Instructions

Overall Length

8 feet

Overall Width

7 feet

Each Floating Deck Section

 2.5 ft wide

Floating Dock Height

15 inches

Inside Opening Width

35 inches

Grab-Bar

36” W x 27” H

Total Decked Weight

Roughly 500 lbs

The Mr. Launcher kayak launch dock kit includes connecting arms and pipe holder receiver set.
**(8) 3/8" fasteners for connecting arms to your dock or seawall (sold separately).

Thank you for purchasing our Mr. Launcher Floating Kayak Dock. This residential use launch is intended to be an accessible way to enter and exit your kayak more easily. This launch is not intended to be a floating dock and should be used by one person at a time. Be sure to follow the directions below to ensure proper installation. If you have any questions during this process, please contact us at 800-223-3444.

Kayak Launch Instructions and Video

Featured Images

Floating Kayak Dock Launch
Floating Kayak Launch Dock in Fall
Kayak Launch Dock American Muscle Docks Lake
Kayak Launch Dock in Lake American Muscle Docks

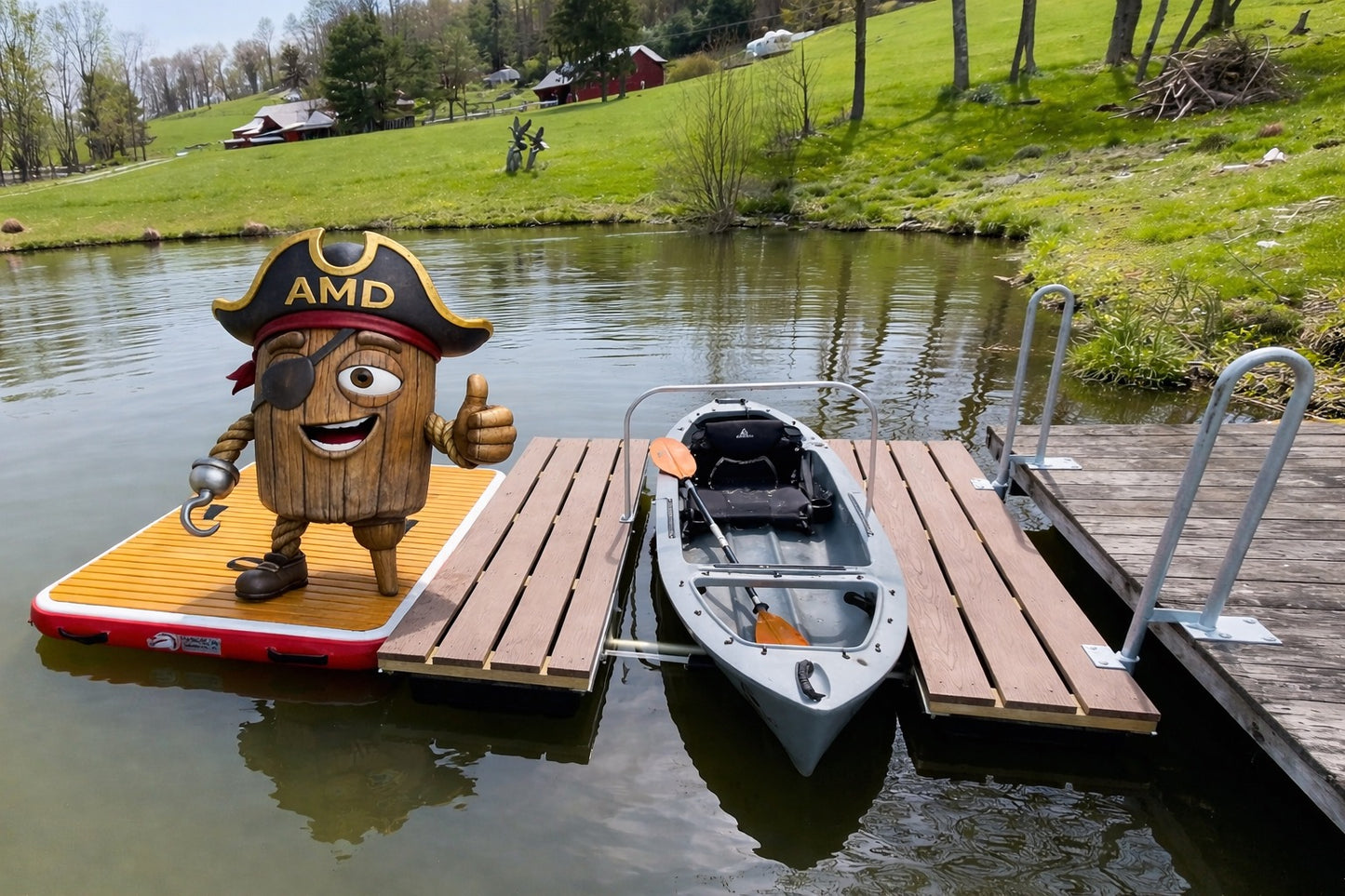

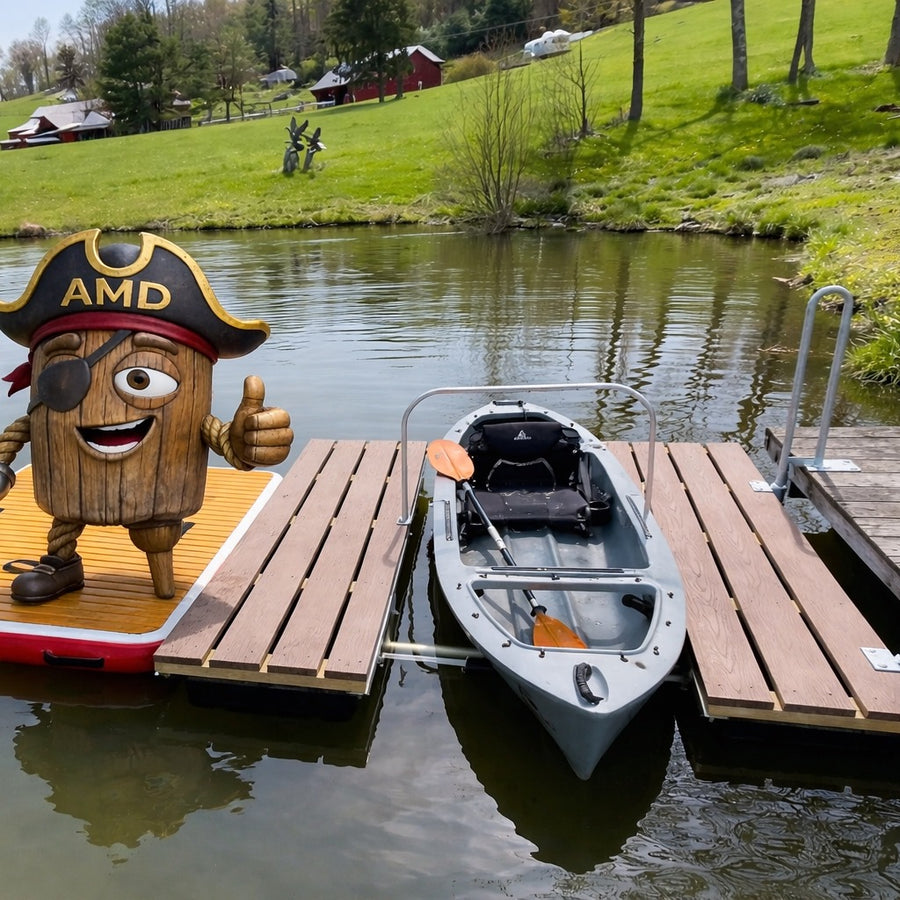

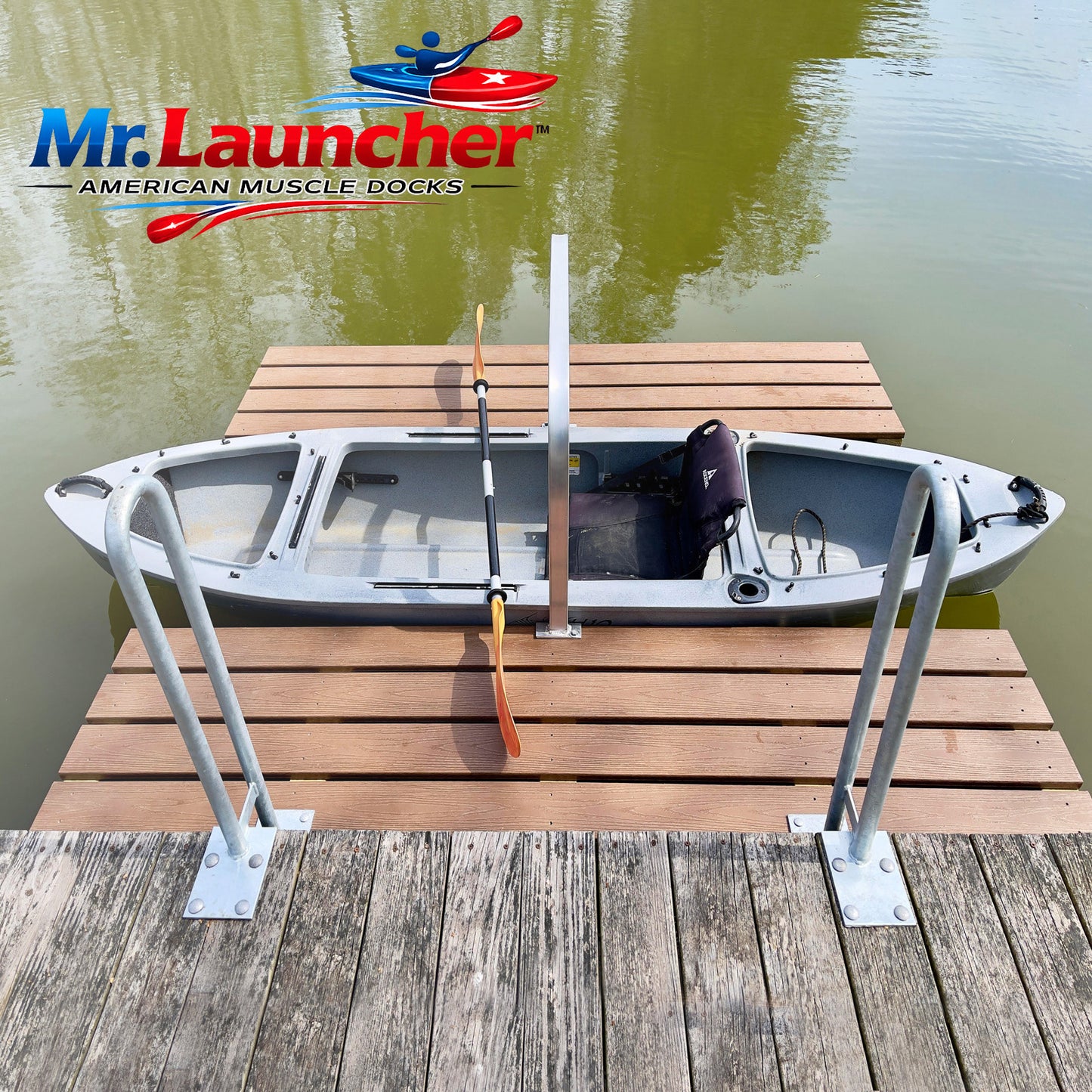

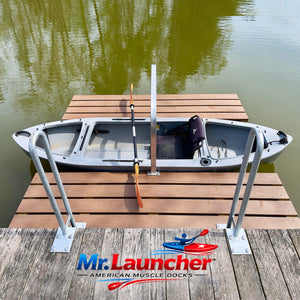

Mr Launcher Kayak Dock installed on a pond attached to dock with logo underneath.
Kayak Launch Dock American Muscle Docks and Fabrication
Kayak Dock Launch American Muscle Docks

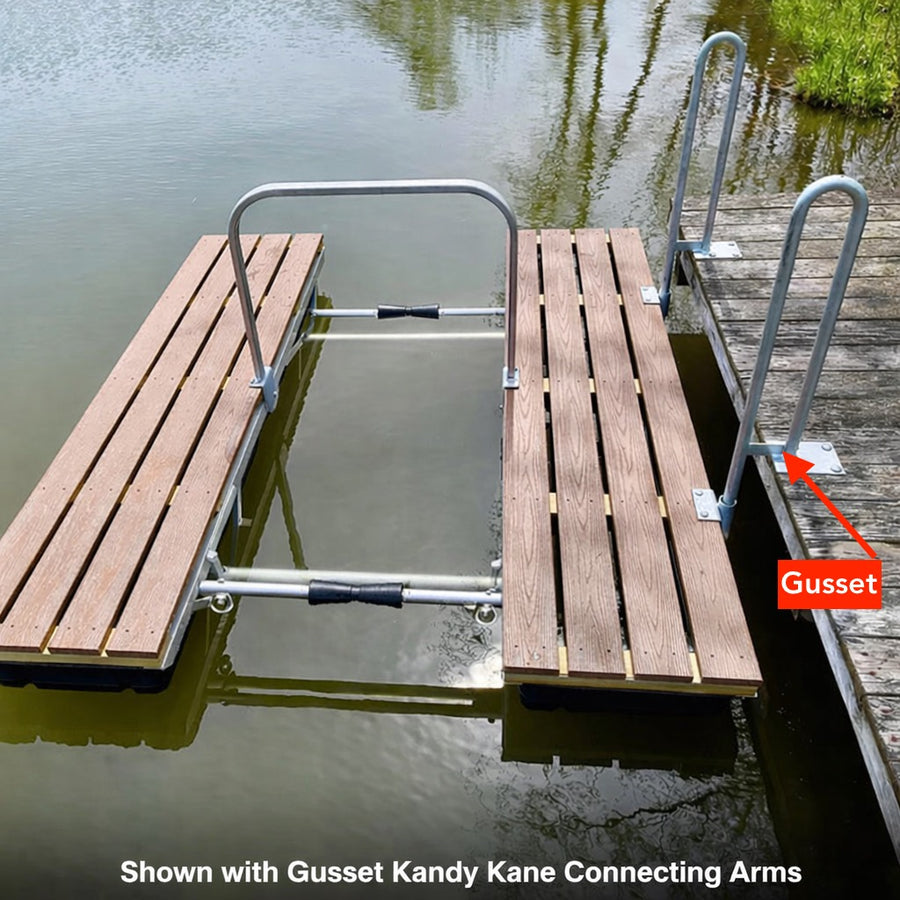

Floating dock with two parallel wooden platforms connected by metal bars and labeled gusset at the metal support arm attached to the fixed dock.
Kayak Launch Dock by American Muscle Docks

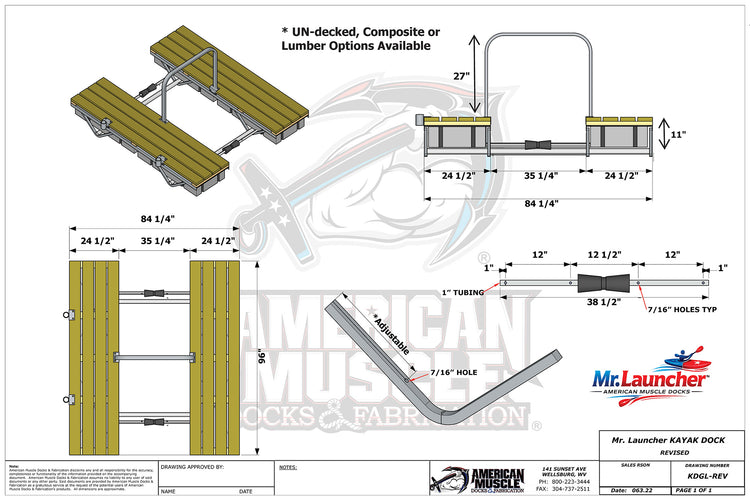

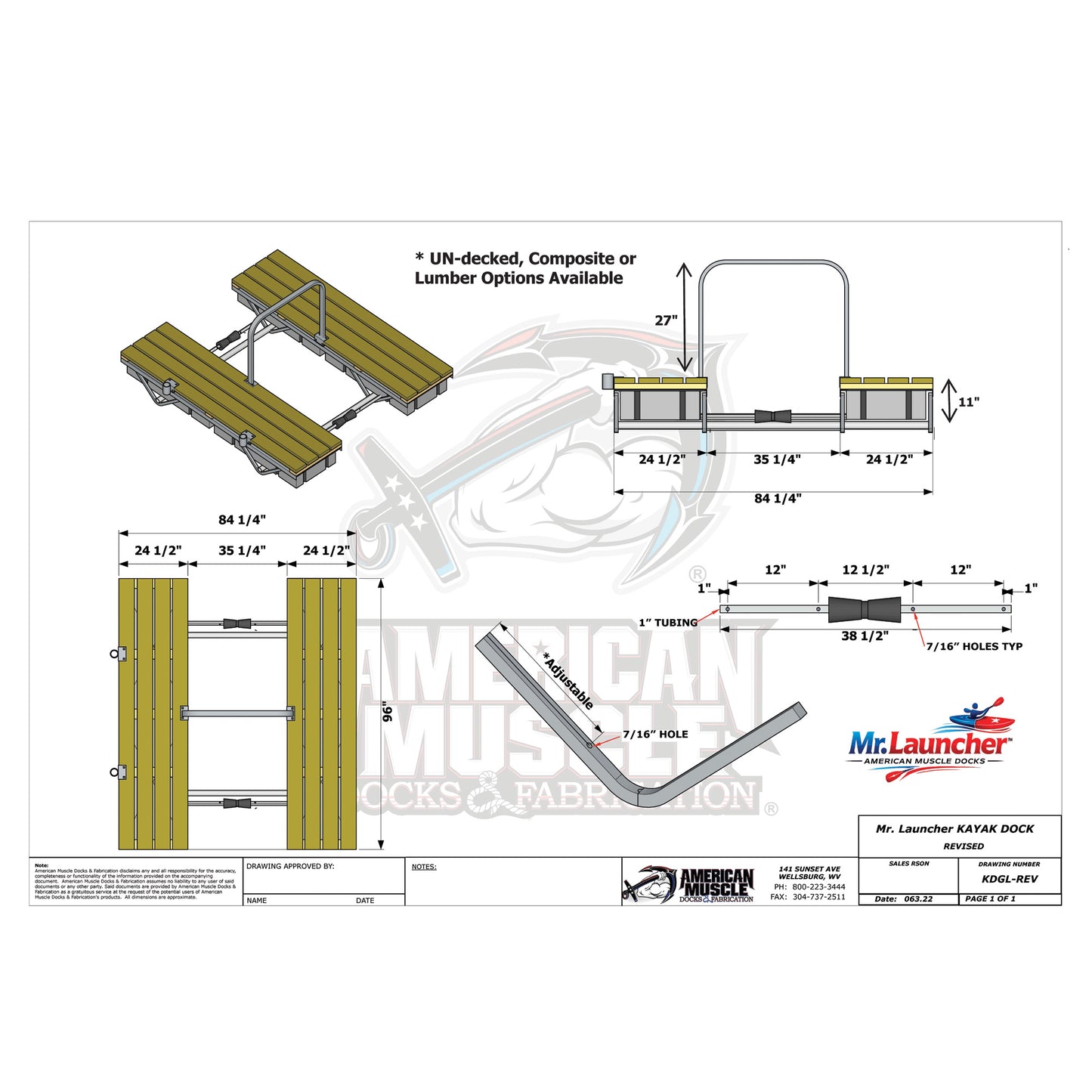

Technical drawing of a floating dock for kayaks with dimensions, assembly details, and labeling for components, provided by American Muscle Docks & Fabrication and Mr. Launcher.

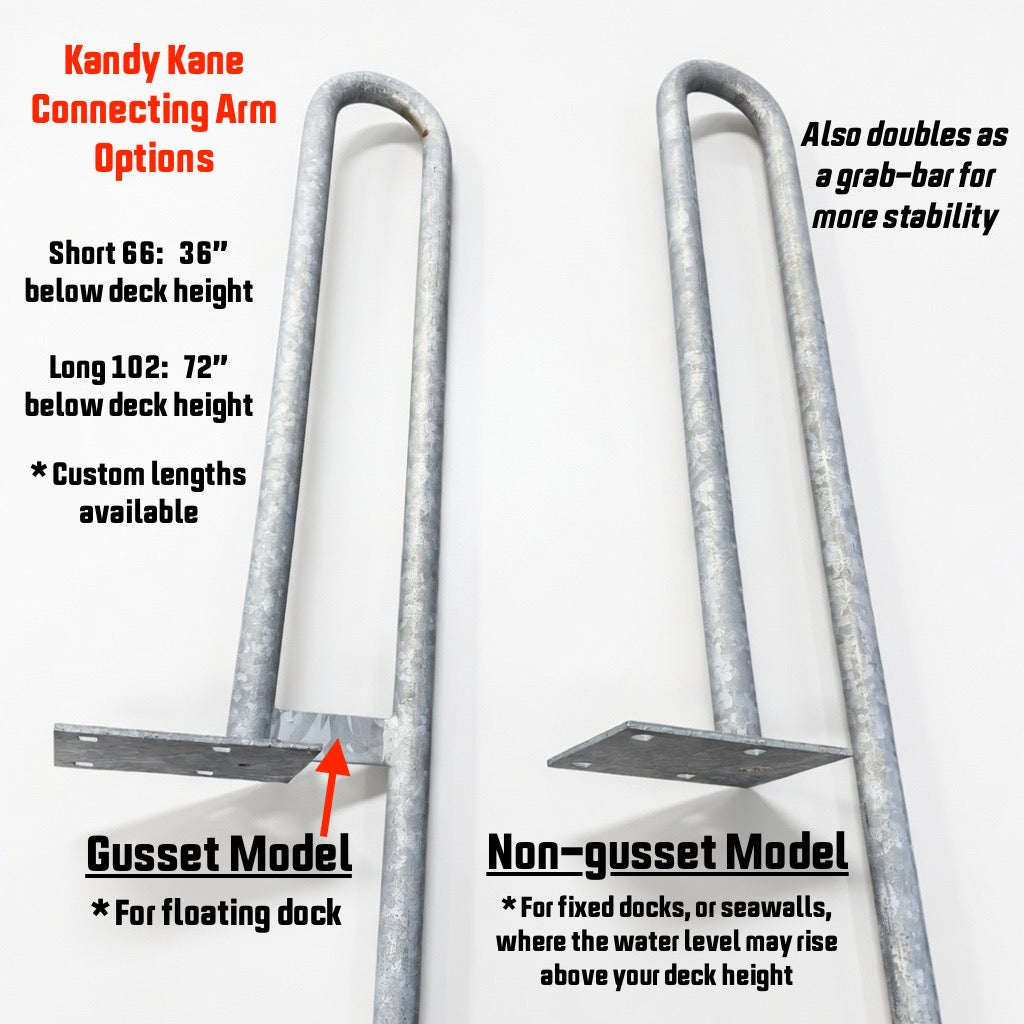

Two metal connecting arms for the Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication are shown: one gusset model with an angled support plate, and one non-gusset model, both with mounting plates at the base.

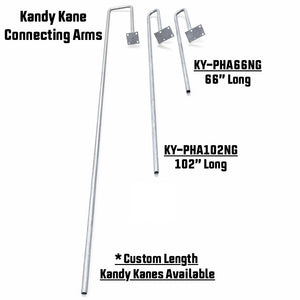

Three metal Kandy Kane connecting arms of varying lengths are shown for floating docks; 66-inch and 102-inch models are labeled, with a note about custom lengths available.
Floating Kayak Dock Launch
Floating Kayak Launch Dock in Fall
Kayak Launch Dock American Muscle Docks Lake
Kayak Launch Dock in Lake American Muscle Docks
Mr Launcher Kayak Dock installed on a pond attached to dock with logo underneath.
Kayak Launch Dock American Muscle Docks and Fabrication
Kayak Dock Launch American Muscle Docks
Floating dock with two parallel wooden platforms connected by metal bars and labeled gusset at the metal support arm attached to the fixed dock.
Kayak Launch Dock by American Muscle Docks
Technical drawing of a floating dock for kayaks with dimensions, assembly details, and labeling for components, provided by American Muscle Docks & Fabrication and Mr. Launcher.
Two metal connecting arms for the Mr. Launcher Kayak Launch Dock by American Muscle Docks & Fabrication are shown: one gusset model with an angled support plate, and one non-gusset model, both with mounting plates at the base.
Three metal Kandy Kane connecting arms of varying lengths are shown for floating docks; 66-inch and 102-inch models are labeled, with a note about custom lengths available.
0/0

Discover the Mr. Launcher Difference

Four low-profile 8-inch float drums
Buoyancy and dependable stability keep the platform more level as you shift your weight. Designed to minimize rocking so you can focus on your footing instead of fighting the dock. Engineered to safely support one person standing on the launch platform at a time for optimal stability and performance.

Aluminum subframe
Rigid, lightweight, corrosion-resistant support built for harsh marine environments. Finished with stainless steel and galvanized fasteners for long-term durability.


Ergonomic aluminum grab rail
Secure assistance for stepping in, sitting down, and standing up. Provides a steady handhold, making entry and exit smoother for paddlers of all experience levels.

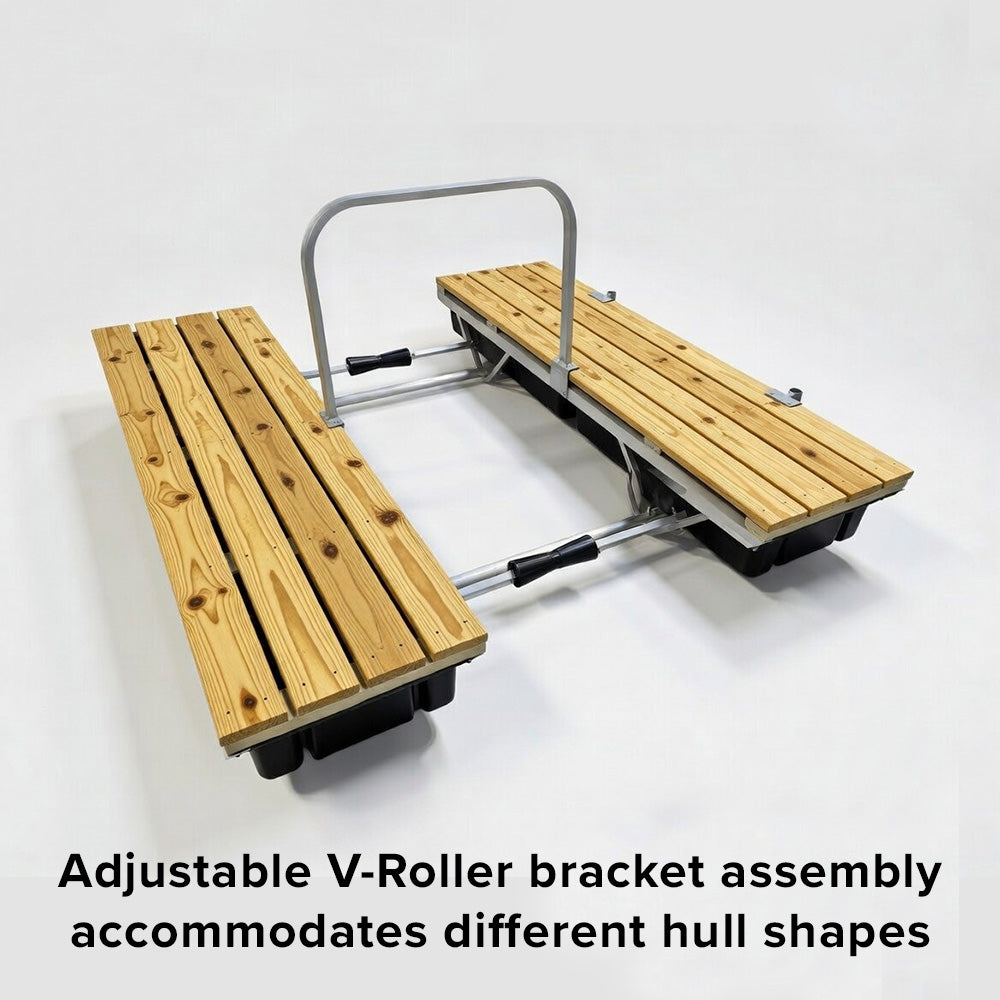

Underwater V-roller assembly
Guides your kayak into position for smooth launch and easy retrieval. Provides firmer lateral stability during entry and exit, minimizing side-to-side sway so you can step in and out with greater control and confidence. The adjustable roller bracket height accommodates a wide range of kayak hull shapes.

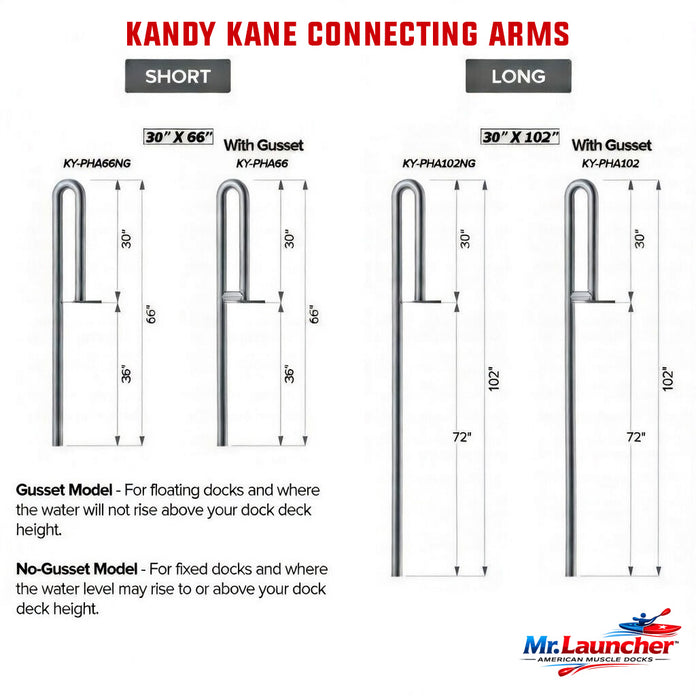

Kandy Kane Connecting Arms
Durable, galvanized-coated steel arms secure the launch to your existing floating or stationary dock or seawall using sliding pipe holders. The arms extend 30 inches above your dock deck height and double as grab handles when stepping on or off the launch. Available in two lengths, with or without a gusset. For fixed docks or seawalls where water levels rise to or above your deck height, the NO-Gusset option is recommended.

** (8) 3/8" fasteners tor connecting arms to your existing dock (sold separately) here.


Check out our Helping Hand stability grab post options to further add more stability here.

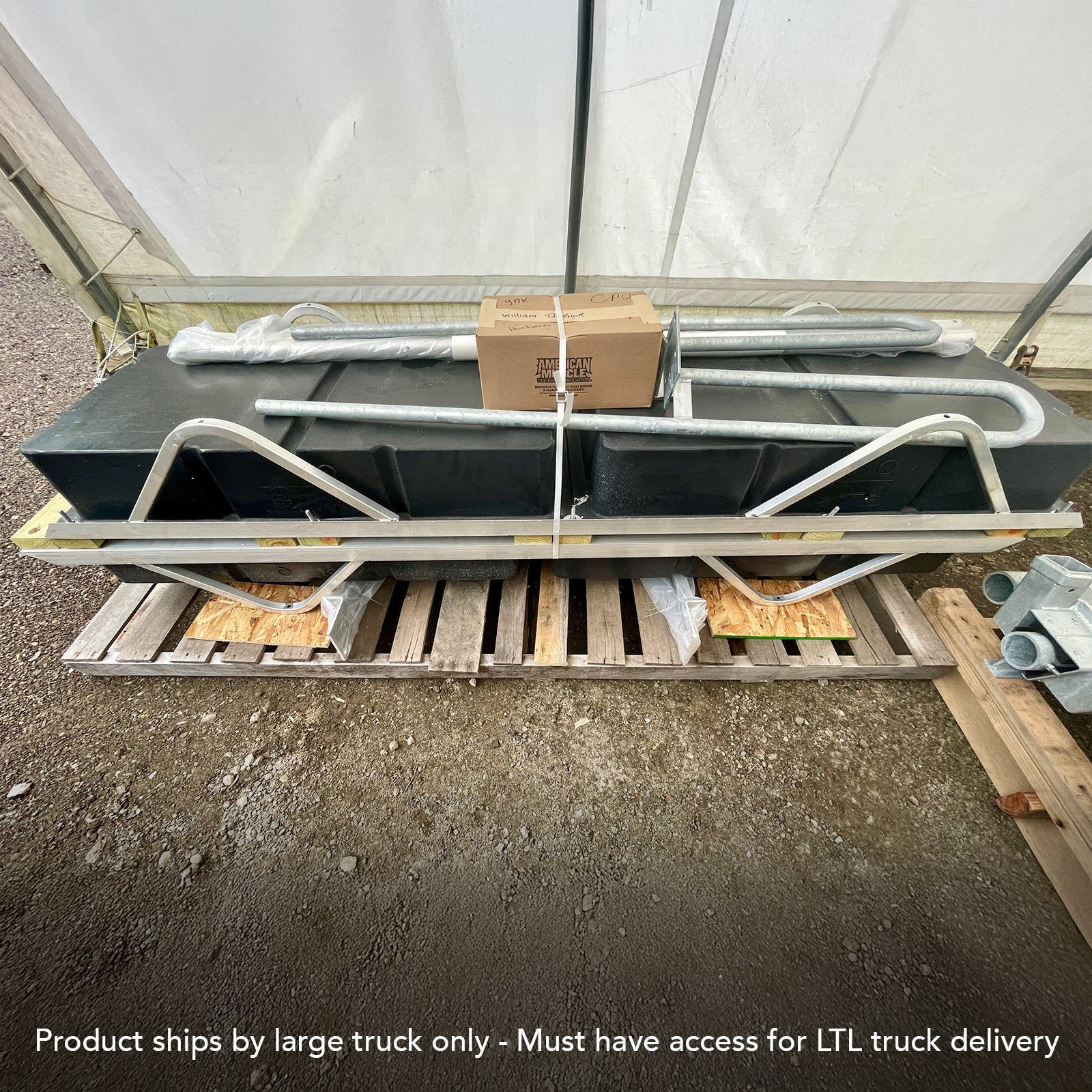

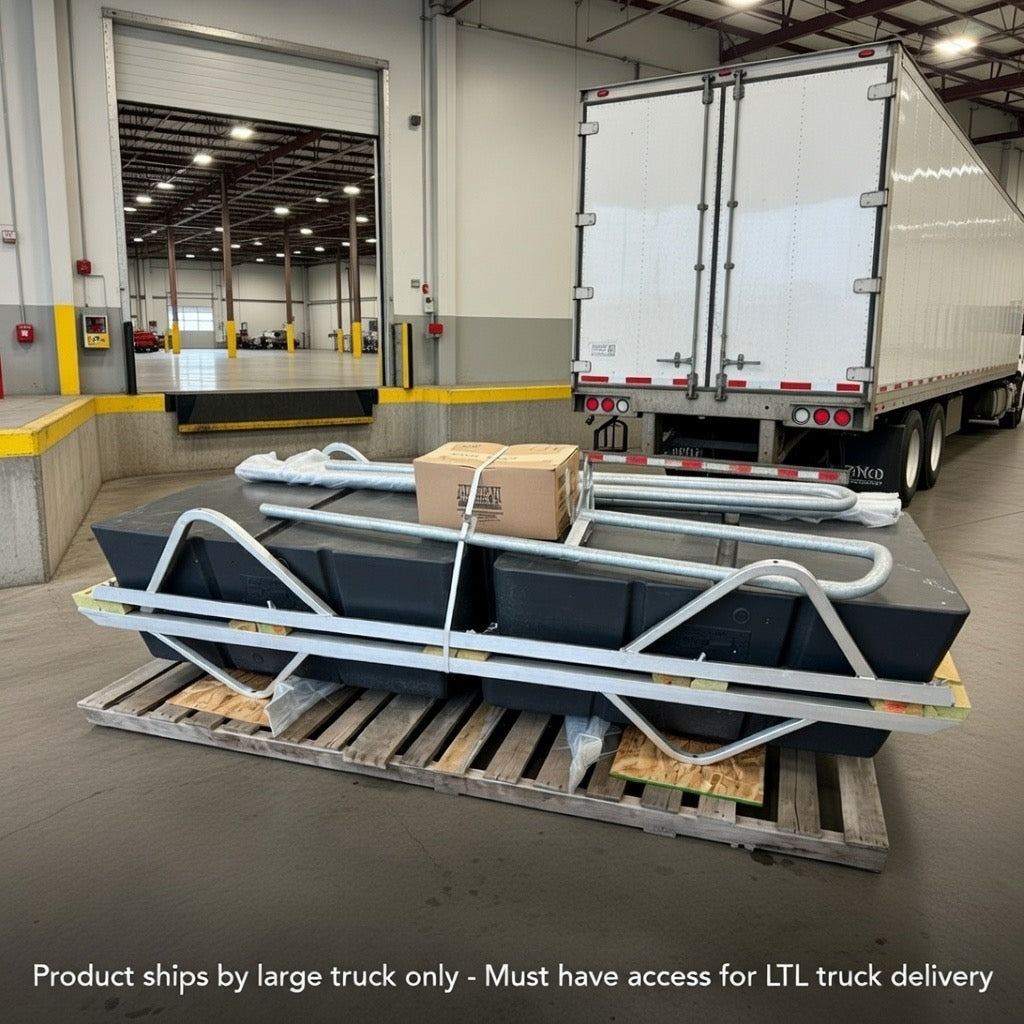

Shipping Information
Ships via large LTL freight. Confirm that your location can accommodate truck delivery and that you have the ability to offload prior to ordering. Review all specifications to ensure proper fit and access. (8) 3/8-inch fasteners for securing the connecting arms to your existing deck are sold separately.
