PH-H10R PH-H18R
PLEASE SELECT ITEM BELOW

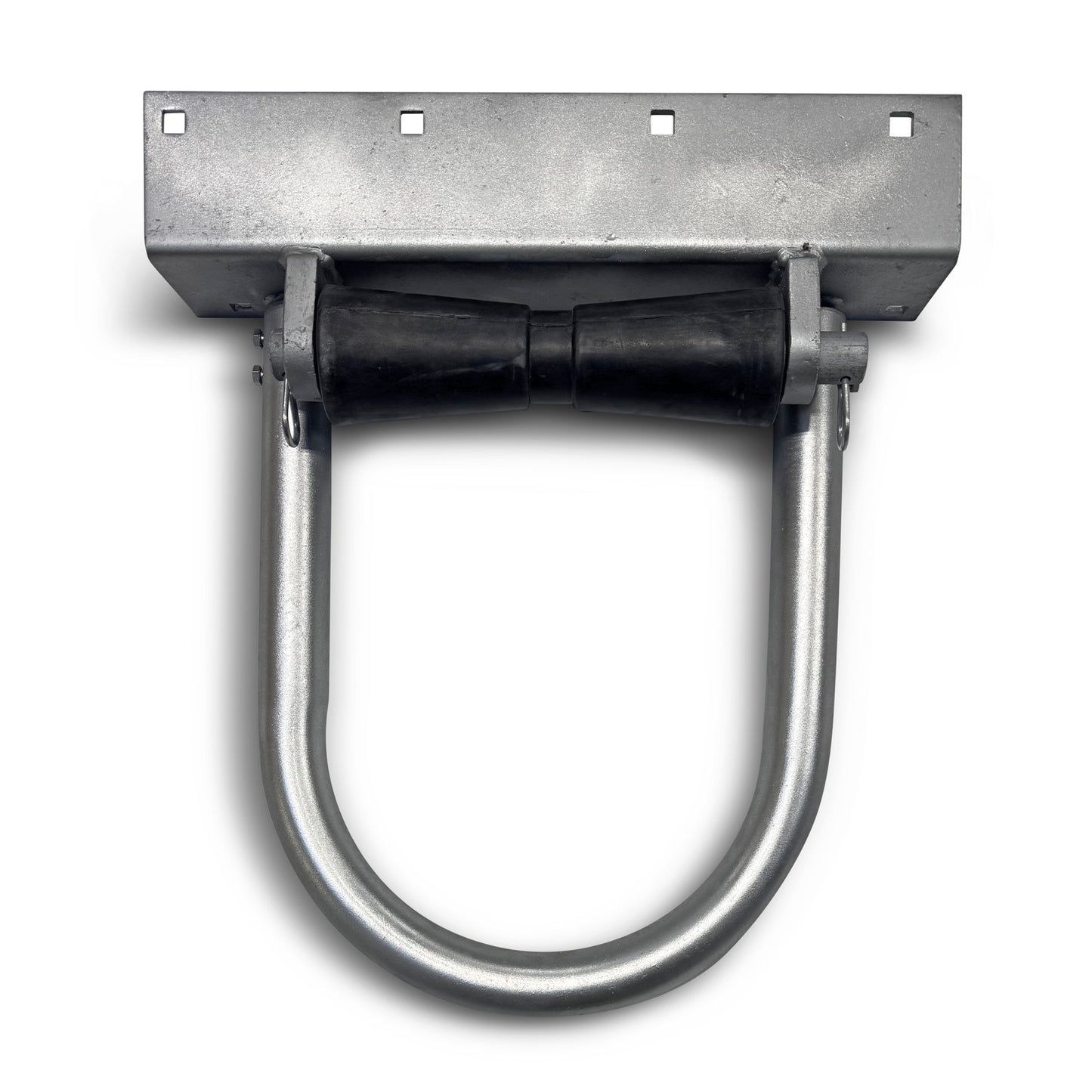

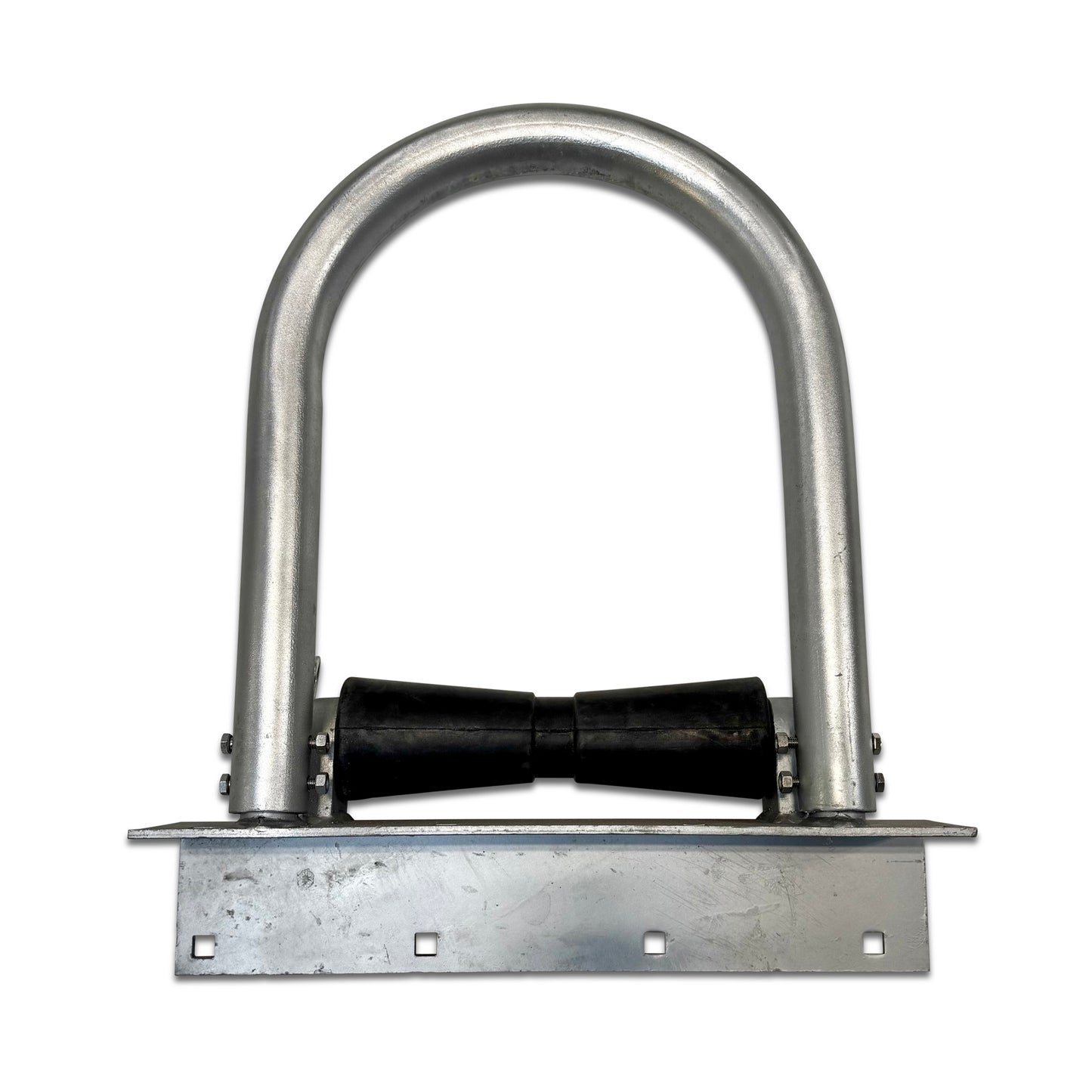

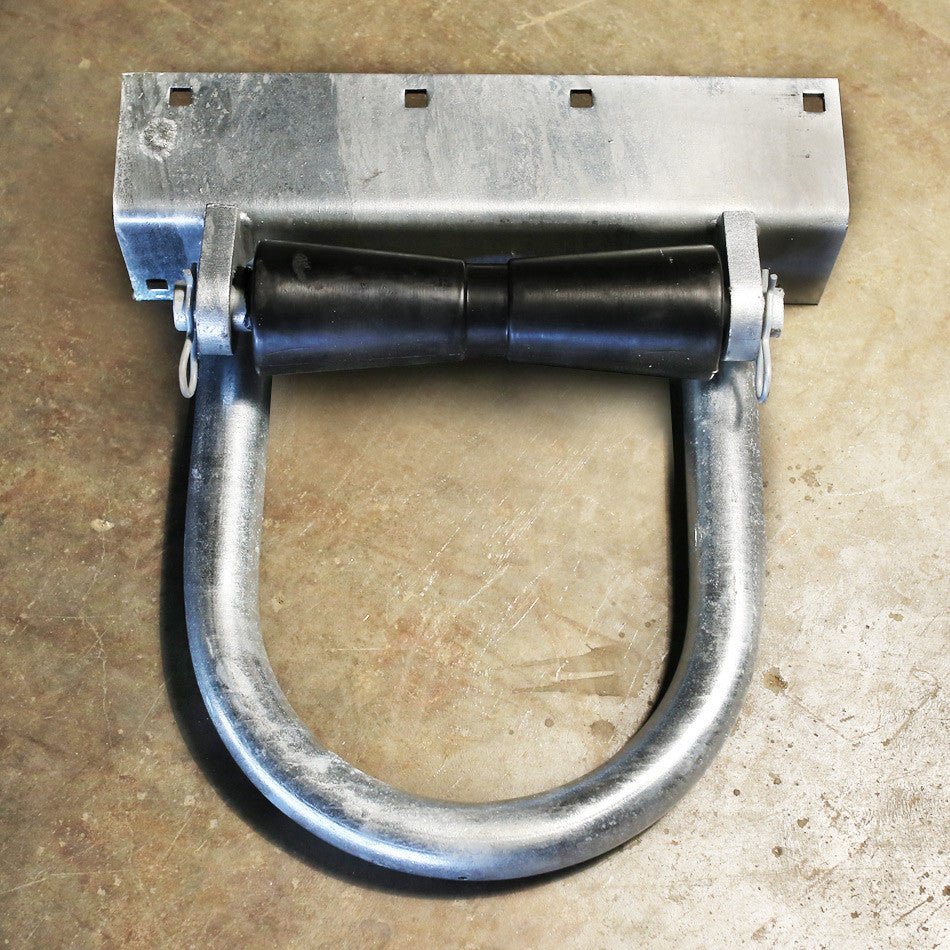

External hoop pile guide with a rubber roller. Available size options range from 10" to 18" sizes. Price changes depending on the size selected.

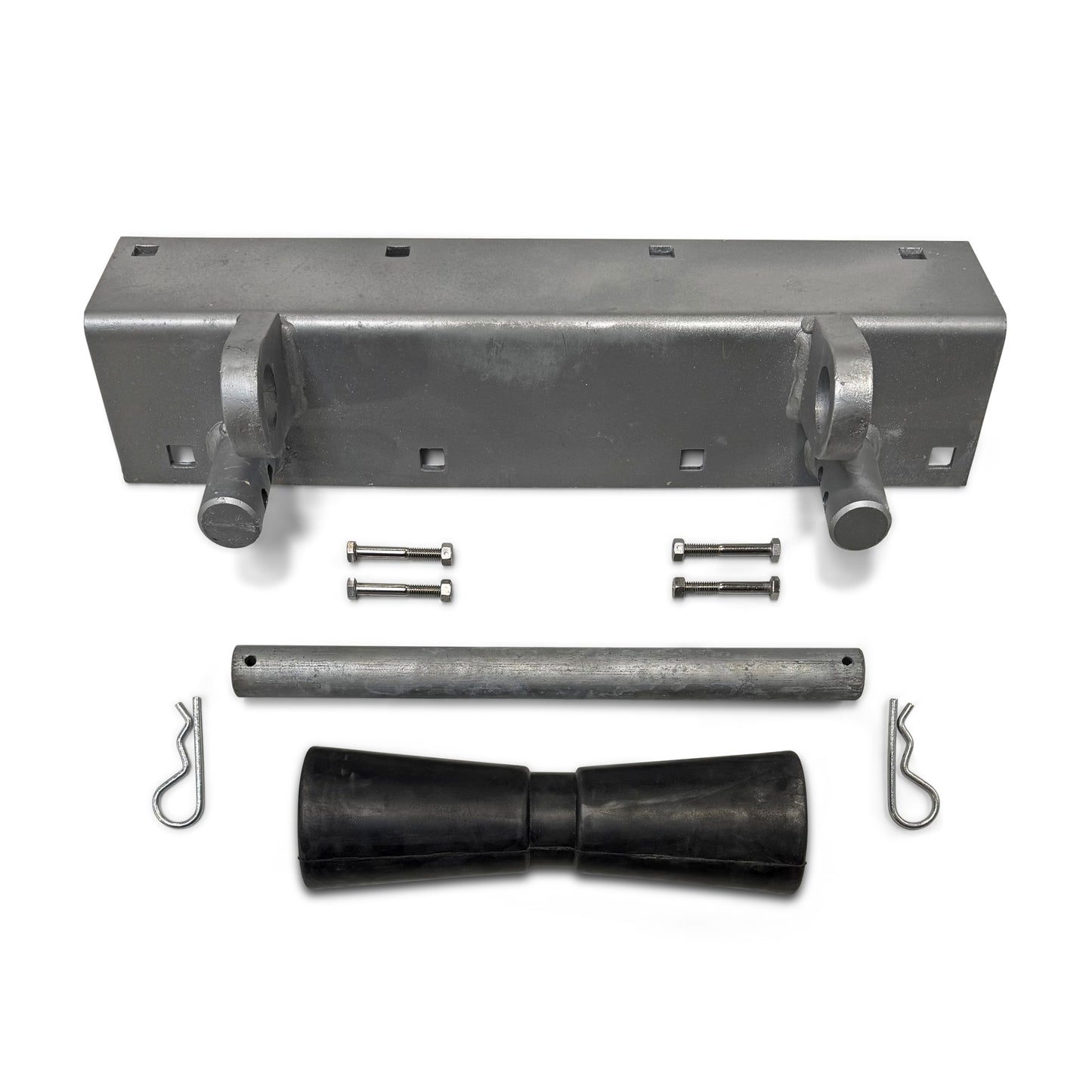

  • 1/4” galvanized steel bracket 4”x4” inside bend
  • Schedule 40 pipe  1 1/2” diameter
  • Stub shafts welded to bracket are  1 3/8” thick by 3” long ( the hoops attached to these shafts with (4) 5/16” stainless bolts with locking nuts
  • 1 1/4” solid steel shaft is used inside the poly roller (this shaft goes through openings in the 3/4” tabs welded to the bracket)
  • Bracket mounts to dock with 1/2” fasteners
  • Roller shaft measures 15” x 1.25” Solid


PH-H10R - 10 inch - 32 LBS

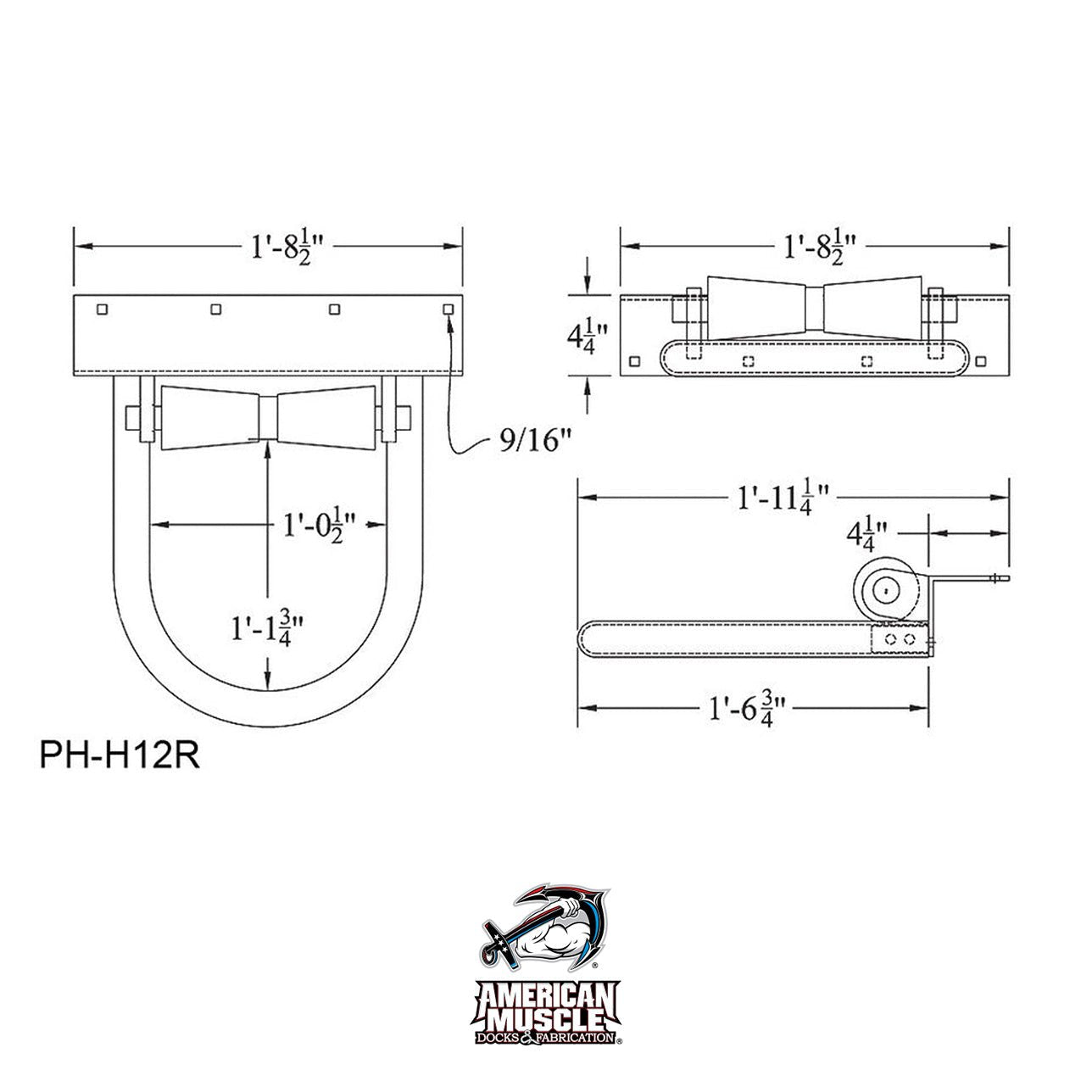

PH-H12R - 12 inch - 35 LBS

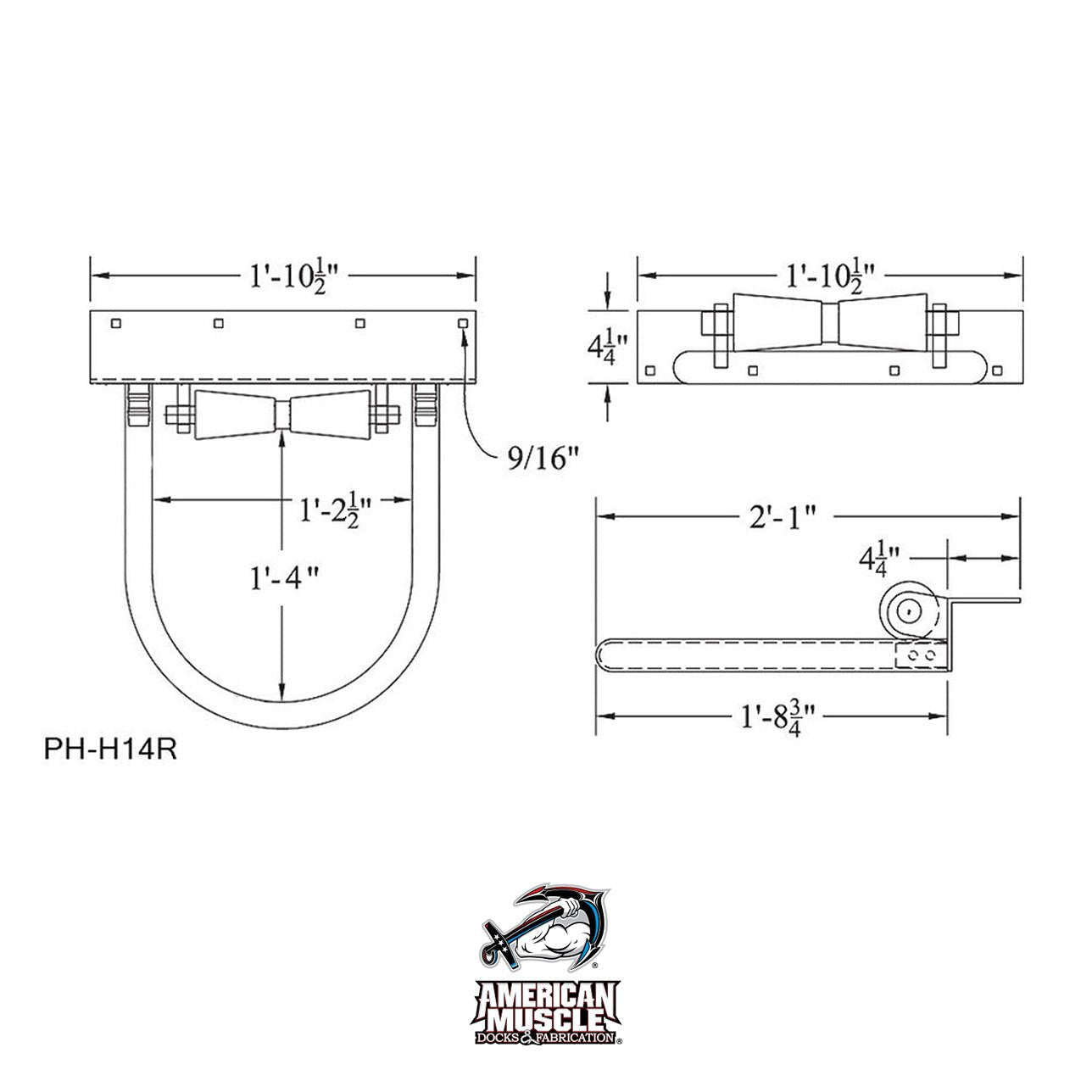

PH-H14R - 14 inch - 36 LBS

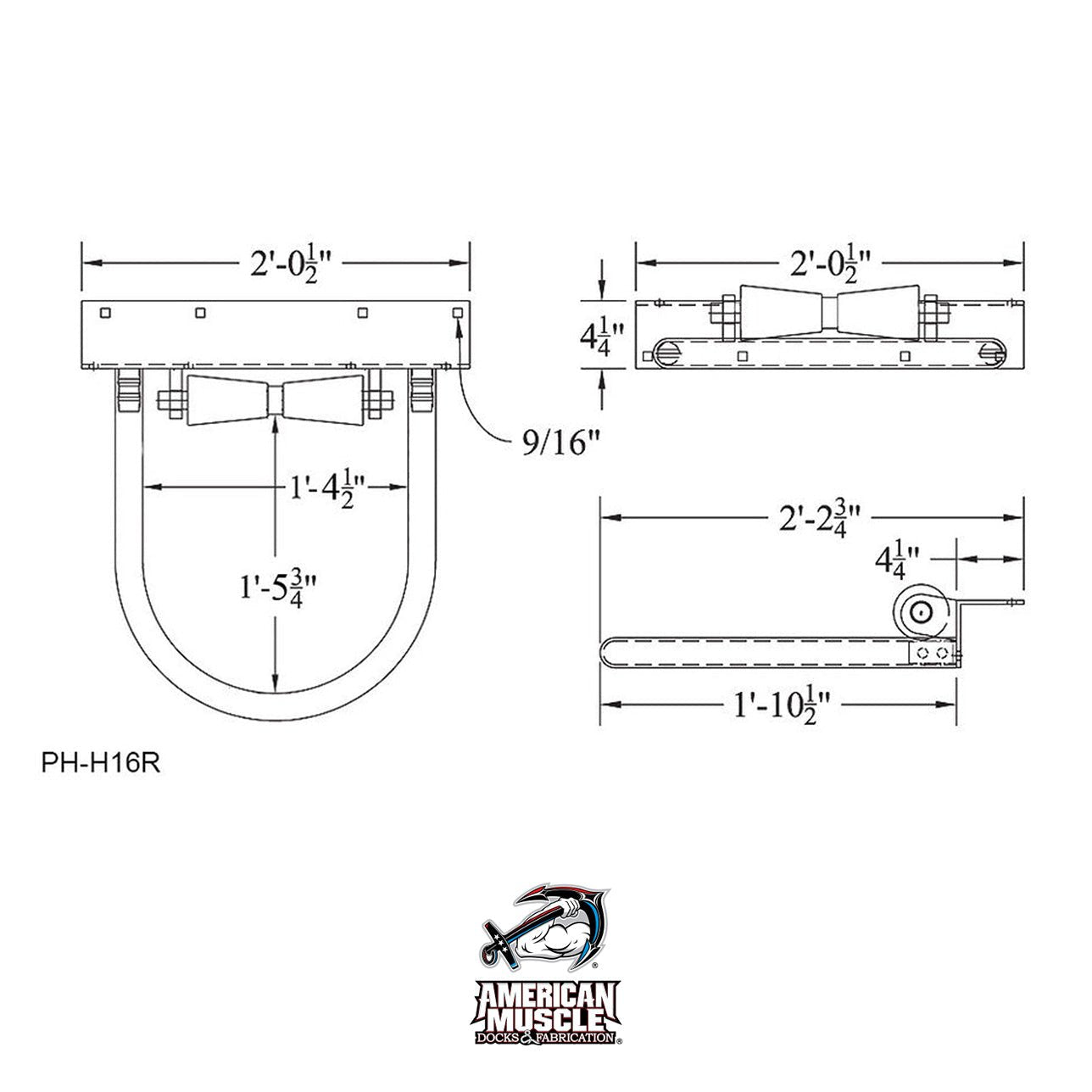

PH-H16R - 16 inch - 39 LBS

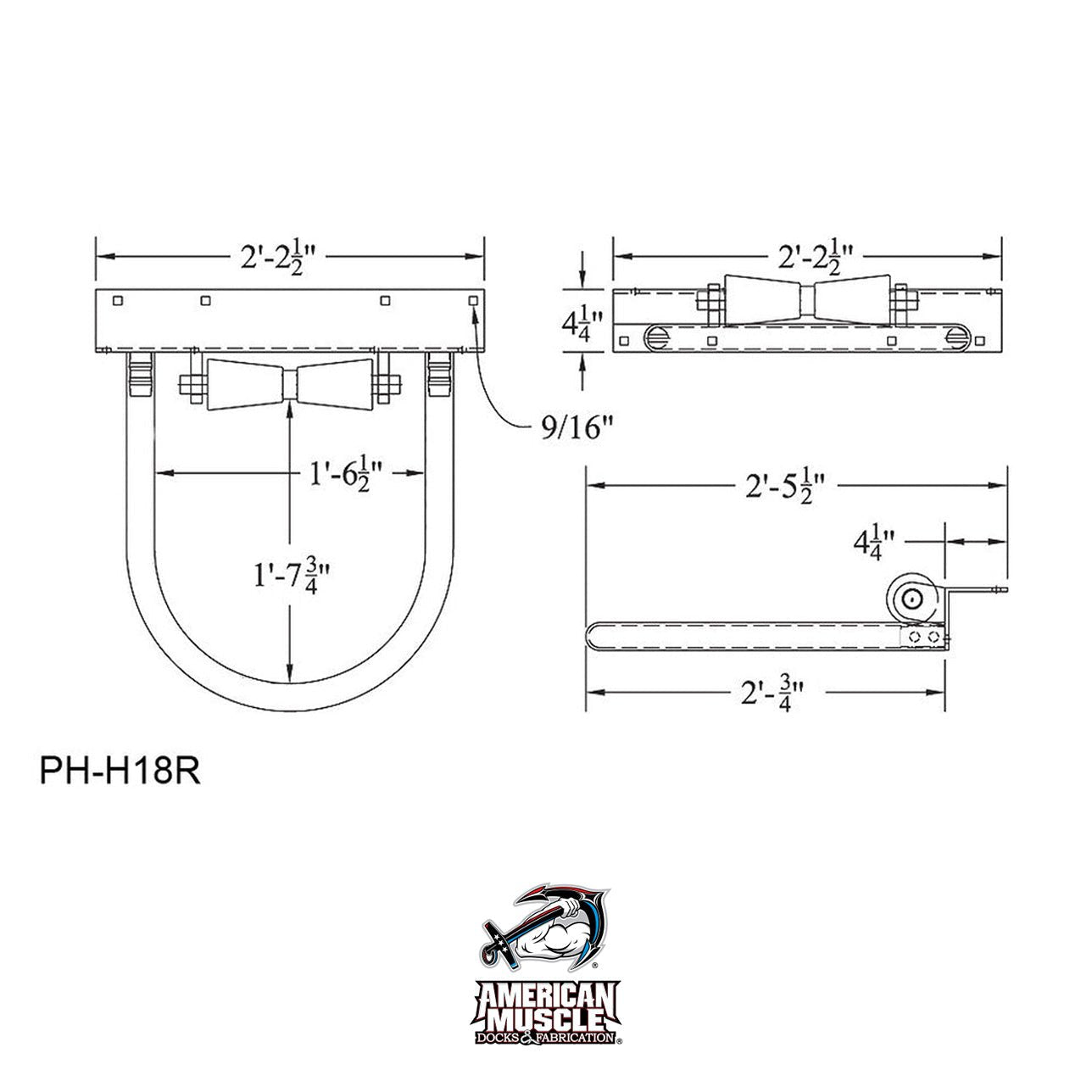

PH-H18R - 18 inch - 41 LBS

$171.50
PH-H10R

Price changes with options selected above.

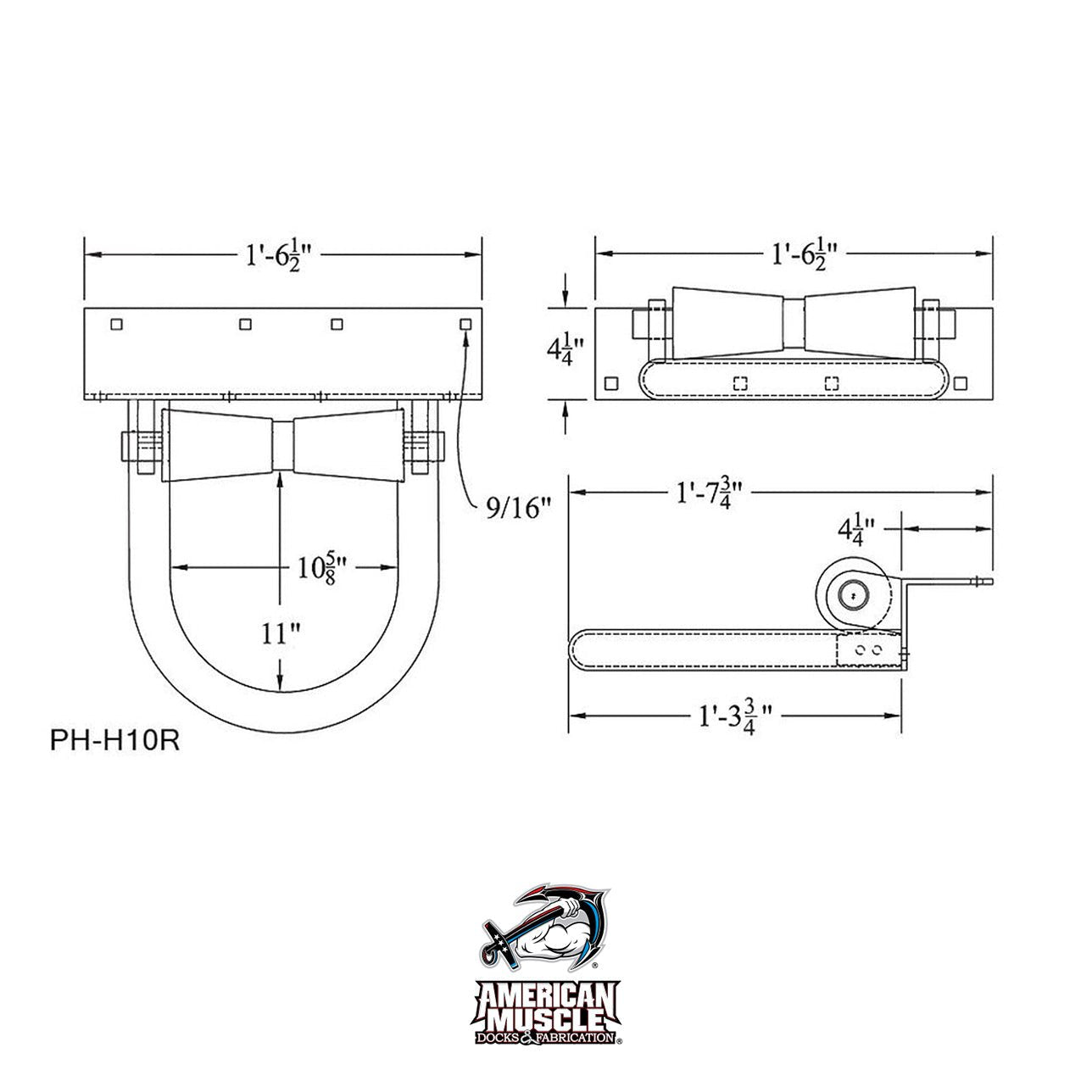

Dimensions and drawings are for illustration purposes only.  Some actual dimensions may vary slightly from what is shown.
