HD Square Internal Pile Guides (No Roller)

PH-S10
$191.00
$191.00

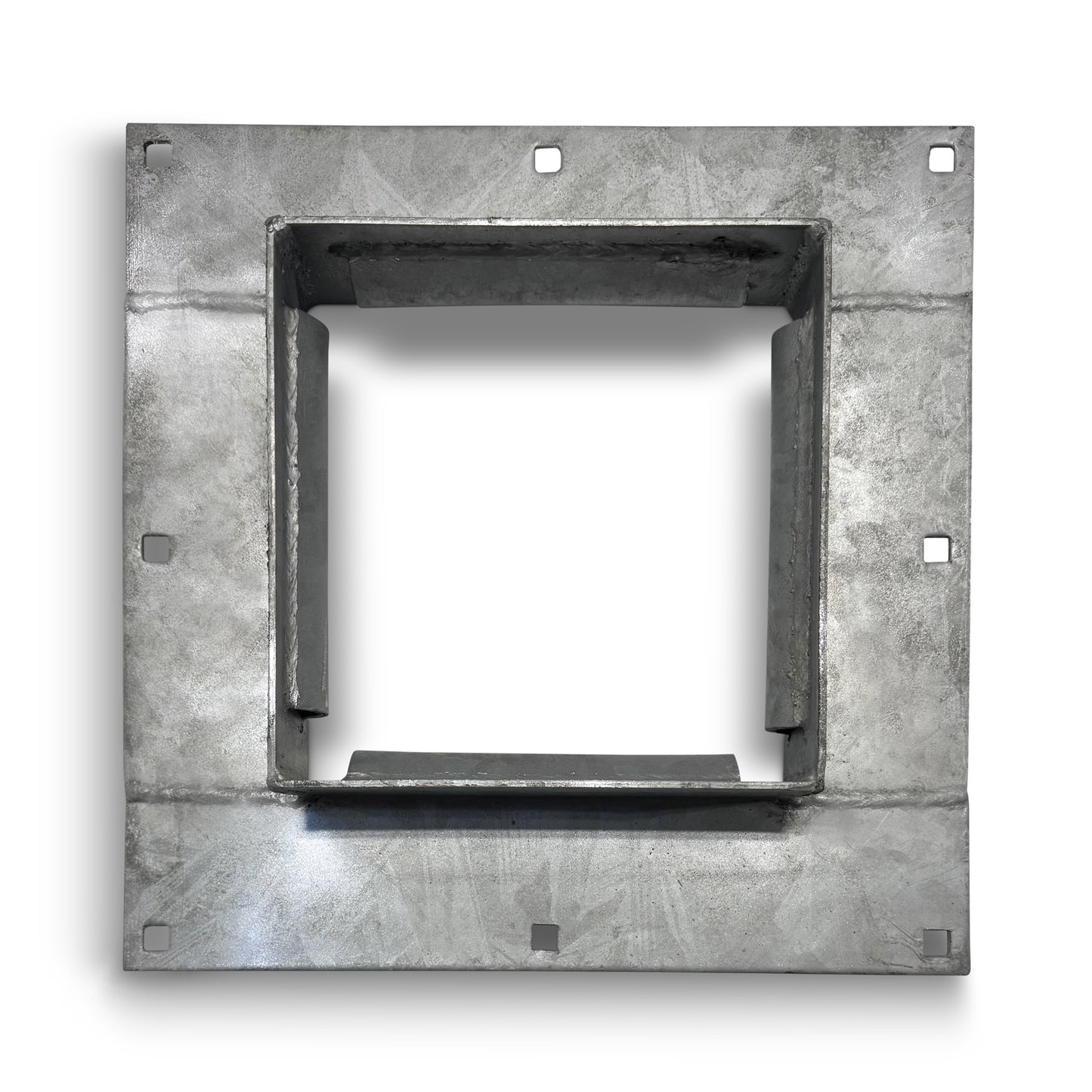

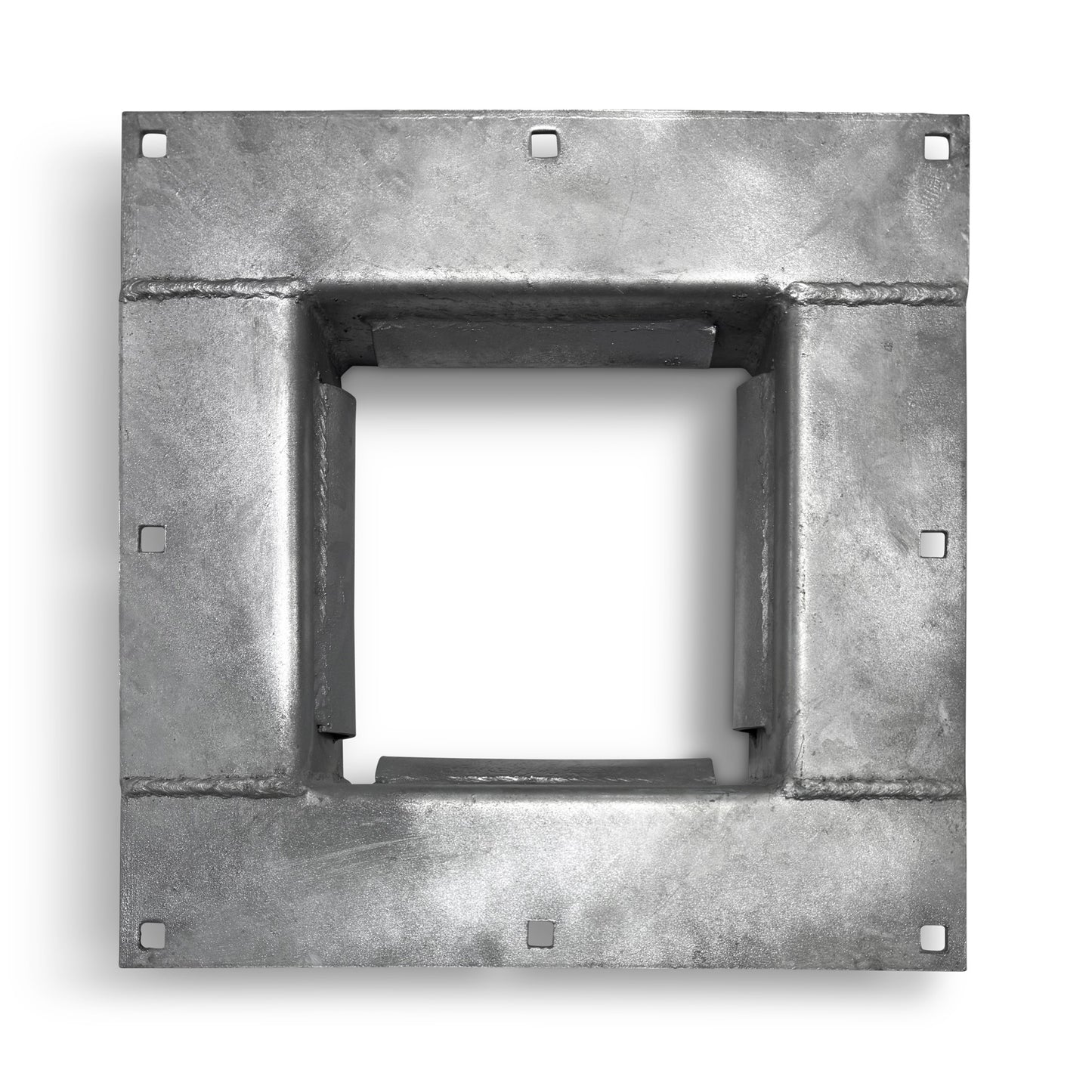

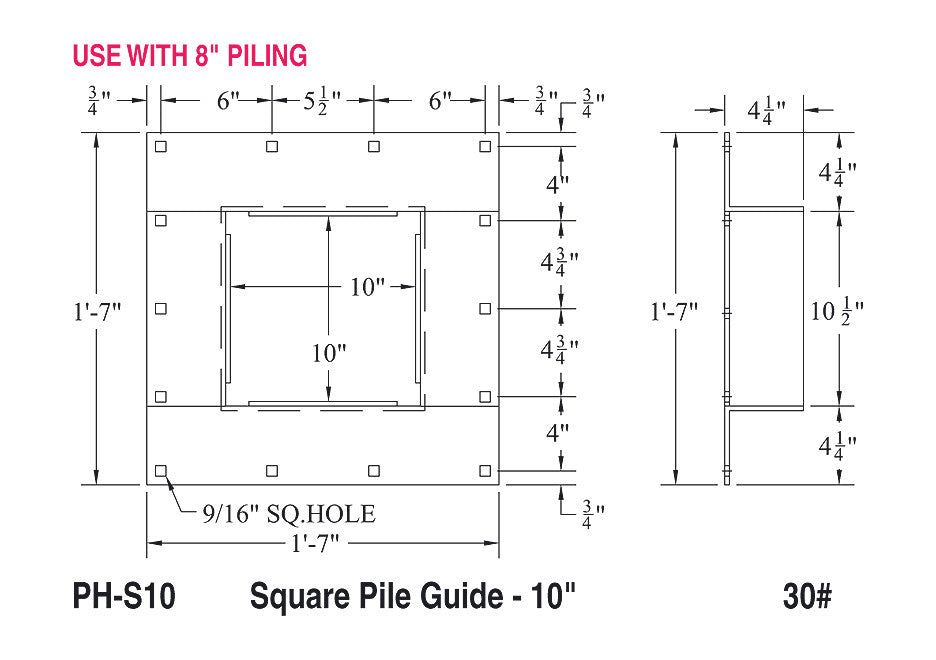

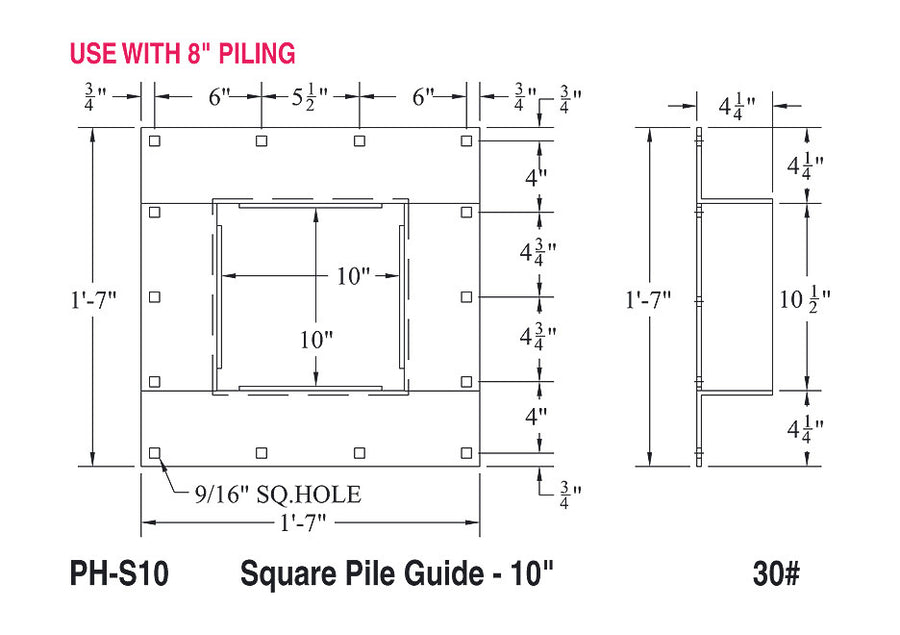

The HD Square Internal Pile Guides (No Roller) by American Muscle Docks & Fabrication feature a galvanized square metal frame with a hollow center, weld lines, and eight holes near the edges, designed for boat docks and shown against a white background. The HD Square Internal Pile Guides (No Roller) by American Muscle Docks & Fabrication feature a galvanized coated metal square frame with a hollow center and eight evenly spaced small holes, ideal for use as internal square pile guides in boat dock construction. Technical drawing of an HD Square Internal Pile Guide (No Roller) by American Muscle Docks & Fabrication for 10" piling, showing dimensions and hole placements. Ideal for boat dock use; includes company logo. Technical drawing of the HD Square Internal Pile Guide (No Roller), galvanized coated for 12" internal square pile with 10" piling, labeled PH-S12, 33#, featuring the American Muscle Docks & Fabrication logo—ideal for boat docks. Technical drawing of a 14" galvanized HD Square Internal Pile Guide (No Roller) by American Muscle Docks & Fabrication, showing dimensions, bolt hole placements, and notes for use with 12" piling on boat docks. Brand logo shown at bottom. Technical drawing of HD Square Internal Pile Guides (No Roller), 16" internal size with 14" piling compatibility. Detailed dimensions shown. Galvanized finish. American Muscle Docks & Fabrication logo at bottom; ideal for boat docks. Technical drawing of HD Square Internal Pile Guides (No Roller) by American Muscle Docks & Fabrication, 18-inch galvanized internal guide for 16 piling with dimensions, hole placements, side views, and American Muscle logo.

HD Square Internal Pile Guides (No Roller)

PH-S10
$191.00
$191.00

Achieve stable and reliable docking with our internal square pile guides, featuring a fixed design without rollers for consistent positioning. Choose between 10-inch and 18-inch height options to suit your dock structure. Built for durability and easy integration within your boat dock.

  • Mounting Angle: 1/4” thick by varying lengths (19” to 27”)
  • 4.25”x 4.25” Angle Legs
  • 9/16” Square Mounting Bolt Holes
  • Galvanized Coated

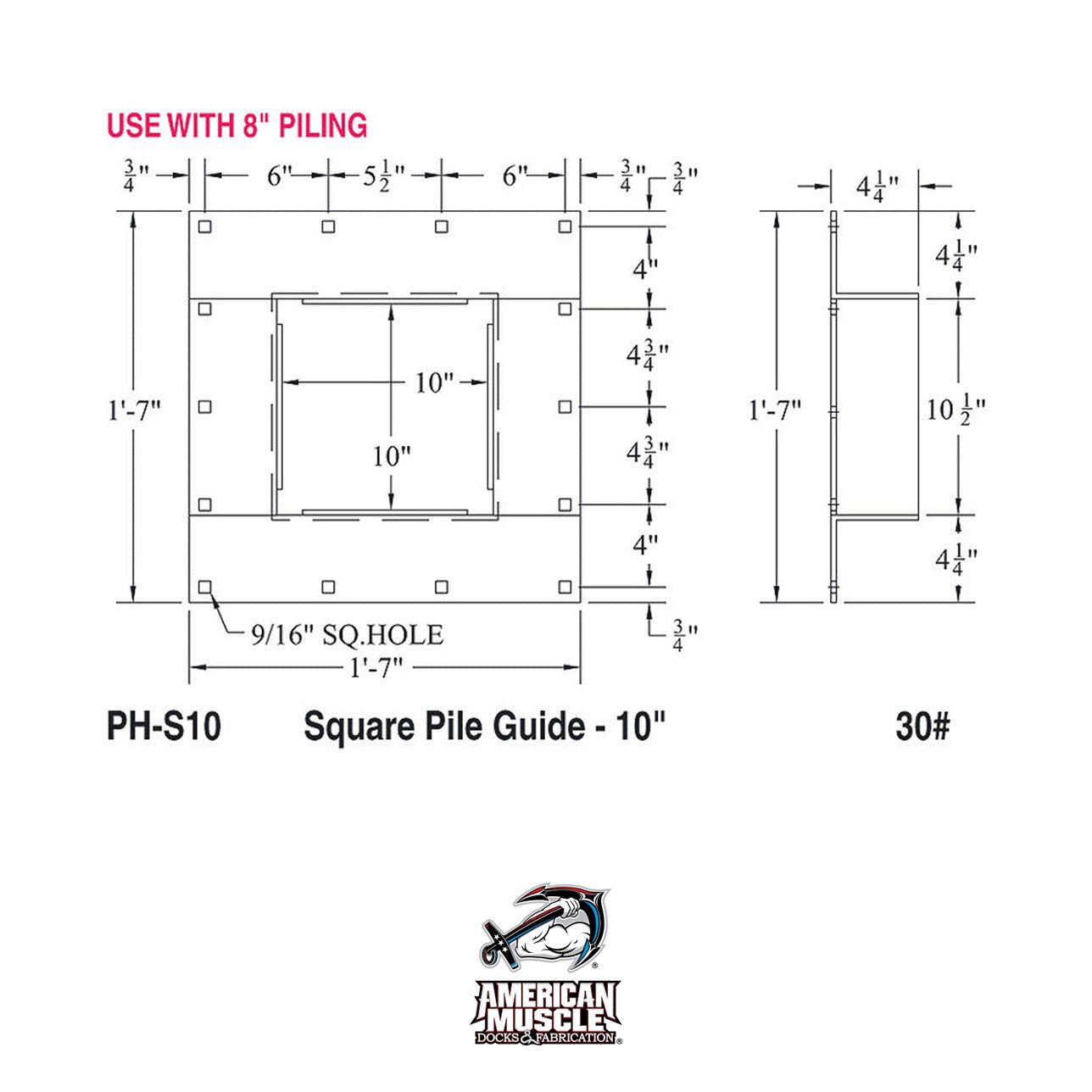

PH-S10 - Recommended for 8” Pile - 30 LBS

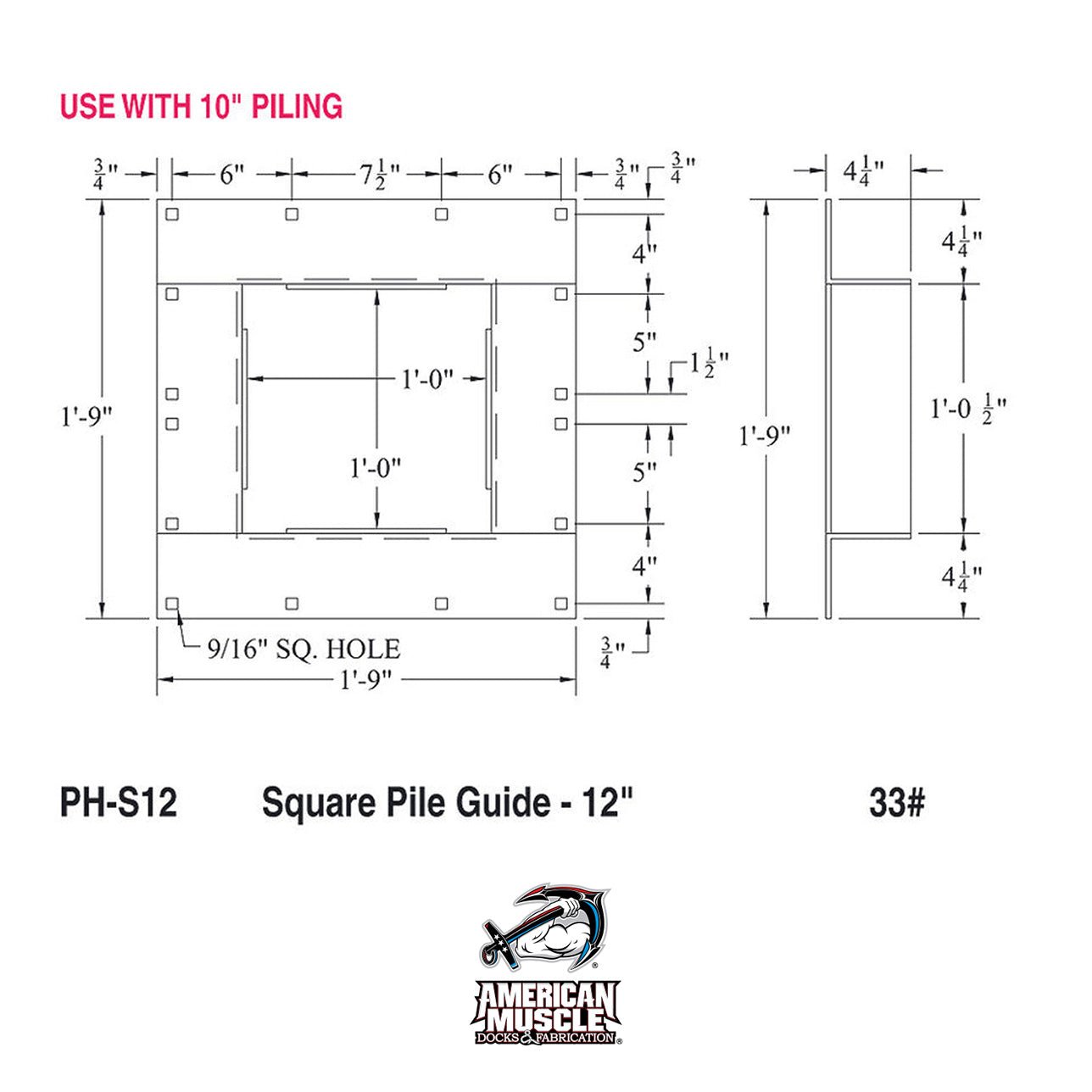

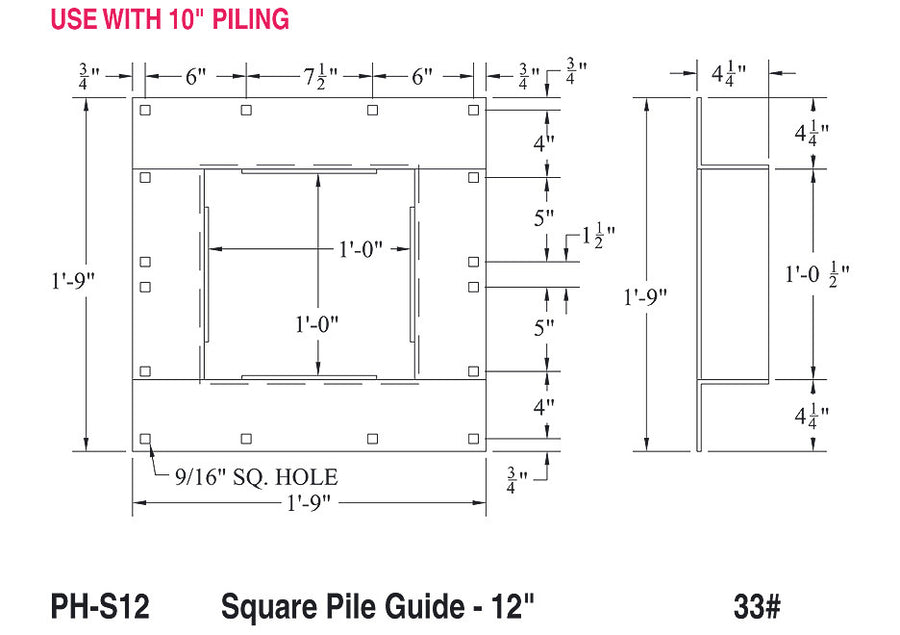

PH-S12 - Recommended for 10” Pile - 33 LBS

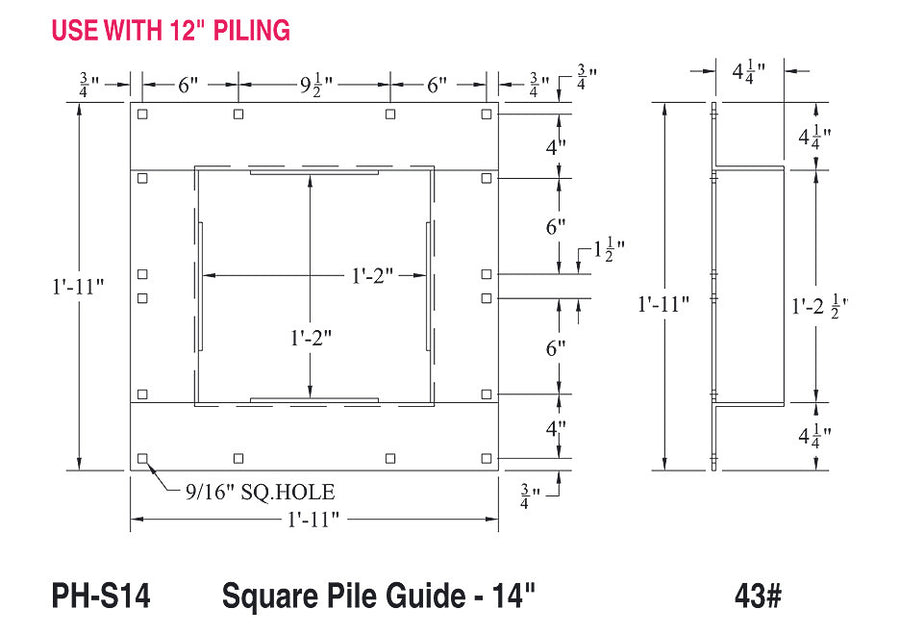

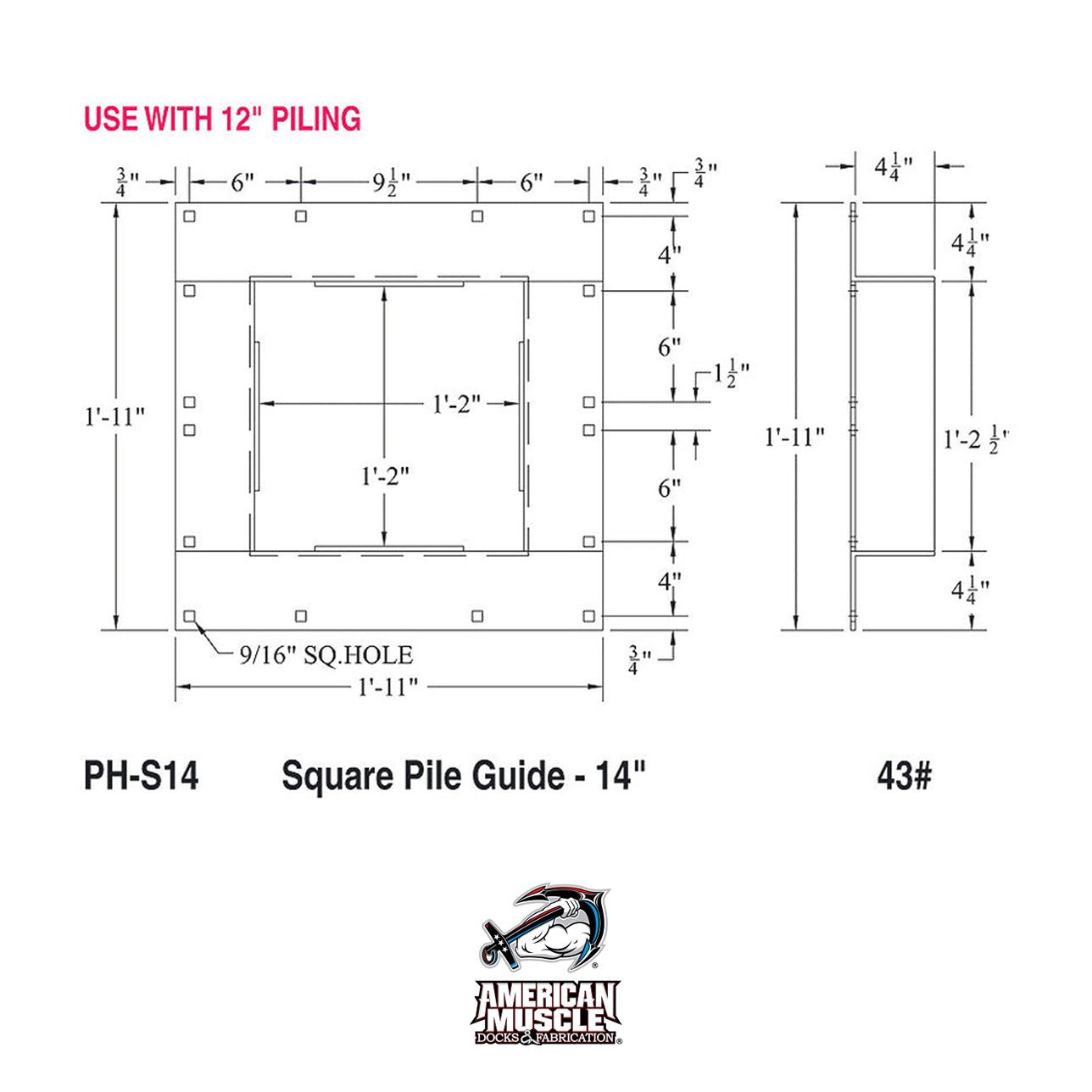

PH-S14 - Recommended for 12” Pile - 43 LBS

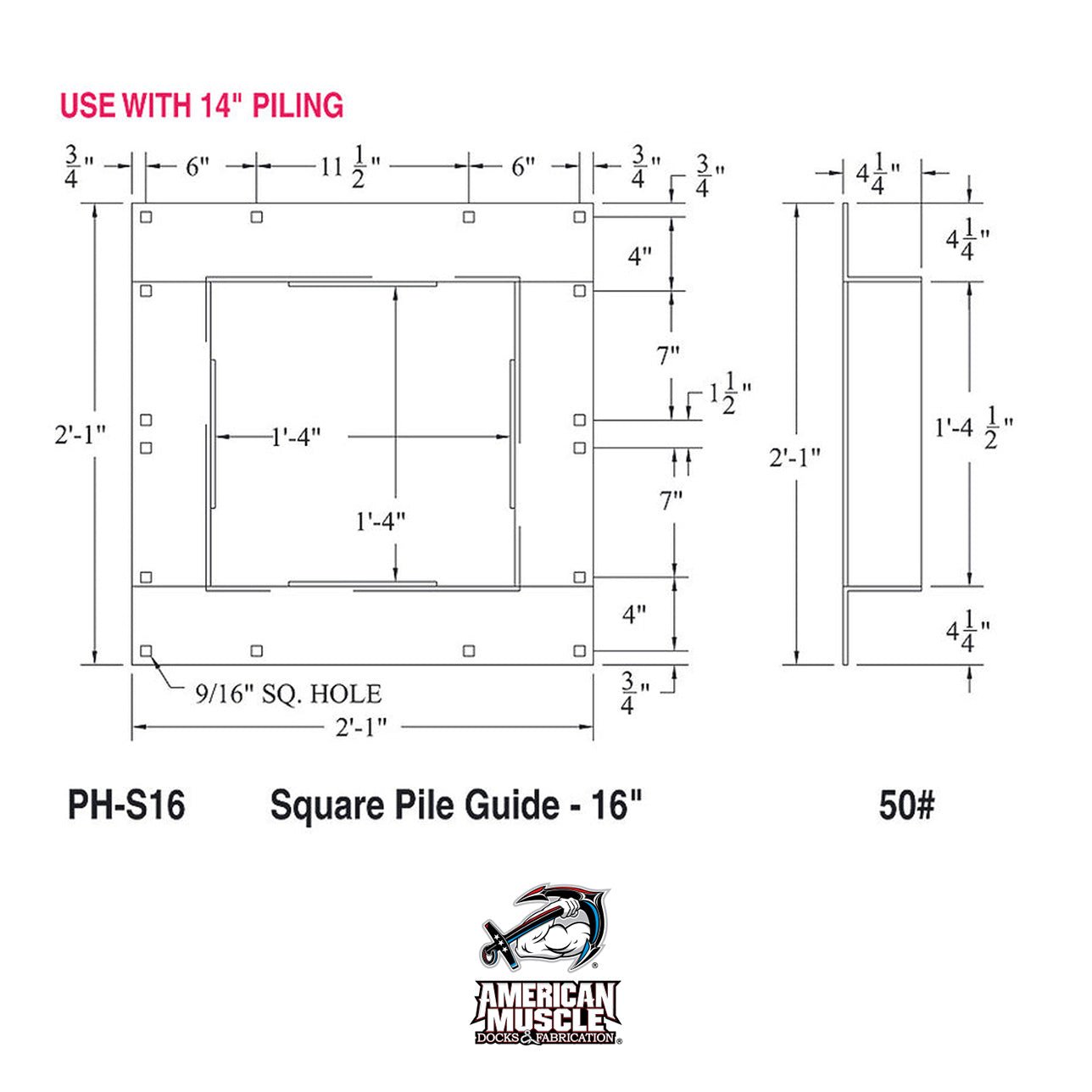

PH-S16 - Recommended for 14” Pile - 50 LBS

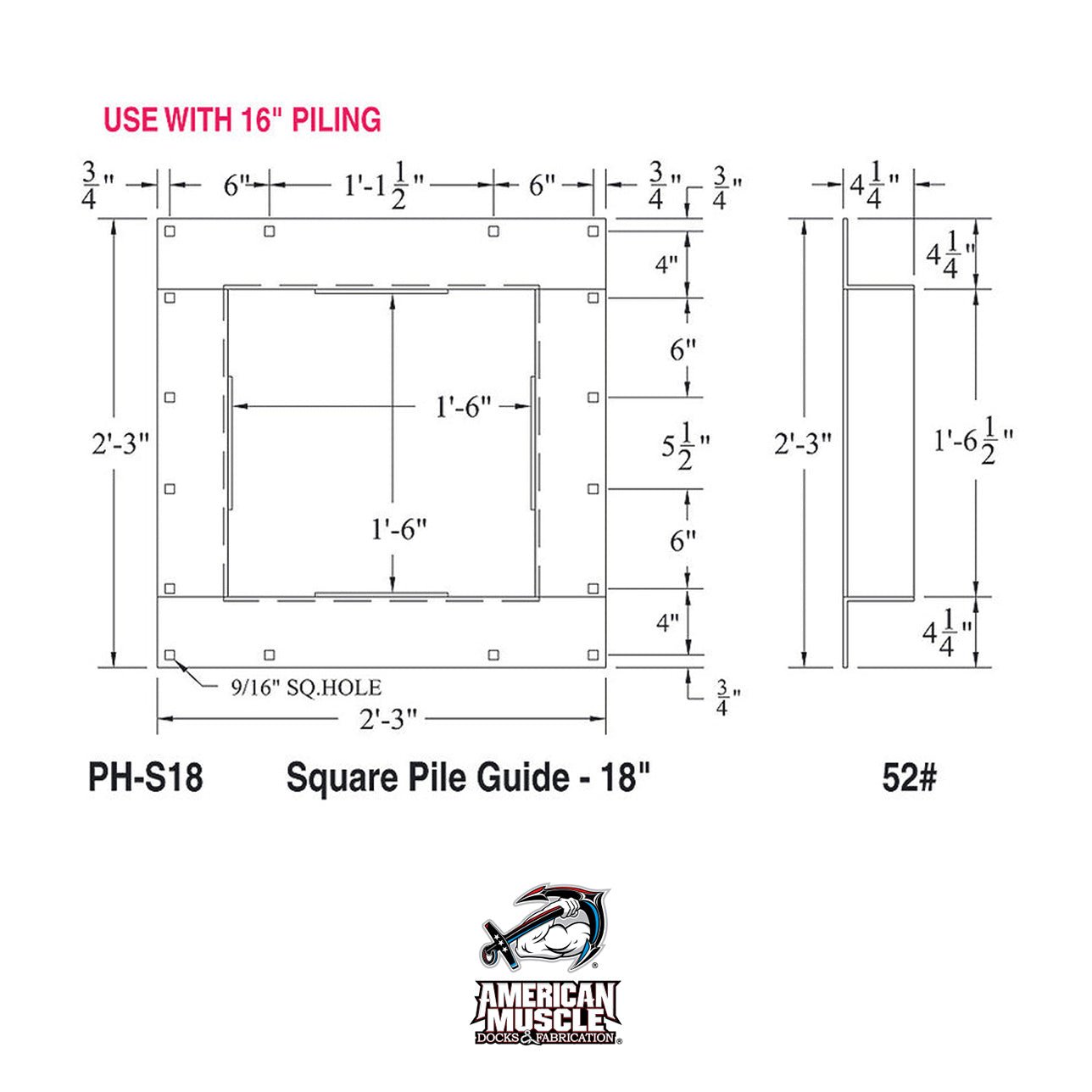

PH-S18 - Recommended for 16” Pile - 52 LBS
