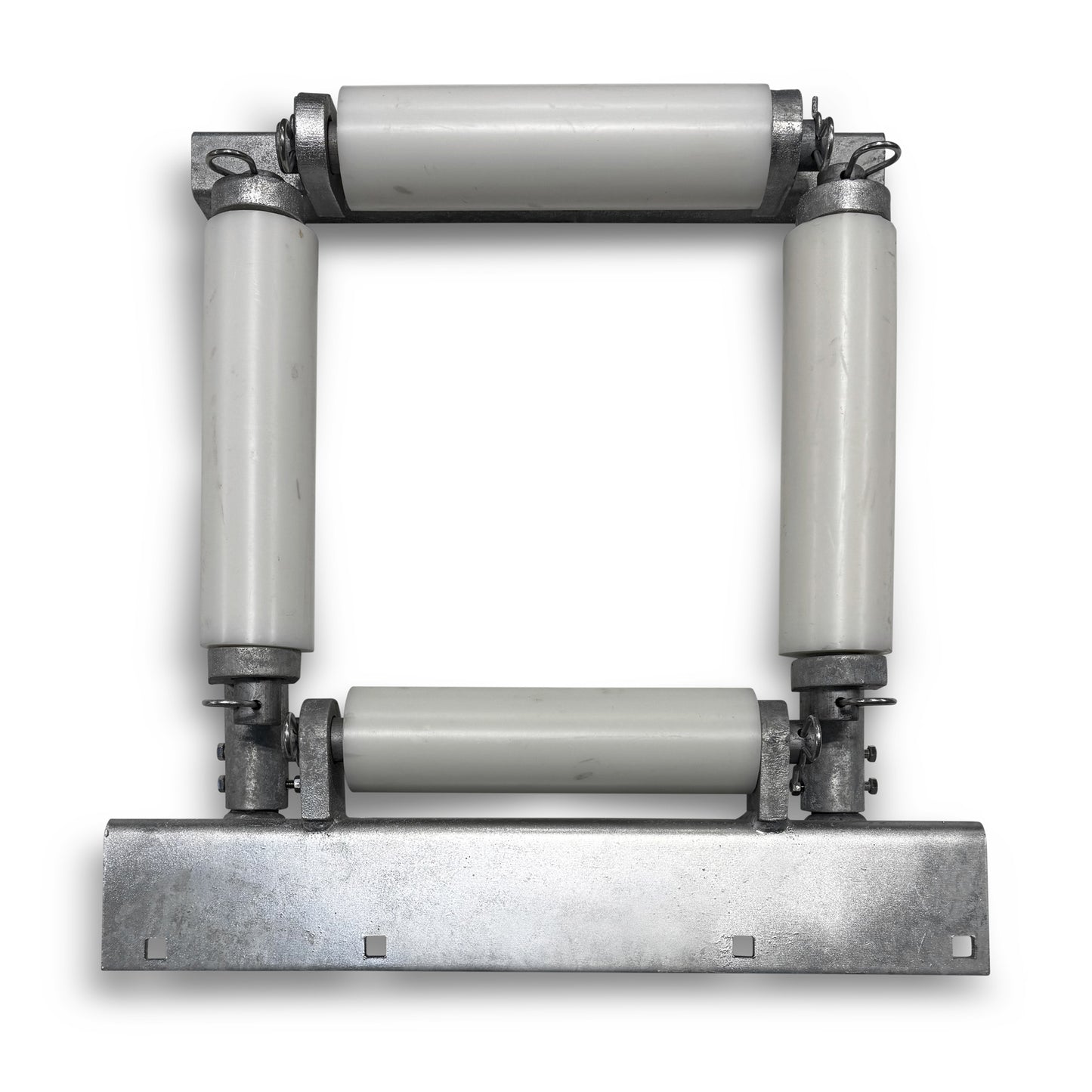

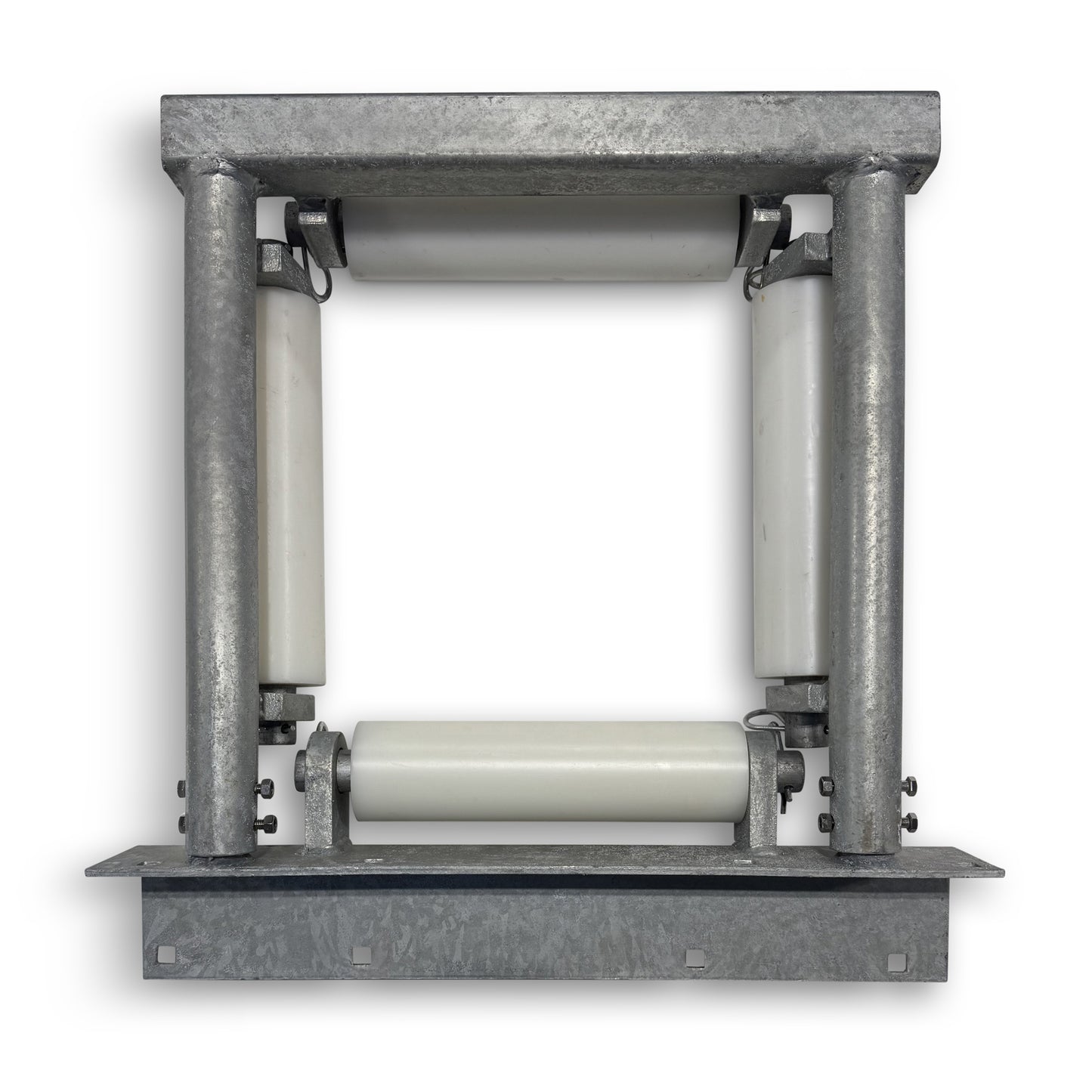

Our external square hoop pile guide, equipped with four non-marking poly rollers for effortless movement. Choose between the 14-inch model (ideal for 12" pilings) and the 16-inch model (perfect for 14" pilings). Built for durability and easy installation on your dock.

• Mounting Angle HSRP14: ¼” x 24.5”
• Mounting Angle HSRP16: ¼” x 26.5”
• 4.25”x 4.25” Angle Legs
• 9/16” Square Mounting Bolt Holes
• ¾” Thick Roller Tabs
• Roller Shaft: 15” x 1.25” Solid
• Hoop Material: 1.5” Sch40 Pipe, 2” x 2” 3/16” Square Tubing
• Galvanized Coated

PH-HSRP14 - Recommended for 12” Pile - 78 LBS
PH-HSRP16 - Recommended for 14” Pile - 81 LBS
