Wood Dock Single T Male

WD-TM
$13.00
$13.00

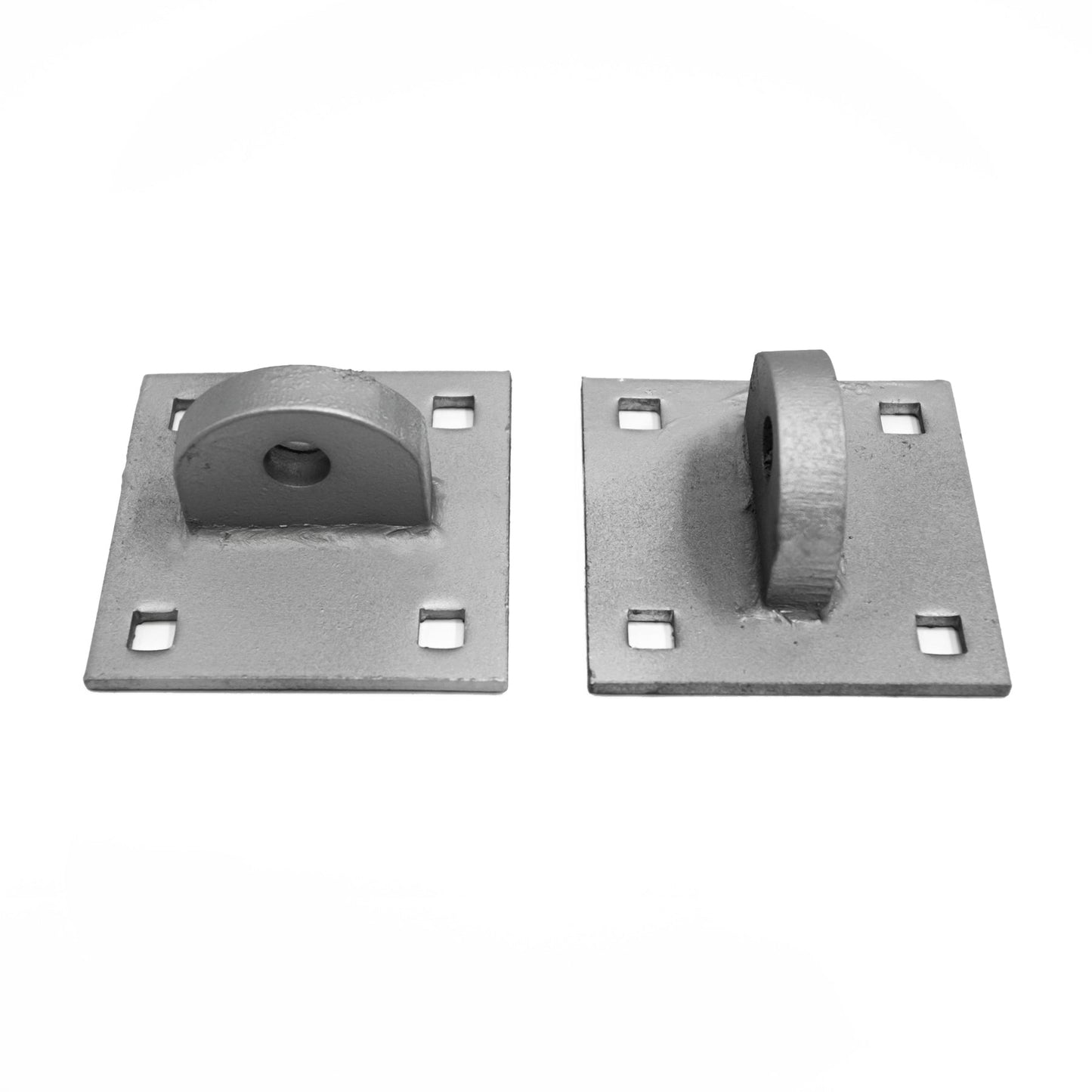

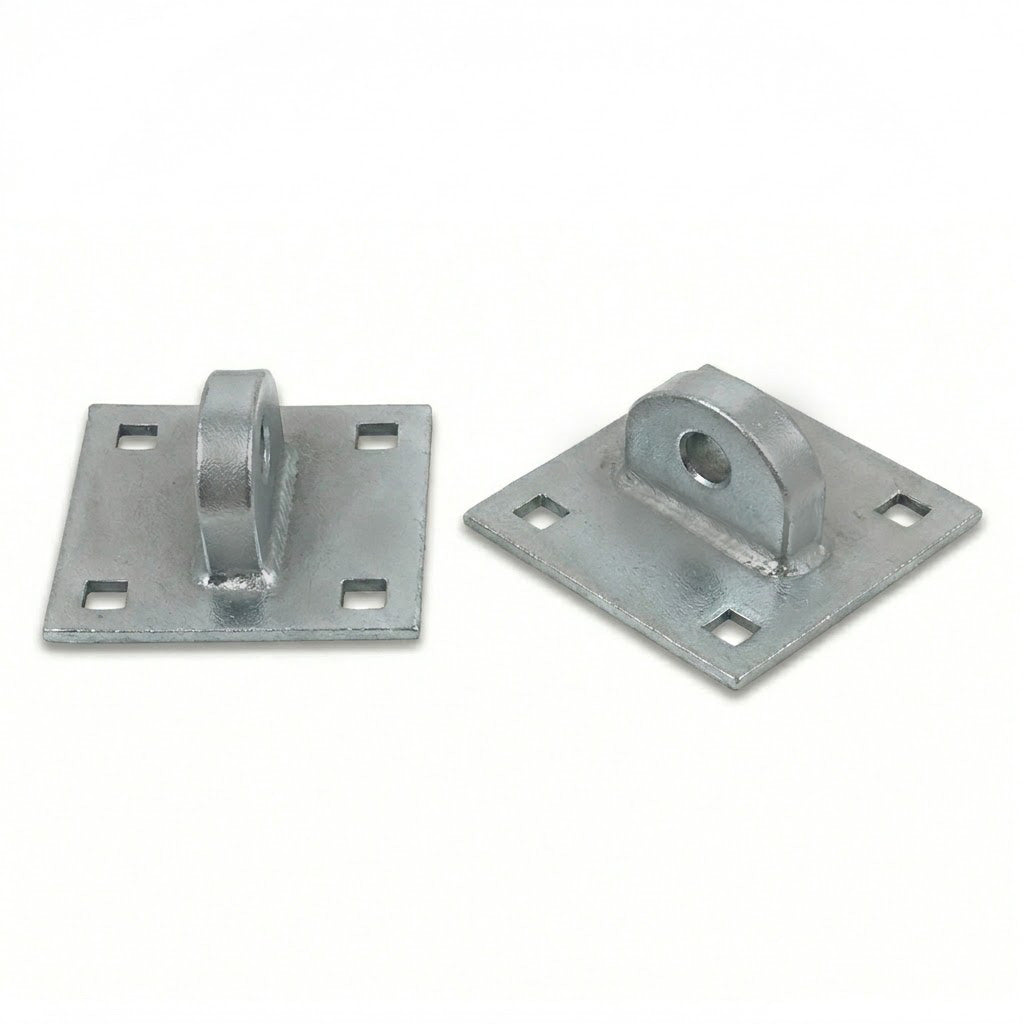

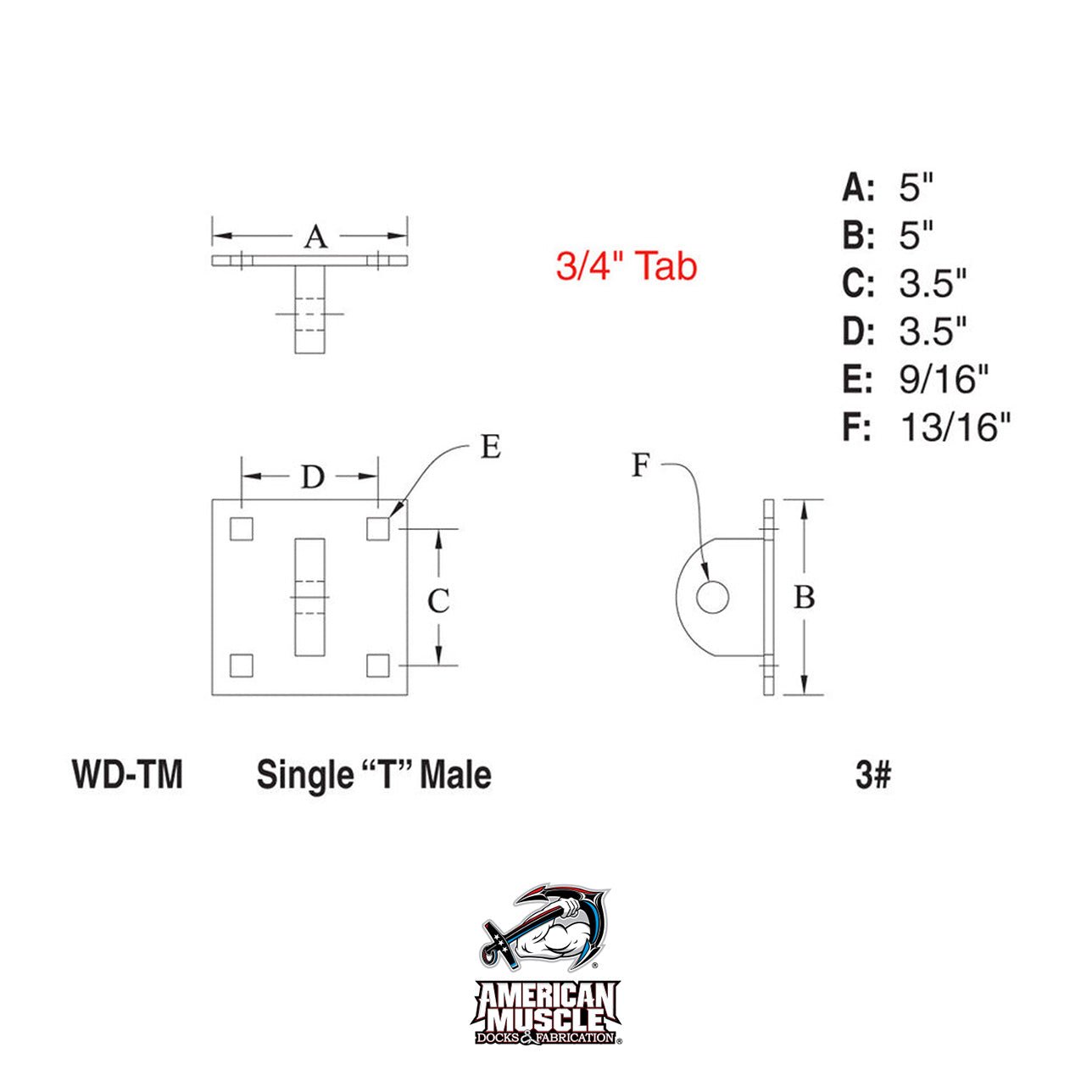

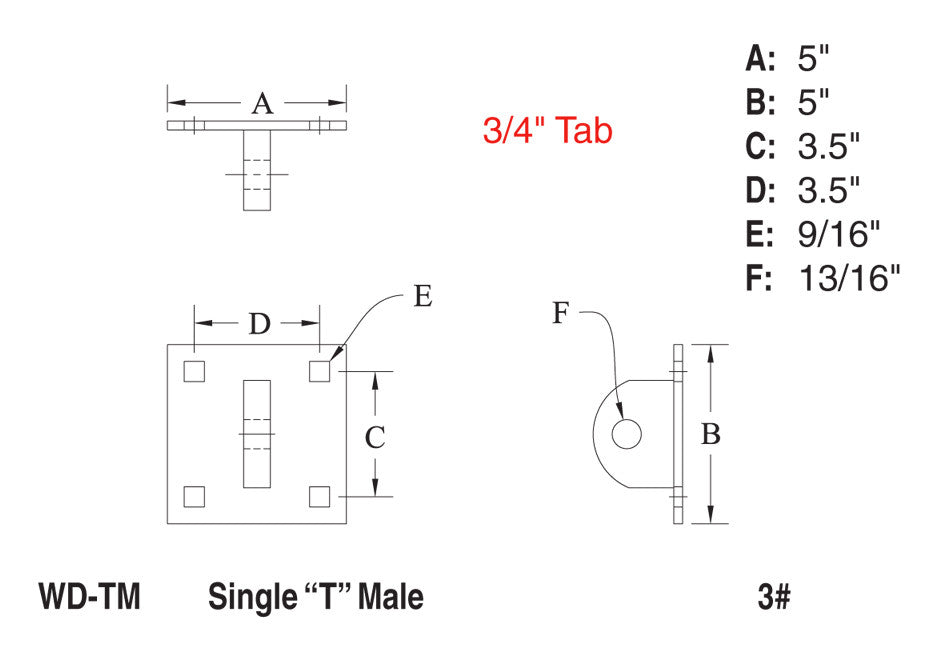

The American Muscle Docks & Fabrication Wood Dock Single T Male features two galvanized mounting plates with raised brackets, a central hole, and four corner holes for screws—perfect as dock hardware or for use with a dock connector. The Wood Dock Single T Male by American Muscle Docks & Fabrication is shown with a metal frame, wooden planks, and galvanized dock hardware, surrounded by other dock components in bright sunlight. Technical drawing of a galvanized coated Wood Dock Single T Male connector by American Muscle Docks & Fabrication with labeled dimensions A-F, a 3/4" tab, and the American Muscle logo at the bottom.

Wood Dock Single T Male

WD-TM
$13.00
$13.00

The WD-TM is a durable dock connector featuring a single 3/4-inch attachment tab, pre-drilled to accept a standard 3/4-inch pin or bolt (not included). This connector is specifically designed for secure and reliable connections with Outside Corner Female (WD-F) and Single T Female (WD-TF) dock hardware.

  • ¼” Thick Base Plate 5”x 5”
  • 9/16” Square Mounting Bolt Holes
  • 3.5” Mounting Hole Centers
  • ¾” Thick Tab
  • 13/16” Tab Hole
  • Galvanized Coated

Weighs 3 lbs.
