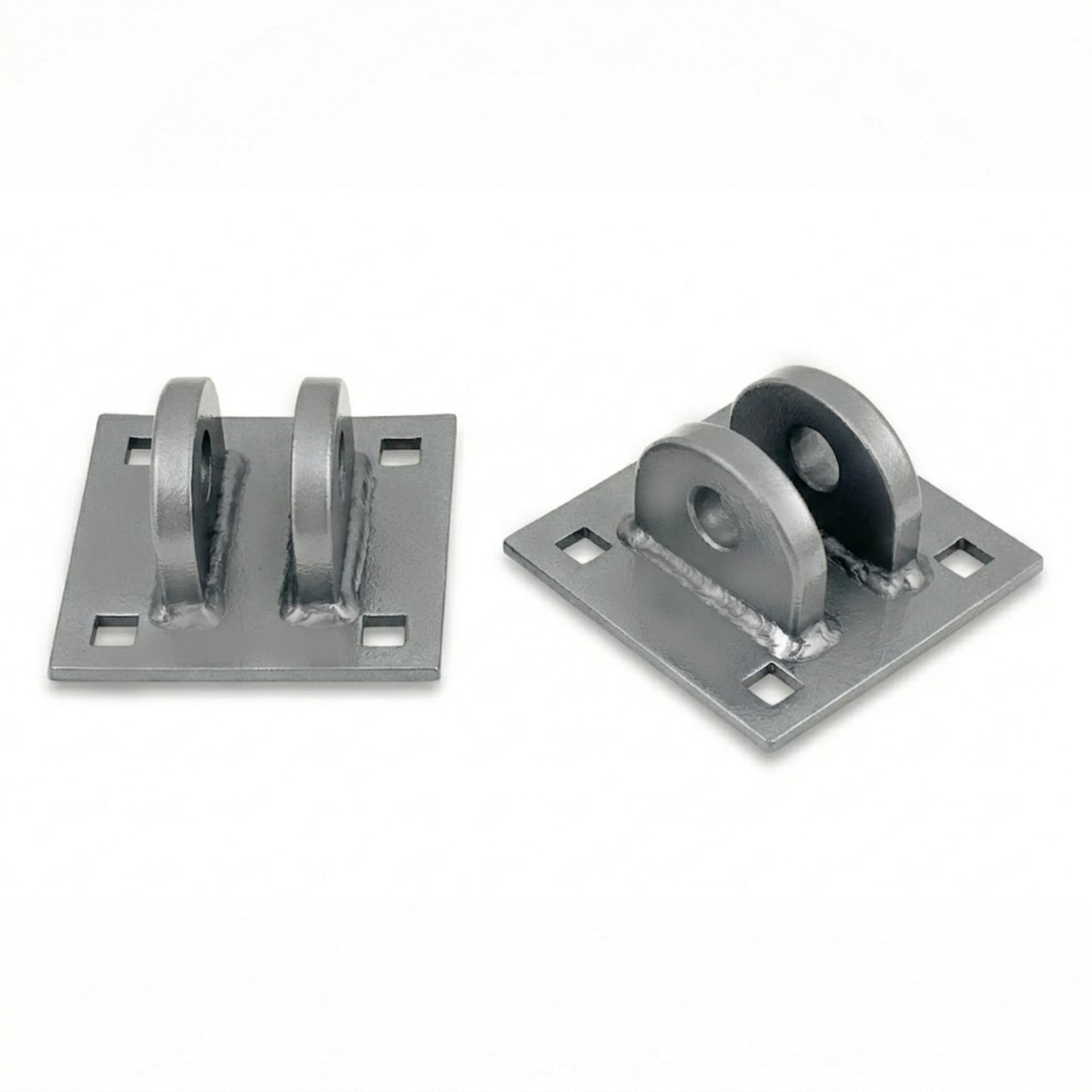

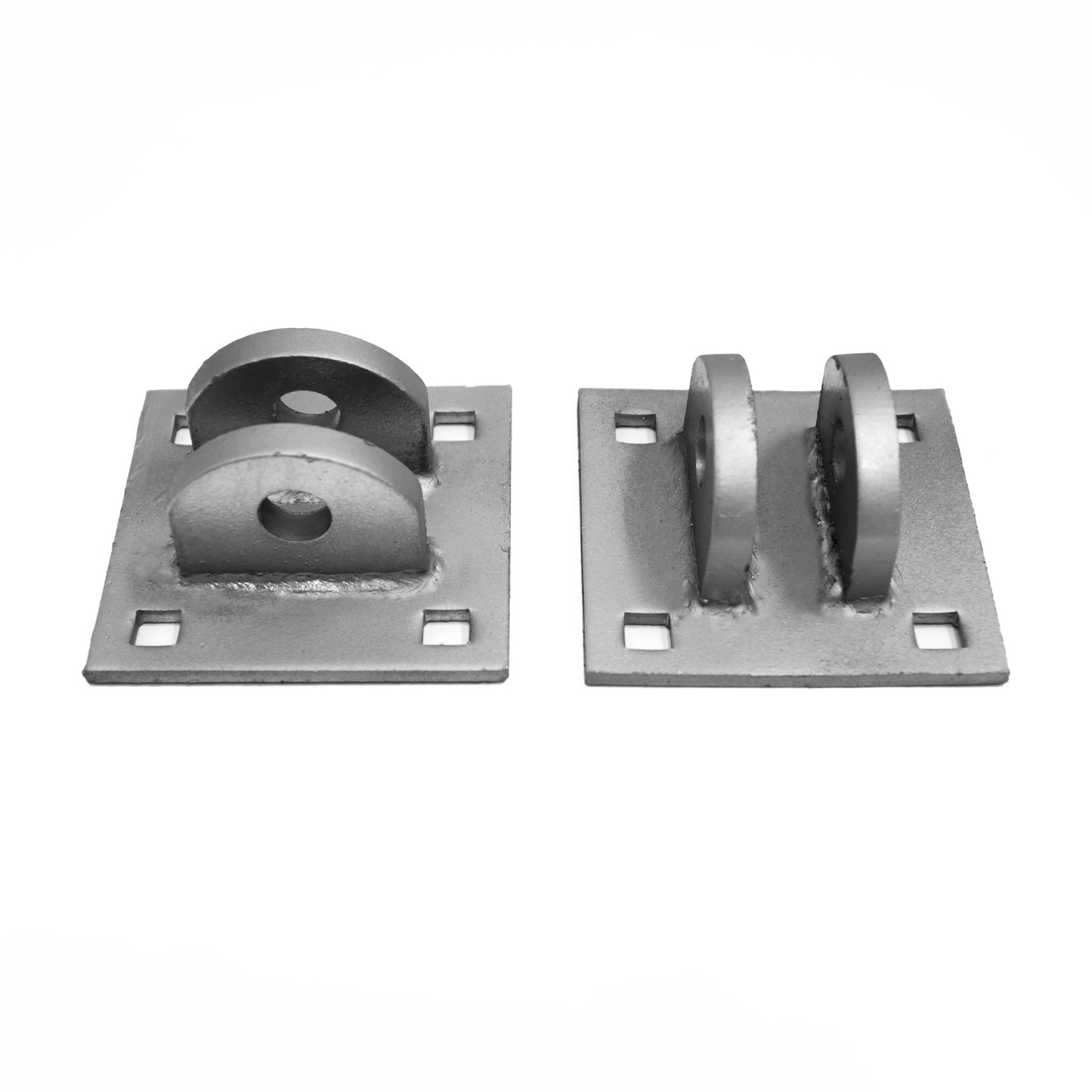

WD-TF Dual Tab Dock Hinge Connector - 1/2" Tabs for WD-M & WD-TM (Male): The WD-TF is a versatile dock hinge connector featuring two 1/2-inch attachment tabs, pre-drilled for bolting. This connector is specifically designed for use with Outside Corner Male (WD-M) and Single T Male (WD-TM) dock connectors. Its design allows for hinging applications, such as bolting to a seawall for ramp connections or to the side of a main dock for finger dock attachment.

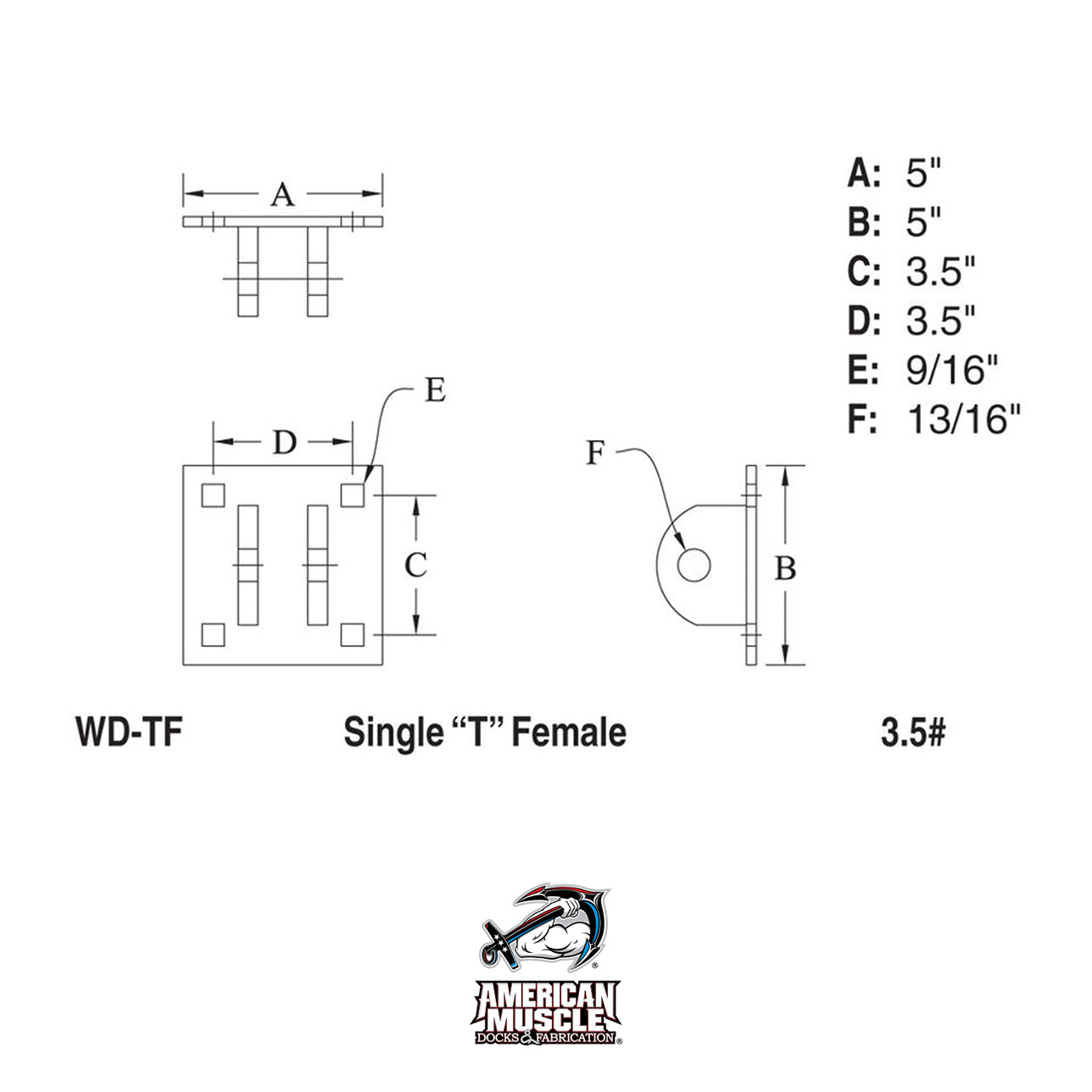

• ¼” Thick Base Plate 5”x 5”
• 9/16” Square Mounting Bolt Holes
• 3.5” Mounting Hole Centers
• 2(x) ½” Thick Tabs
• 13/16” Tab Hole
• Galvanized Coated

Weighs 3.5 lbs.
