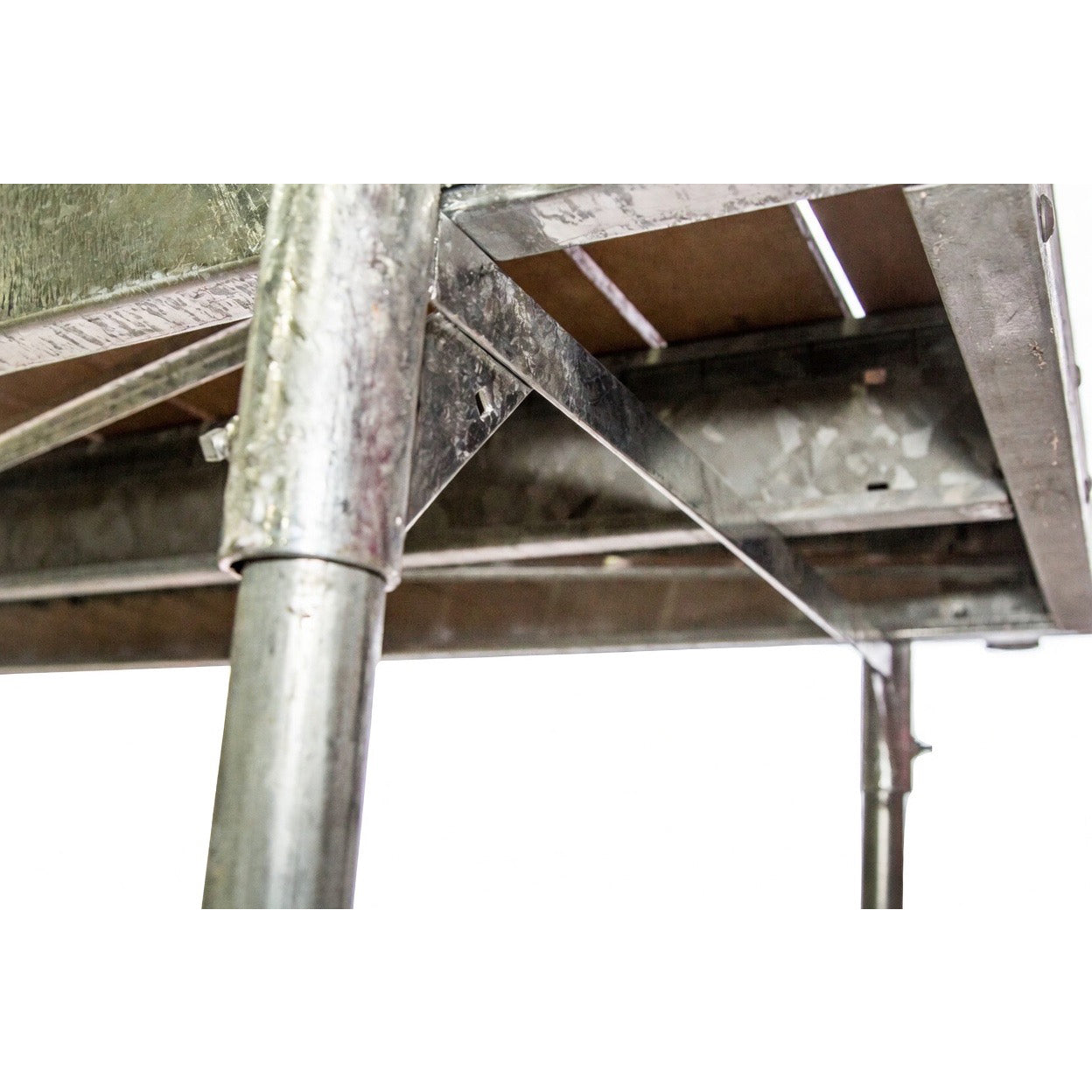

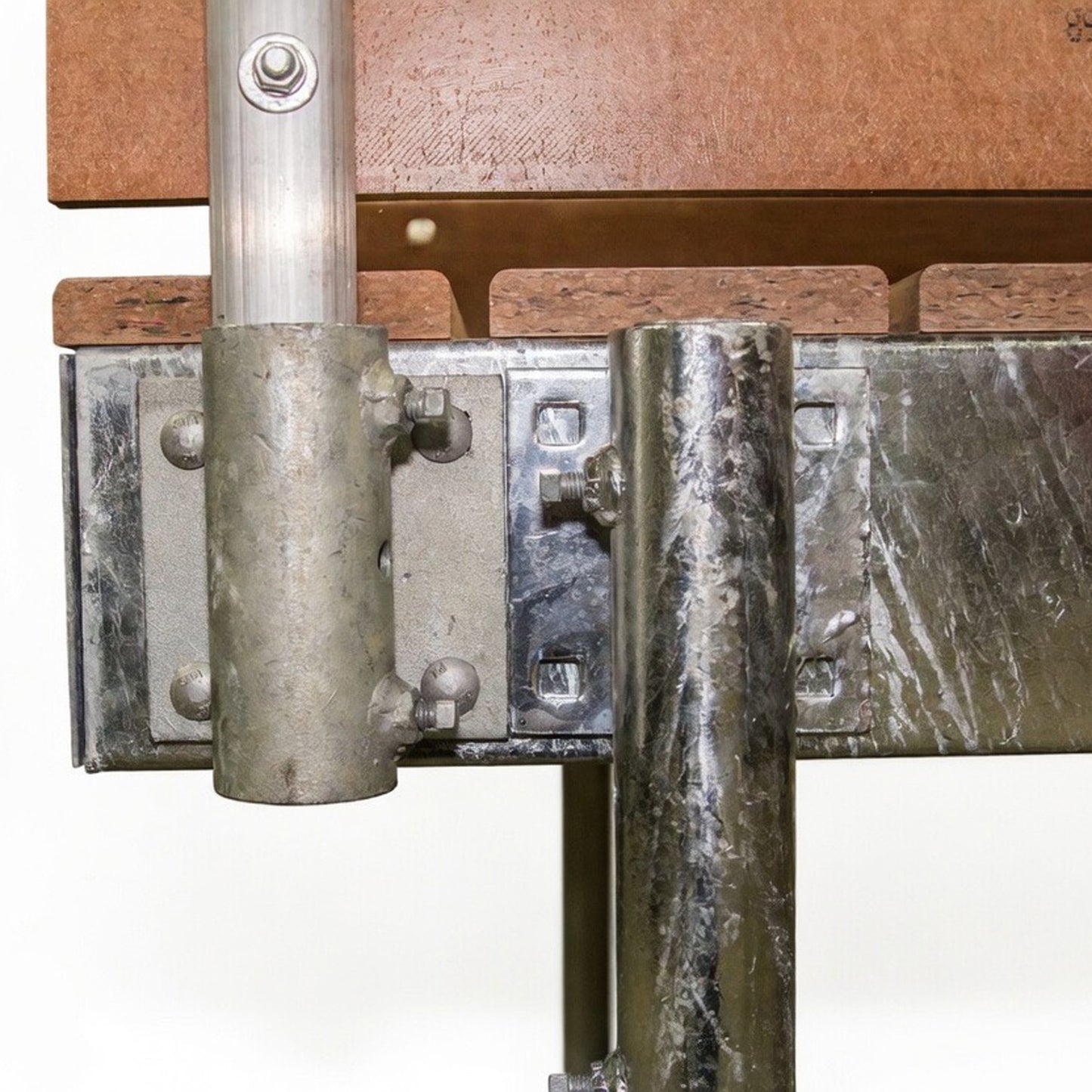

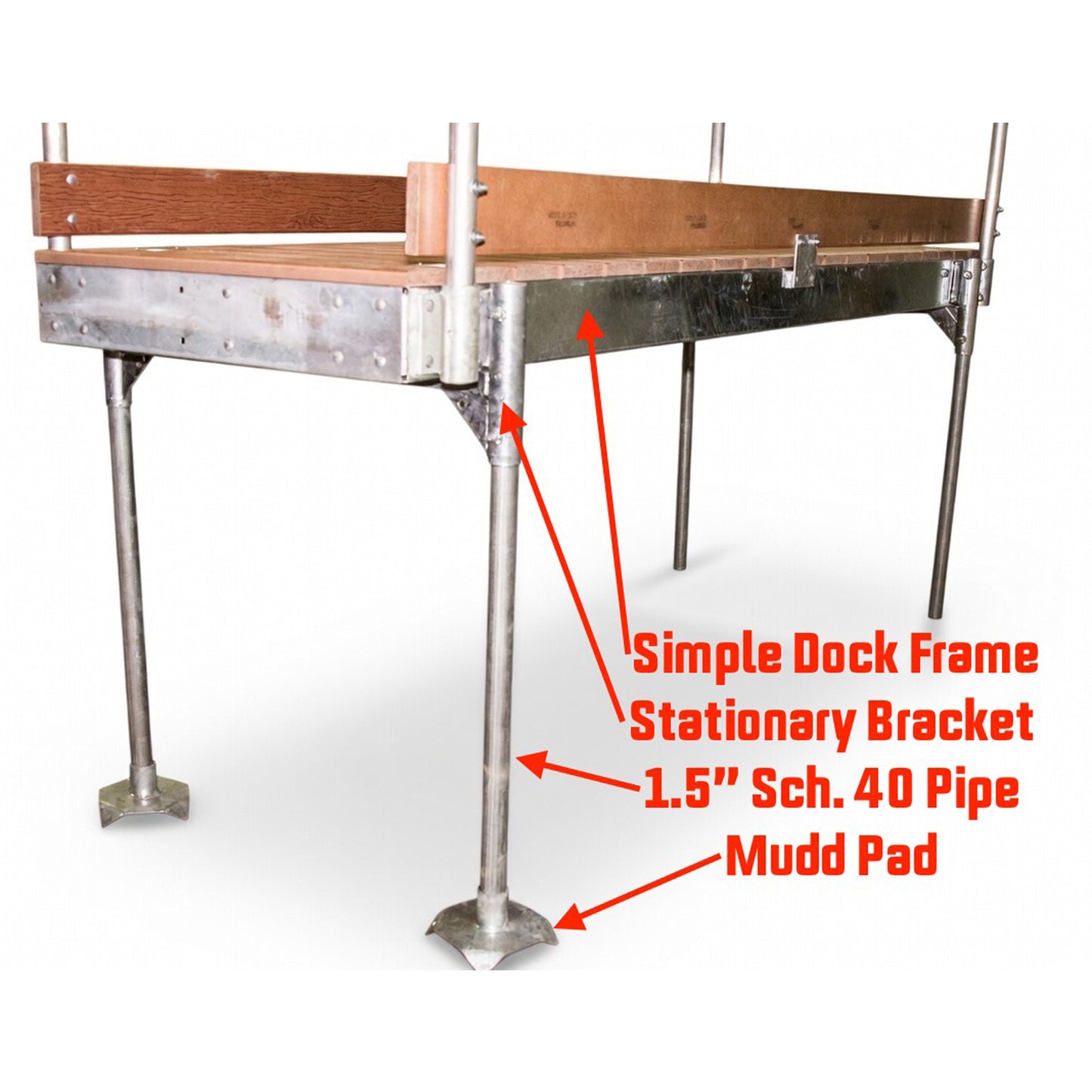

Our Stationary Dock Bracket is designed to be sturdier and easier to install. Bracket rests right under the steel channel dock frame, or your lumber frame, and the addition of welded pipe holders allows installing and securing pipe easier. After full bracket assemblies are set in the ground, you simply lay the metal box frame sections on top. You can then fasten side bracket holders to the box frame for rougher applications, or for simple applications just let the frame sit in the brackets.

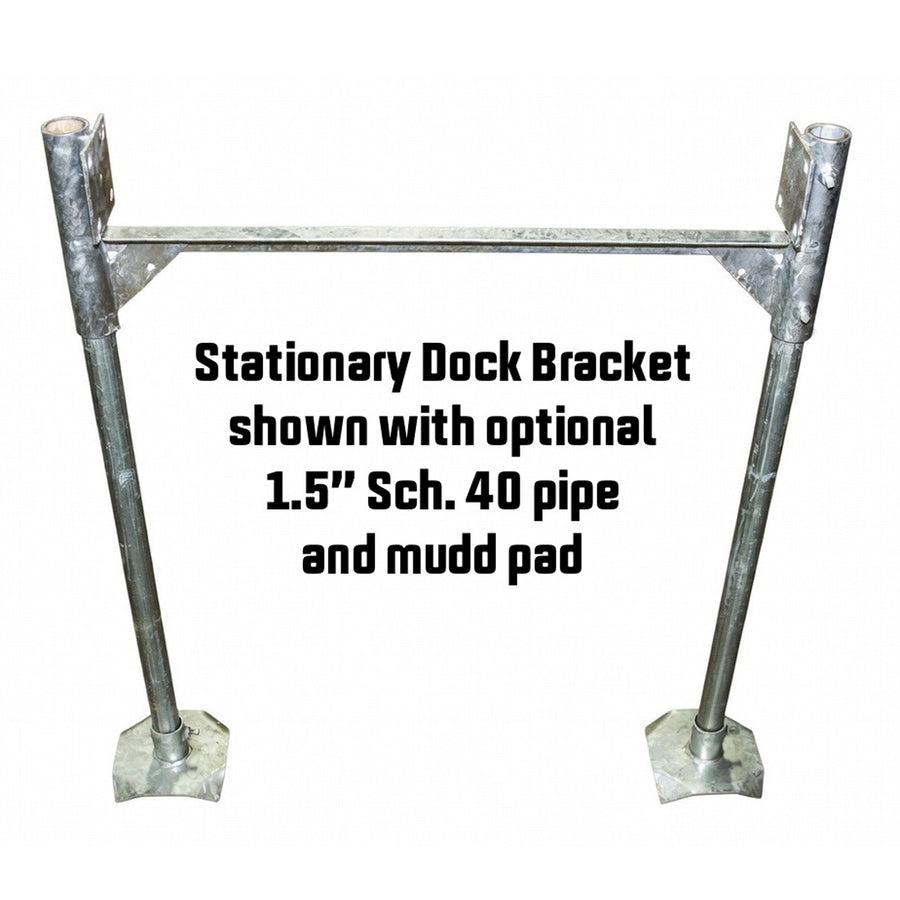

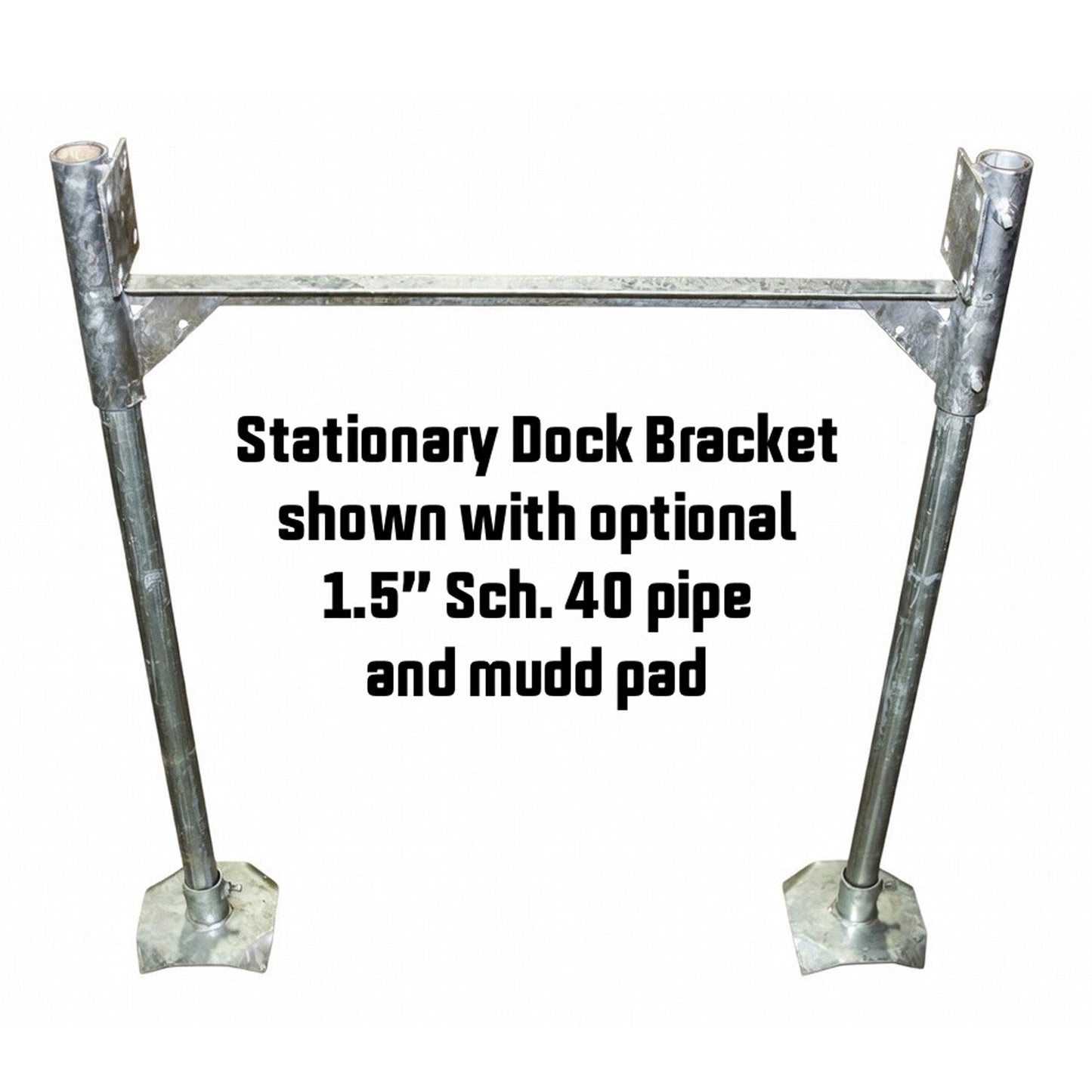

• Sold as individual bracket only.  Optional pipe and mudd pads available.

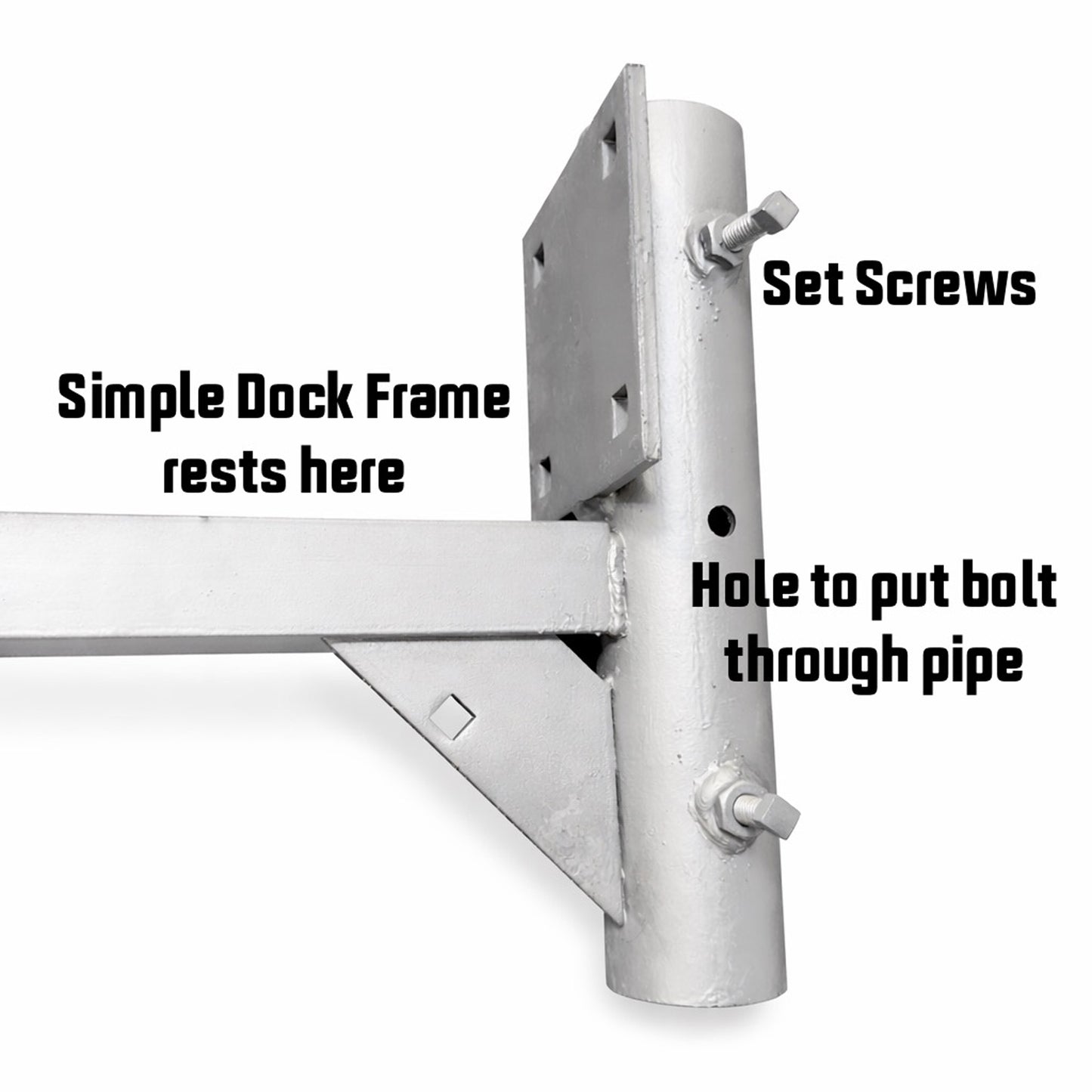

• 12" long, 2" ID pipe holder receivers are meant to accept schedule 40 1.5" pipe (1.9" OD).
•  5"x5" mounting plates attaches to Simple Dock frames with 3/8" carriage bolts - (8) per bracket.
• Brackets can be used with lumber framed docks as well.
• Galvanized coated for lasting performance.

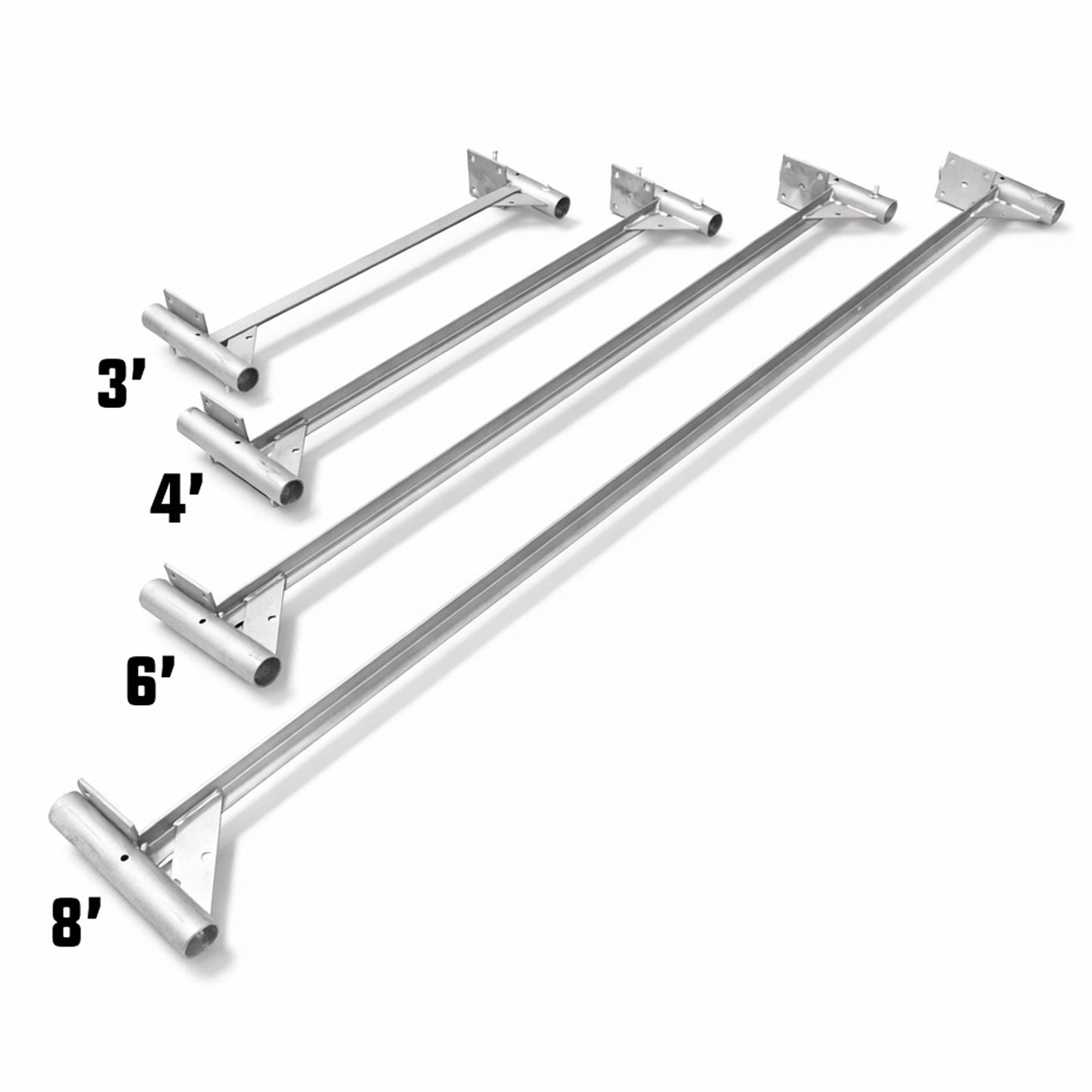

Inside Dimension Between Mounting Plates:

3' - 36 1/8 in

4' - 48 1/8 in

6' - 72 1/8 in

8' - 96 1/8 in
