HD Hoop Pile Guides (Poly Roller)

PH-H6RP
$159.00
$159.00

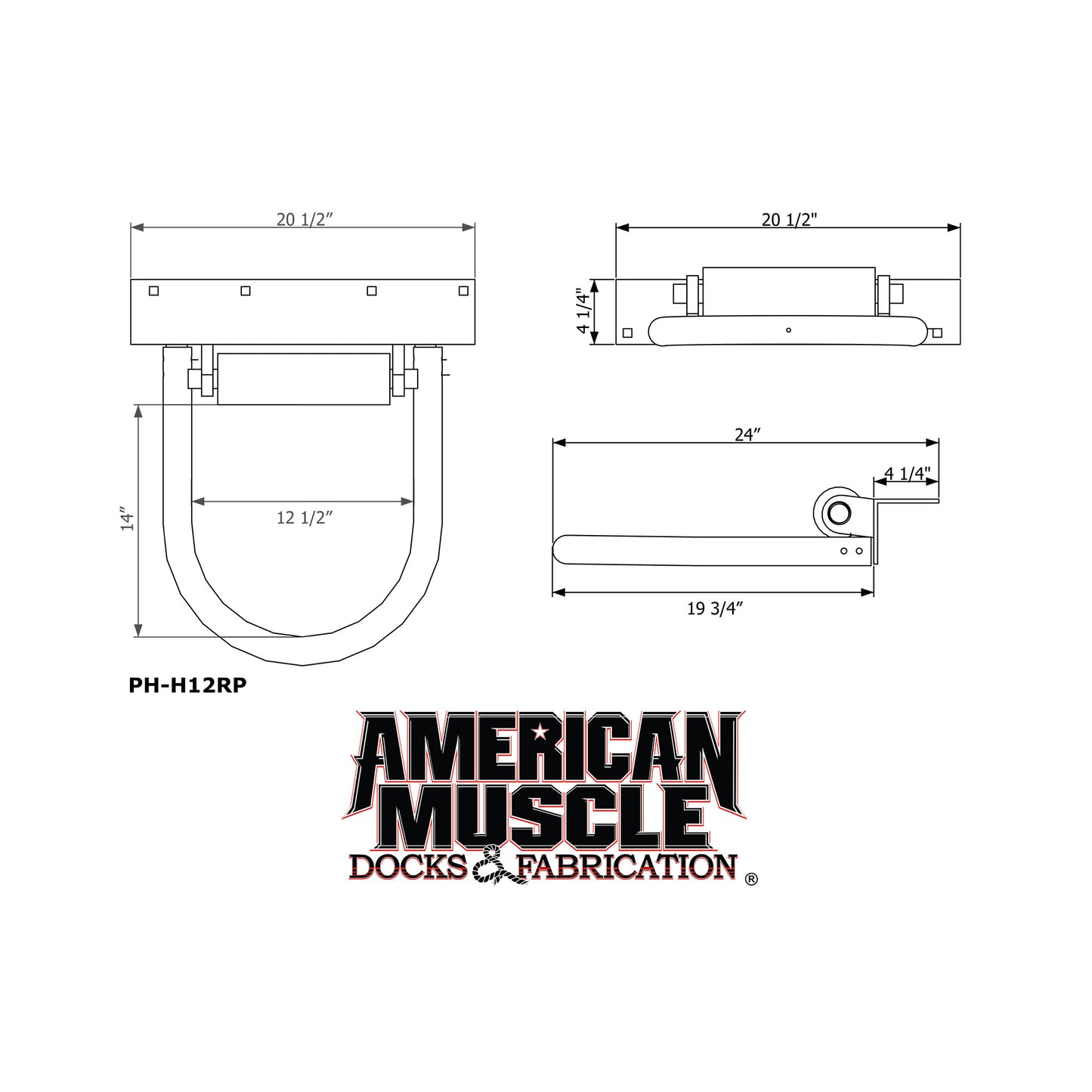

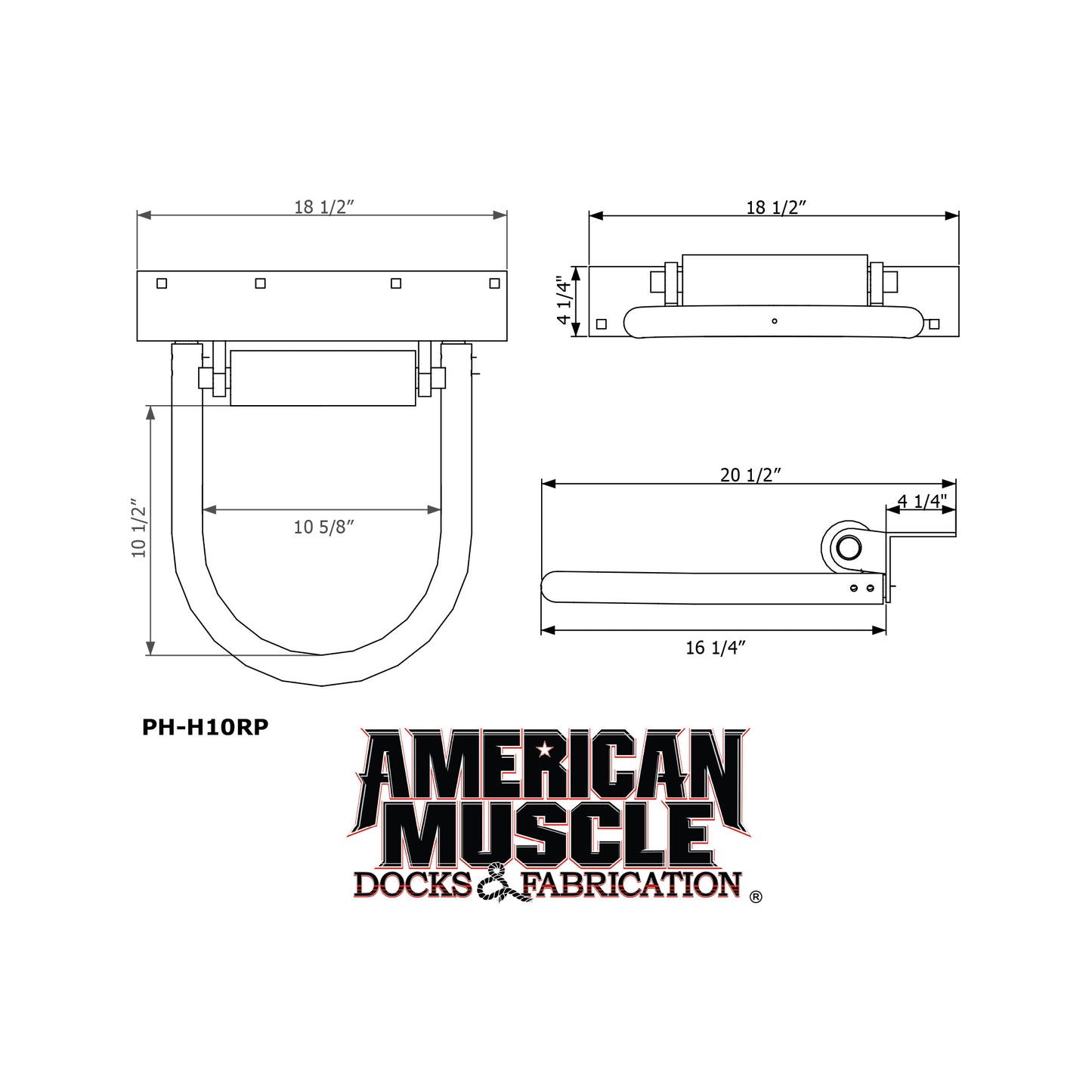

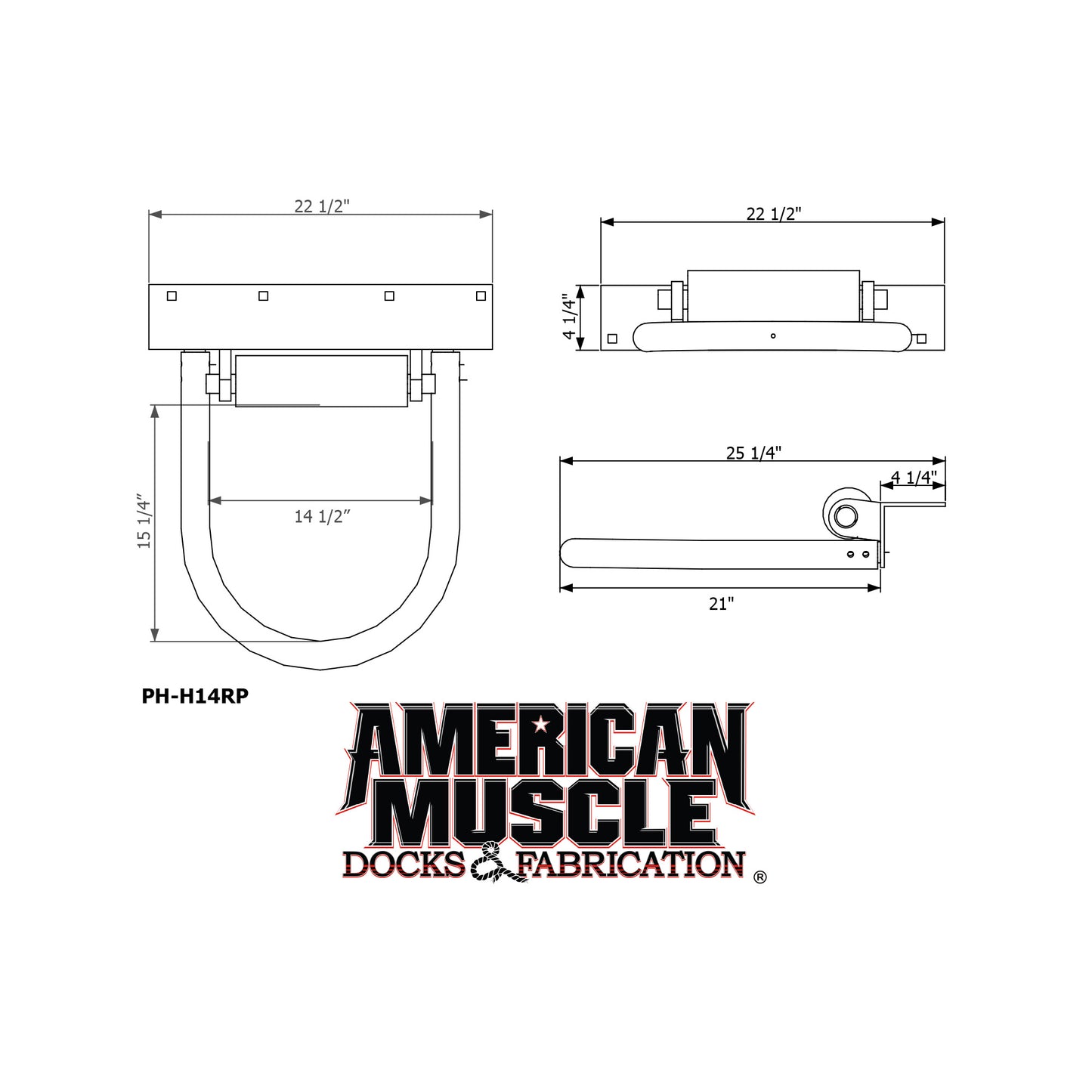

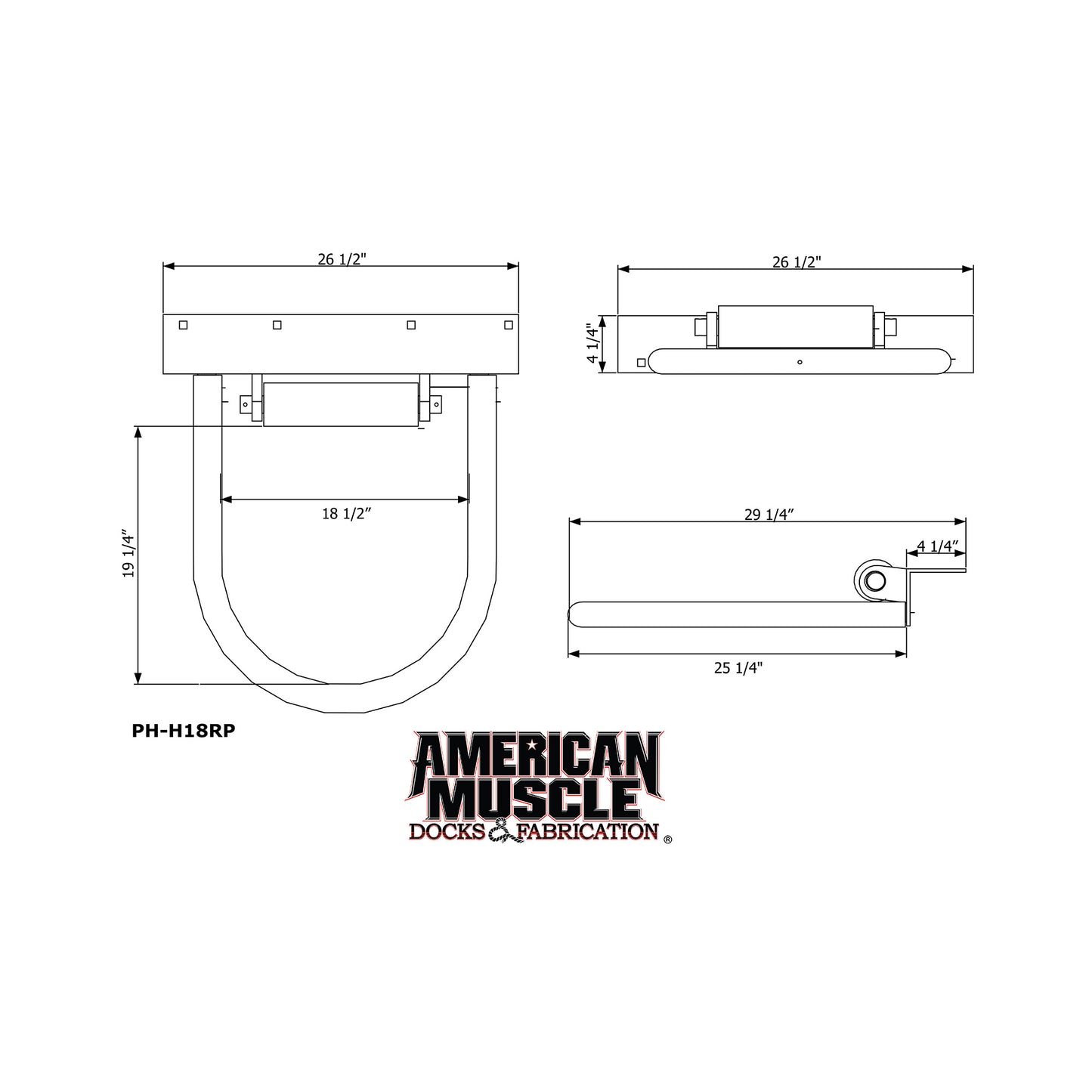

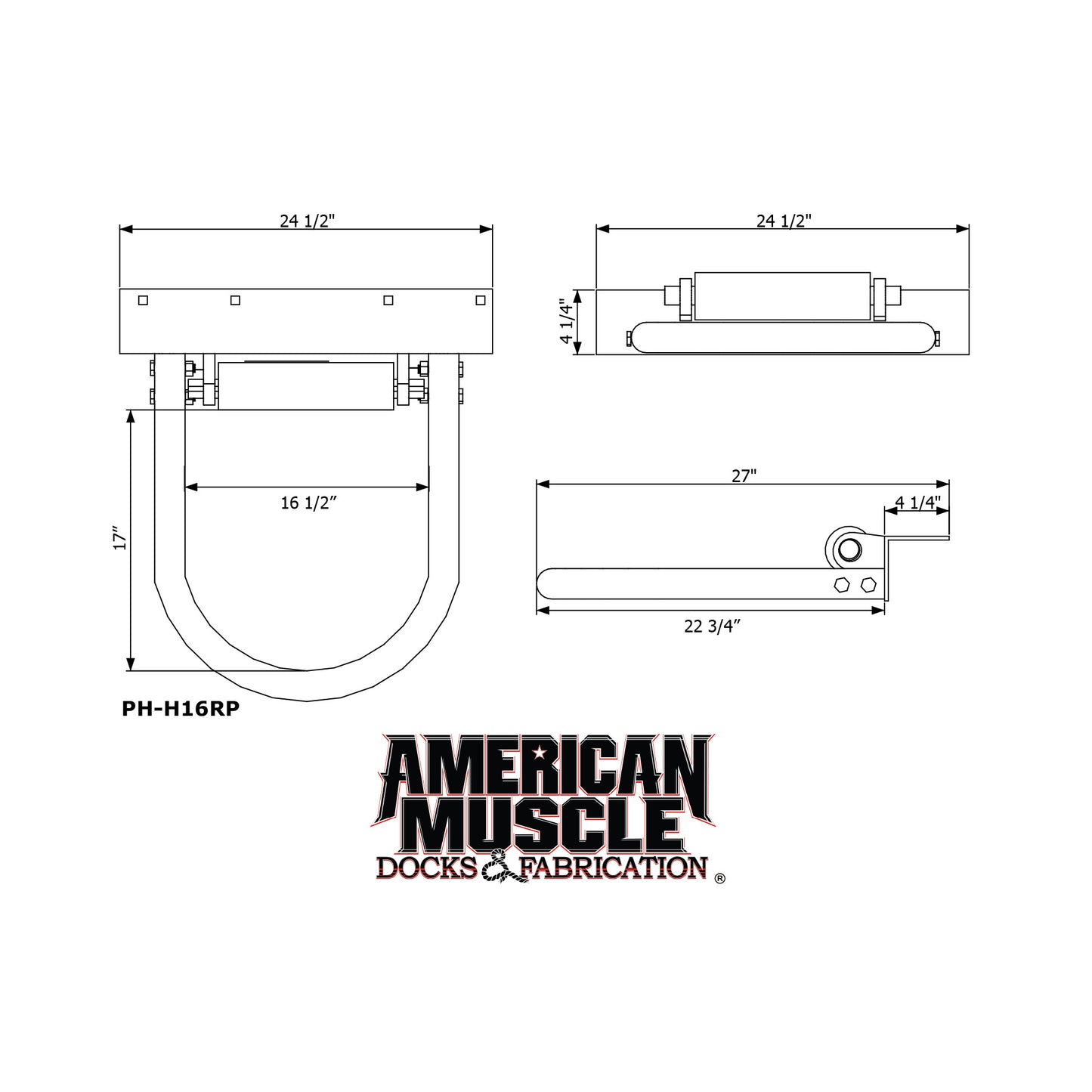

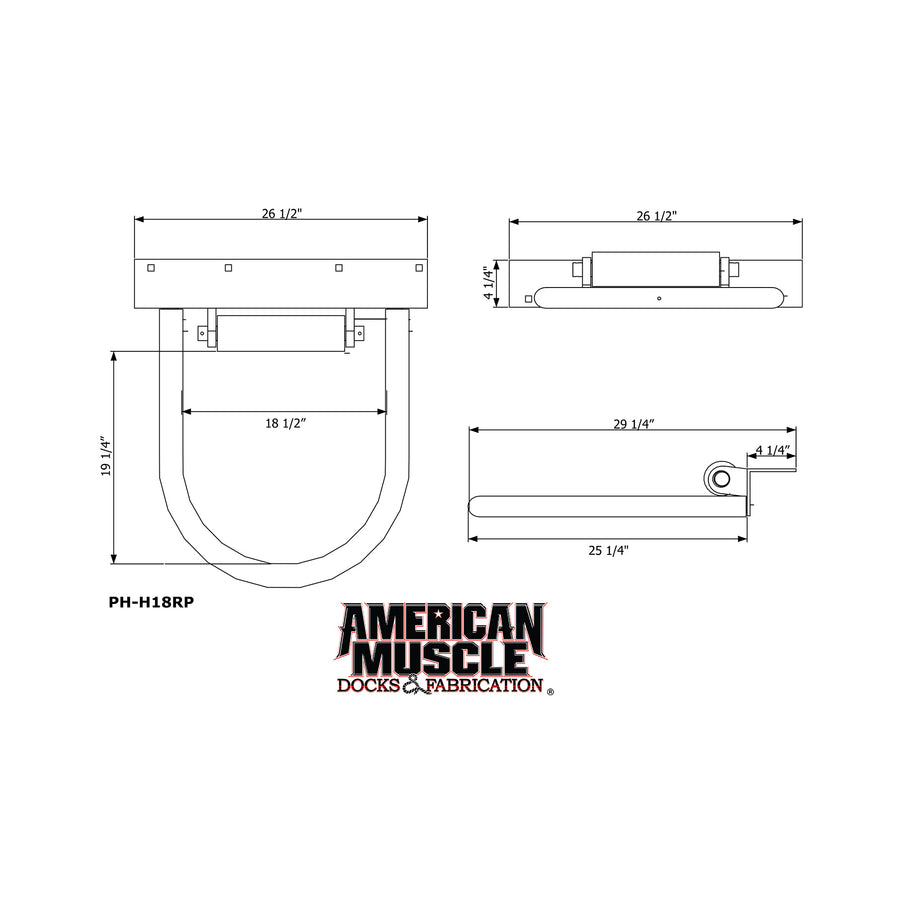

The American Muscle Docks & Fabrication HD Hoop Pile Guides (Poly Roller) feature a galvanized U-shaped steel bracket with a horizontal poly roller on a rectangular base plate with four square mounting holes. The HD Hoop Pile Guides (Poly Roller) by American Muscle Docks & Fabrication features a galvanized steel bracket with a cylindrical white poly dock roller on a flat metal base with multiple square holes. The HD Hoop Pile Guides (Poly Roller) by American Muscle Docks & Fabrication includes a galvanized metal hinge bracket, poly roller sleeve, rod, four bolts, and two clips—ideal as an external hoop pile guide or dock roller. A metal mooring ring with a white roller is mounted on a floating dock made of brown composite planks and black plastic floats. Technical drawing of an HD Hoop Pile Guide (Poly Roller) made from galvanized steel with labeled dimensions, featuring the American Muscle Docks & Fabrication logo at the bottom. Technical drawing of HD Hoop Pile Guides (Poly Roller) showing top, front, and side views with labeled dimensions. Includes galvanized steel dock bracket details and the American Muscle Docks & Fabrication logo at the bottom. Technical drawing of HD Hoop Pile Guides (Poly Roller) with detailed dimensions, featuring a galvanized steel dock bracket and the American Muscle Docks & Fabrication logo at the bottom. Technical drawing of HD Hoop Pile Guides (Poly Roller) with labeled dimensions, showing a galvanized steel bracket and the American Muscle Docks & Fabrication logo at the bottom. Technical drawing of HD Hoop Pile Guides (Poly Roller) in three views with labeled dimensions, above the American Muscle Docks & Fabrication logo.

HD Hoop Pile Guides (Poly Roller)

PH-H6RP
$159.00
$159.00

Ensure stable docking and dock durability with our external hoop pile guide, featuring a smooth poly roller. Constructed for longevity with a 1/4" galvanized steel bracket, Schedule 40 pipe frame, and corrosion-resistant stainless steel hardware. Available in 6", 8", 10", 12", 14", 16", and 18" sizes to fit various dock piling diameters. Simple to install using standard 1/2" dock fasteners.

  • Mounting Angle: ¼” thick by varying lengths (18.5” to 26.5”)
  • 4.25”x 4.25” Angle Legs
  • 9/16” Square Mounting Bolt Holes
  • ¾” Thick Roller Tabs
  • Roller Shaft: 15” x 1.25” Solid
  • Hoop Material: 1.5” Sch40 Pipe
  • Galvanized Coated

PH-H6RP - Recommended for 4” Pile - 22 LBS
PH-H8RP - Recommended for 6” Pile - 24 LBS
PH-H10RP - Recommended for 8” Pile - 36 LBS
PH-H12RP - Recommended for 10” Pile - 39 LBS
PH-H14RP - Recommended for 12” Pile - 42 LBS
PH-H16RP - Recommended for 14” Pile - 43 LBS
PH-H18RP - Recommended for 16” Pile - 46 LBS
