Truss Frames
Truss Frames

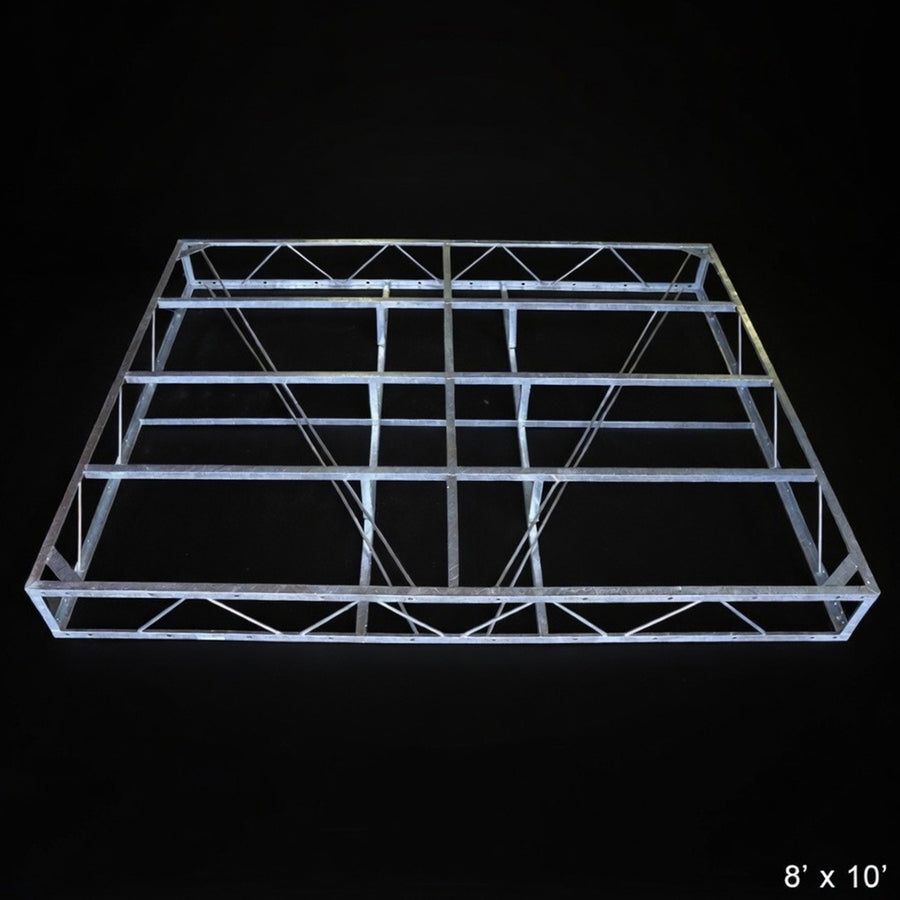

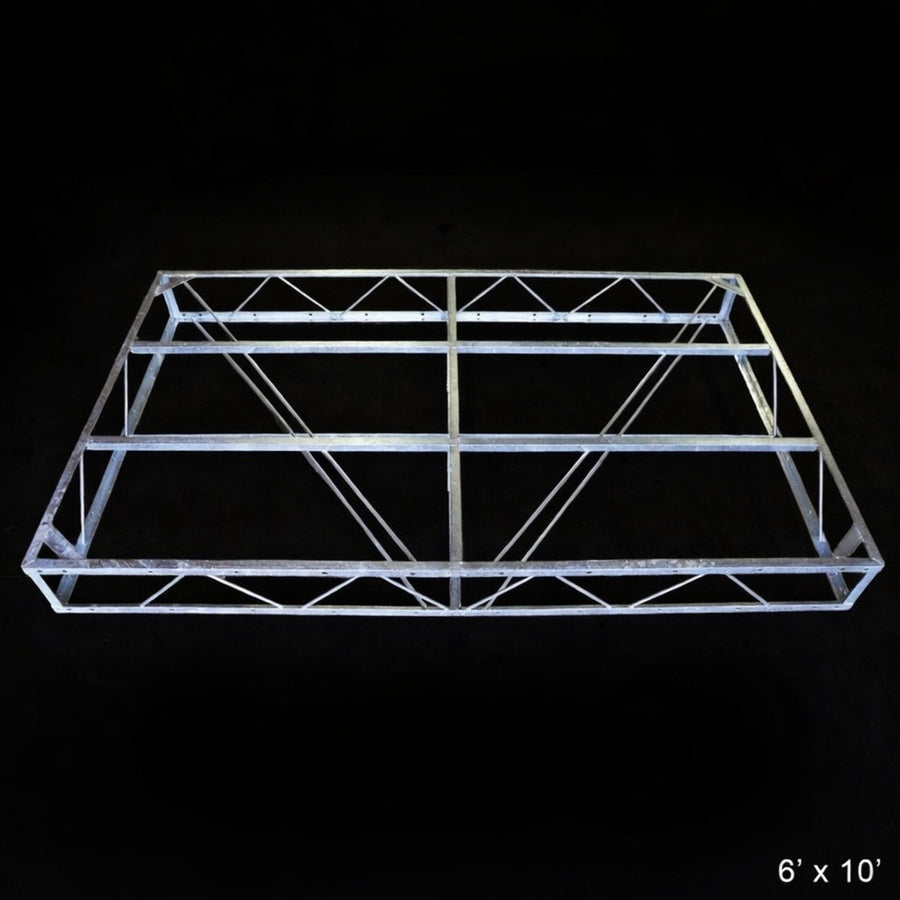

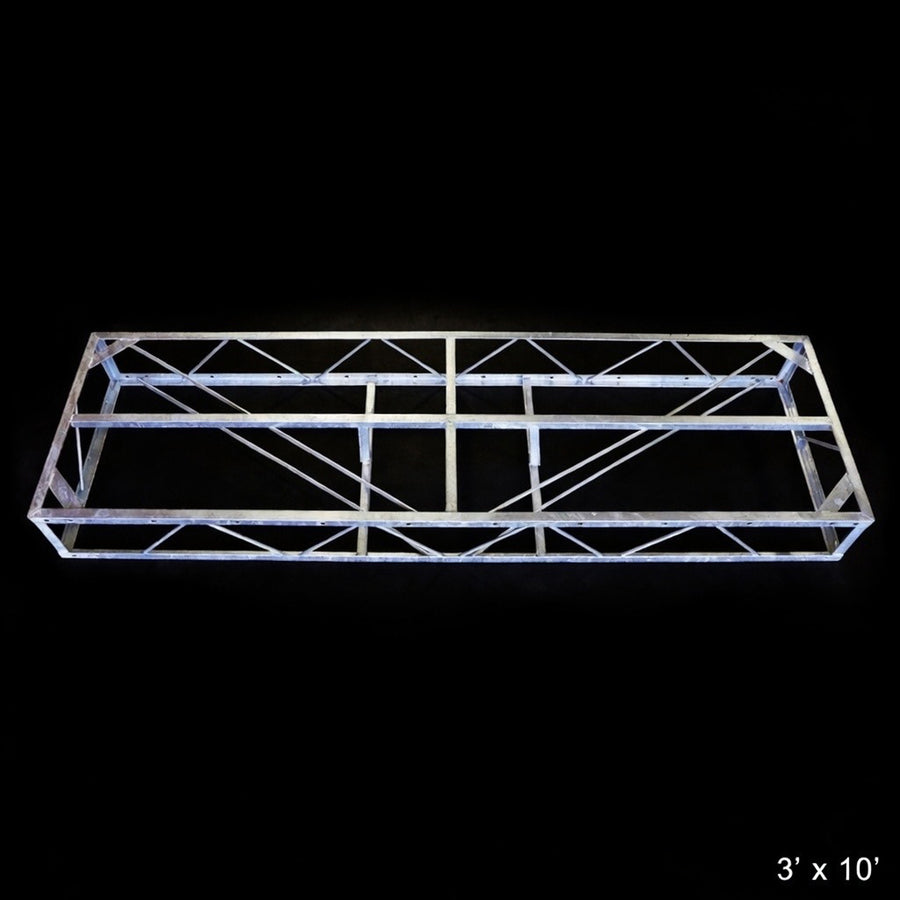

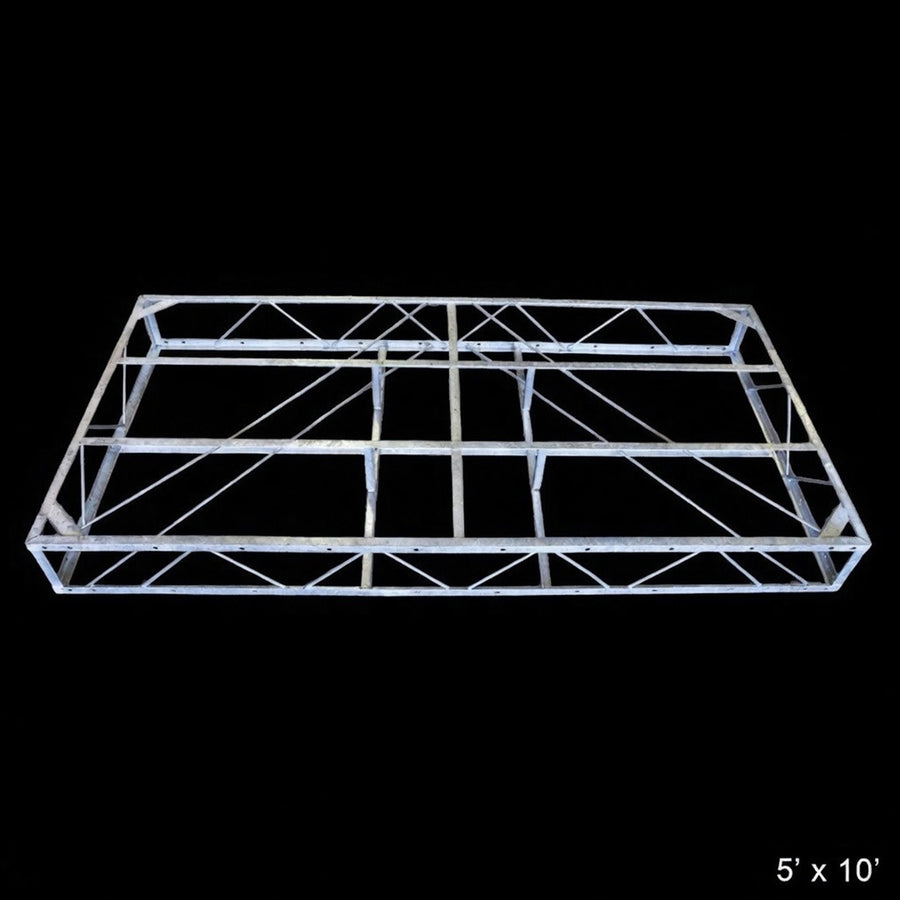

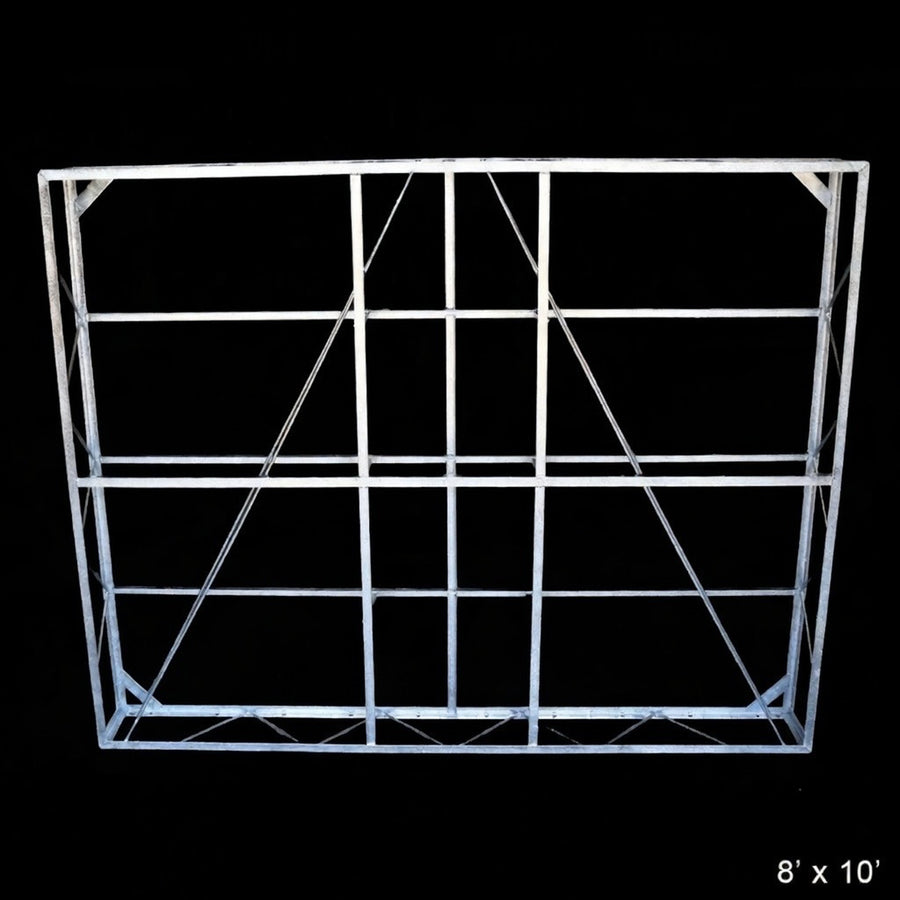

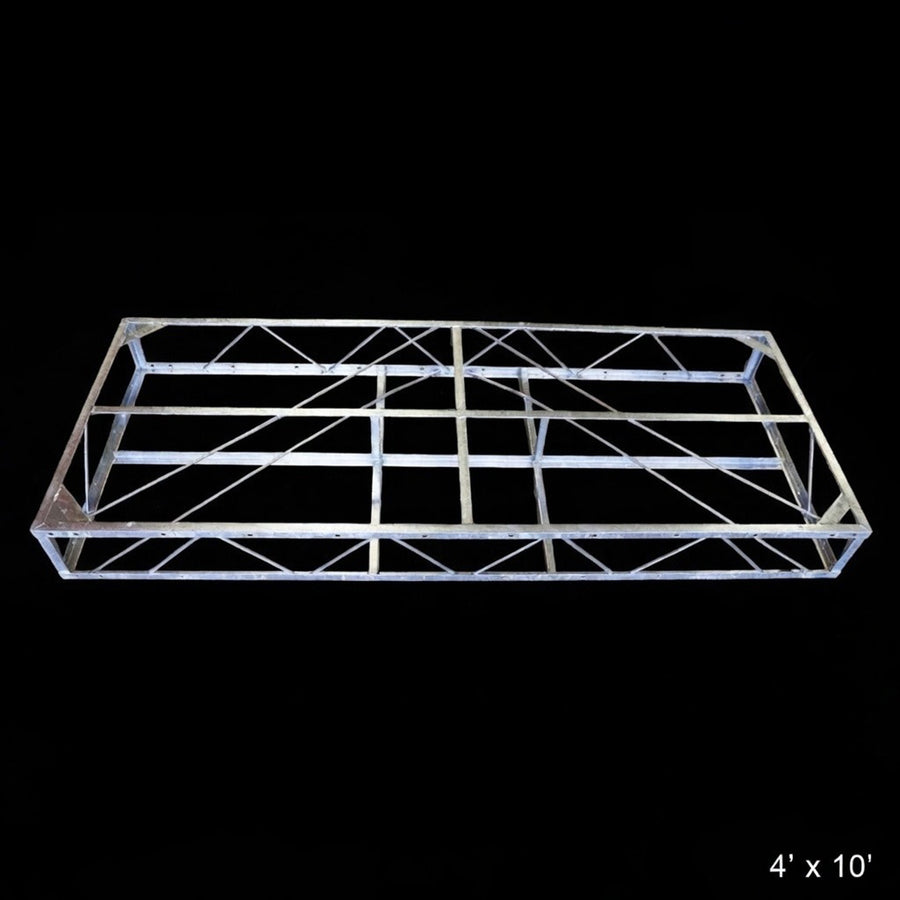

Engineered for exceptional strength and longevity, American Muscle Docks steel truss frames are constructed from sturdy 1.5" x 1.5" x 3/16" steel angle, strategically separated by 1/2" diagonal round bar to create a highly rigid box frame structure. For added reinforcement, corner gussets are incorporated at all four top corners.
These frames are designed for easy assembly and customization, featuring prepunched holes along the sides and ends to facilitate seamless side-to-side and end-to-end connections using standard 1/2" x 1.5" hex head bolt sets (sold separately). The top of each frame is also prepunched, providing flexibility for attaching your decking either directly to the frame or via optional nailer strips. This design allows for versatile decking options to suit your specific needs.
Special sizes available.
Request A Quote
Who Choose Our Frames?

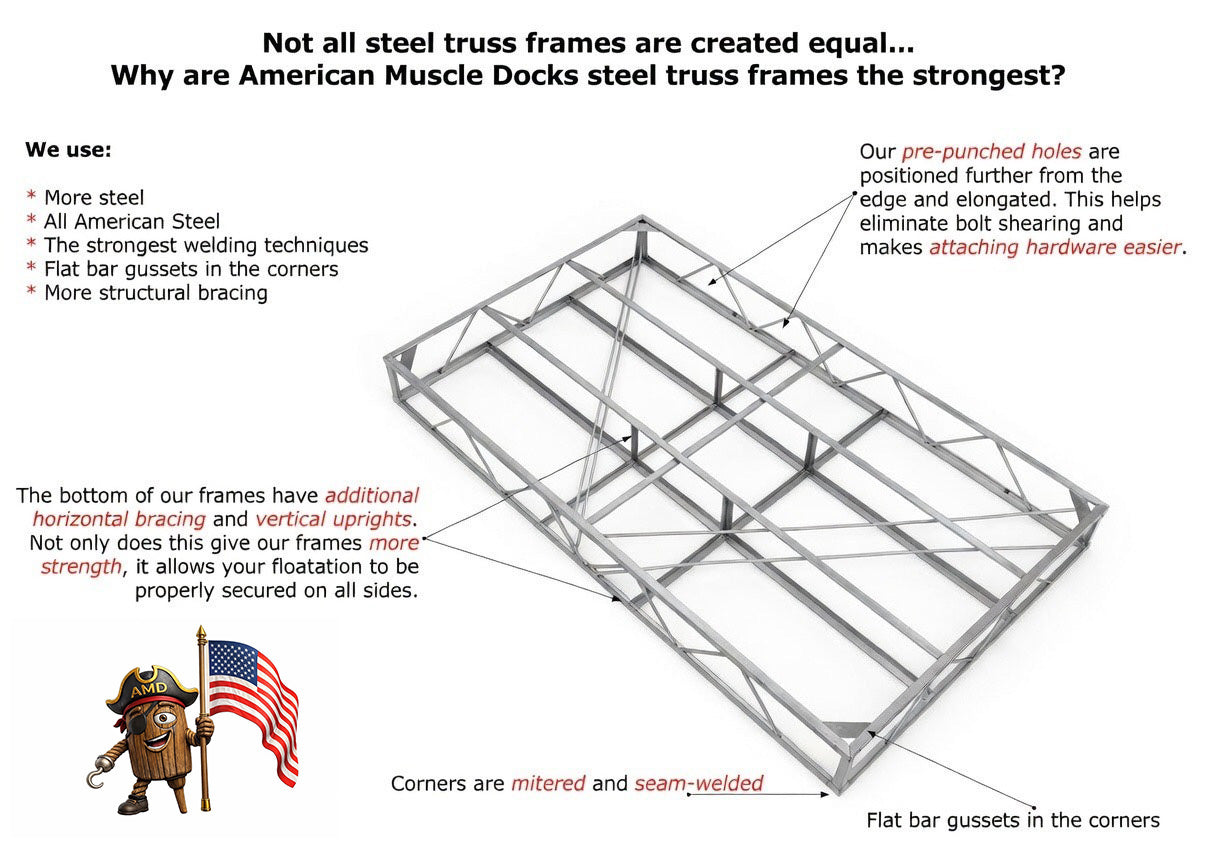

We use more steel and more welds than our competitors. All corners and structural areas of our dock truss frames are designed for maximum strength. Instead of cheapening out on metal or using less effective welding techniques such as edge or butt-welding, our corners are mitred and seam-welded to create a rigid box frame that is superior in strength. These quality differences are easily recognizable when compared to other steel truss docks or aluminum truss dock frames out there. We build to last!
Special sizes available. Call for more information.
SPECIFICATIONS
› We are the manufacturer
› 1-1/2" x 1-1/2" x 3/16" steel angle
› 2" steel available through special order
› Gussets used for rigid strength
› Pre-punched holes positioned further from the edge and elongated
› All metal is galvanized to prevent rusting
› Frames can be bolted directly together or with our hardware
Details
Sizes
Specifications
Shipping
170 lbs.
210 lbs.
246 lbs.
280 lbs.
325 lbs.
**For other frame sizes and 2" angle options please call 800-223-3444 Note: Pricing does not include delivery. Please use the Quote Request form for a full quote that includes shipping.
We ship domestic and international. All shipping lines are third-party companies. AMD has no affiliation with and cannot be held responsible for its actions. Any changes to destination and/or uncommunicated delivery constraints may result in a back-charged fee.
We are the manufacturer
1-1/2" x 1-1/2" x 3/16" steel angle
2" steel available through special order
Gussets used for rigid strength
Pre-punched holes positioned further from the edge and elongated
All metal is galvanized to prevent rusting
Frames can be bolted directly together or with our hardware
Note: Dimensions and drawings are for illustration purposes only. Some actual dimensions may vary slightly from what is shown.
