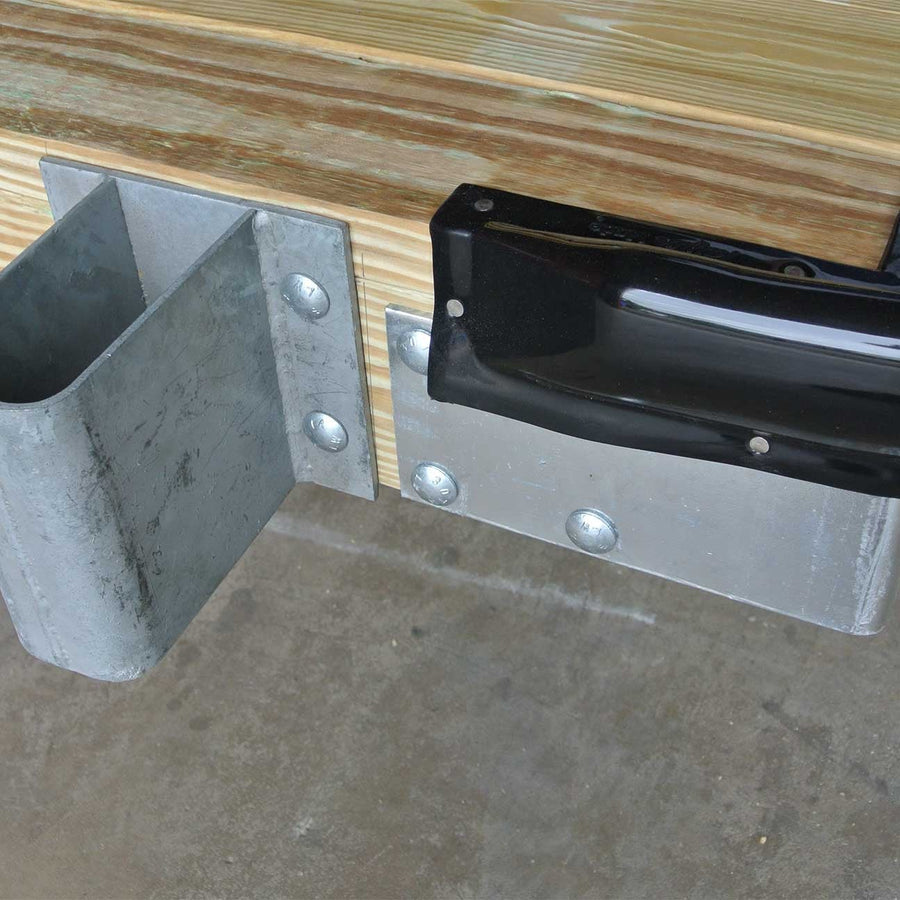

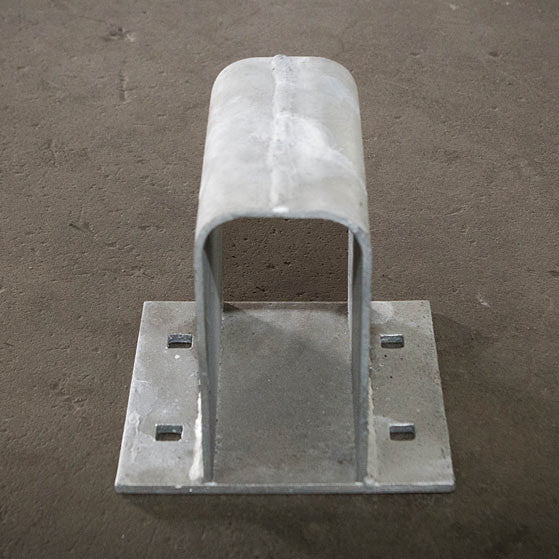

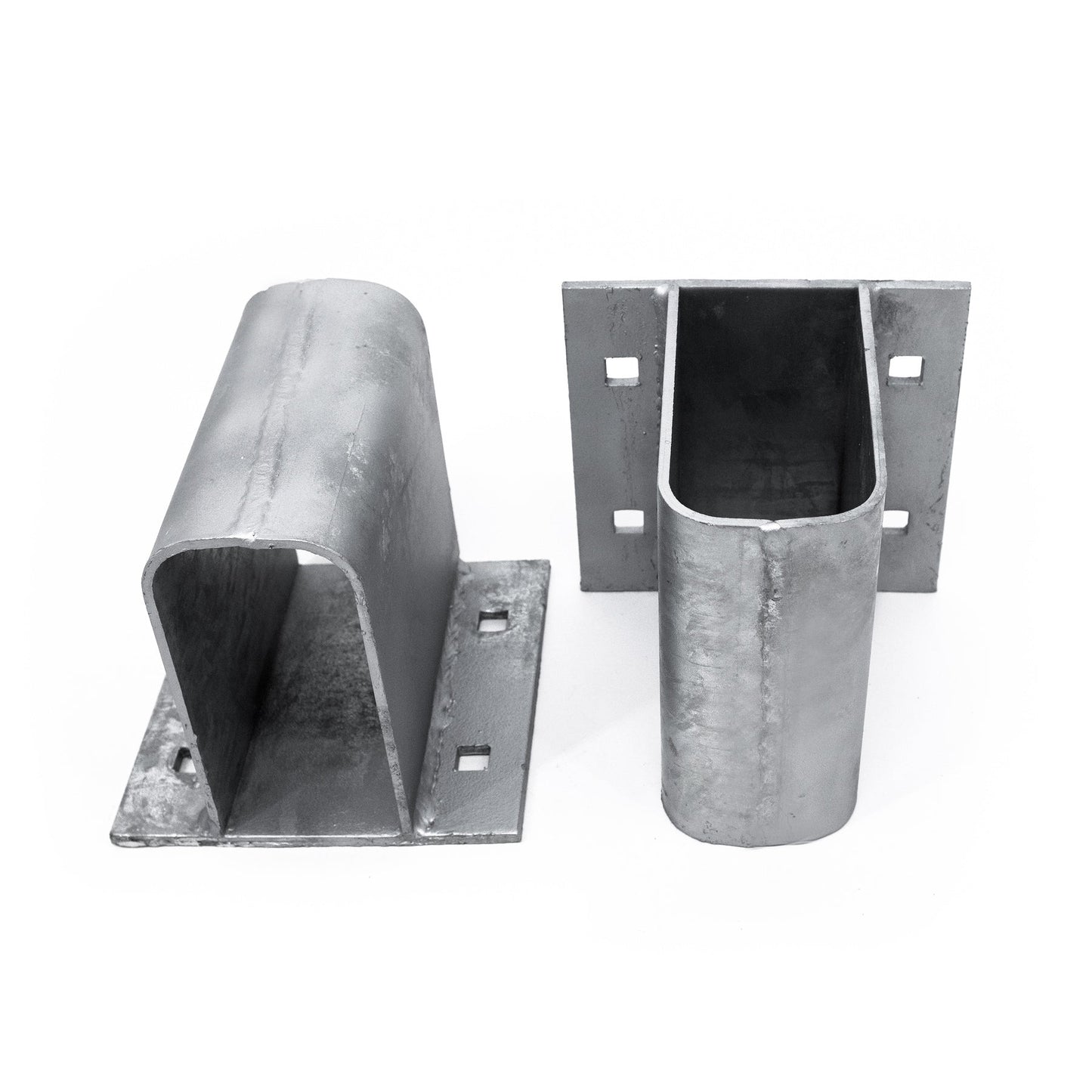

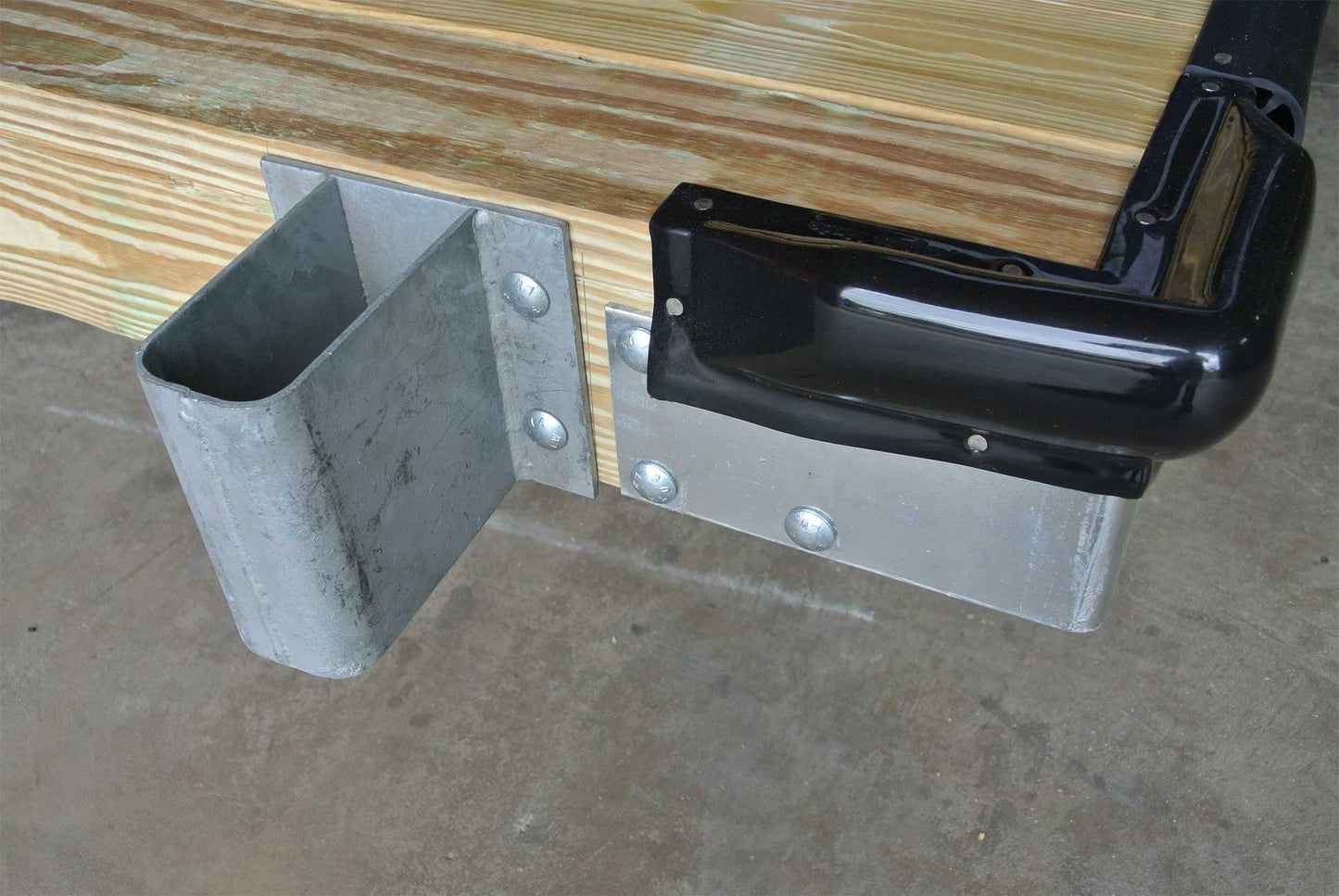

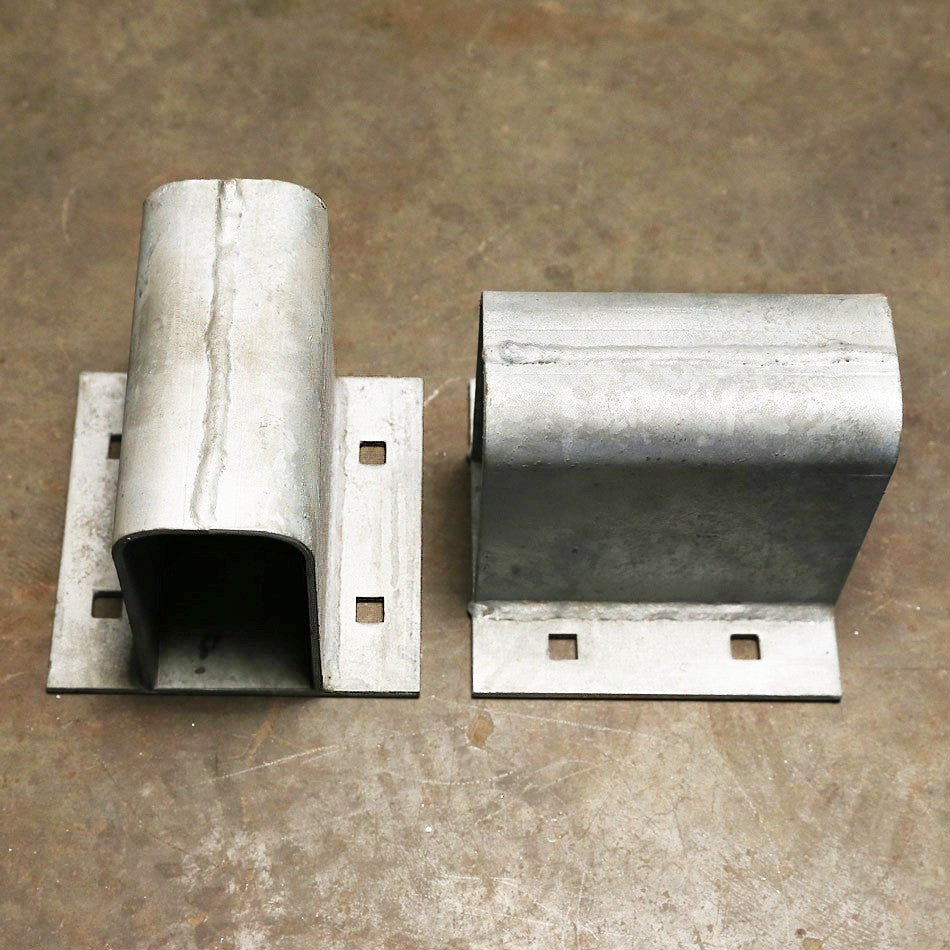

Our 3-inch Elongated Pipe Holder End is specifically engineered to allow for greater vertical movement of your dock support pipes, making it ideal for locations with significant water level fluctuations. This design helps prevent stress on your dock structure as water levels rise and fall.

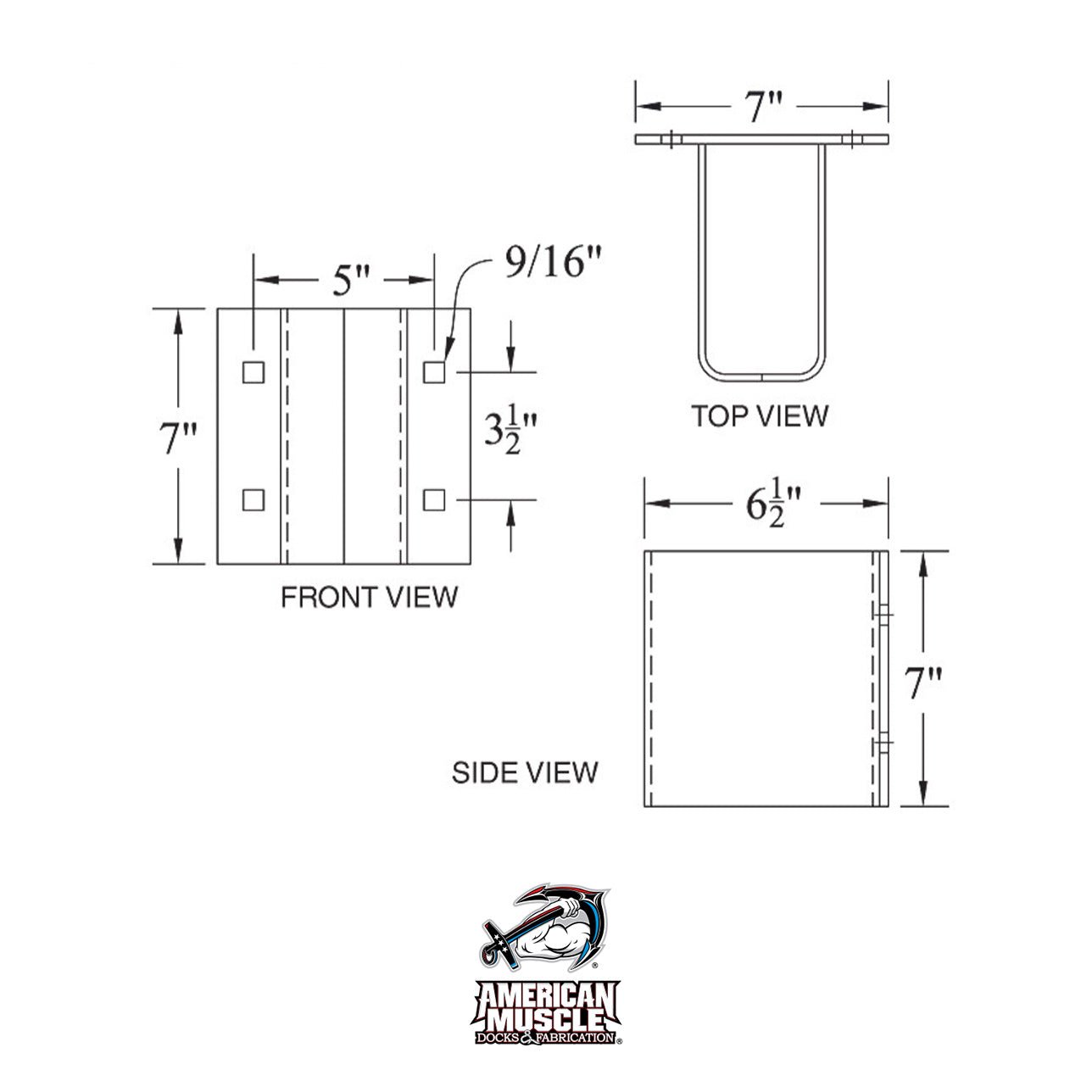

• ¼” x 7”x 7” Base Plate
• 9/16” Square Mounting Bolt Holes
• 3.5”x 5” Bolt Hole Centers
• 3/16” Thick Pipe Holder Wall
• 3”x 6” ID Pipe Holder
• 7” Tall Pipe Holder
• Galvanized Coated

Compatibility: Designed for use with standard 1-1/2 inch or 2-inch diameter support pipes. Backup Plate sold separately.

Ensure your dock can adapt to changing water conditions by using our Elongated 3-inch Pipe Holder End, and remember to add the recommended backup plate for optimal performance.

Weighs: 10.00 LBS
Sold individually

Used with the WD-PHE3EB Backup Plate (sold separately).
