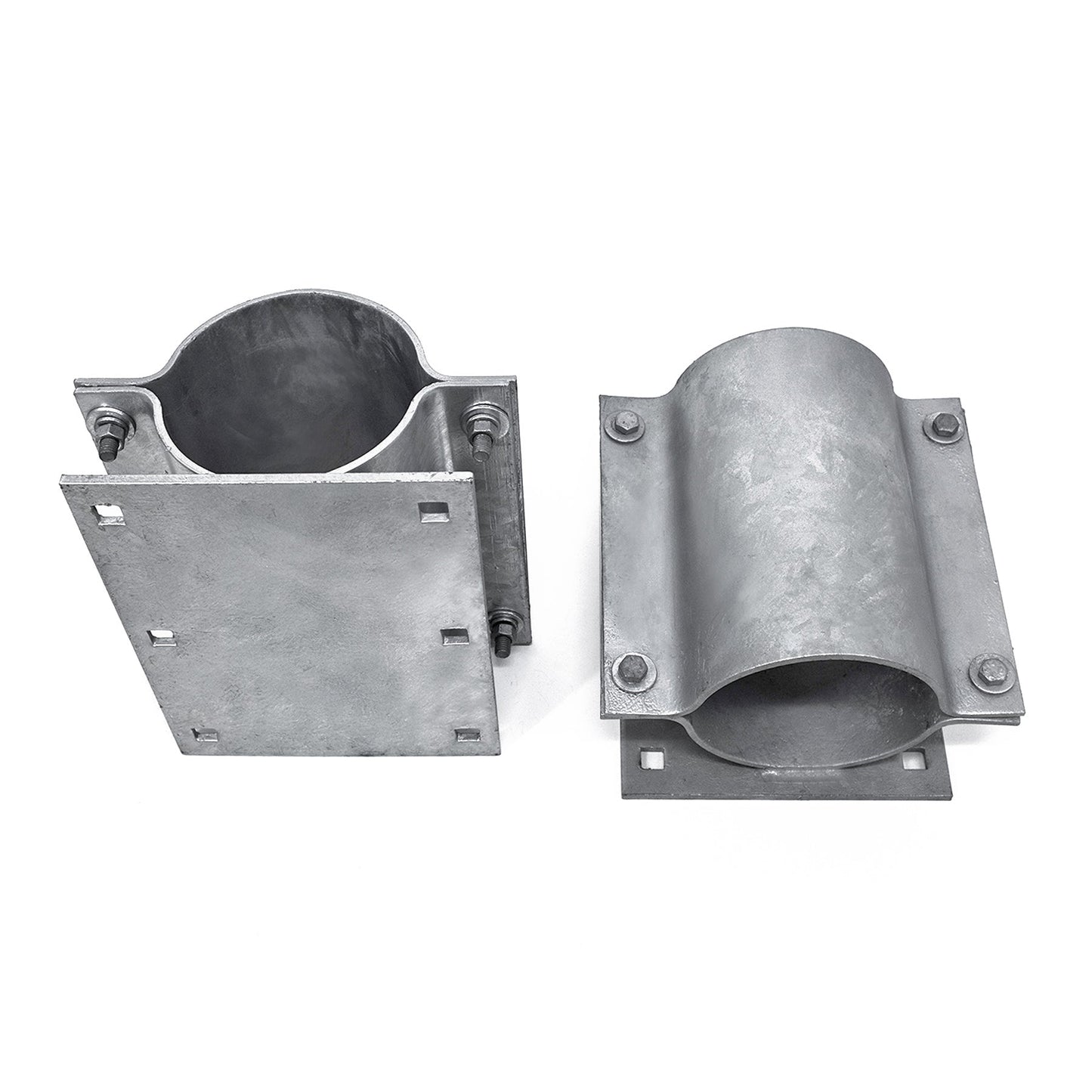

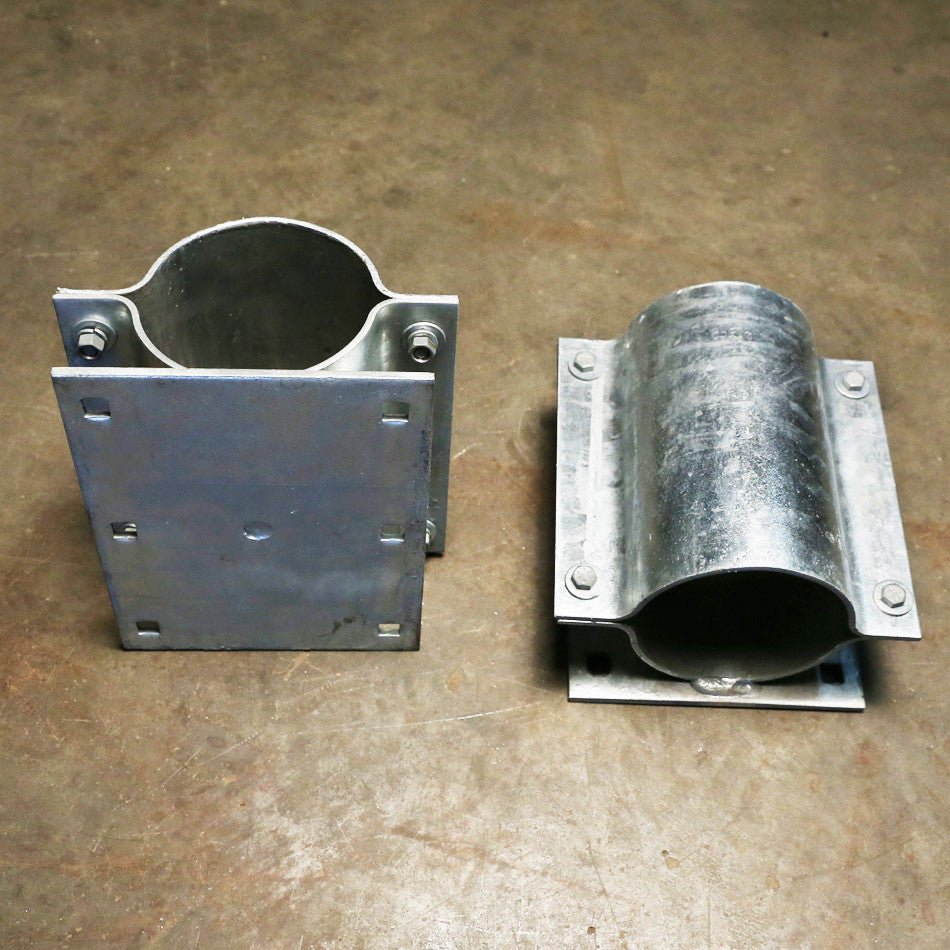

Facilitate easier installation and removal of your robust dock support systems with our split 5-inch pipe holder. Designed for easy handling and secure mounting of larger pipes, the two-piece design allows for simplified placement around larger diameter pipes with an Outer Diameter (O.D.) ranging from 3 to 4 inches.

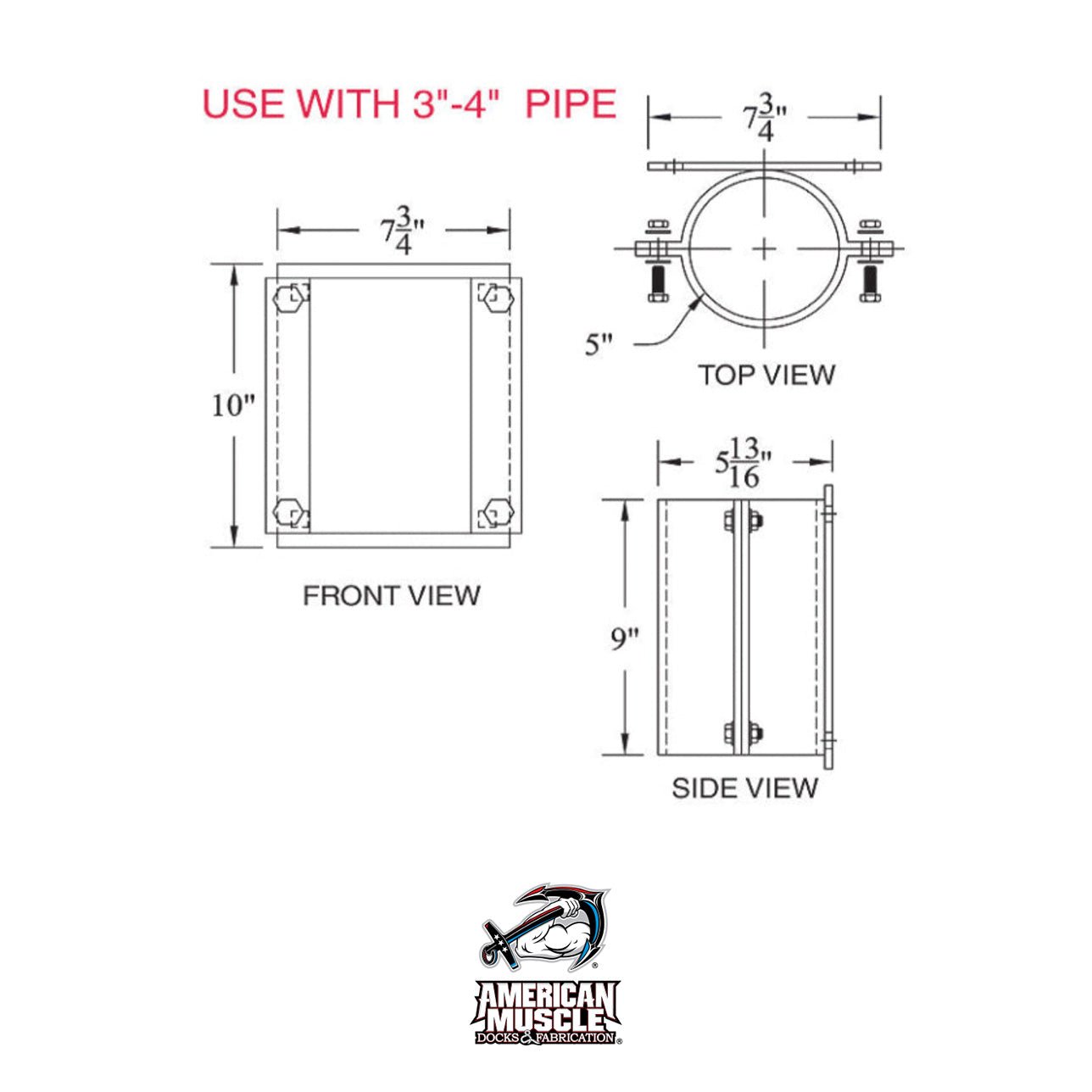

• ¼”x 10”x 7.75” Base Plate
• 9/16” Square Mounting Bolt Holes
• 6.25”x 4” Bolt Hole Centers
• 3/16” Thick Plate Pipe Material, 5” ID x 9” Long
• Galvanized Coated

Weight: 13.00 LBS.

For a user-friendly and secure mounting solution for your larger dock supports, ensure you purchase both the split pipe holder and the recommended backup plate.

Used with the WD-PH5B Backup Plate (sold separately).
