Wood Dock Pipe Holder 2 inch - Set Screws (Short)

WD-PH27
$24.00
$24.00

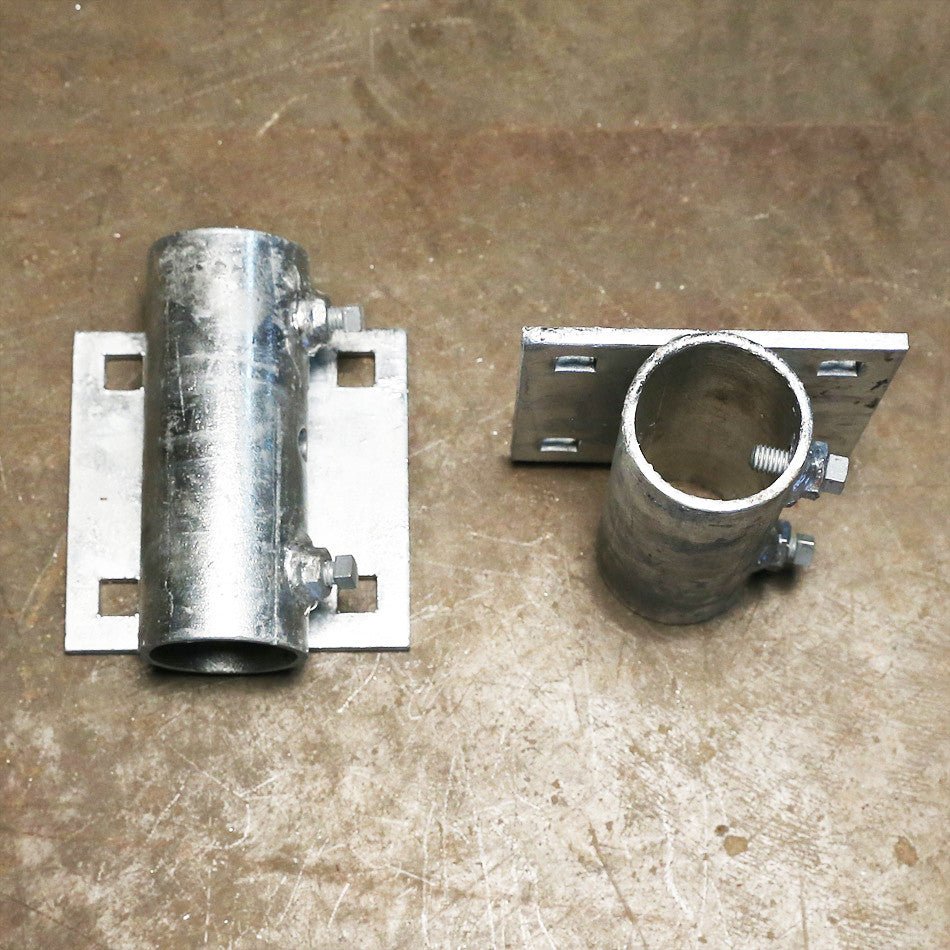

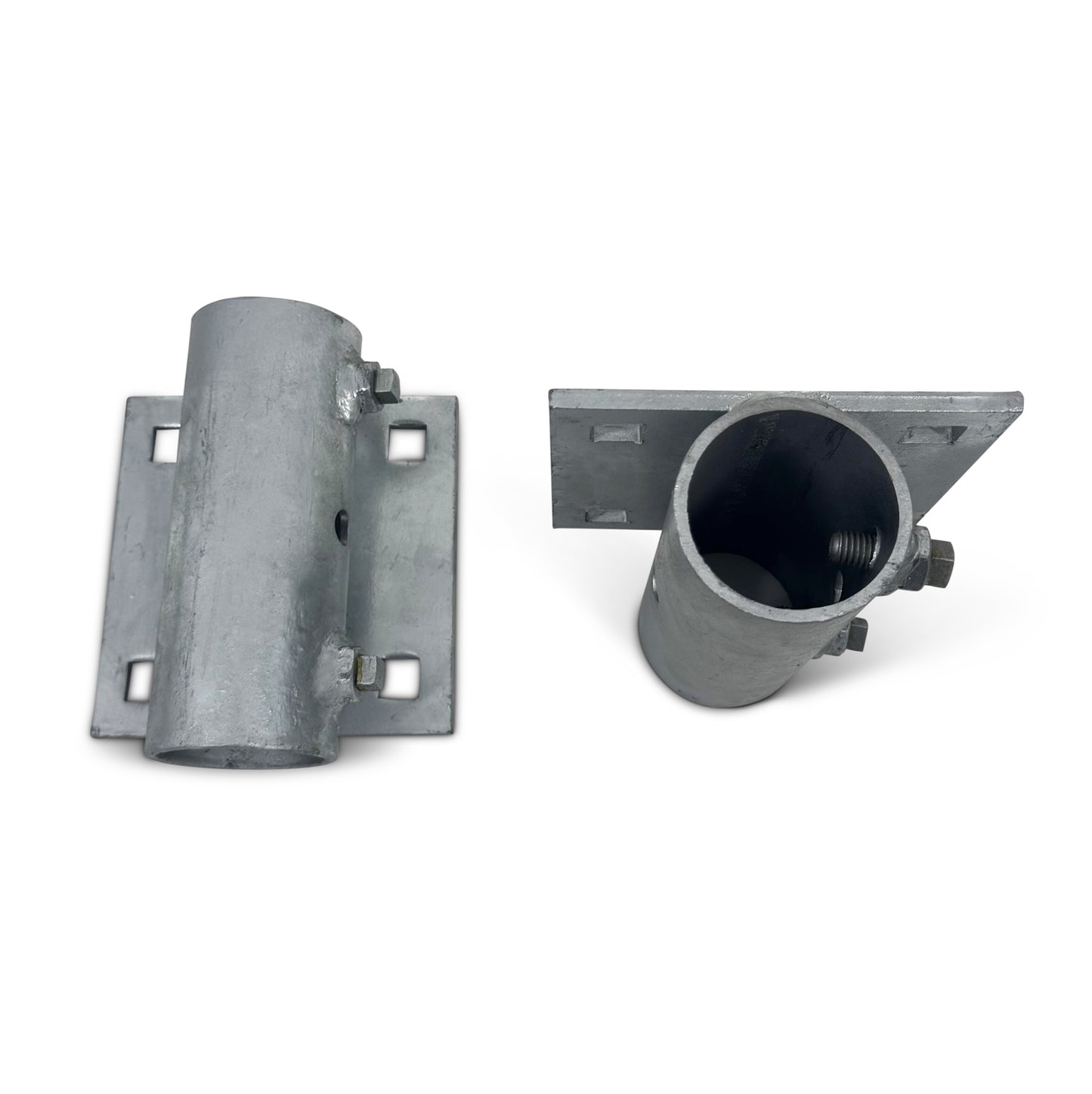

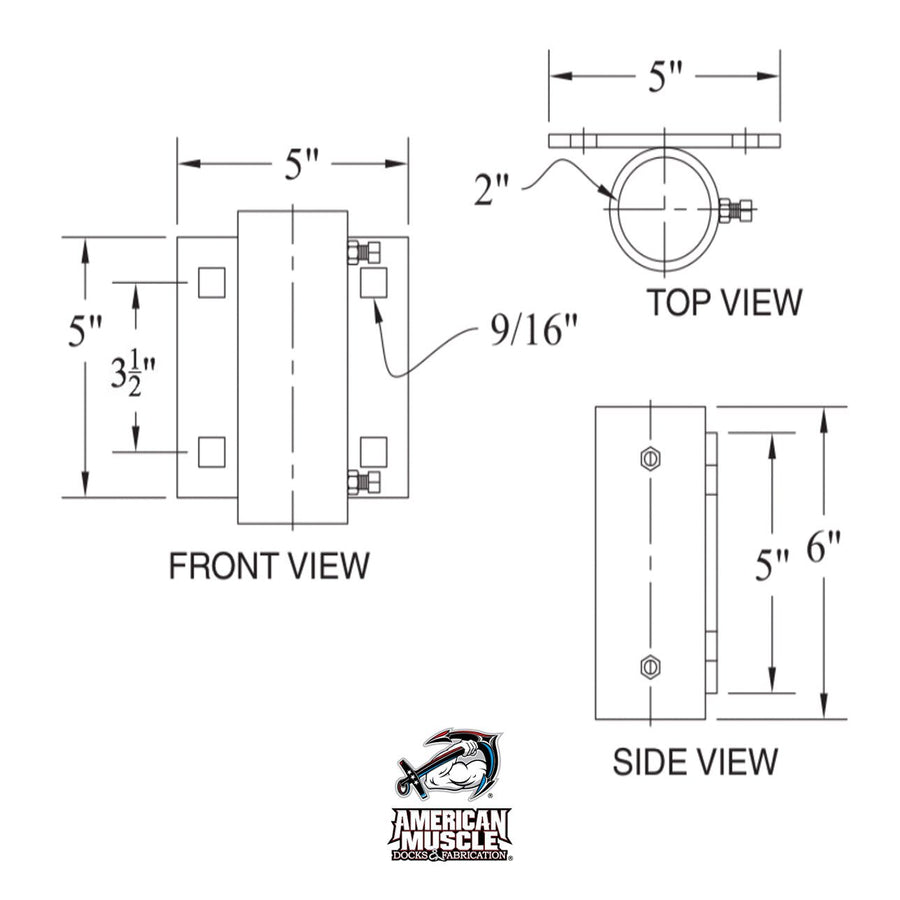

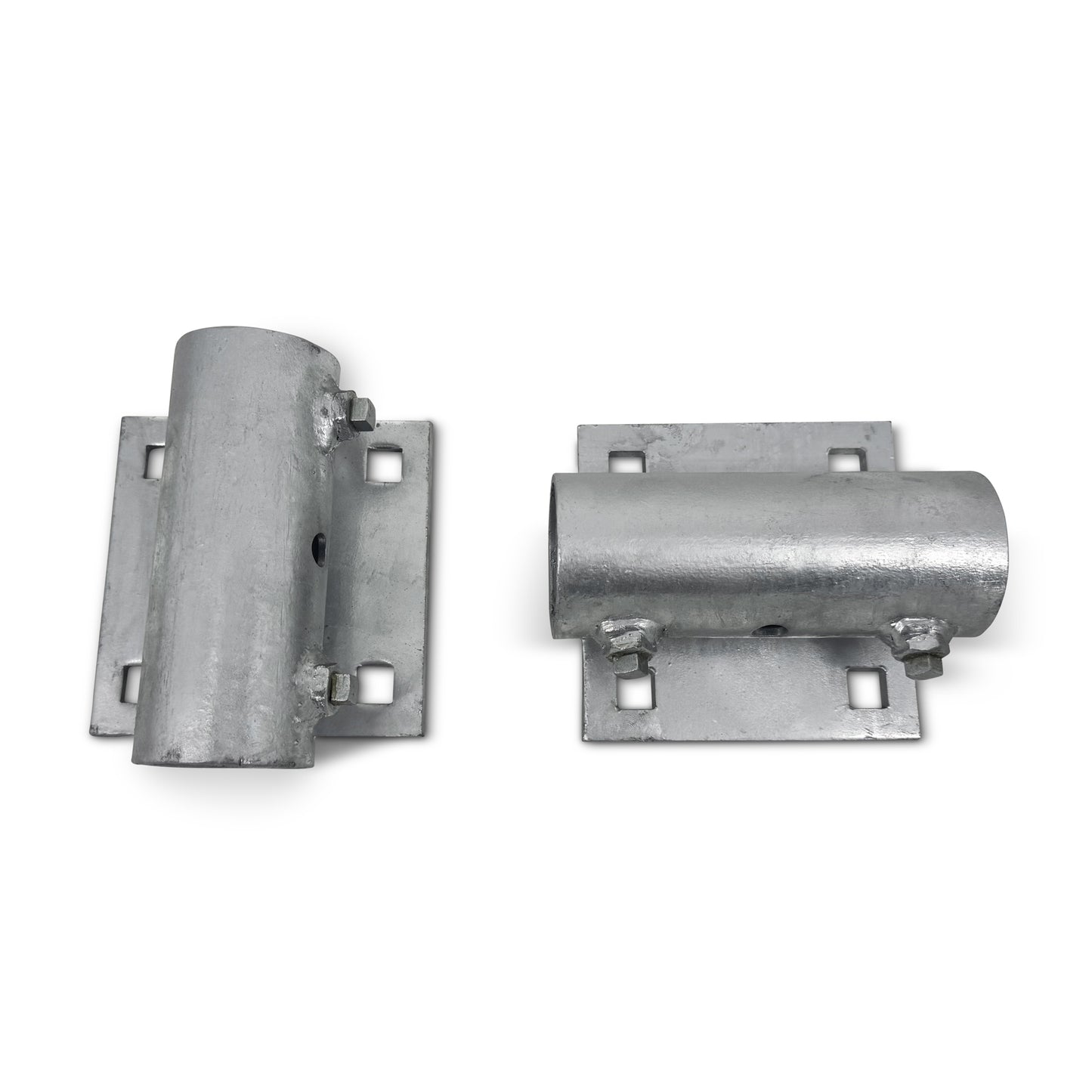

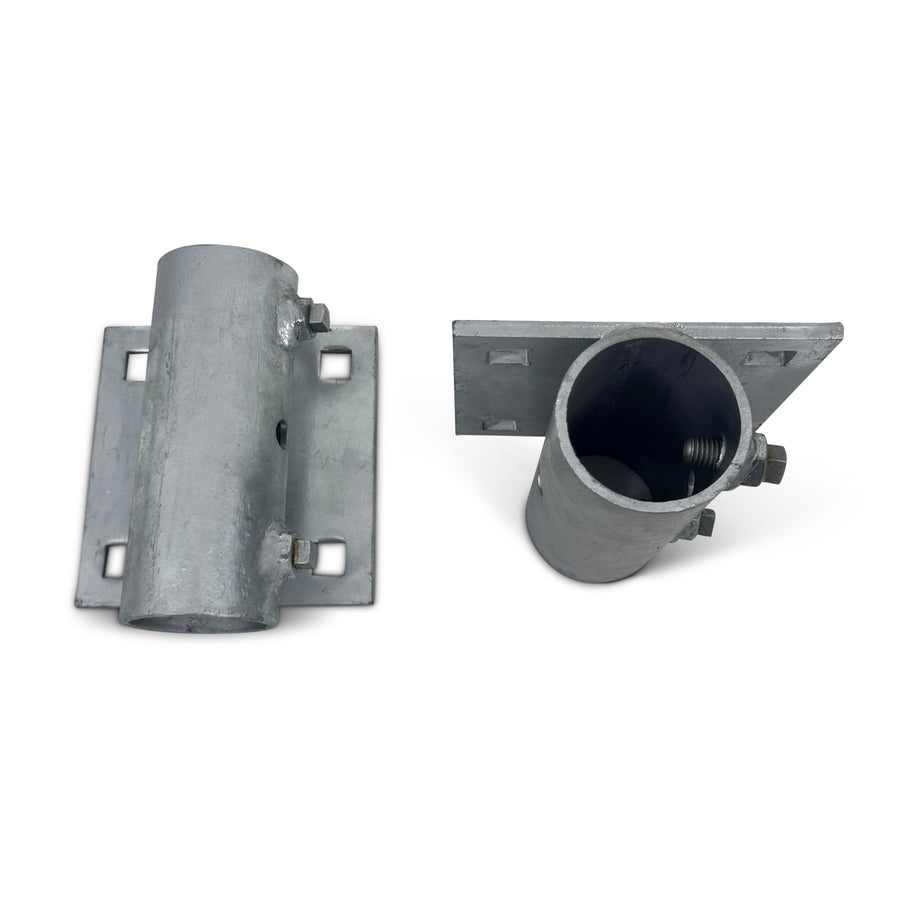

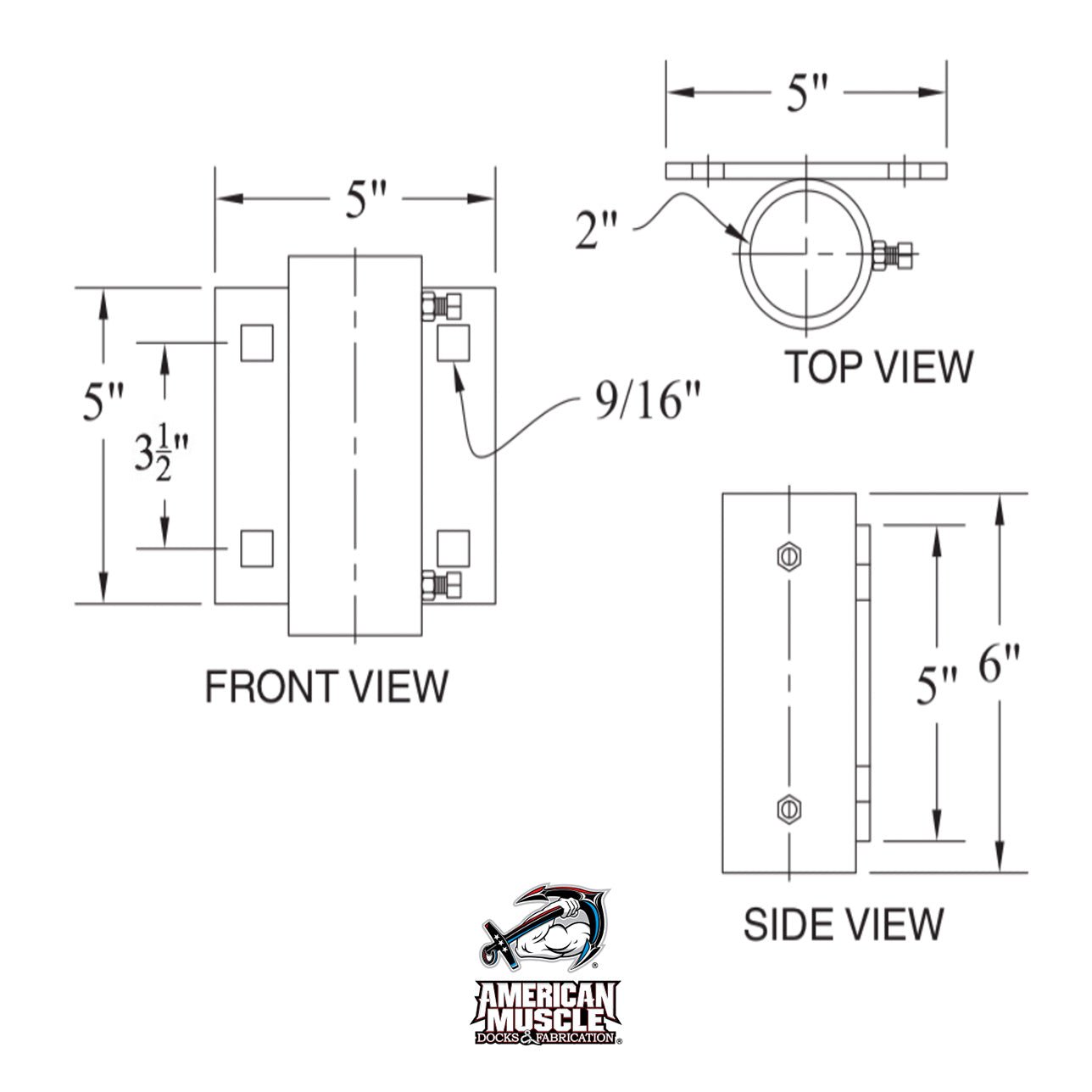

The American Muscle Docks & Fabrication Wood Dock Pipe Holder 2 inch (Short) features two metal wall mount brackets with set screws, designed for attaching round pipes to flat surfaces. Shown from front and top views. Two "Wood Dock Pipe Holder 2 inch - Set Screws (Short)" fittings by American Muscle Docks & Fabrication are displayed on a white background. Each has a rectangular base plate and set screw fasteners. Technical drawing of the American Muscle Docks & Fabrication Wood Dock Pipe Holder 2 inch – Set Screws (Short) with 5x5 base, 2" clamp, 9/16" bolts; front, top, side views. Suitable as pipe fitting or base plate. Logo at bottom.

Wood Dock Pipe Holder 2 inch - Set Screws (Short)

WD-PH27
$24.00
$24.00

Securely mount 1.5" pipe uprights to your dock framing for handrail construction. Pair with our handrail fittings and 1.5" pipe (sold separately).

  • ¼” x 5”x 5” Base Plate
  • 9/16” Square Mounting Bolt Holes
  • 3.5”x 3.5” Bolt Hole Centers
  • 2” Sch40 Pipe, 2” ID x 6” L
  • 2(x) 3/8” Set Screws
  • Galvanized Coated
  • Use with 1-1/2" Pipe

Weighs: 3 LBS
Sold individually

Used with the WD-B Backup Plate (sold separately).
