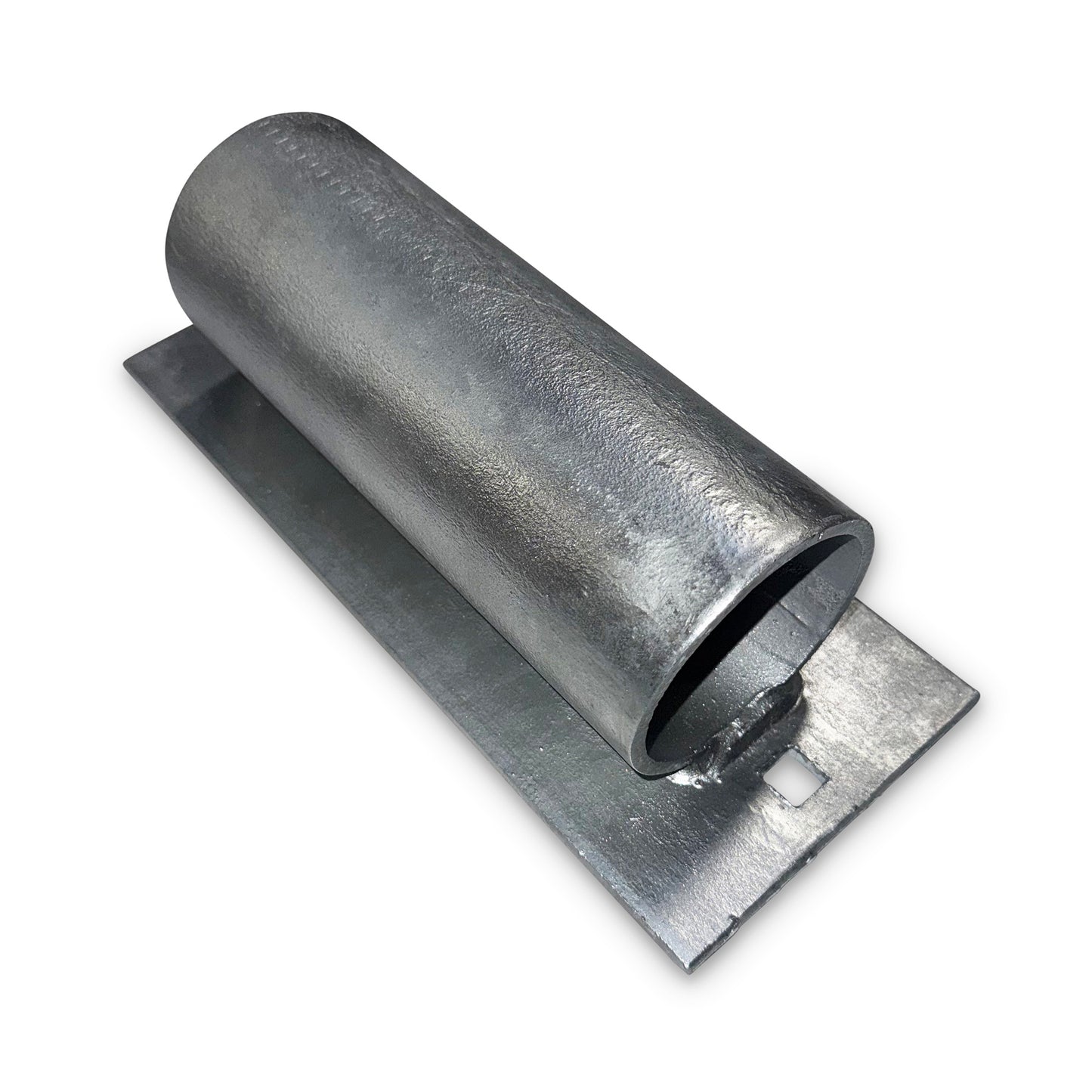

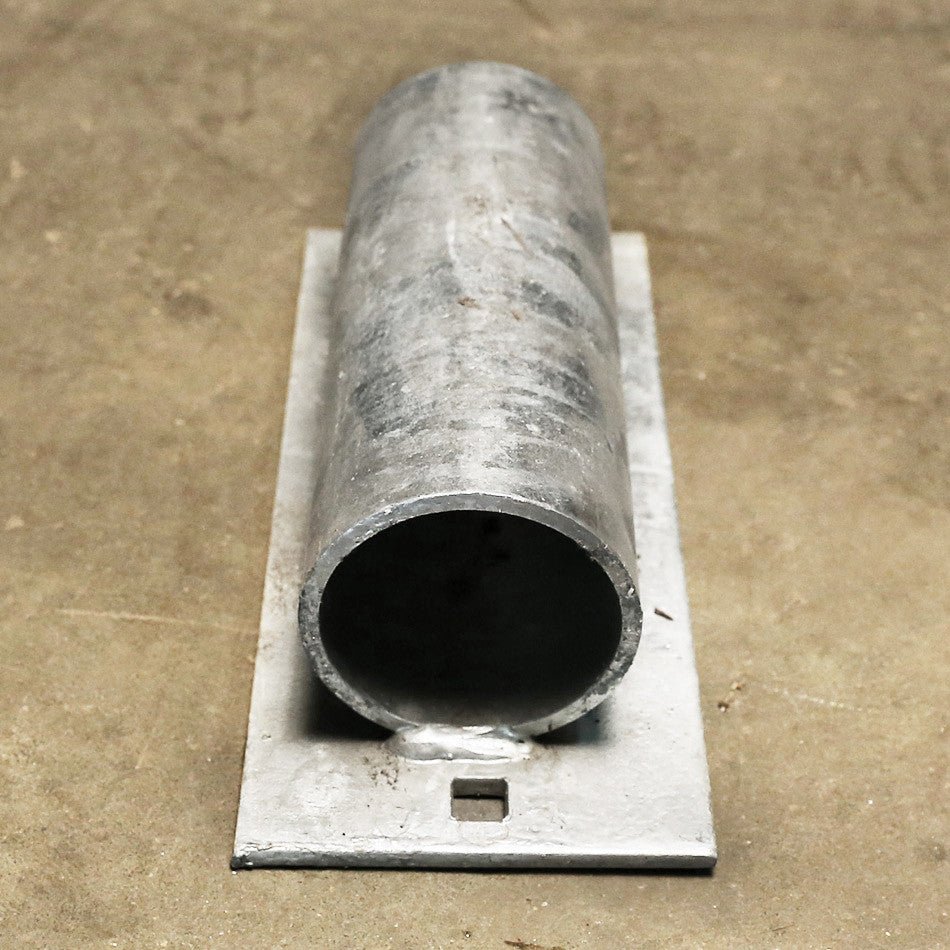

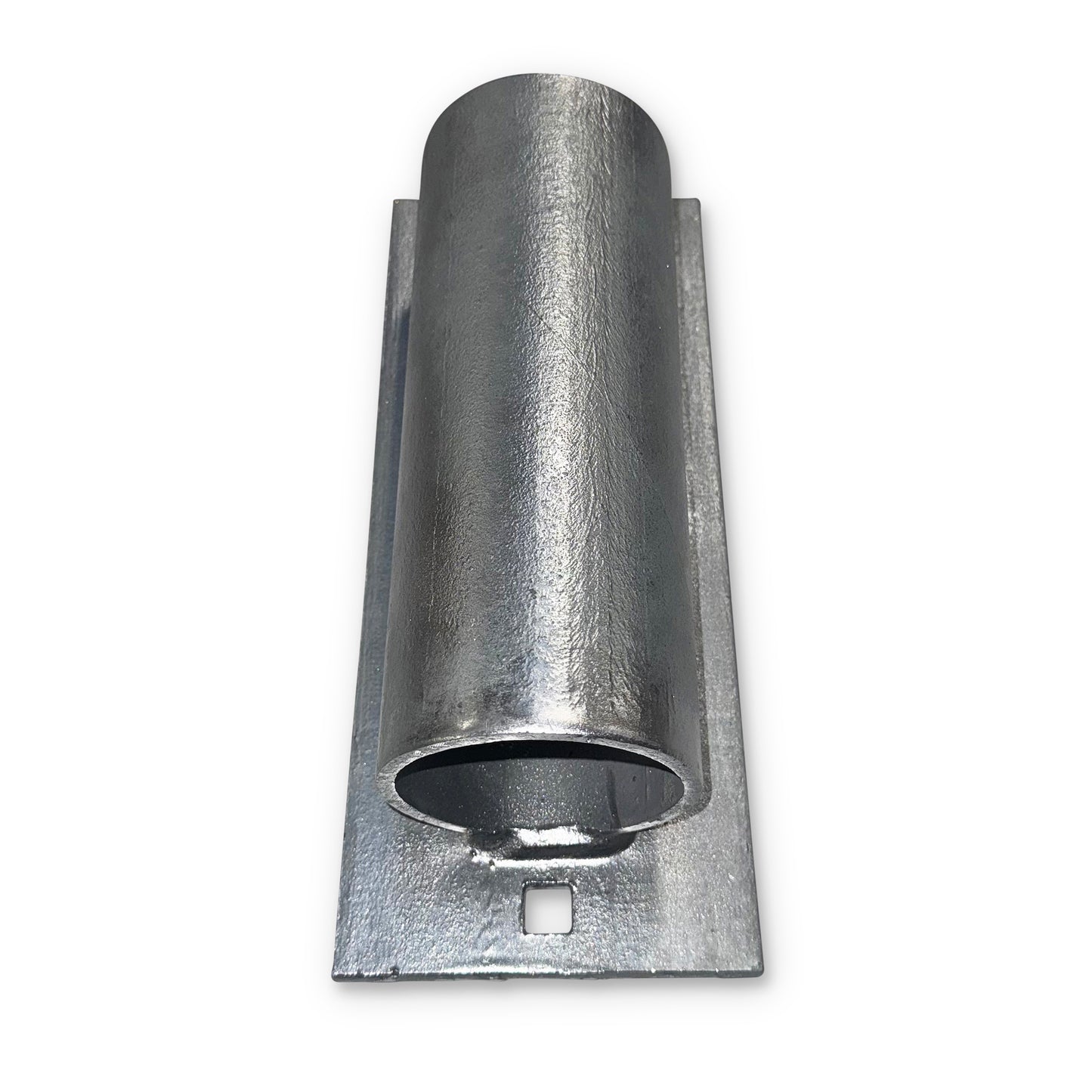

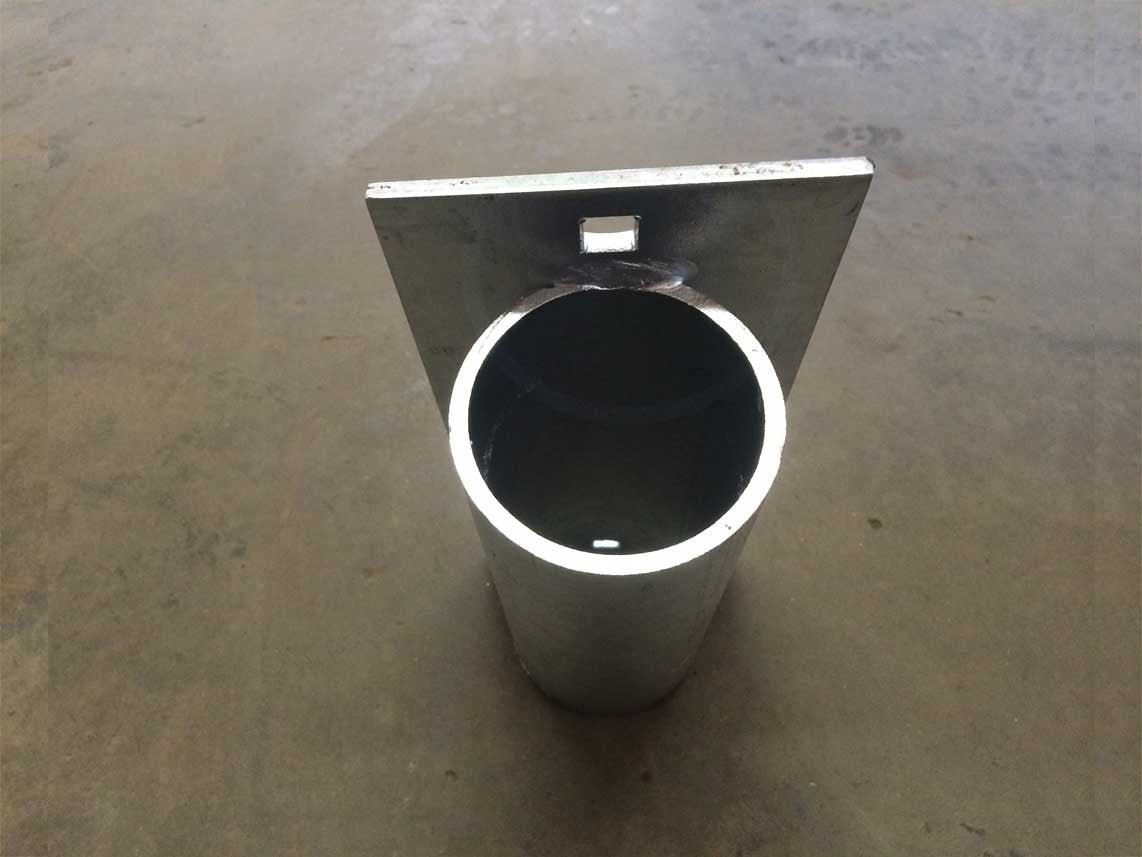

Ensure a stable and reliable anchoring system for your truss dock frame with our hot-dipped galvanized welded pipe holders. Designed for direct bolting and featuring a solid 5" base plate for maximum support, these holders are specifically engineered to accommodate 3-inch Inner Diameter (I.D.) pipe for secure anchoring. Built to withstand marine environments, these pipe holders provide a durable foundation for your dock's anchoring system.

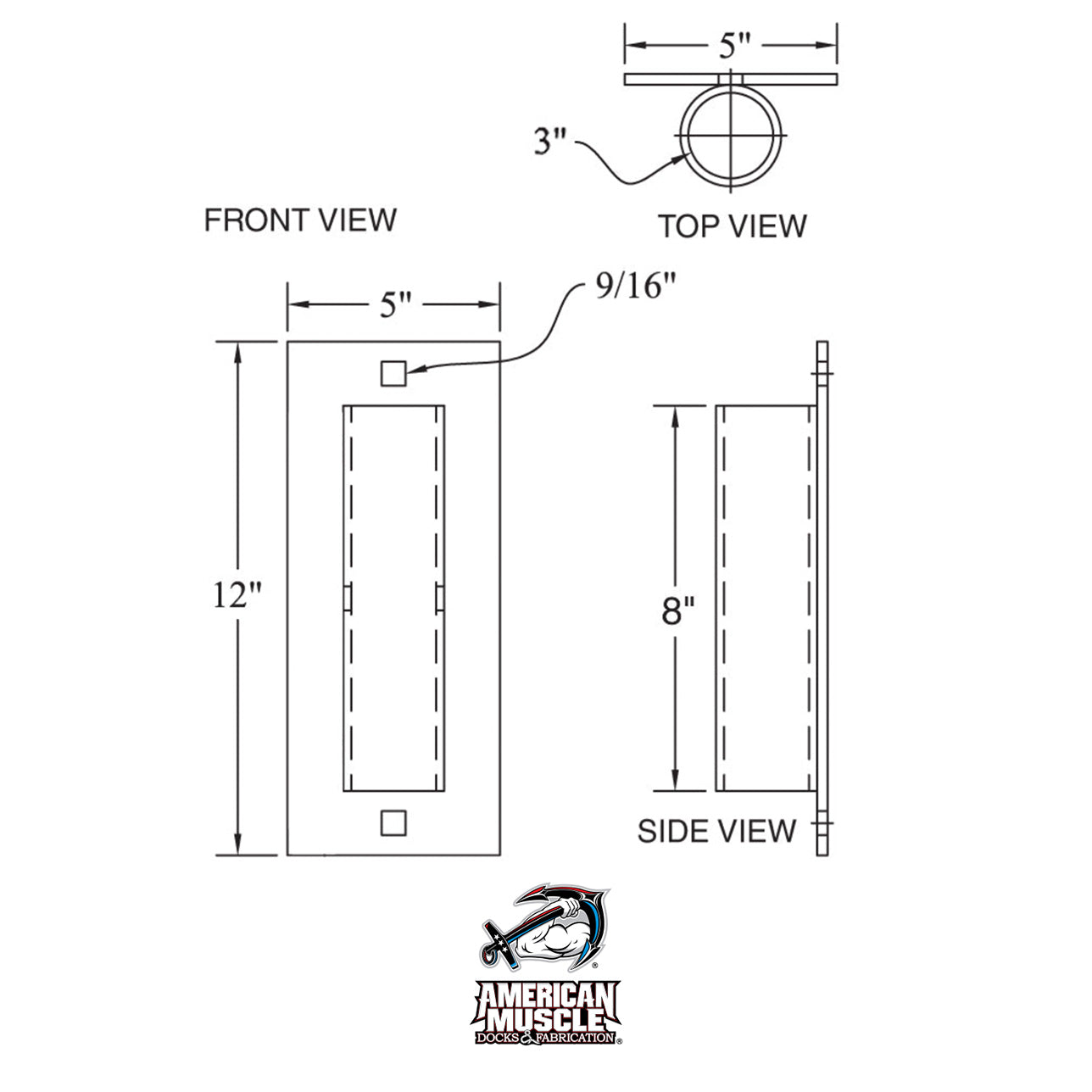

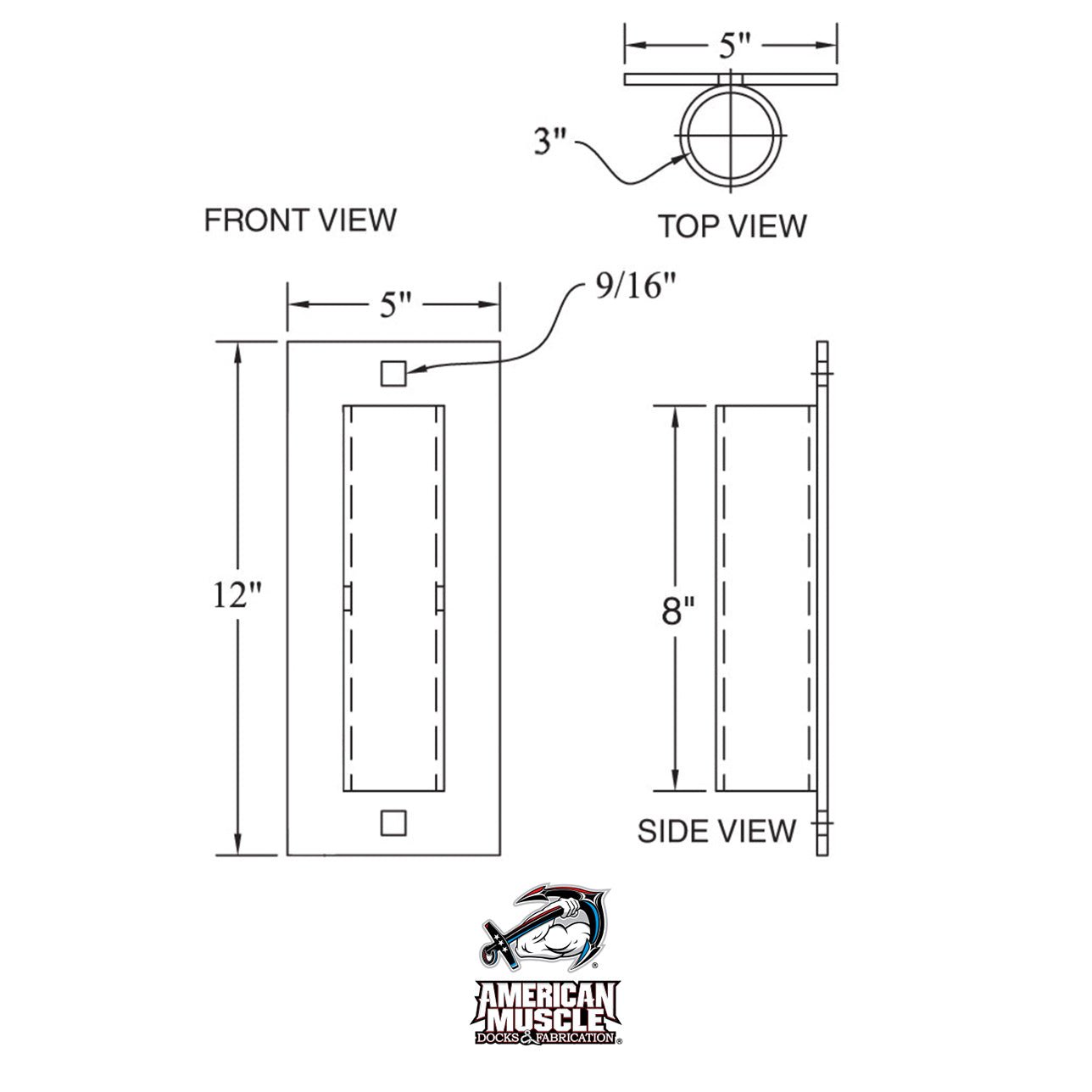

• ¼” x 12”x 5” Base Plate
• 9/16” Square Mounting Bolt Holes
• 10.5” Bolt Hole Centers
• PH3: 3” Sch40 Pipe, 3” ID x 8” Long
• PH4: 4” Sch40 Pipe, 3” ID x 8” Long
• PH5: 5” Sch40 Pipe, 3” ID x 8” Long
• Galvanized Coated

STF-PH3 - 3 inch - 9.7 lbs.
STF-PH4 - 4 inch - 11.5 lbs.
STF-PH5 - 5 inch - 16 lbs.

Sold individually.
