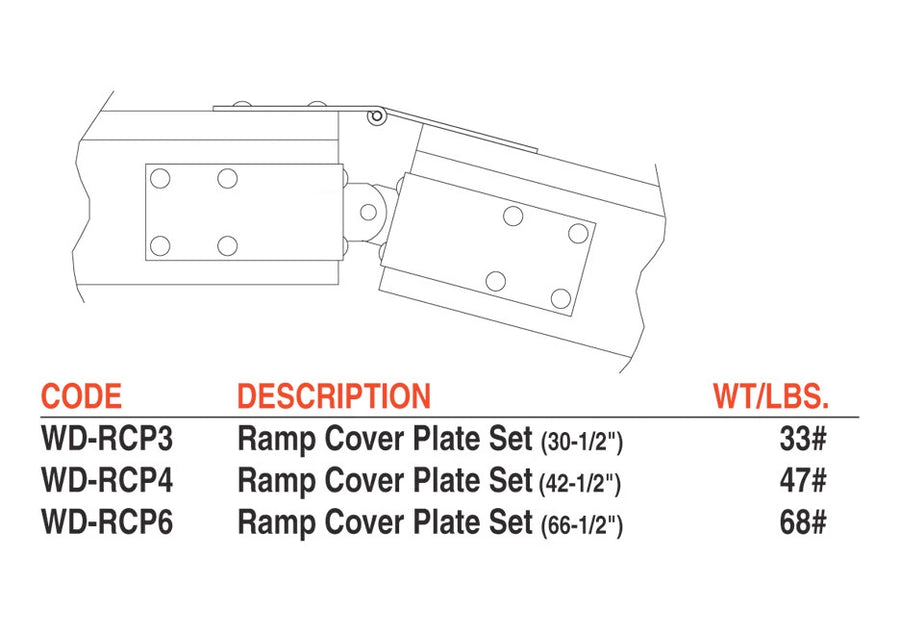

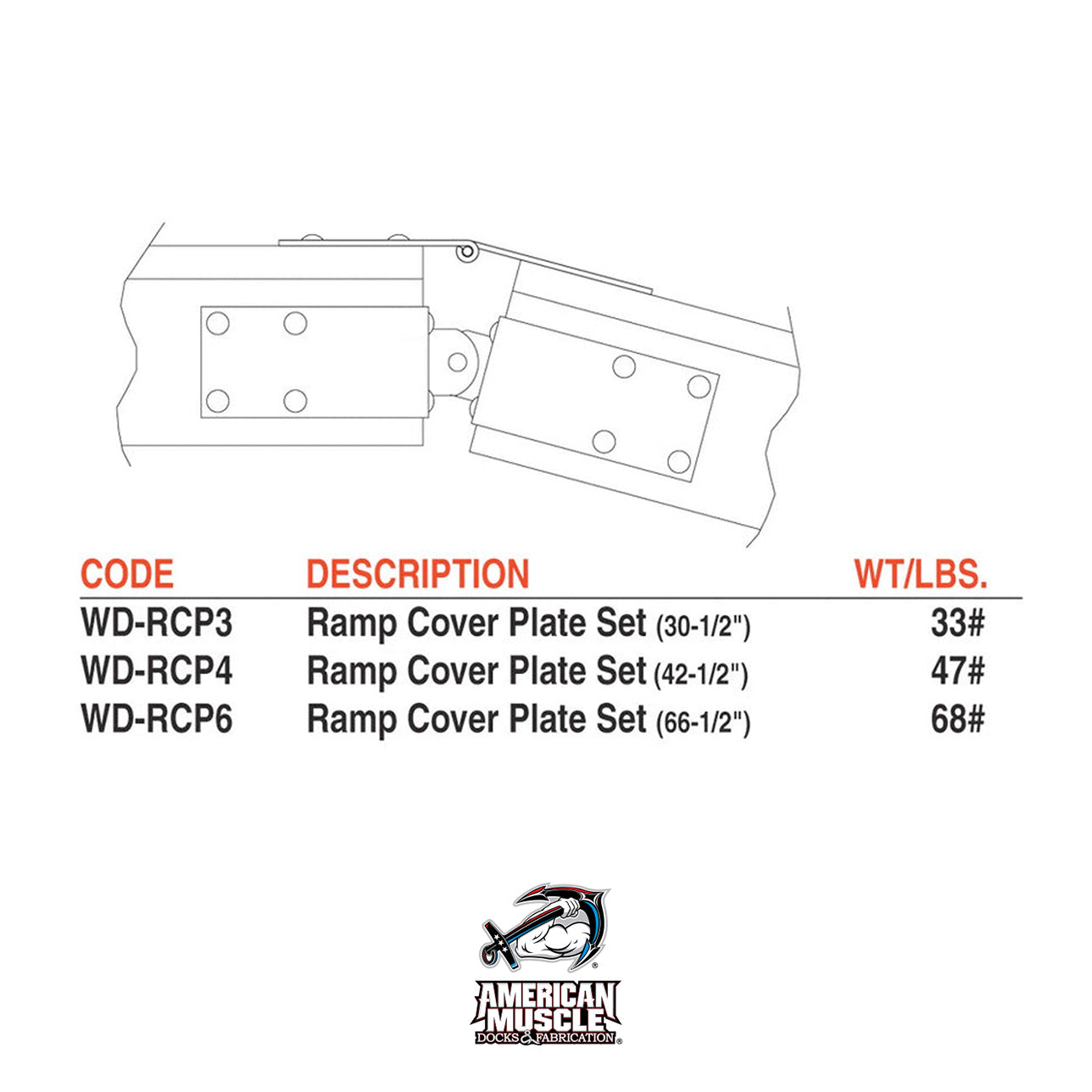

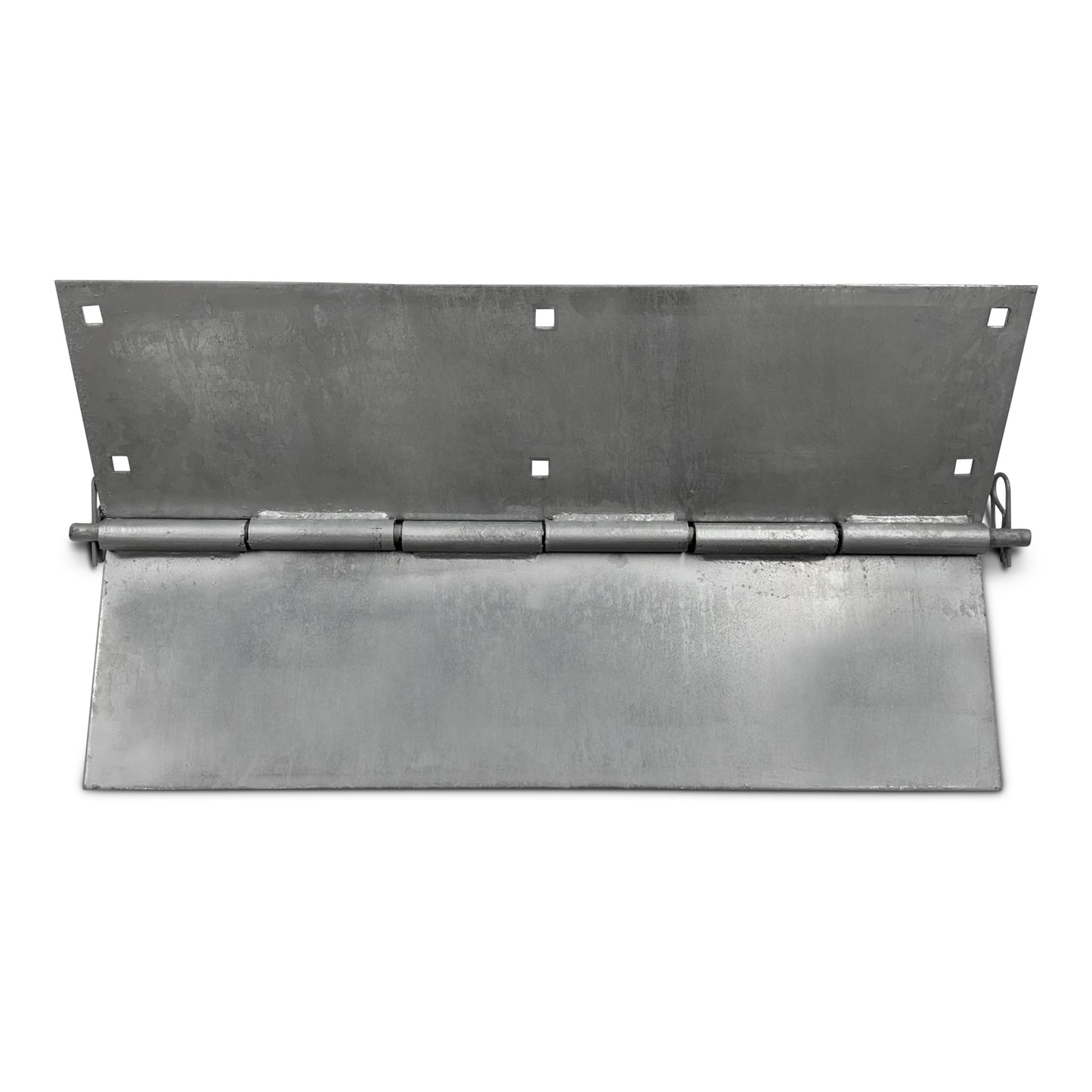

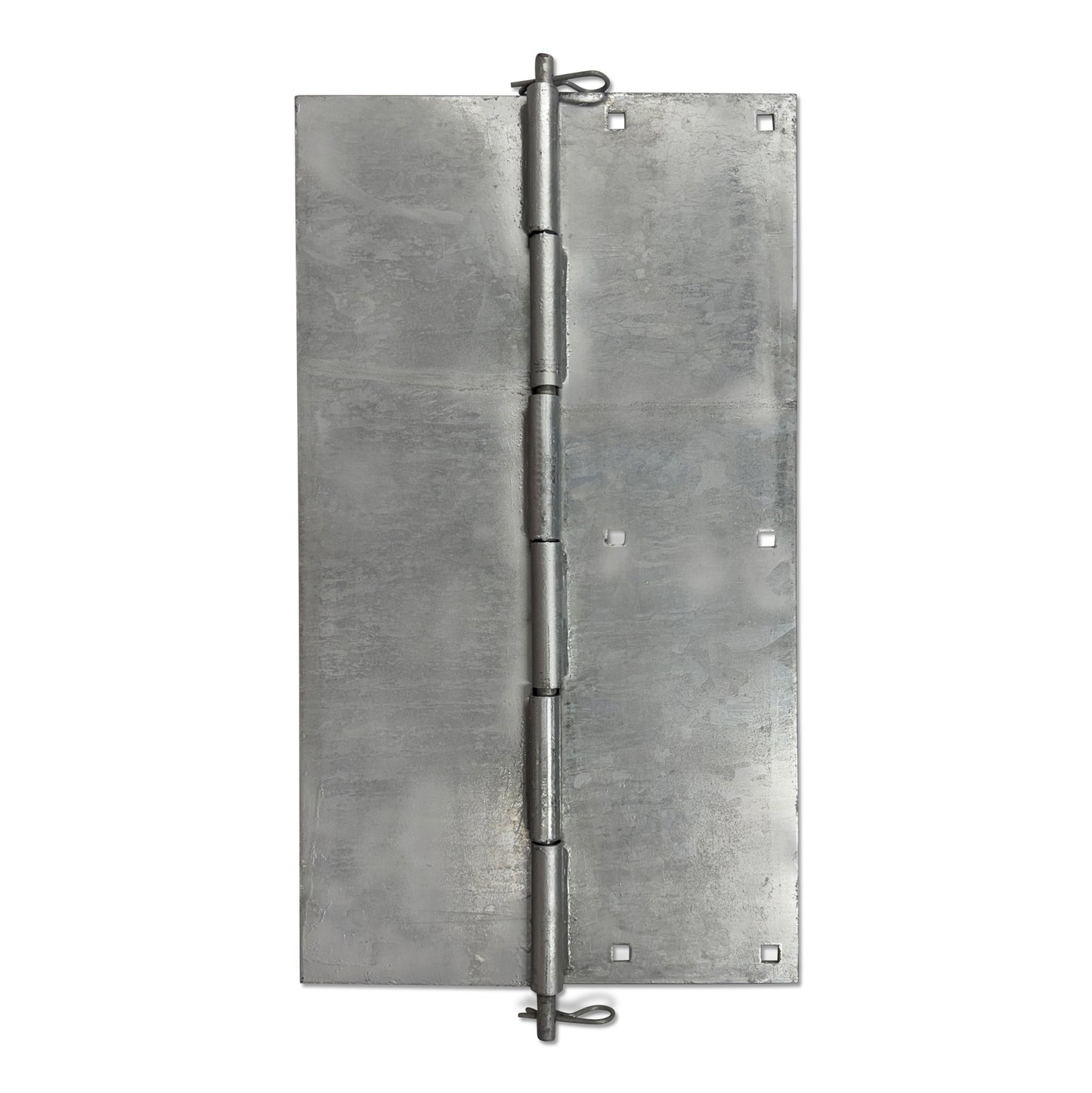

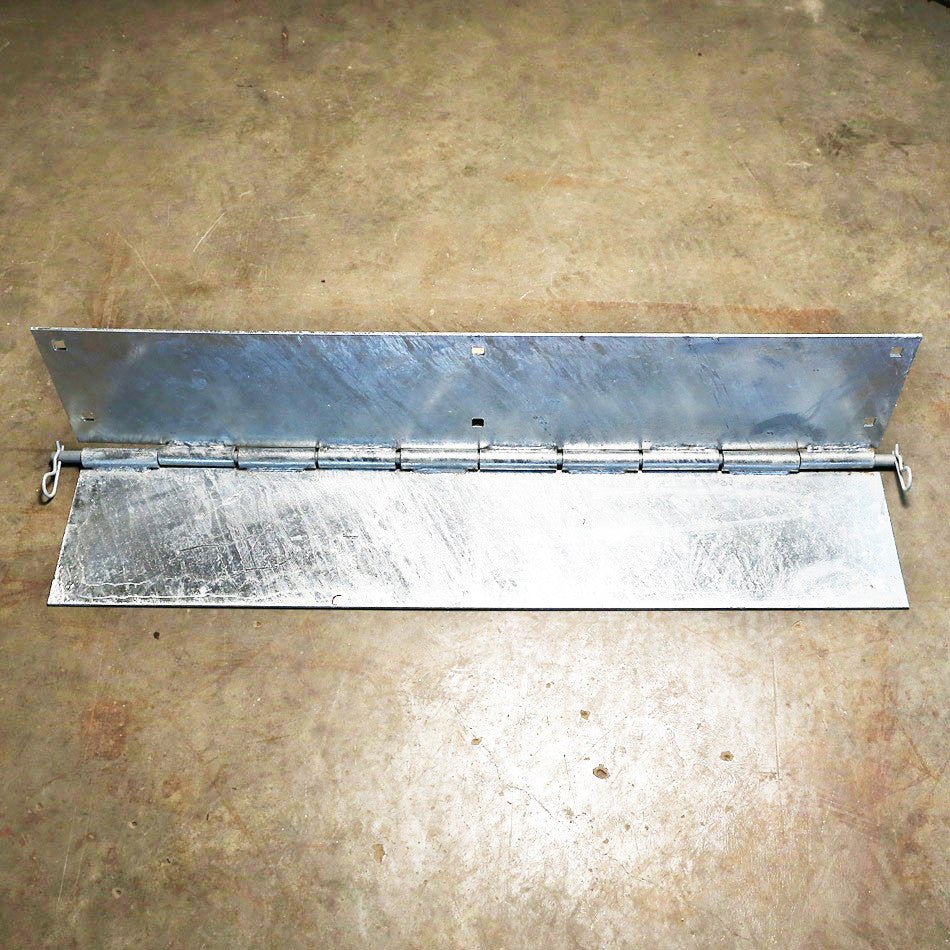

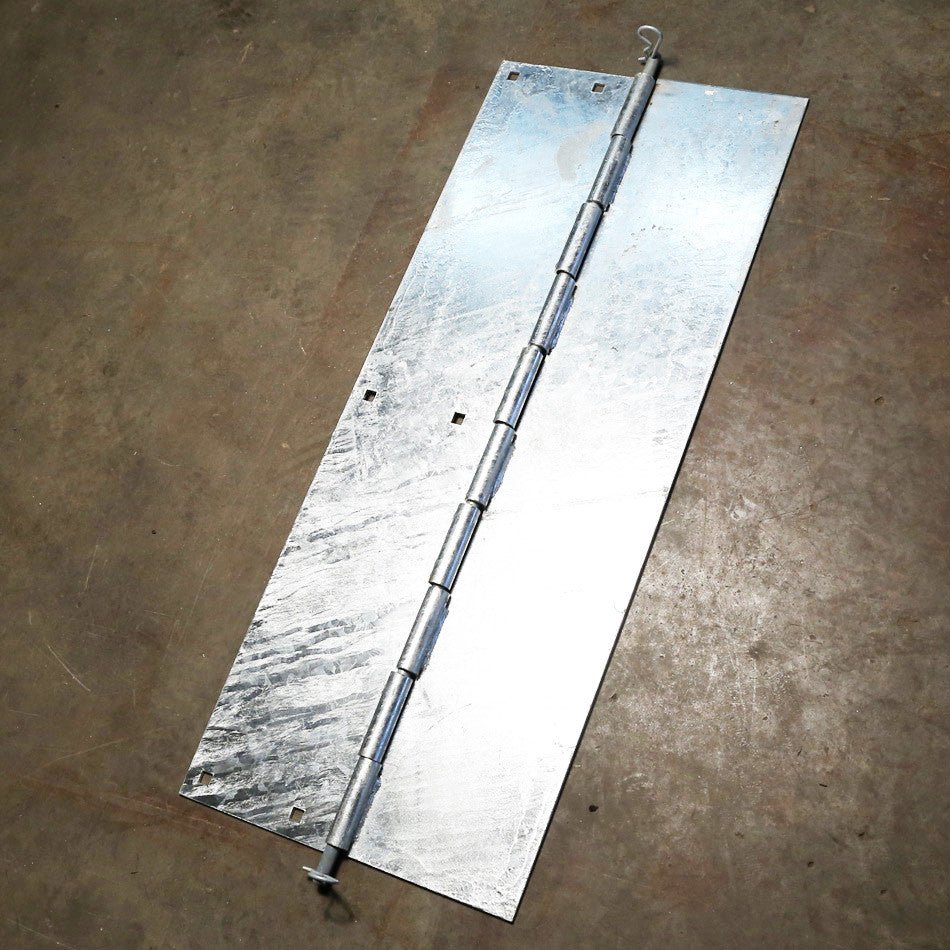

The ramp cover plates are designed to cover the gap created by the male/female hardware between the ramp and shore by providing a covered walking surface between the sections. One side is pre-punched and will bolt through the deck surface. The opposite side will slide with the movement of the dock.

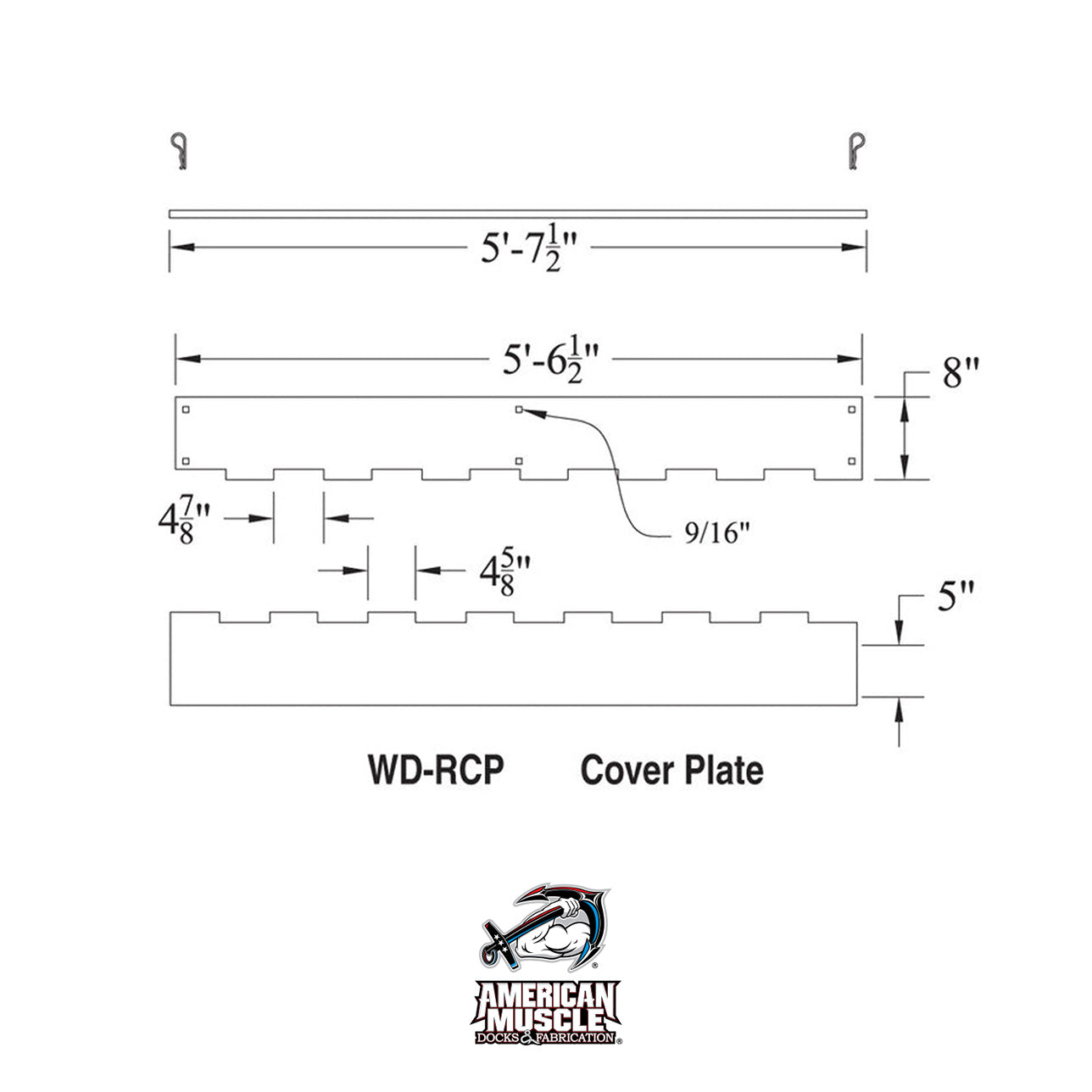

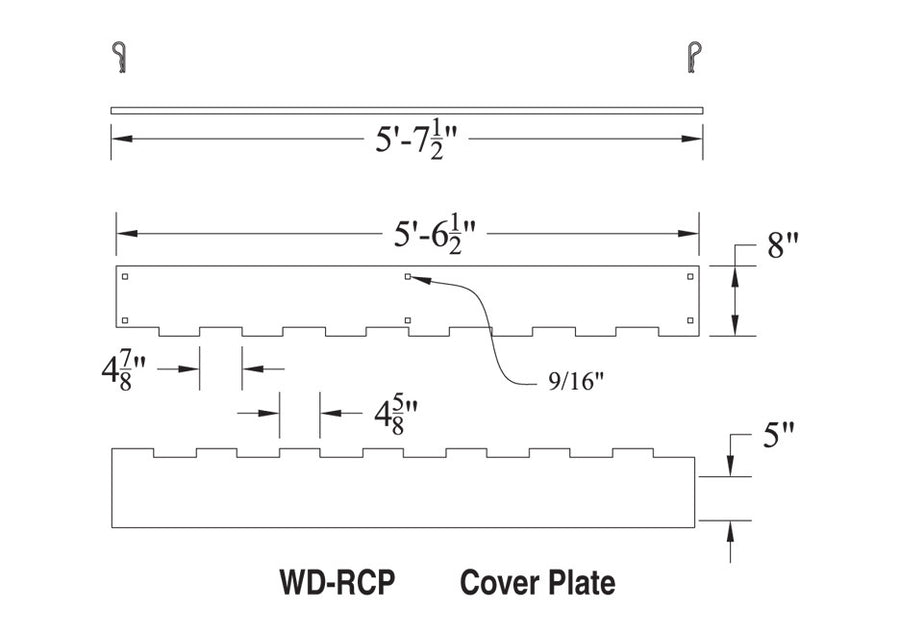

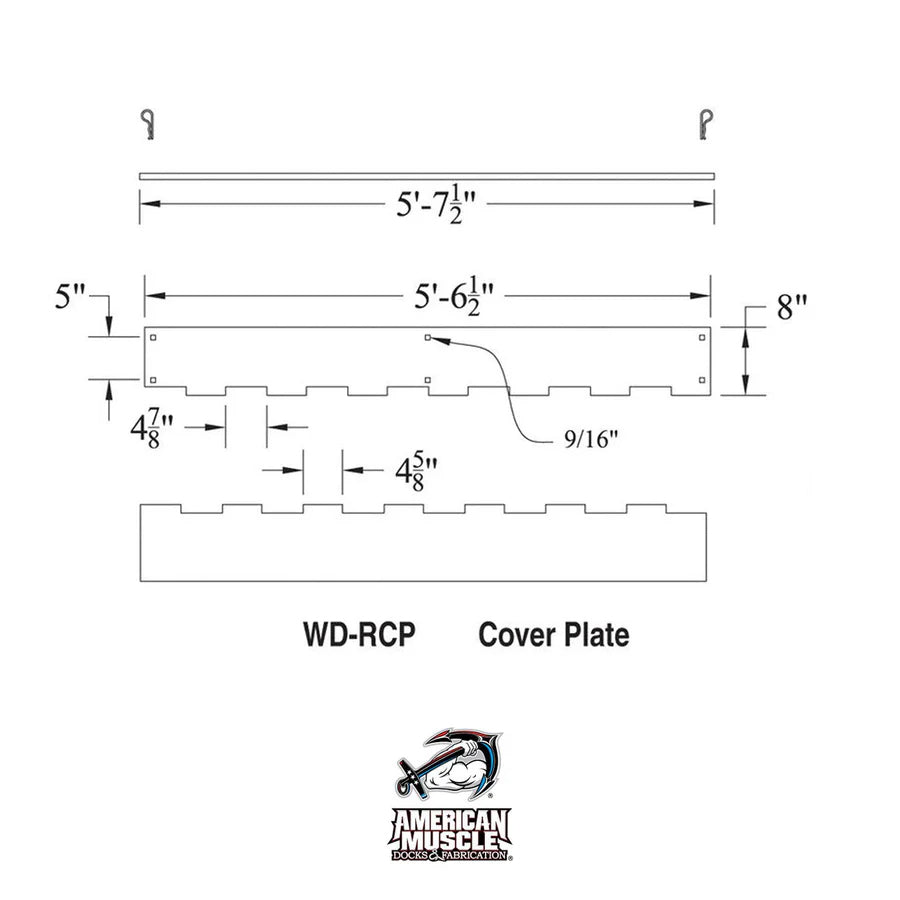

• 3/16” 8”x 30”, 42”, 54”, 66” Plates
• 9/16” Square Mounting Bolt Holes
• 5” Bolt Hole Centers
• 5/8” Hinge Pin
• Galvanized Coated

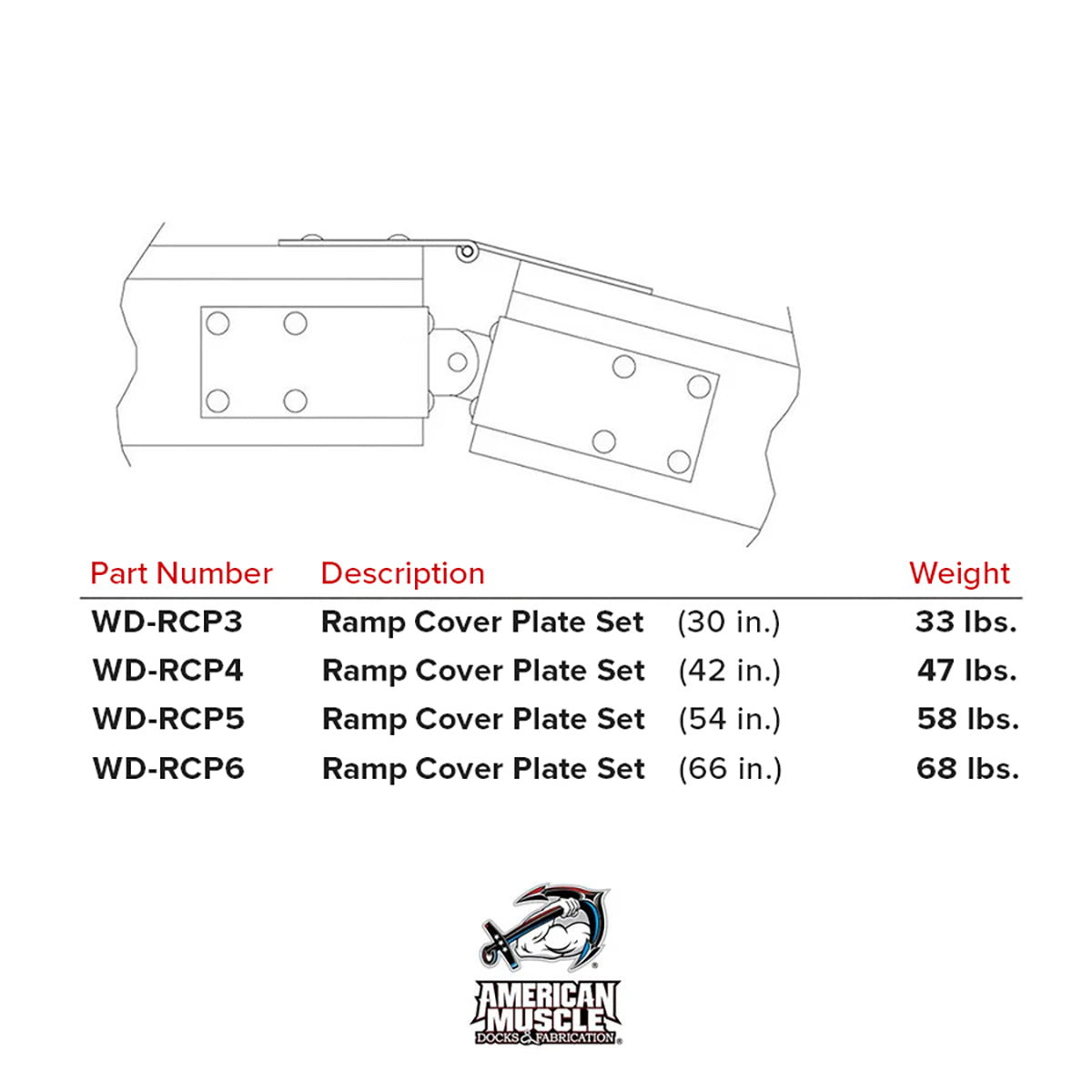

Weight:  33 LBS - 30"
Weight:  47 LBS - 42"
Weight:  58 LBS - 54"
Weight:  68 LBS - 66"
