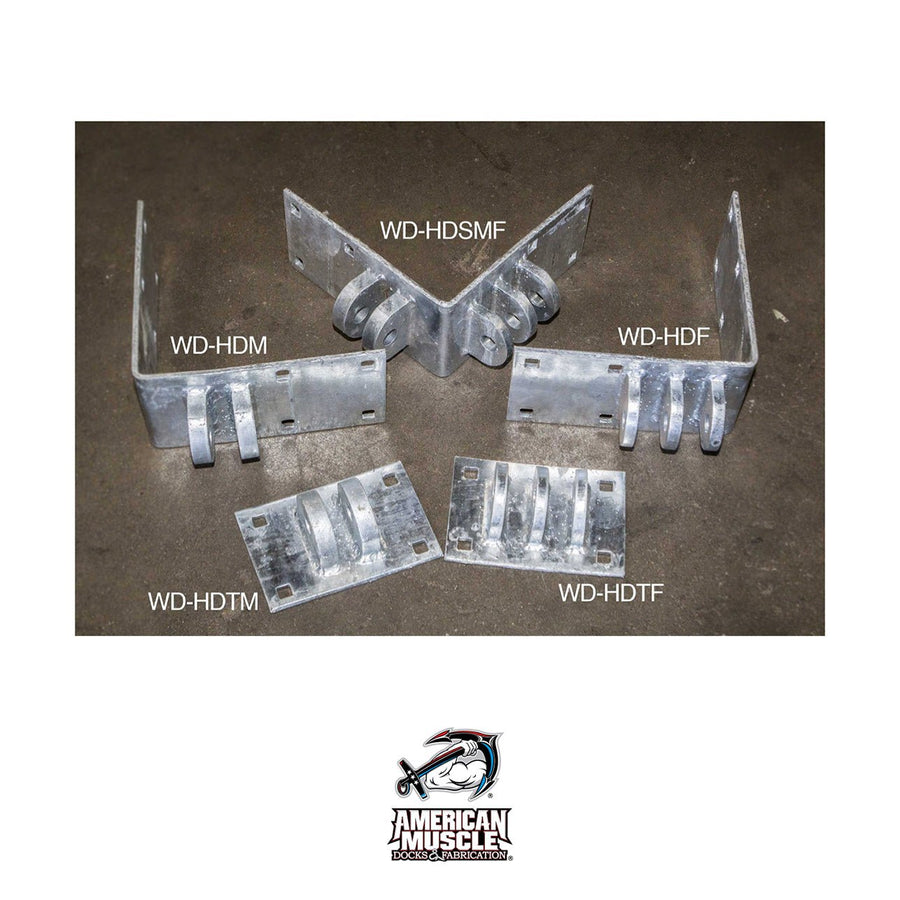

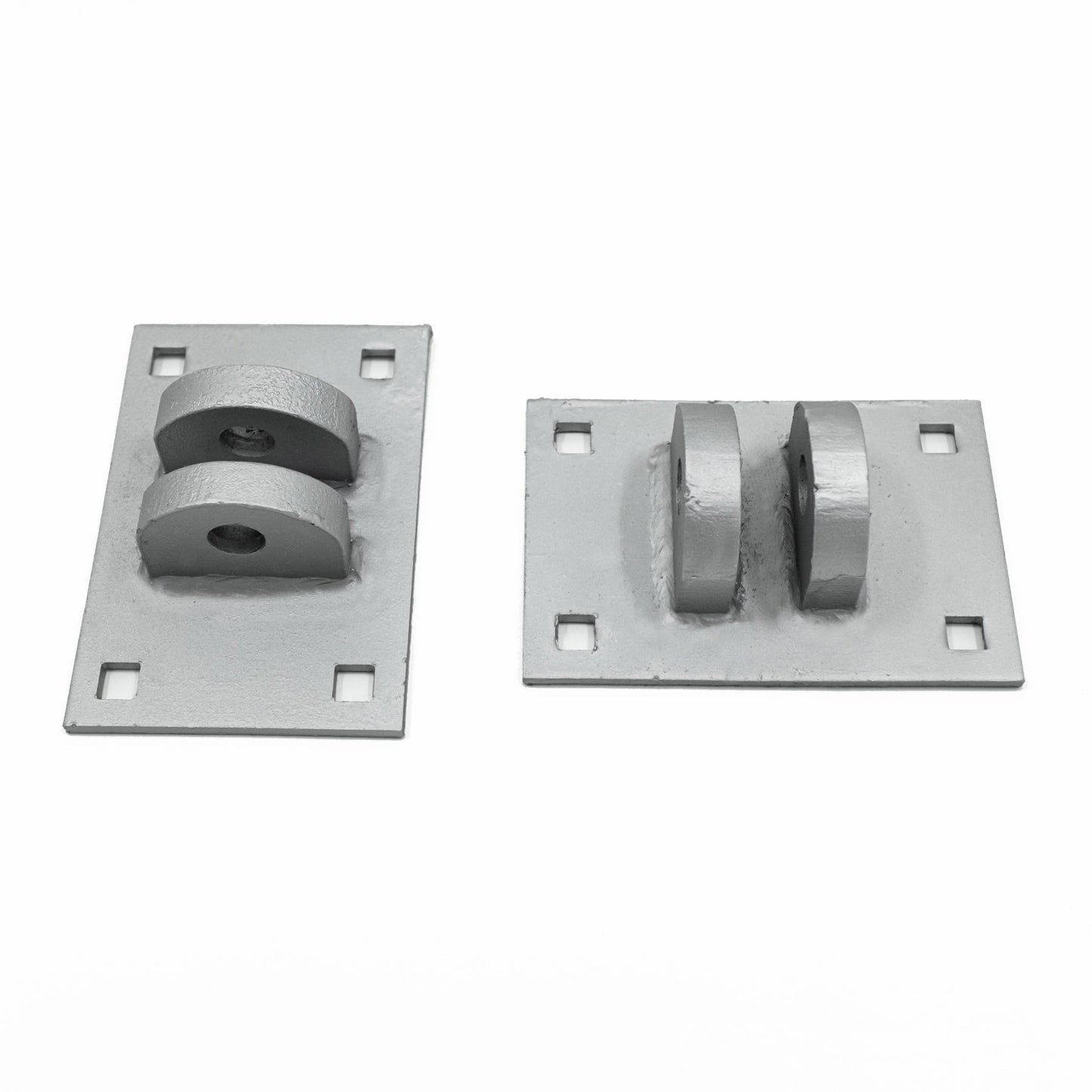

For dock installations requiring exceptional strength, our heavy-duty reinforcement plate provides a reliable solution. Equipped with two robust 3/4" tabs, pre-drilled to accept standard 3/4" pins or bolts, this plate is specifically designed to complement Heavy Duty Outside Corner Female (WD-HDF) and Heavy Duty Single T Female (WD-HDTF) connectors, ensuring a secure and durable connection. Requires the use of a WD-HDB Backup Plate.

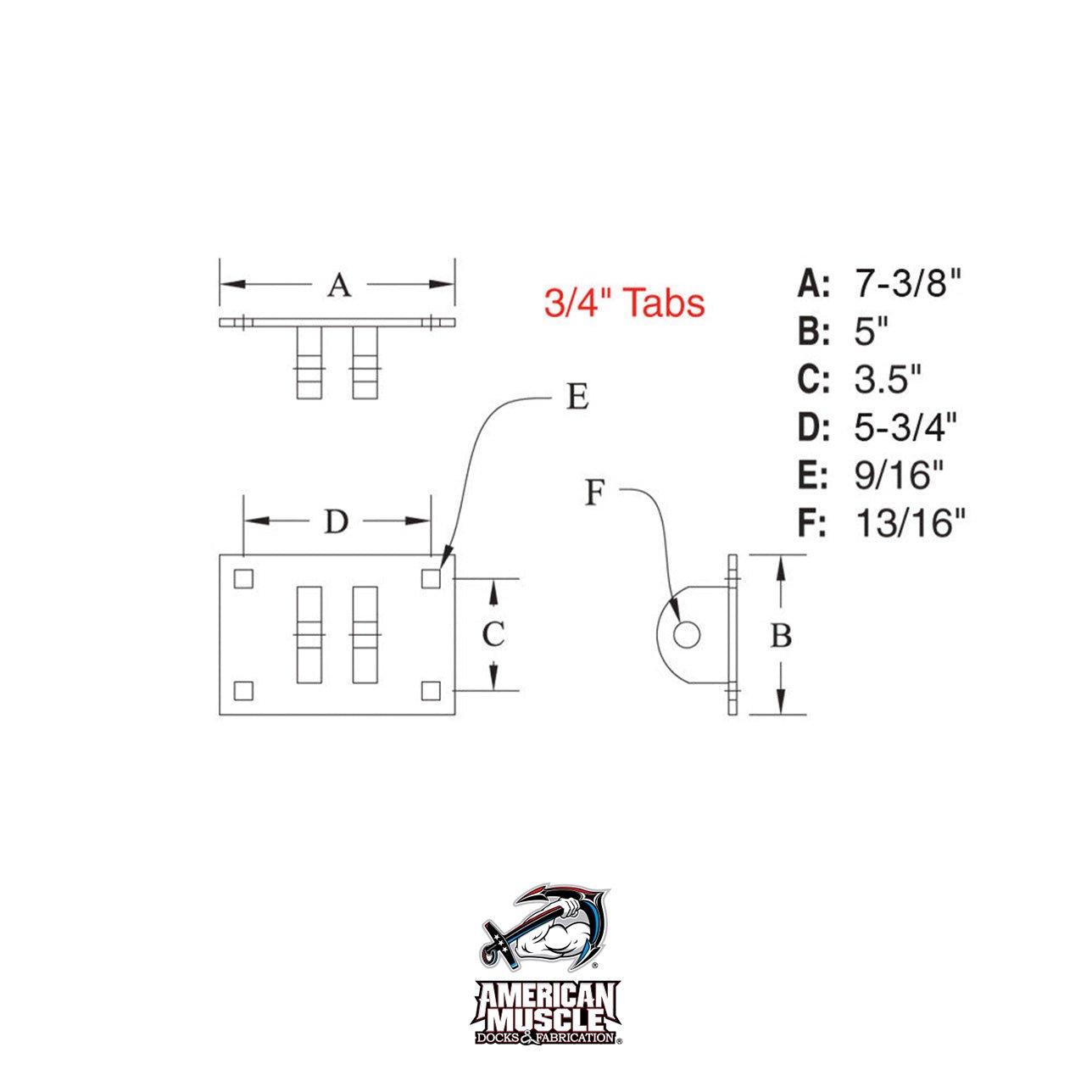

• ¼”x7.375”x5” Base Plate
• 9/16” Square Bolt Holes
• 3.5”x5.75” Bolt Hole Centers
• 2(x) ¾” Male Tabs, 13/16” Holes
• Galvanized Coated
• Used with F-PIN36 Connector

Weight:  3.00 LBS

Sold individually.
