Steel Truss Dock Hinge Connector Plate - Male

STF-TM
$24.00
$24.00
Steel Truss Dock Hinge Connector Plate - Male with a galvanized finish, four square bolt holes, and a central hinge lug for truss dock sections. Two rectangular galvanized Steel Truss Dock Hinge Connector Plate - Female units, one with a single vertical mounting loop and one with two loops, each featuring four square corner holes. Two galvanized, rectangular Steel Truss Dock Hinge Connector Plate - Female units, each featuring four square bolt holes and a welded hinge attachment point. Technical drawing of two galvanized Steel Truss Dock Hinge Connector Plate - Female STF-TM and STF-TF truss hinge connector plates, showing dimensions and a side profile view.

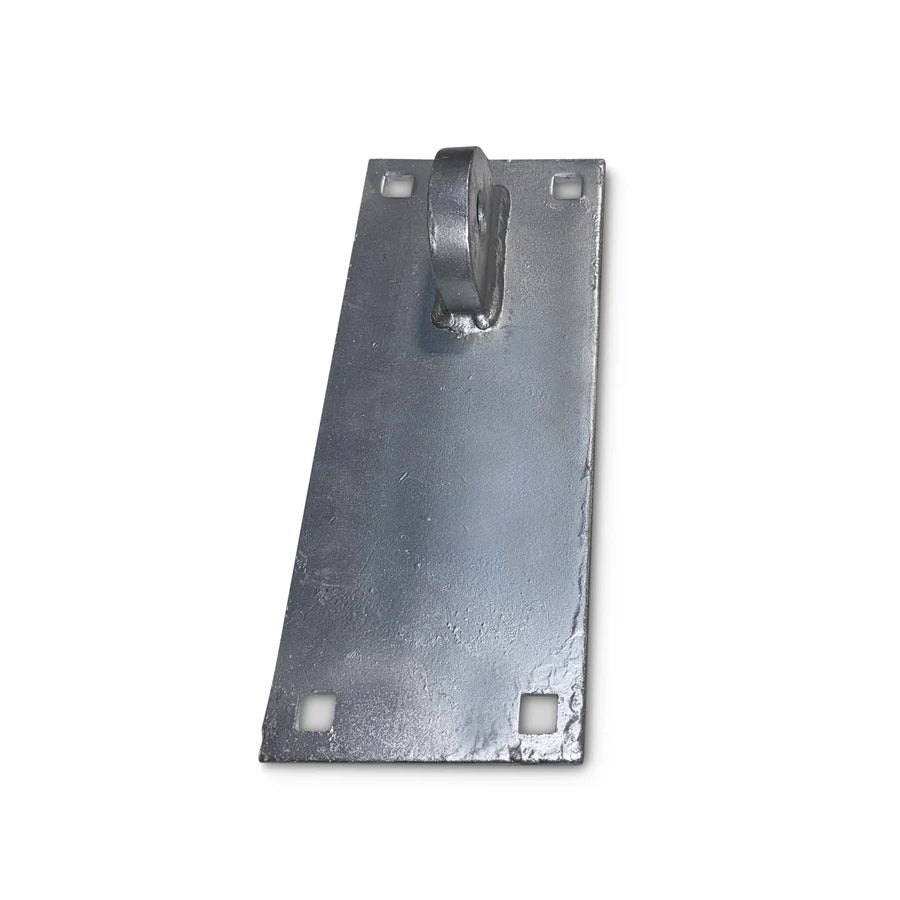

Steel Truss Dock Hinge Connector Plate - Male with a galvanized finish, four square bolt holes, and a central hinge lug for truss dock sections.
Two rectangular galvanized Steel Truss Dock Hinge Connector Plate - Female units, one with a single vertical mounting loop and one with two loops, each featuring four square corner holes.
Two galvanized, rectangular Steel Truss Dock Hinge Connector Plate - Female units, each featuring four square bolt holes and a welded hinge attachment point.
Technical drawing of two galvanized Steel Truss Dock Hinge Connector Plate - Female STF-TM and STF-TF truss hinge connector plates, showing dimensions and a side profile view.

Steel Truss Dock Hinge Connector Plate - Male

STF-TM
$24.00
$24.00
Shipping calculated at checkout.

Simplify the process of creating hinged connections between your truss dock sections using our convenient Male/Female Truss Hinge Connector Plates. These plates allow for easy articulation and flexible layout options for your truss-style dock system.

  • ¼” x12”x 5” Base Plate
  • 9/16” Square Mounting Bolt Holes
  • 3.5”x 10.5” Bolt Hole Centers
  • Male: 1(x) ¾” Male Tab, 13/16” Hole
  • Galvanized Coated

STF-TM - Male Plate - 5.3 lbs.
CLICK HERE for the STF-TF Female Plate

NOTE: Used with the F-PIN34 Connector Pin (sold separately).

Also available in a Double Male/Female Plate option.
