Simplify the process of creating hinged connections between your truss dock sections using our convenient Male/Female Truss Hinge Connector Plates. These plates allow for easy articulation and flexible layout options for your truss-style dock system.

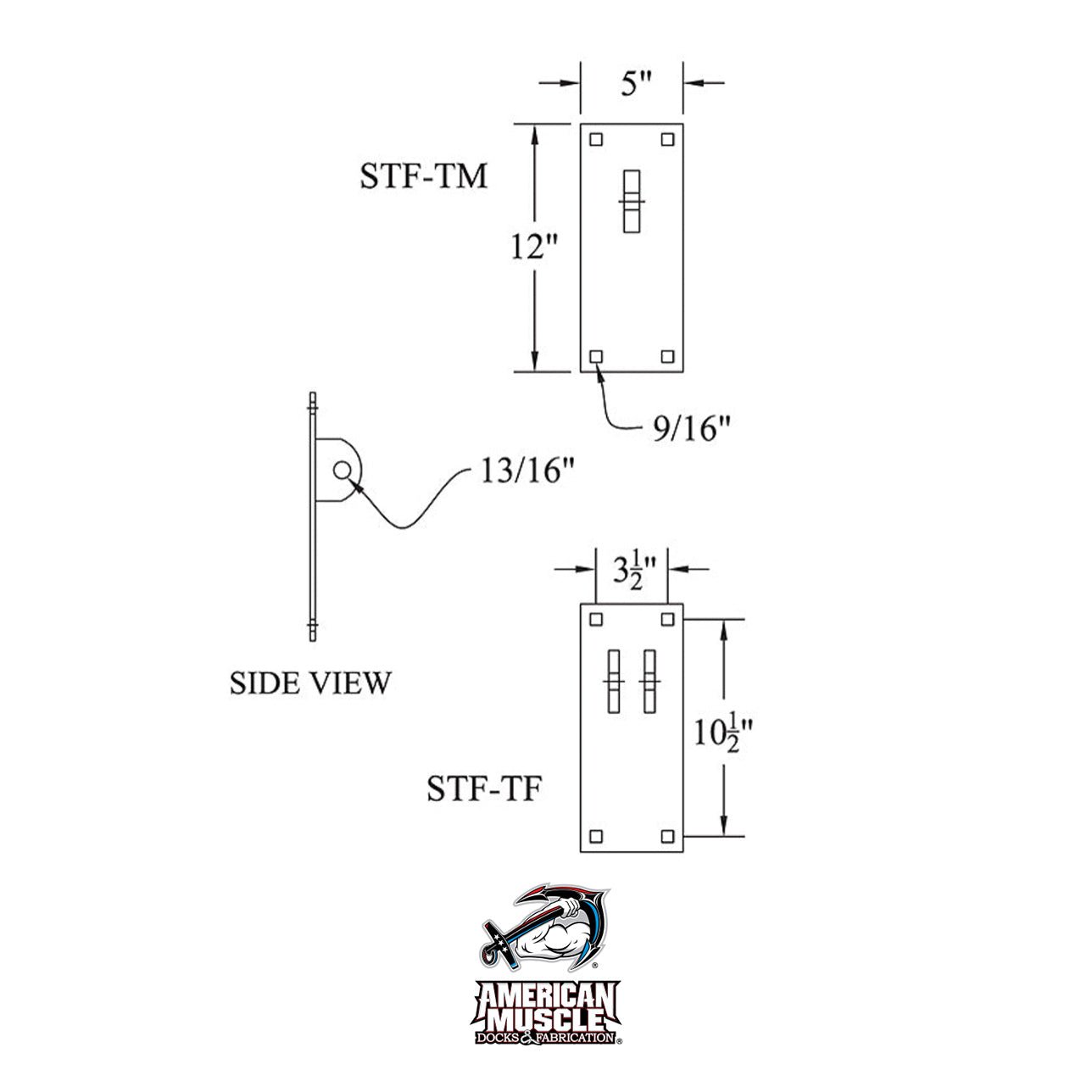

• ¼” x12”x 5” Base Plate
• 9/16” Square Mounting Bolt Holes
• 3.5”x 10.5” Bolt Hole Centers

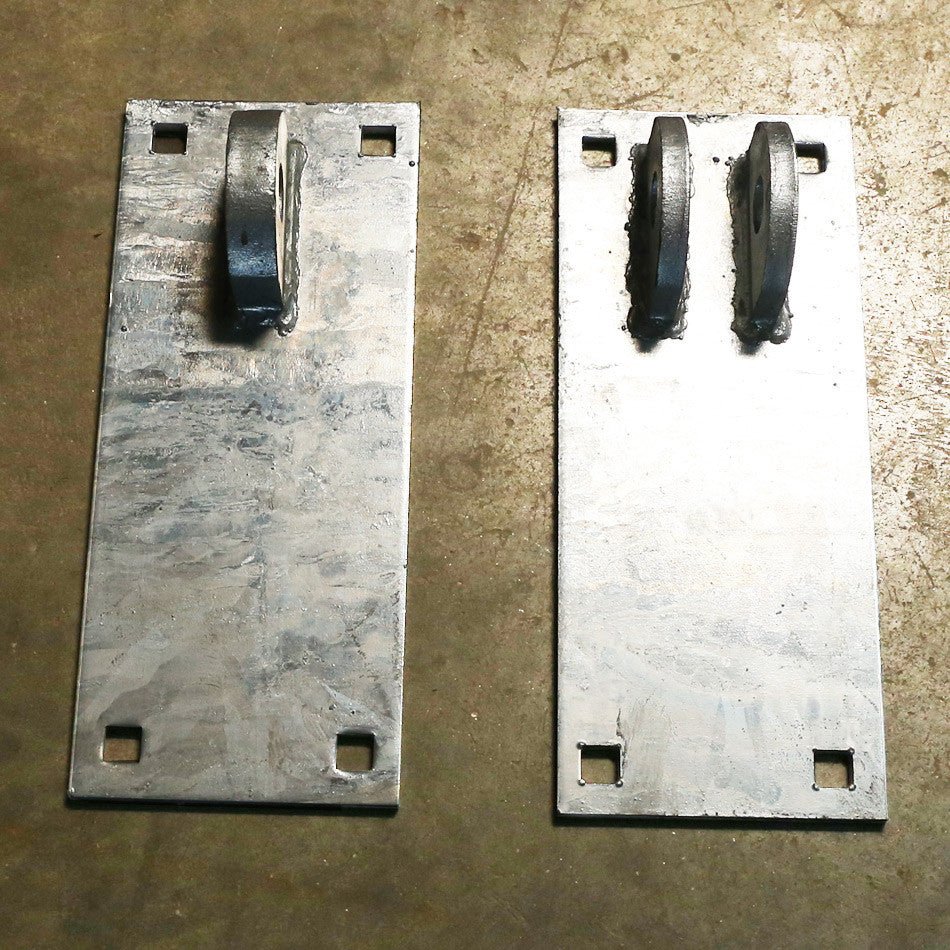

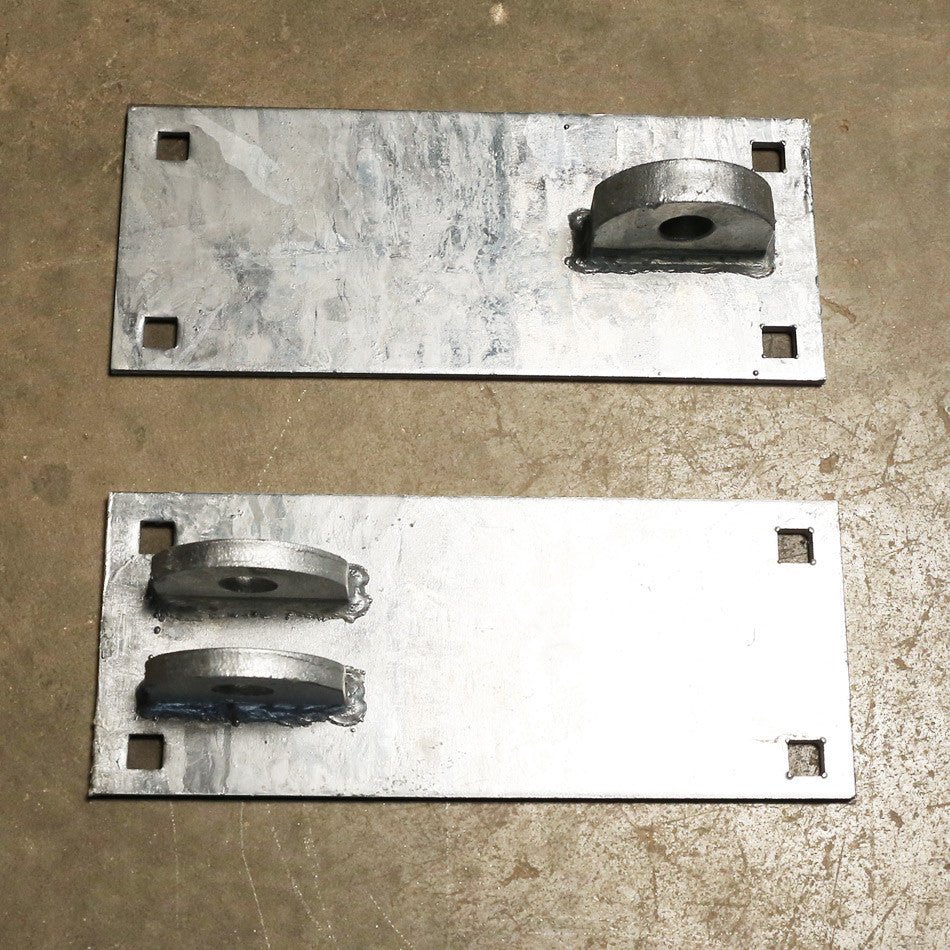

• Male: 1(x) ¾” Male Tab, 13/16” Hole
• Female: 2(x) ½” Female Tabs, 13/16” Holes
• Galvanized Coated

STF-TM - Male Plate - 5.3 lbs.
STF-TF - Female Plate - 5.73 lbs.

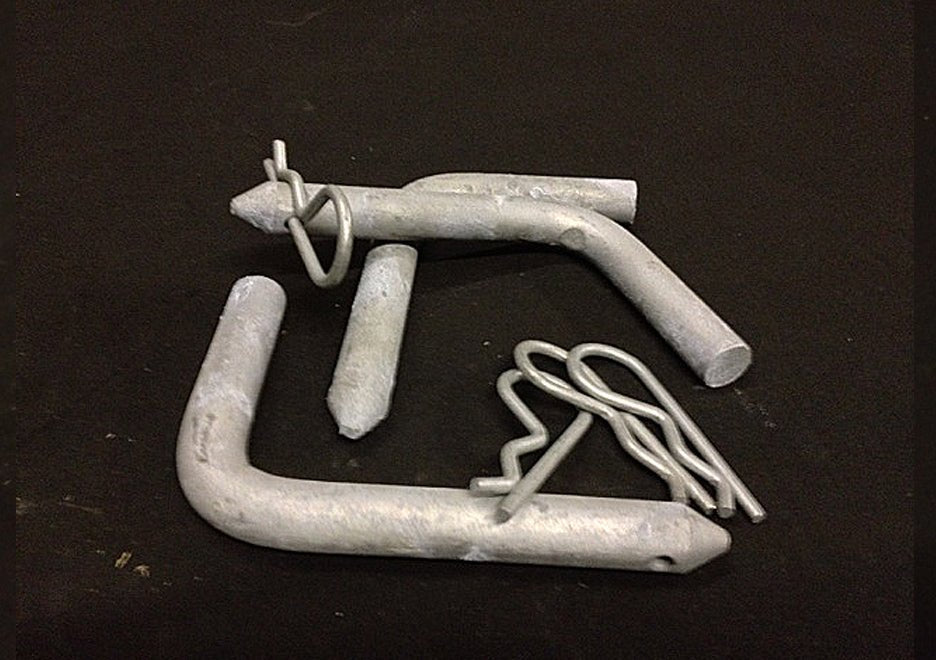

NOTE: Used with the F-PIN34 Connector Pin (sold separately).

Also available in a Double Male/Female Plate option.
