STF-210T STF-810T
American Muscle Docks Steel Truss Frames are constructed from 1.5" x 1.5" x 3/16" steel angle separated by 1/2" diagonal round bar to create a rigid box frame. Corner gussets are added to the four top corners to provide additional strength. We prepunch holes in the sides and ends to allow you to bolt the frames side-to-side and end-to-end using 1/2" x 1.5" hex head bolt sets. We also prepunch the top to allow for nailer strips. This gives you the option of attaching the decking directly to the frame or the nailer stip.

STF-210T - 2'W x 10'L x 12"H - 138 lbs.

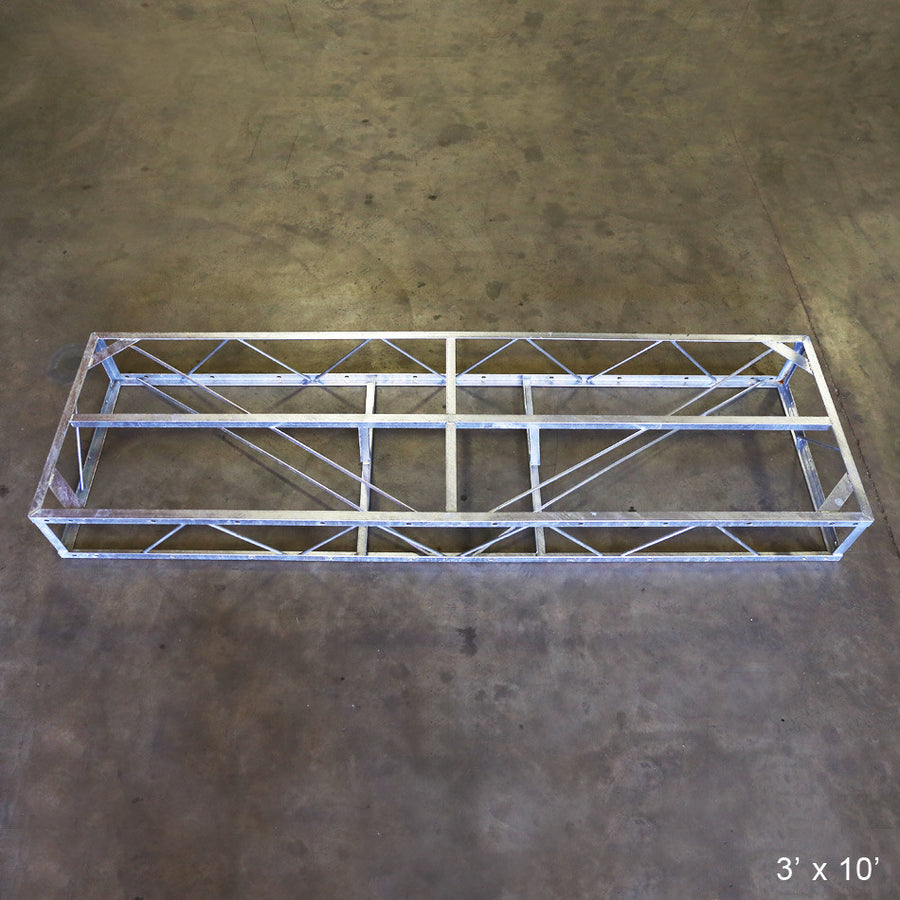

STF-310T - 3'W x 10'L x 12"H - 170 lbs.

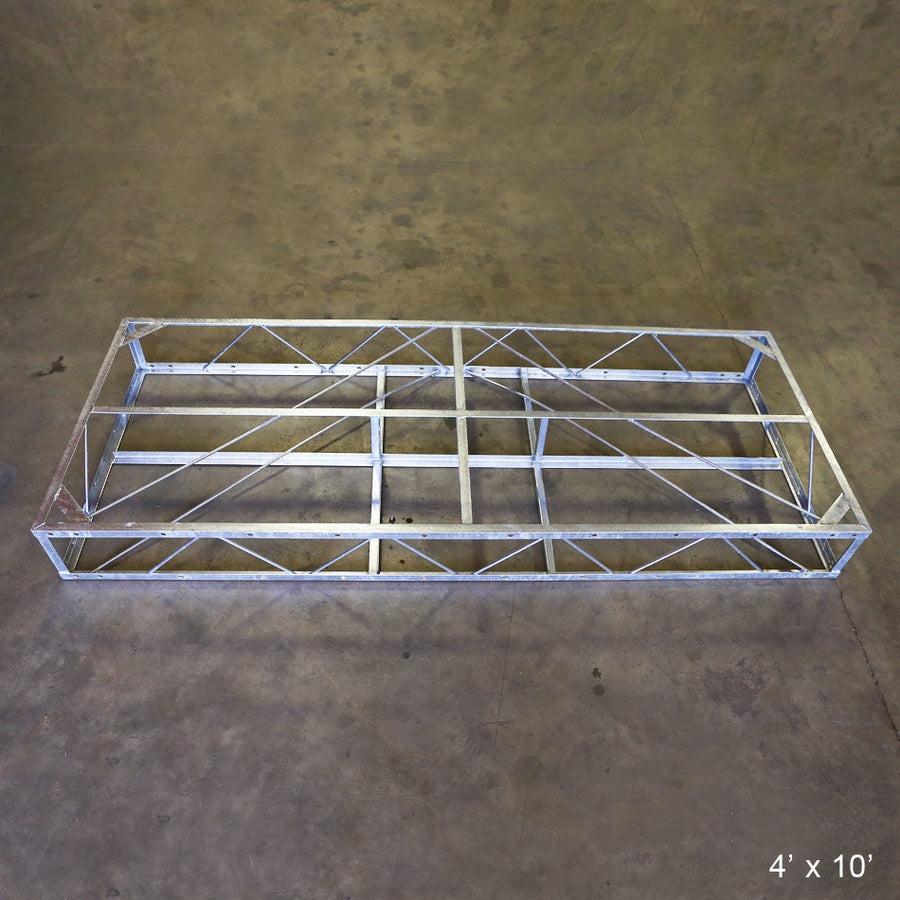

STF-410T - 4'W x 10'L x 12"H - 210 lbs.

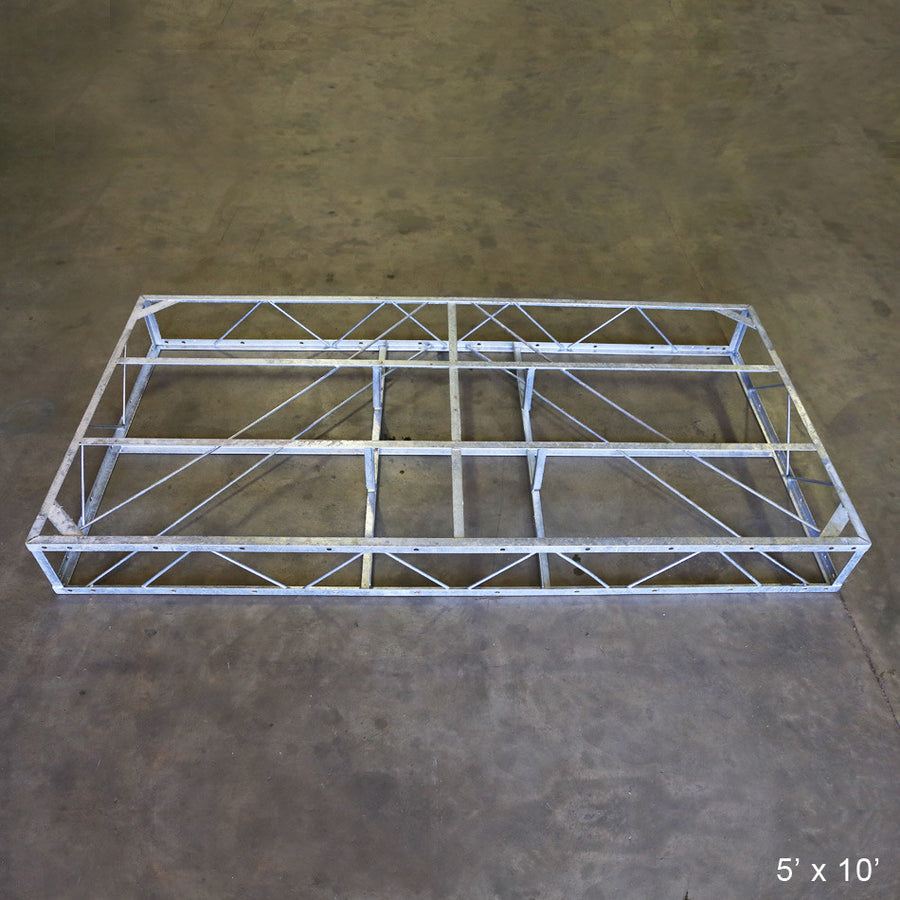

STF-510T - 5'W x 10'L x 12"H - 246 lbs.

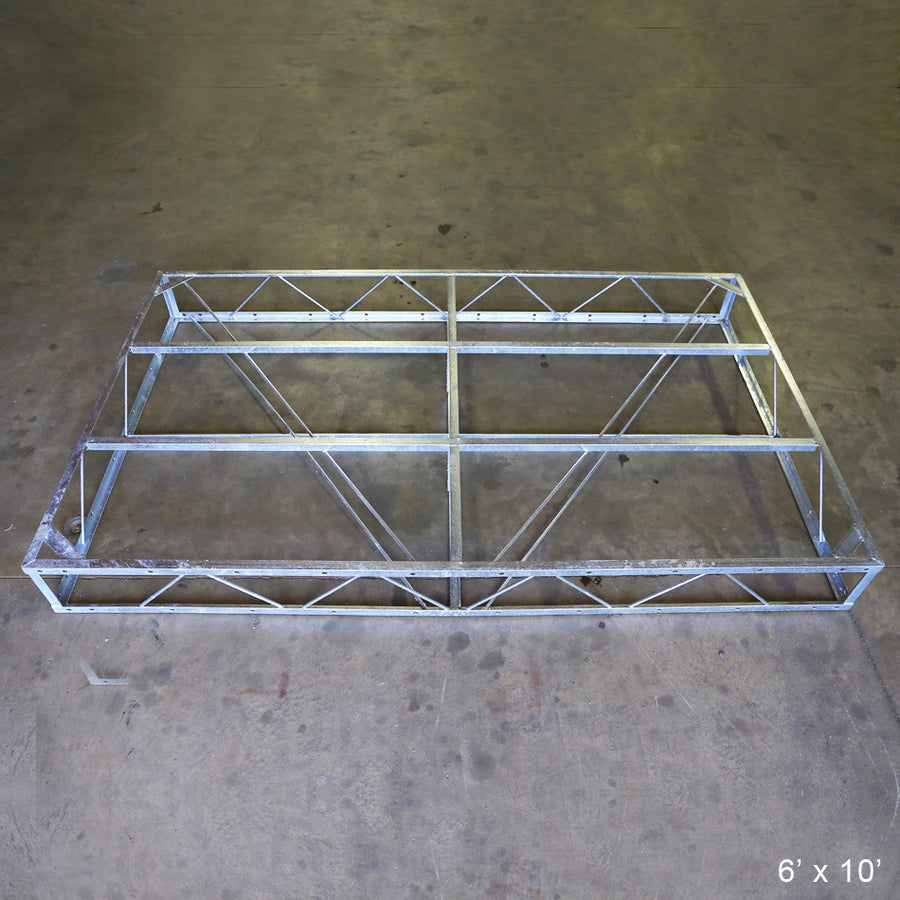

STF-610T - 6'W x 10'L x 12"H - 280 lbs.

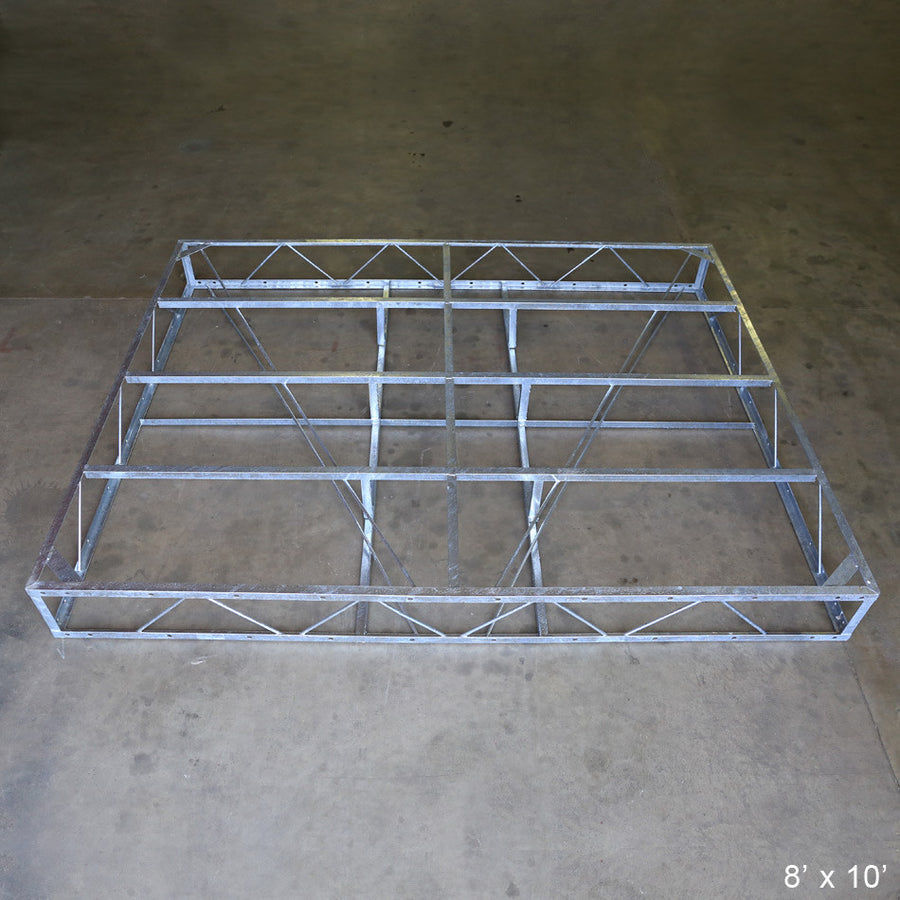

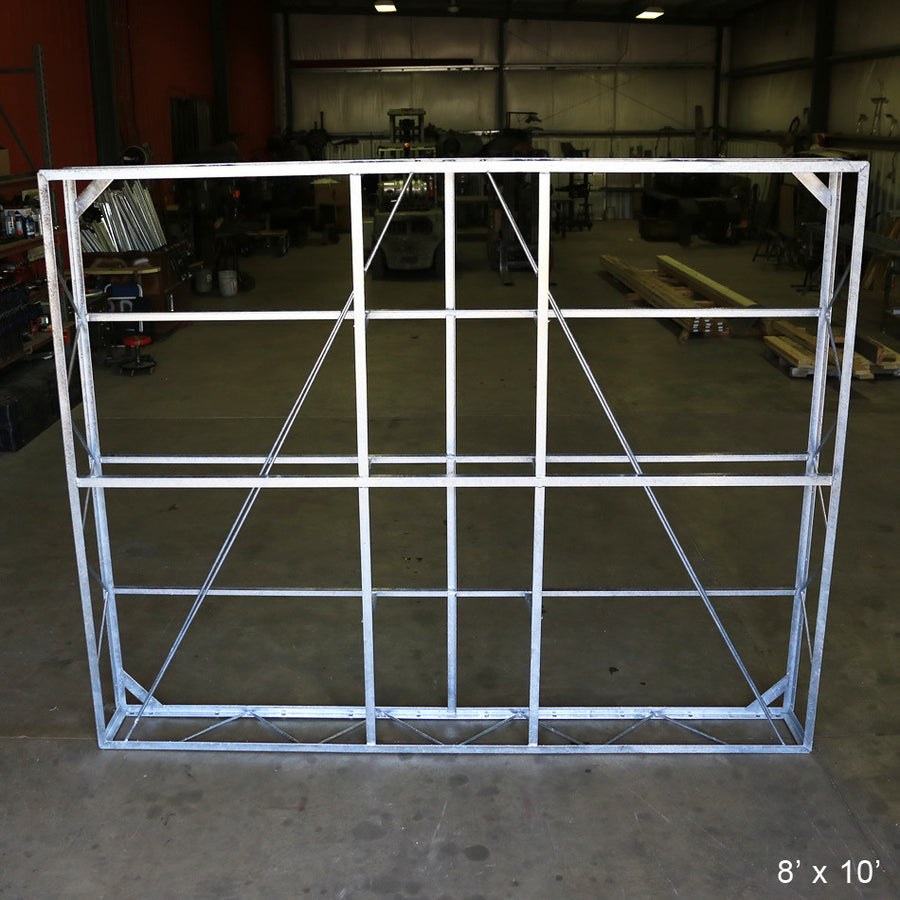

STF-810T - 8'W x 10'L x 12"H - 325 lbs.

Call for pricing on 2" Frames and special sizes.


Shipping is calculated after quote is submitted.

Price changes with options selected above.

Dimensions and drawings are for illustration purposes only.  Some actual dimensions may vary slightly from what is shown.
