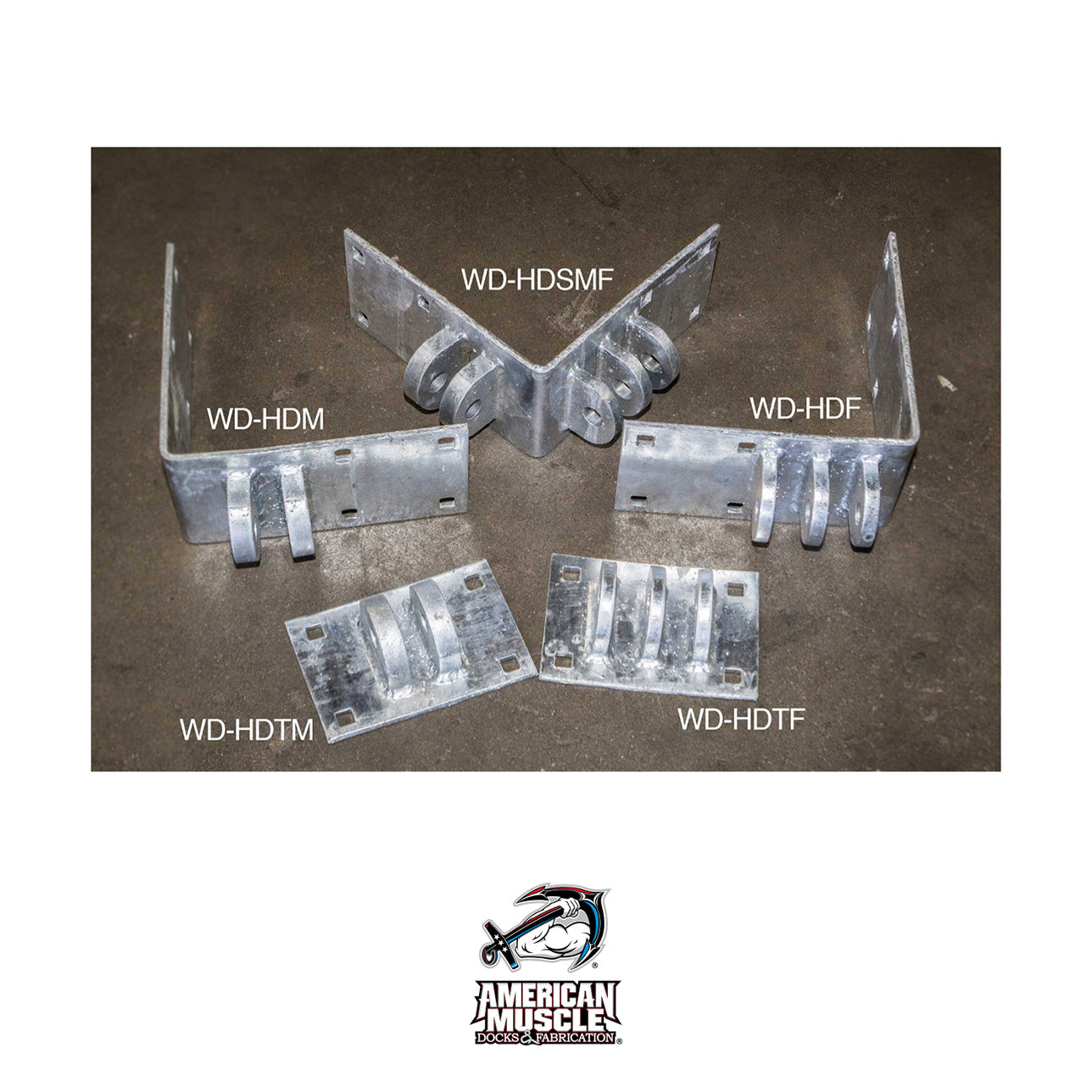

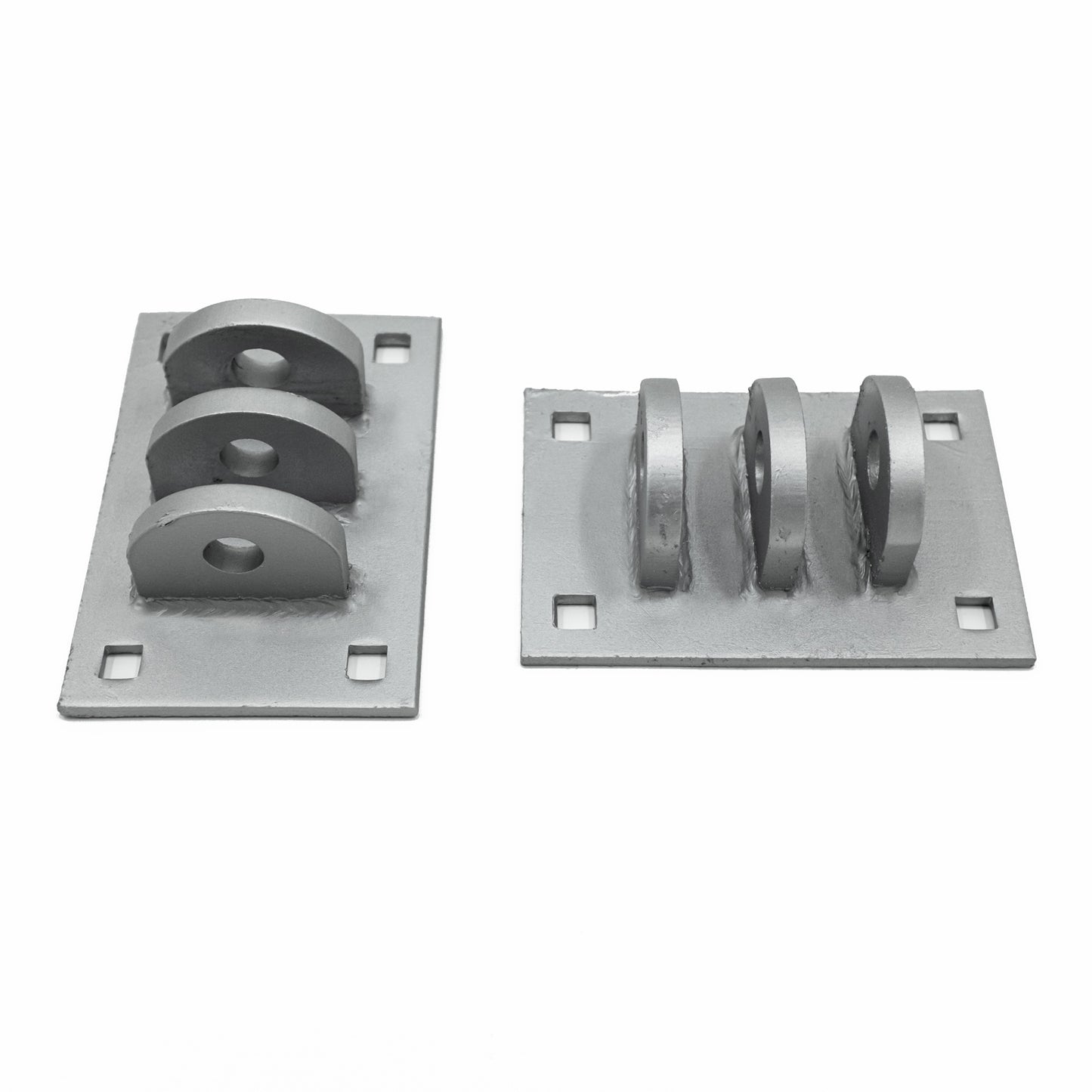

Ensure a strong and stable connection when attaching dock fingers using our heavy-duty plate. Featuring three 1/2" tabs (pre-drilled for secure bolting), this plate is specifically designed for use with Heavy Duty Outside Corner Male (WD-HDM) or Heavy Duty Single T Male (WD-HDTM) connectors. It bolts directly to the side of the main dock and requires the use of a WD-HDB Heavy Duty Backup Plate for enhanced stability and load distribution. Ideal for applications demanding extra strength and durability.

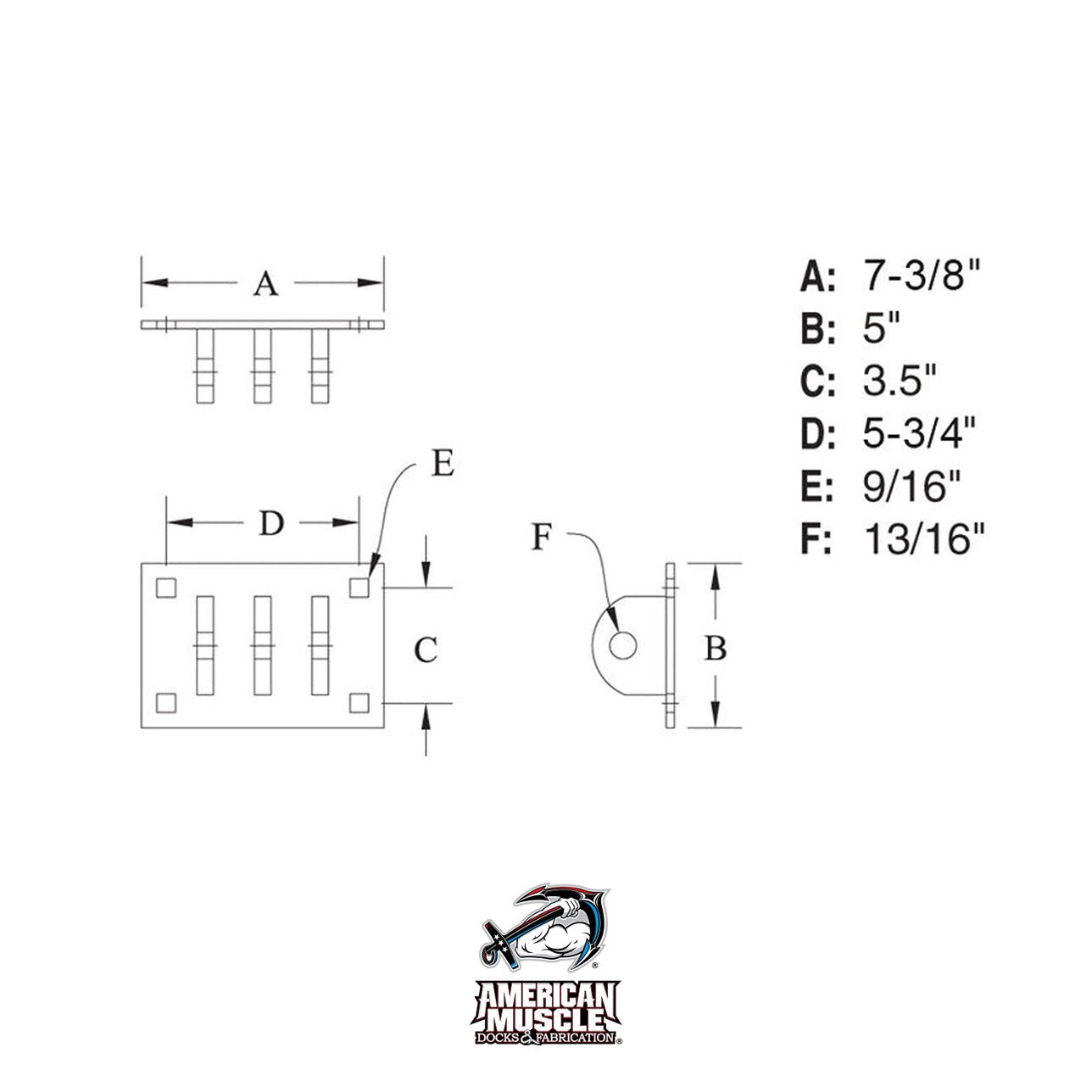

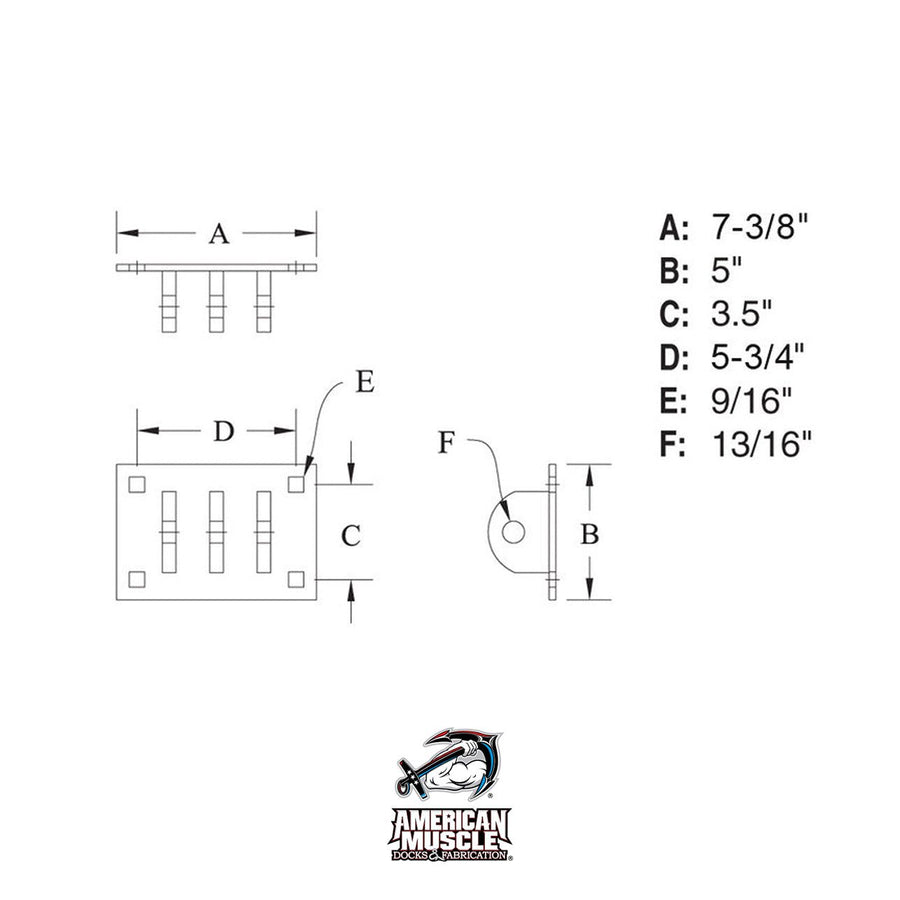

• ¼”x7.375”x5” Base Plate
• 9/16” Square Bolt Holes
• 3.5”x5.75” Bolt Hole Centers
• 3(x) ½” Female Tabs, 13/16” Holes
• Galvanized Coated
• Used with F-PIN36 Connector

Weighs 3.50 LBS

Sold Individually
