Wood Dock Splice Plate Set

WD-SP
$84.00
$84.00
The American Muscle Docks & Fabrication Wood Dock Splice Plate Set includes three galvanized plates with multiple holes, featuring a vertical pin on the top plate and a square plate between two longer plates, ideal for connecting dock sections. Three galvanized metal brackets from the American Muscle Docks & Fabrication Wood Dock Splice Plate Set are shown on a white background: two long splice plates with multiple holes, and one small square bracket with a perpendicular flange for dock connections. Technical diagram displays dimensions and assembly of the Wood Dock Splice Plate Set with labeled measurements; includes American Muscle Docks & Fabrication logo. Features galvanized coating on dock sections for enhanced durability. Technical drawing of the Wood Dock Splice Plate Set by American Muscle Docks & Fabrication, showing galvanized coated splice plates and backup plate with labeled dimensions A, C, D, E, F, H and the American Muscle logo at the bottom.

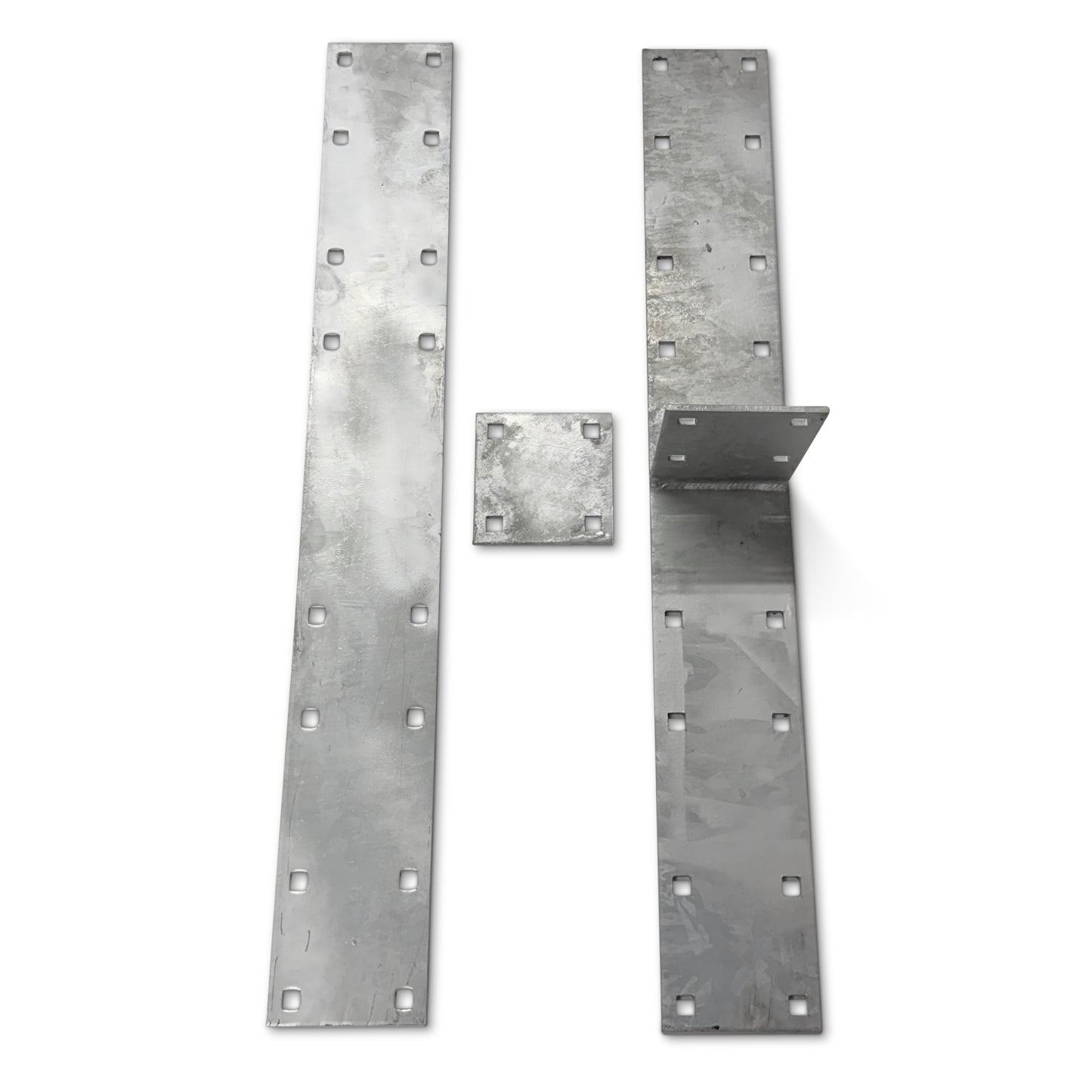

The American Muscle Docks & Fabrication Wood Dock Splice Plate Set includes three galvanized plates with multiple holes, featuring a vertical pin on the top plate and a square plate between two longer plates, ideal for connecting dock sections.

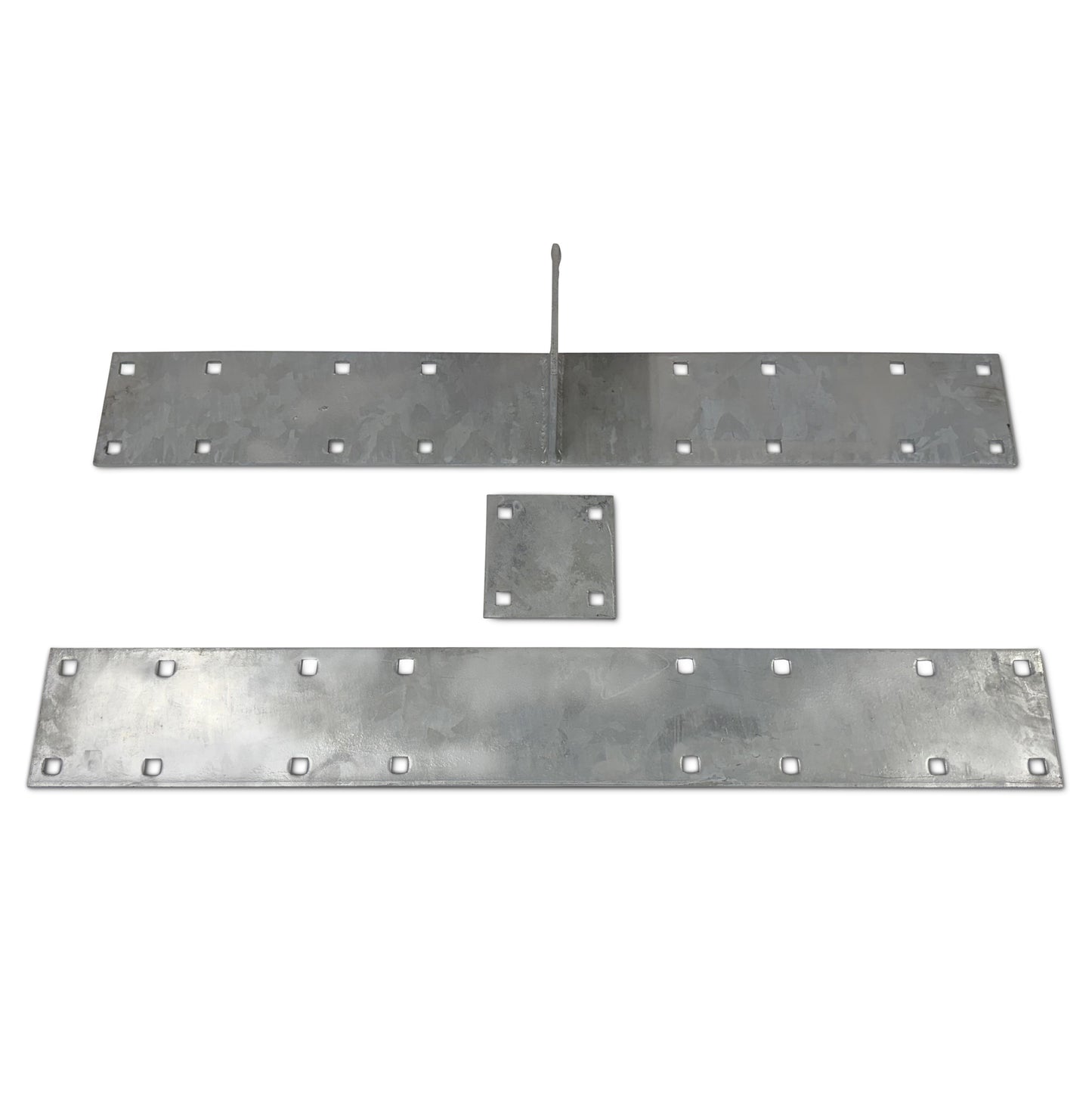

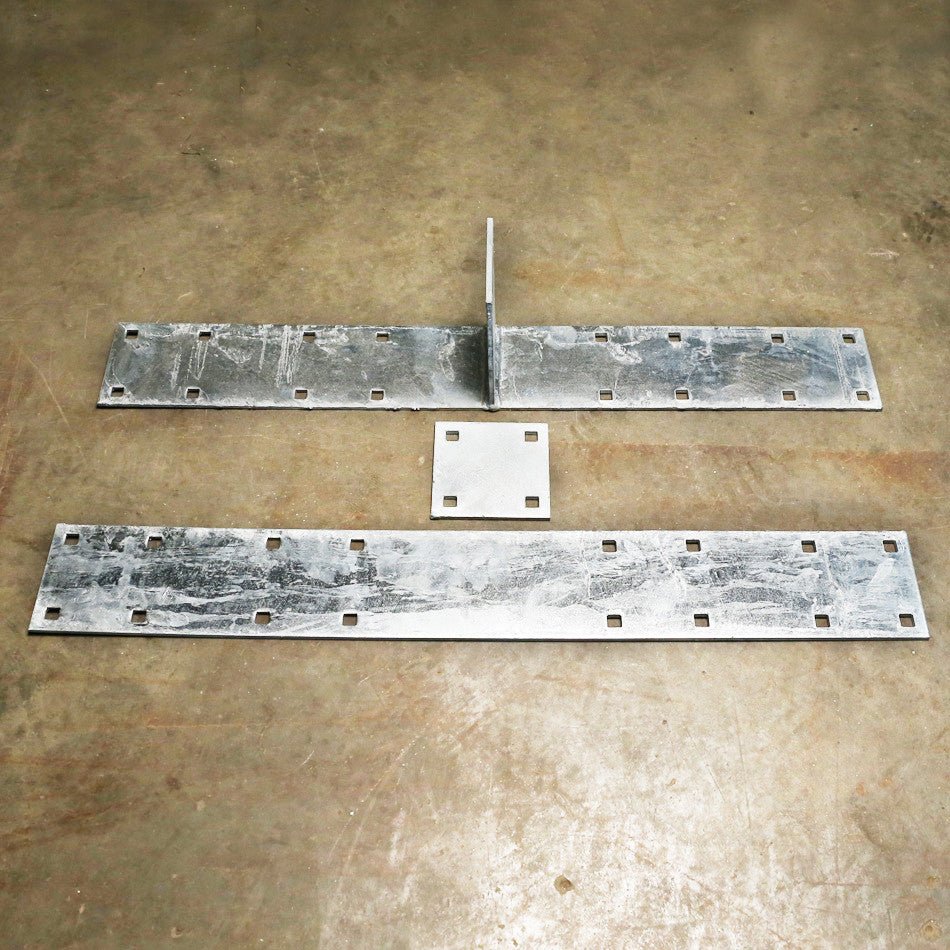

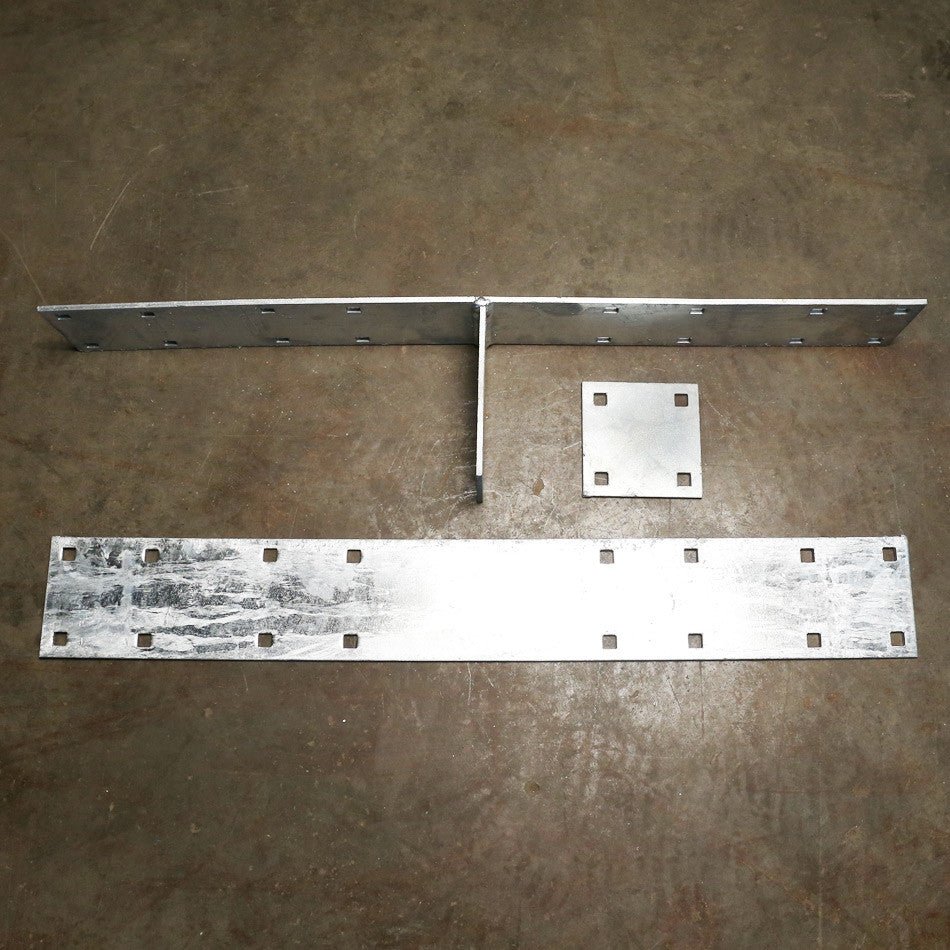

Three galvanized metal brackets from the American Muscle Docks & Fabrication Wood Dock Splice Plate Set are shown on a white background: two long splice plates with multiple holes, and one small square bracket with a perpendicular flange for dock connections.

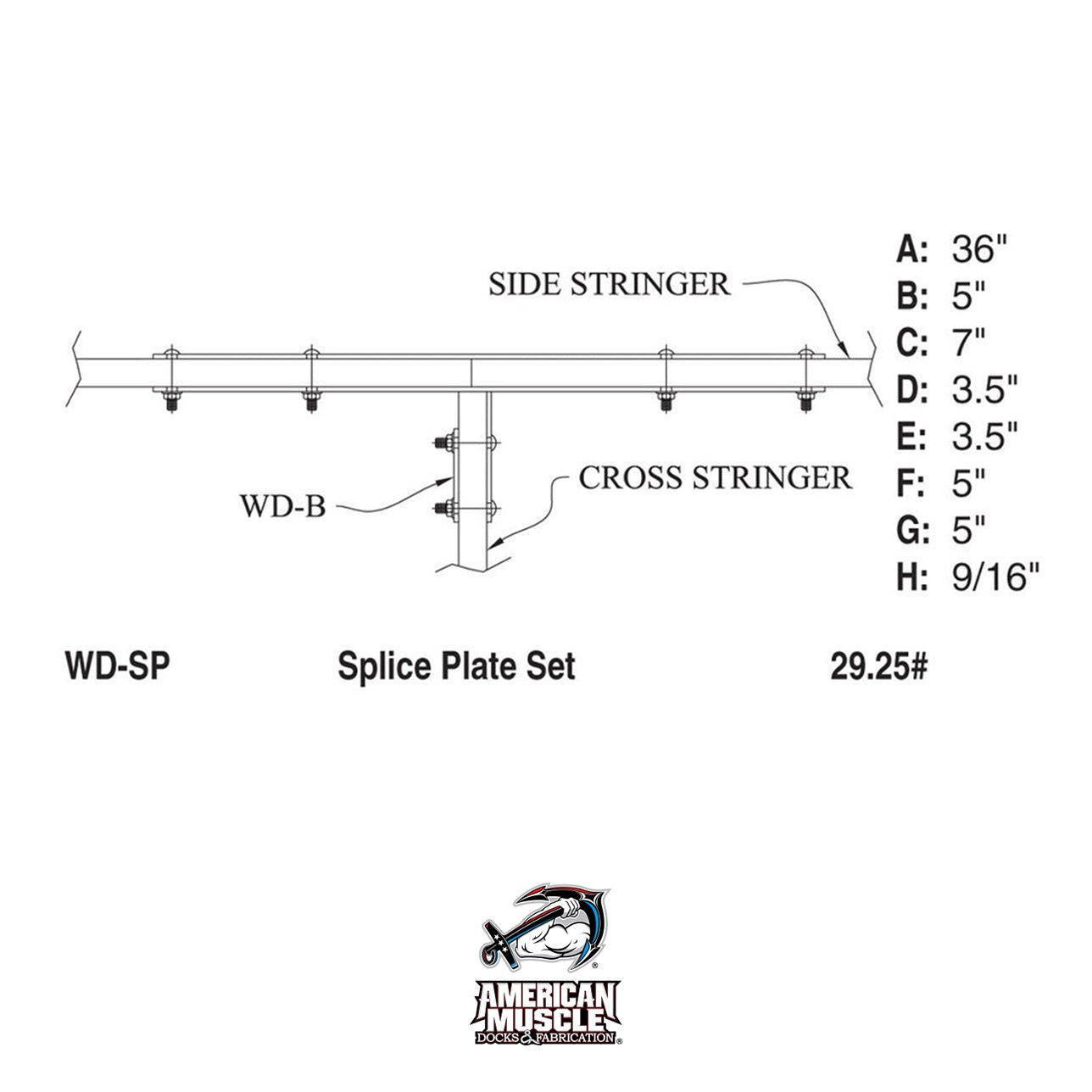

Technical diagram displays dimensions and assembly of the Wood Dock Splice Plate Set with labeled measurements; includes American Muscle Docks & Fabrication logo. Features galvanized coating on dock sections for enhanced durability.

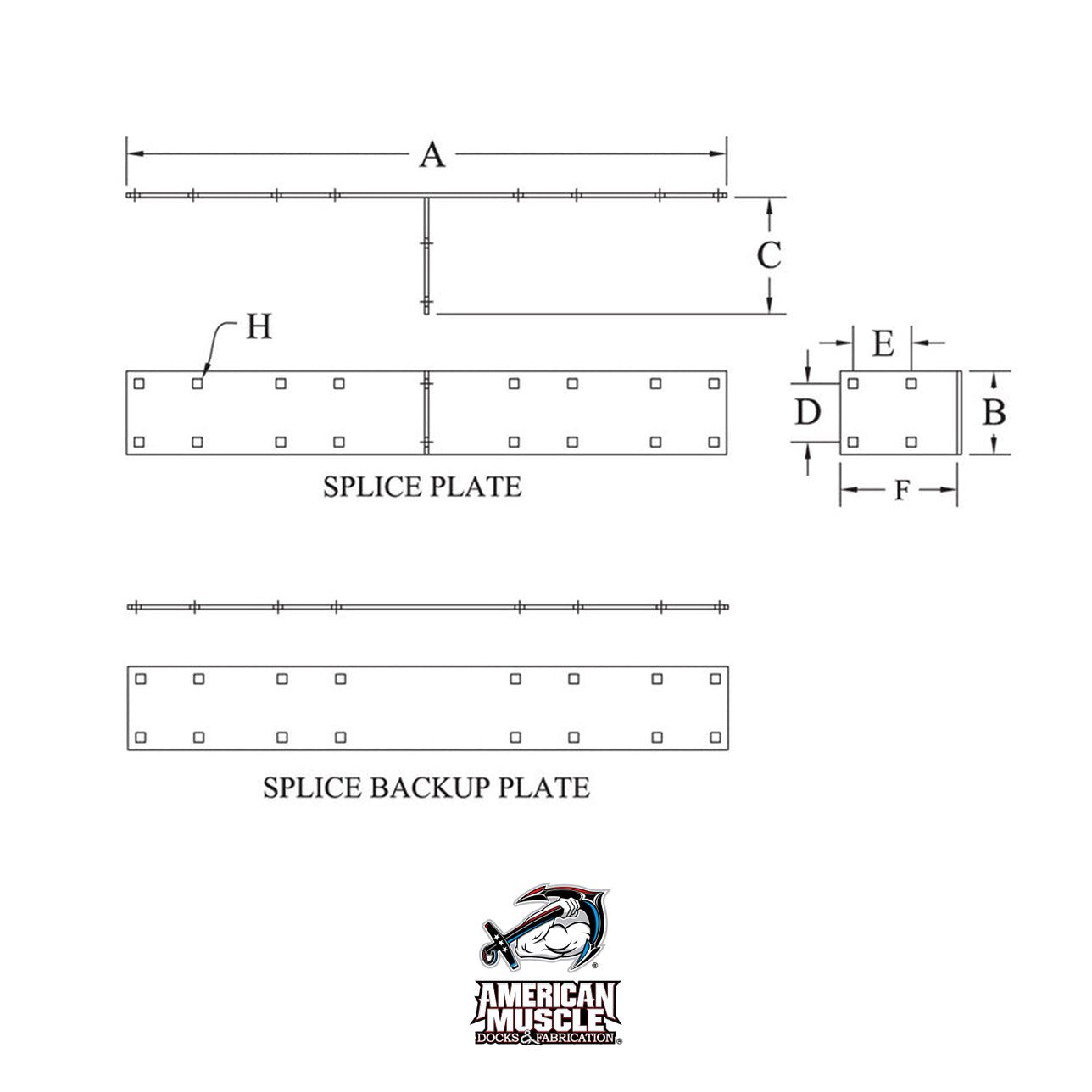

Technical drawing of the Wood Dock Splice Plate Set by American Muscle Docks & Fabrication, showing galvanized coated splice plates and backup plate with labeled dimensions A, C, D, E, F, H and the American Muscle logo at the bottom.

Wood Dock Splice Plate Set

WD-SP
$84.00
$84.00
Shipping calculated at checkout.

Splice Plates are designed to join two side stringers together to make longer dock sections. The flat plate is used on the outside of the stringer, and the T plate is used on the inside of the stringer. The T plate will attach to the cross stringer as shown. Set includes a flat plate and a T plate.

  • ¼”x 36”x 5” Base Plate
  • ¼”x 6.75”x 5” T Plate
  • 9/16” Square Mounting Bolt Holes
  • 4 set of 3.5”x 3.5” Bolt Hole Centers
  • Galvanized Coated

Weight: 29.25 LBS
