Truss Frame
Truss Frame

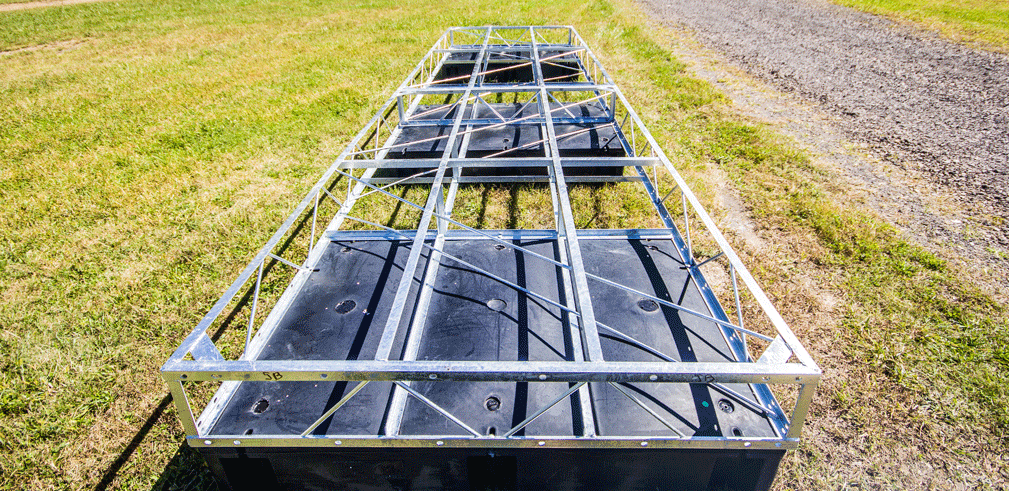

American Muscle Docks steel truss frames are constructed from 1.5" x 1.5" x 3/16" steel angle separated by 1/2" diagonal round bar to create a rigid box frame. Corner gussets are added to the four top corners to provide additional strength.
We prepunch holes in the sides and ends to allow you to bolt the frames side-to-side and end-to-end using 1/2" x 1.5" hex head bolt sets. We also prepunch the top to allow for nailer strips. This gives you the option of attaching the decking directly to the frame or the nailer strip.
Special sizes available.
Request A Quote
Who Choose Our Frames?

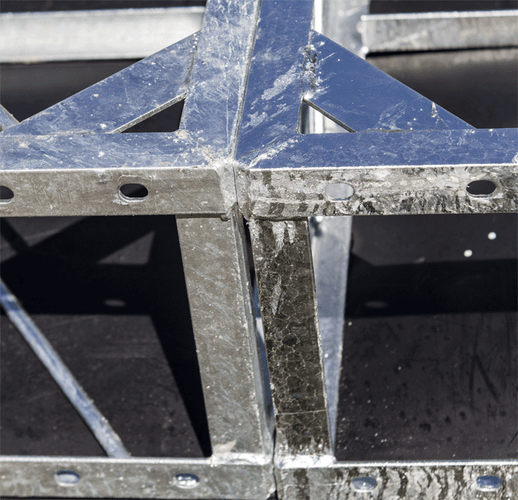

We use more steel and more welds than our competitors. All corners and structural areas of our dock truss frames are designed for maximum strength. Instead of cheapening out on metal or using less effective welding techniques such as edge or butt-welding, our corners are mitred and seam-welded to create a rigid box frame that is superior in strength. These quality differences are easily recognizable when compared to other steel truss docks or aluminum truss dock frames out there. We build to last!
Special sizes available. Call for more information.
SPECIFICATIONS
› We are the manufacturer
› 1-1/2" x 1-1/2" x 3/16" steel angle
› 2" steel available through special order
› Gussets used for rigid strength
› Pre-punched holes positioned further from the edge and elongated
› All metal is galvanized to prevent rusting
› Frames can be bolted directly together or with our hardware
Details
Pricing
Specifications
Shipping & Warranty
$538.00 - 138 lbs.
$581.00 - 170 lbs.
$673.50 - 210 lbs.
$749.00 - 246 lbs.
$803.50 - 280 lbs.
$863.50 - 315 lbs.
$953.50 - 325 lbs.
Note: Pricing does not include delivery. Please use the Quote Request form for a full quote that includes shipping.
All shipping lines are third-party companies. AMD has no affiliation with and cannot be held responsible for its actions. Any changes to destination and/or uncommunicated delivery constraints may result in a back-charged fee.
Our steel dock truss frames are warranted for one year, and we will replace the part if found to be defective. We pride ourselves on letting our product speak for itself. All metal is galvanized, which is the process of applying a protective zinc coating to steel or iron, in order to prevent rusting. We build to last.
We are the manufacturer
1-1/2" x 1-1/2" x 3/16" steel angle
2" steel available through special order
Gussets used for rigid strength
Pre-punched holes positioned further from the edge and elongated
All metal is galvanized to prevent rusting
Frames can be bolted directly together or with our hardware
Note: Dimensions and drawings are for illustration purposes only. Some actual dimensions may vary slightly from what is shown.
